Struggling to find the right PET blow mould for your containers? You know a high-quality mould is absolutely essential for efficient production and top-notch bottle quality, but navigating the technical specifications and supplier choices can be incredibly complex. Getting these decisions wrong can lead to significant wasted investment, frustrating production delays, and subpar products.
The best blowing moulds for PET containers are those precisely engineered to match your specific blow moulding machine's capabilities and are meticulously developed based on a thoroughly vetted and finalized bottle design. Key factors such as the strategic choice of mould materials (balancing cost, longevity, and thermal performance), the profound expertise of your mould supplier, and a rigorous, planned maintenance schedule will collectively determine the mould’s lifespan, your overall production efficiency, and the quality of your final PET containers.
Embarking on in-house PET container production, especially if you previously relied on outsourcing, can present a steep learning curve. One of the most critical early steps is sourcing the correct PET blowing moulds. The world of PET containers is vast – encompassing everything from common single-serve water bottles and intricate cosmetic packaging to robust wide-mouth jars for food products. Each of these container types, and their variations, demands distinct mould technologies and design considerations. For example, as I learned with a long-standing client in Malaysia who manages a factory producing hundreds of unique PET container designs, the nuances are critical. His facility runs 15 diverse blowing machines, and the mould requirements for a simple cold-fill water bottle are vastly different from those for a hot-fill juice bottle, which must withstand temperatures exceeding 95°C. The latter requires specialized bottle design features to prevent deformation and specific mould construction, sometimes incorporating channels for heating elements. Similarly, designing wide-mouth PET jars to achieve the lightest possible gram weight while ensuring optimal structural rigidity is a crucial engineering challenge that can yield substantial cost savings for the client. This initial complexity underscores why a deep understanding of mould fundamentals is non-negotiable for any buyer.
Should You Match Your Blow Moulding Machine and Mould Type Carefully?
Are you finding yourself uncertain whether the blow mould you're considering will seamlessly integrate with your existing or newly acquired blow moulding machine? This doubt is common, particularly for businesses new to in-house PET production. However, overlooking this critical compatibility check can rapidly escalate into expensive mistakes, machine damage, and crippling production standstills. A mismatch between the mould and machine is one of an easily avoidable, yet frequently encountered, pitfall for newcomers.
Yes, unequivocally. The synergy between the blow moulding machine and the mould is paramount. Different types of blow moulding machines—whether they are two-step semi-automatic, fully automatic linear, or high-speed rotary systems—possess unique and often non-negotiable requirements concerning the mould's structural design, mechanical interfaces, preform handling, and critical cooling systems. To ensure efficient, reliable, and safe operation, you must meticulously match the mould specifications to your precise equipment type.
Dive deeper into Machine and Mould Compatibility
When I begin discussions with any client about a new blowing mould project, the very first deep dive we do is into the specifications of their blow moulding machine. It seems like a basic starting point, but its importance cannot be overstated. For instance, semi-automatic machines, often favored for smaller production volumes or startup operations, typically necessitate moulds with simpler mounting systems and might involve more manual interaction for loading preforms or unloading bottles. The clamping mechanisms could be manual or pneumatic toggles, and the cooling circuits are generally less intricate than those found on high-speed automated lines. The mould design must account for potentially slower cycle times and the operator's role.
Moving to fully automatic linear machines, these systems offer enhanced consistency, faster production rates, and reduced manual intervention. Moulds for these machines must be engineered for durability and precision to support these faster cycle times. This includes robust guide systems, precise alignment features for the two mould halves, and highly efficient cooling channel designs. The interface points become more critical: think about the nozzle centering for the blowing air, the stretch rod diameter and stroke length compatibility, and the secure clamping of the mould under pressure. Cooling is especially crucial here; if the mould's cooling connectors (e.g., type, size, and position) don't align with the machine's manifold, or if the flow rate is inadequate, you will face issues like inconsistent bottle quality, longer-than-expected cycle times, and potential material issues like haze or unwanted crystallinity.

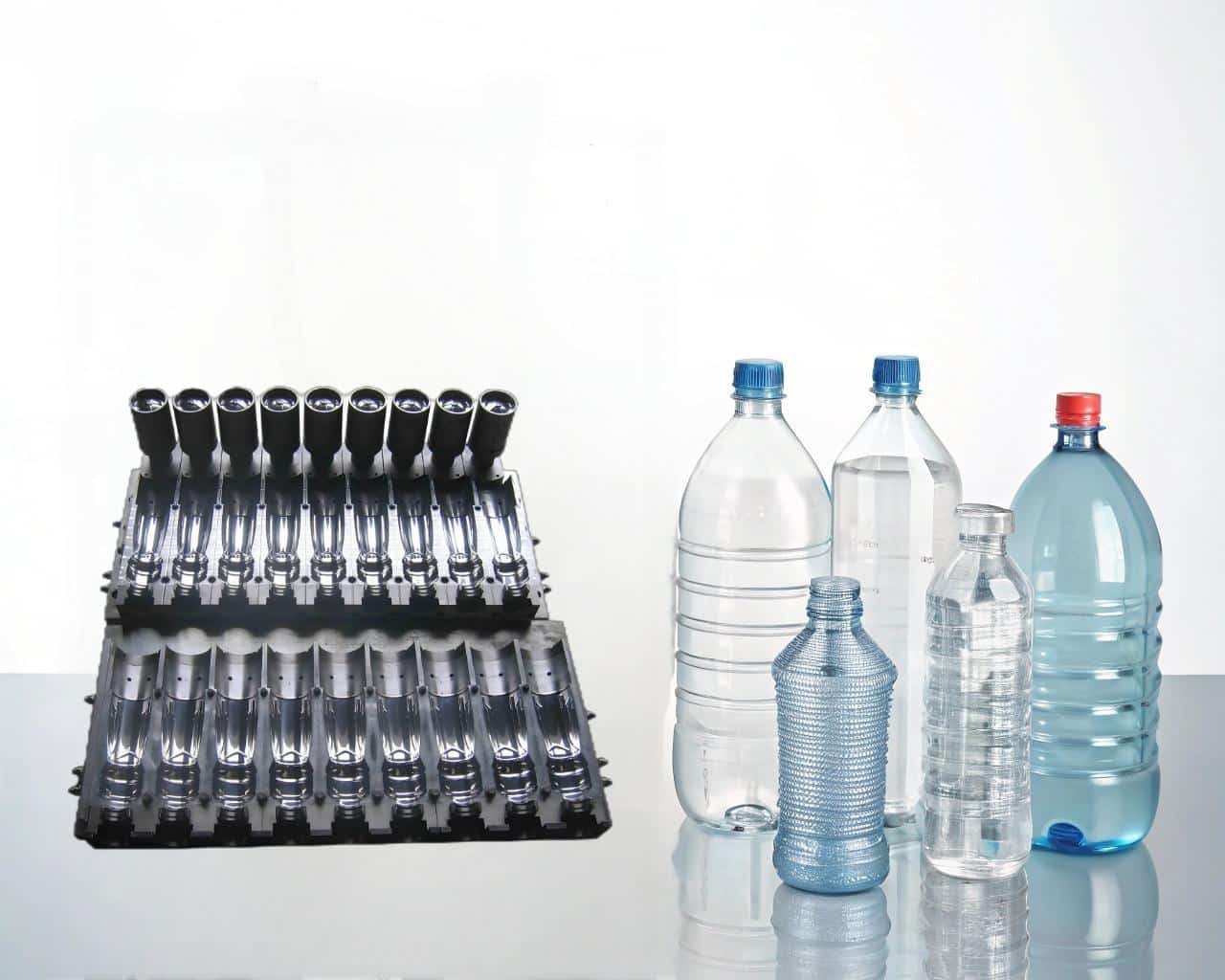

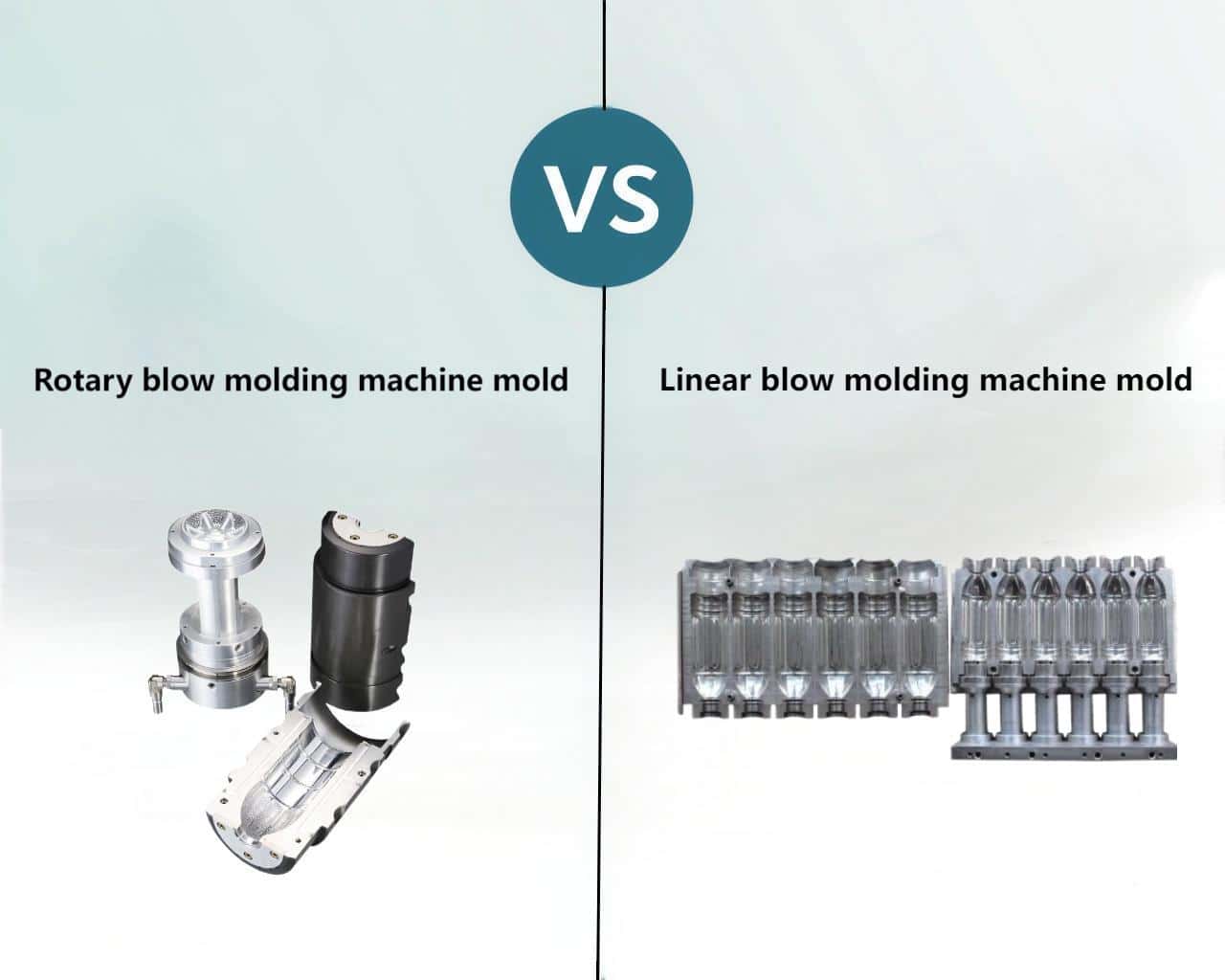

High-speed rotary blowing machines represent the pinnacle for mass production, common in large beverage or water bottling plants. The moulds for these machines are extremely specialized and are built to withstand significant centrifugal forces and rapid, continuous operation. The precision of every interface is critical: from the way the mould segments are mounted on the blowing wheel, to the synchronization with preform transfer systems (like star wheels or grippers), to the connections for high-pressure blowing air, pre-blow air, and cooling water. Even the mould's overall weight and its distribution become engineering factors to ensure the balance of the rotary wheel. I always insist on a detailed checklist of the machine's technical datasheet. For instance, we record platen layouts, tie-bar spacing, maximum and minimum mould height, opening stroke, clamping force, preform neck orientation system specifics, and the type of quick-change systems the machine might employ. This meticulous approach prevents costly errors and ensures the mould integrates perfectly from the first trial.
Machine Aspect | Semi-Automatic Considerations | Fully Automatic Linear Considerations | Rotary Machine Considerations |
---|---|---|---|
Clamping System | Manual toggle, simpler pneumatic/hydraulic | Robust hydraulic/toggle, consistent force | High-speed, high-force, integrated in blowing wheel |
Preform Handling | Often manual loading | Automated pick-and-place or direct transfer | Synchronized high-speed transfer systems |
Cooling Interface | Basic connectors, lower flow demand | Standardized quick connectors, optimized flow paths | High-capacity, multi-circuit, precision connectors |
Nozzle/Stretch Rod | Simpler alignment | Precise, repeatable alignment, stroke critical | Highly precise, dynamic alignment, wear resistance |
Mould Construction | Lighter duty, simpler features | Robust, durable for extended runs | Extremely durable, balanced, specialized materials |
Cycle Time Expectation | Slower | Moderate to Fast | Very Fast |
Why Does Bottle Design Come First in Mould Development?
Are you tempted to rush into mould fabrication with just a basic sketch or concept of your desired PET bottle? Many individuals, especially those new to the industry, underestimate how profoundly the bottle's design dictates every subsequent step in mould engineering. This haste can lead to the creation of moulds that are impractical to run, produce defective or weak containers, or require extensive and costly modifications.
The bottle design is, without exception, the absolute cornerstone of the entire blow mould development process. Every feature of the bottle—from its overall shape and volume to the intricacies of its base, body, shoulder, and neck finish—directly determines the mould's critical dimensions, the complexity of its cavities, the strategic layout of cooling channels, required draft angles for effective demoulding, venting requirements, and even influences the selection of the most appropriate mould material (like specific grades of aluminum or steel).
Dive deeper into the Primacy of Bottle Design
The final PET bottle design is far more than just an aesthetic representation; it's a detailed engineering blueprint that dictates its manufacturability and performance. I vividly recall a client who approached us with a visually stunning design for a square-shouldered bottle with extremely sharp, almost zero-radius internal corners. While it looked modern and unique, from a blowing mould engineering standpoint, it presented significant challenges. Sharp internal corners are notoriously difficult for the PET material to flow into perfectly during the blowing process, often leading to thin spots, stress concentrations, and potential structural weaknesses in the final bottle. Such features also complicate the design of cooling channels needed for uniform temperature control and can make demoulding problematic. We had to engage in detailed discussions, using flow simulations and our experience, to persuade them to incorporate very slight radii in those corners. This small modification, almost imperceptible to the end-user, dramatically improved the bottle's strength and the mould's efficiency without compromising the core design intent.
Let's break down some key bottle features:
- Base Design: The base is critical for stability and strength. Common designs include petaloid bases (for carbonated beverages, providing pressure resistance), champagne bases (also for pressure), and flat bases (for non-carbonated products). For hot-fill applications, the base design often incorporates vacuum panels or special ribbing to absorb the vacuum created as the product cools, preventing distortion. Each base type requires specific mould geometry to form correctly and achieve optimal material distribution.
- Body and Shoulder: The body can feature embossed or debossed logos, textured grip areas, or recessed label panels. These elements must be designed with appropriate draft angles to ensure the bottle releases cleanly from the mould. The angle of the shoulder leading to the neck influences material flow and distribution from the preform.
- Neck Finish: This is arguably one of the most critical parts. It must be moulded with extreme precision to ensure a perfect seal with the chosen cap (e.g., standard PCO 1810/1881, 28/410, 38mm Bericap, or custom closures). The mould tooling for the neck finish (neck ring and neck core pin) is often made from hardened tool steel for maximum durability, even if the main mould body is aluminum.
- Preform Design: While we're discussing the bottle, it's important to remember that the preform design is inextricably linked. The preform's length, diameter, wall thickness, and weight distribution are carefully designed to provide the right amount of material in the right places to form the final bottle. The mould maker often advises on or even designs the optimal preform if not already specified.
Modern practices often involve Finite Element Analysis (FEA) simulations on the bottle design before mould manufacturing begins. FEA can predict top-load strength, burst pressure resistance, drop impact performance, and vacuum absorption capabilities, allowing for design optimization at the digital stage, saving costly trial-and-error with physical moulds.
Blow Mould Materials Compared: Is Aluminum or Steel Better for Your Needs?
Are you grappling with the decision of whether to specify aluminum or steel for your PET blow moulds? This is a fundamental choice with significant implications for your project's budget, production speed, mould longevity, and the types of bottles you can efficiently produce. Selecting an inappropriate material can lead to either excessive upfront costs or premature mould failure and higher long-term expenses.
Aluminum alloys (typically high-strength grades like 7075) offer advantages such as lower initial cost, faster machining times, and superior thermal conductivity, which can translate to quicker cooling and shorter cycle times. This makes them ideal for prototypes, market trial runs, or shorter production series. Conversely, various types of steel (including P20, H13, and stainless steels like S136) provide significantly greater durability, wear resistance, and suitability for high-volume, long-term production, especially with more complex bottle designs or when dealing with PET resins that may have abrasive additives, albeit at a higher initial investment and longer manufacturing lead time.
Dive deeper into Mould Material Selection

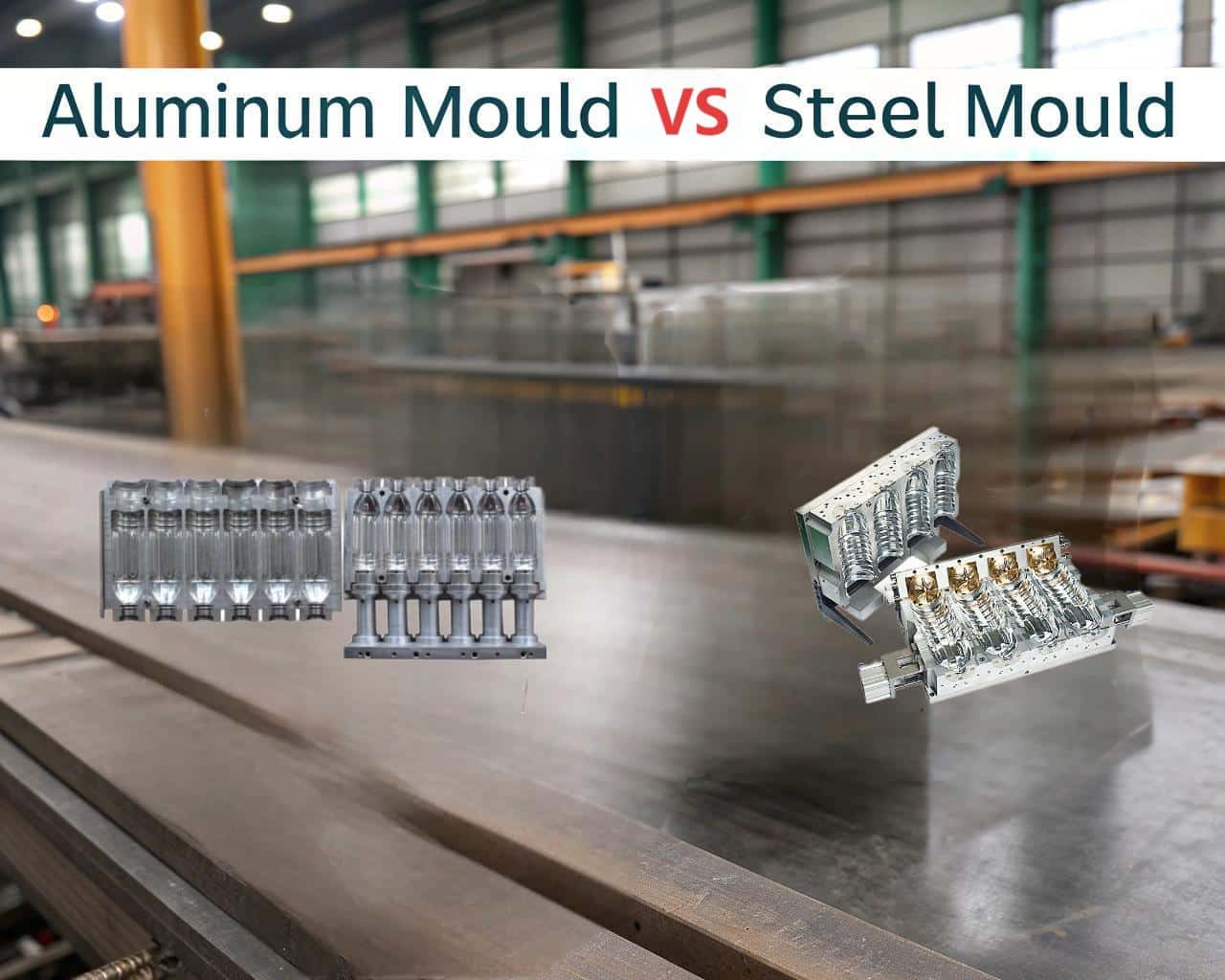

The selection between aluminum and steel for a PET blowing mould isn't a simple "one-is-always-better" scenario; it's a strategic decision based on multiple project-specific factors. I've guided many clients through this choice.
Aluminum Moulds:
Typically, aircraft-grade aluminum alloys such as Al7075-T6 or Alumec 89 are used.
- Advantages:
- Cost and Speed: Aluminum is significantly easier and faster to machine than steel. This translates directly into lower mould manufacturing costs and shorter lead times. For a startup launching a new product, this speed-to-market can be crucial.
- Thermal Conductivity: Aluminum's thermal conductivity is roughly 3-5 times higher than that of common mould steels. This allows for rapid heat dissipation from the blown bottle, potentially enabling shorter cooling times and thus faster production cycles, especially for bottles with thinner walls.
- Prototyping & Low Volume: Ideal for producing a few thousand to a few hundred thousand bottles for market testing, seasonal products, or niche applications.
- Disadvantages:
- Durability & Wear: Aluminum is softer than steel. It's more susceptible to wear from the abrasion of PET material (especially if it contains additives like TiO2 for opacity), damage from mishandling, or flashing if processing parameters are not well controlled. Complex details or sharp edges may lose definition over time.
- Reparability: Welding repairs on aluminum are more challenging and can affect the material's properties locally.
- Lifespan: A typical aluminum blow mould might last for 500,000 to 1 million cycles, depending on complexity and maintenance, whereas steel can go much higher.
- Surface Treatments: While hard anodizing or Nickel-PTFE coatings can improve surface hardness and lubricity, they add cost and may not match the inherent toughness of steel.
Steel Moulds:
Common choices include pre-hardened steels like P20 (good all-rounder for general purpose), H13 tool steel (excellent for hot-fill moulds due to high-temperature strength and toughness), and stainless steels like S136 or Stavax ESR (for high-clarity bottles requiring a mirror polish, or when corrosive conditions might be a concern, e.g., PVC blowing, though less common for PET).
- Advantages:
- Durability & Wear Resistance: Steel is exceptionally tough and resistant to wear, abrasion, and deformation. It can withstand the rigors of very high-volume production (millions of cycles) and maintain tight tolerances for much longer.
- Lifespan: Steel moulds can easily produce 5 million, 10 million, or even more bottles with proper maintenance.
- Complexity & Hot Fill: Better suited for highly complex bottle shapes with fine details, and the preferred choice for hot-fill applications due to its dimensional stability at elevated temperatures.
- Surface Finish & Repair: Can be polished to a very high gloss. Repairs, including welding and re-machining, are generally more straightforward than with aluminum.
- Surface Treatments: Nitriding or PVD coatings (e.g., TiN, CrN) can further enhance surface hardness and wear resistance of specific mould components.
- Disadvantages:
- Cost & Lead Time: Steel is harder and slower to machine, making steel moulds significantly more expensive and time-consuming to manufacture.
- Thermal Conductivity: Steel's lower thermal conductivity means cooling channel design must be highly optimized to achieve efficient cycle times. Sometimes, beryllium-copper inserts are used in critical areas to improve local cooling due to their high conductivity, but this adds complexity and cost.
Hybrid Moulds: Sometimes, a combination approach is used – for example, an aluminum mould body with steel inserts for high-wear areas like the neck rings or pinch-off points at the base. This can offer a compromise between cost, weight, and durability.
The final decision hinges on expected production volume, product lifecycle, bottle complexity, required quality standards, and budget. For my Malaysian client with diverse needs, we use aluminum for his short-run, frequently changing cosmetic bottle designs, and robust H13 steel for his high-volume hot-fill juice bottles.
How Are Cost and Lead Time in PET Mould Production Determined?
Are you frequently puzzled by the wide variations in quotes you receive for PET blow moulds? Understanding the underlying logic behind mould pricing and the factors that influence delivery timelines can be challenging, often leading to difficulties in budgeting accurately and planning your production schedules effectively. This lack of transparency is a common source of frustration for buyers.
The final cost of a PET blow mould is a complex calculation influenced by several key variables: the intrinsic intricacy of the bottle design (including features like undercuts, textures, and critical tolerances), the total number of cavities in the mould, the specific type and precision of the neck finish, the chosen mould material (with steel generally being more expensive than aluminum), and the level of precision machining required. Correspondingly, lead times are dictated by these same factors, compounded by the mould manufacturer's existing production backlog, their operational efficiency, and the complexity of any approval processes.
Dive deeper into Understanding Mould Costs and Timelines
When I prepare a quotation for a new PET blowing mould, it's not just a single number; it's the sum of various interconnected cost elements. Transparency here is key for a good client relationship. Let's explore these components:
- Design and Engineering: This involves the hours spent by experienced designers and engineers to translate the bottle design into a fully functional mould design. This includes 3D CAD modeling of all mould components, designing the cooling system, venting, ejection mechanisms, and creating detailed manufacturing drawings. For complex bottles, flow simulation or FEA might also be part_of this stage.
- Raw Materials: The cost of the chosen mould material (e.g., a block of Al7075 or P20/H13 steel) is a significant factor. Material prices can fluctuate. The size and weight of the required raw material block depend on the bottle size and number of cavities.
- Machining Complexity & Time: This is often the largest cost component.
- Number of Cavities: A single-cavity mould is the simplest. A 2-cavity mould isn't just double the work of a single cavity; the mould base is larger and more complex, and ensuring balance and identical performance from each cavity requires more precision. Costs increase significantly with 4, 8, 16, or more cavities.
- Bottle Complexity: Intricate shapes, textured surfaces (requiring specialized engraving or 5-axis CNC machining), deep ribs, or undercuts (which might necessitate collapsing cores or side actions) dramatically increase machining time and the need for specialized tooling.
- Machining Processes: Standard CNC milling and turning are baseline. However, high-precision grinding, Electrical Discharge Machining (EDM) for sharp internal corners or fine details, and wire EDM for precise inserts add to the cost.
- Neck Finish: The neck ring and core pin components require very high precision machining to meet strict industry standards (e.g., SPI, ISBT specifications) for thread profile, tamper-evident band features, and sealing surfaces.
- Heat Treatment & Surface Treatments: If steel moulds are used, costs for hardening, tempering, or stress relieving are included. Surface treatments like nitriding, PVD coating (for steel), or hard anodizing (for aluminum) add to the cost but enhance performance and lifespan.
- Assembly, Fitting, and Polishing: Highly skilled toolmakers manually assemble all mould components, ensuring perfect fit and smooth operation. Cavity polishing, especially for clear bottles requiring a mirror finish, is labor-intensive.
- Mould Trials & Adjustments: Initial trials (sampling) are usually included to test the mould and make any necessary minor adjustments or "tuning" to achieve the desired bottle quality and cycle time. The cost of PET preforms and machine time for these trials is factored in.
- Supplier Overhead & Profit: Like any business, mould makers have overheads (facility, machinery, utilities, staff) and include a profit margin.
Lead Time Factors:
Lead times for PET blow moulds typically range from 4 to 16 weeks, or even longer for very large, high-cavitation moulds.
- Complexity & Cavitation: More complex designs and higher cavitation naturally take longer.
- Mould Maker's Capacity: A supplier's current workload and order backlog significantly impact lead times.
- Approval Process: Client responsiveness in approving design stages (e.g., 2D drawings, 3D models) is crucial. Delays here directly extend the timeline.
- Availability of Specialized Components: If the mould requires unique standard parts or specialized hot runner components (though less common for blow moulds themselves, more for preform moulds), their procurement time adds to the overall lead.
- Efficiency of the Supplier: Experienced suppliers with optimized workflows and skilled personnel can often deliver faster without compromising quality.
For my Malaysian client, especially with his wide-mouth PET jars where material savings through lightweighting are critical, we might spend more time on upfront design and simulation to ensure the mould produces jars with perfectly consistent wall thickness. This extra initial investment in engineering time is quickly recouped through material cost reductions in mass production.
Can One Mould Be Used on Different Blow Moulding Machines?
Are you entertaining the idea of using a single PET blow mould across multiple, different blow moulding machines in your facility, perhaps as a way to maximize flexibility or reduce tooling investment? While this might seem like an attractive cost-saving strategy on the surface, the reality is that significant compatibility issues can arise, potentially leading to inefficient production, damage to the mould or machines, or even rendering the mould unusable on certain equipment.
In most practical scenarios, directly using one PET blow mould on different blow moulding machines is highly challenging and often inadvisable due to inherent variations in critical machine interfaces. These include clamping mechanisms and platen layouts, preform and blow nozzle alignment systems, cooling water and air connection points (both type and location), and overall machine control and kinematic specifications. While minor adaptations or the use of adapter plates might be theoretically possible in some very limited cases, it's generally an impractical, risky, and potentially costly approach.
Dive deeper into Mould Compatibility Across Machines
The prospect of universal mould interchangeability is certainly appealing for production flexibility, but the technical realities of blow moulding machine design make it a complex issue. I've had many clients ask about this, and the answer usually involves a detailed explanation of why it's rarely straightforward.
Key areas of incompatibility include:
- Mechanical Mounting & Clamping:
- Platen Layout: The platens (mounting plates) of different machines have varying T-slot patterns, bolt hole configurations, and overall dimensions. A mould designed for one machine's platen likely won't directly bolt onto another.
- Tie Bar Spacing: The distance between the machine's tie bars dictates the maximum physical size of the mould that can be accommodated.
- Mould Shut Height & Thickness: Machines have specific minimum and maximum mould thickness (or shut height) capacities. A mould too thick or too thin simply won't fit or allow proper clamping.
- Clamping System: Different machines might use toggle clamps, hydraulic clamps, or a combination, each requiring specific features on the mould base plates for secure attachment.
- Preform Handling & Blowing Station Alignment:
- Nozzle Centering: The alignment between the machine's blowing nozzle(s) and the preform neck held in the mould is absolutely critical. Even slight misalignments can lead to damaged preforms, uneven blowing, or damage to the nozzle or mould.
- Stretch Rod System: The diameter, stroke length, and tip design of the stretch rod(s) must be compatible with the preform and the internal cavity of the mould.
- Neck Orientation: Many machines have systems to orient the preform neck (e.g., for specific thread starts or handle orientation). The mould must be designed to work with that specific orientation system.
- Service Connections (Cooling, Air, Hydraulics):
- Cooling Channels: The location, size, and type of connectors for cooling water inlet and outlet ports on the mould must match the machine's manifold or connection points. Using adapters can sometimes work but may restrict flow or create leak points.
- Air Connections: Connections for high-pressure blowing air, pre-blow air, and any pneumatic actuation within the mould (e.g., for moving cores) are often machine-specific in terms of pressure ratings, flow rates, and connector types (e.g., Stäubli, Hansen).
- Machine Kinematics & Control:
- Opening/Closing Stroke: The machine's mould opening and closing strokes must be sufficient for the mould's height and allow for bottle ejection.
- Ejection System: If the machine has an integrated ejection system, the mould's ejector pins or plates must align and be compatible.
- Control System Integration: More advanced moulds might have sensors or actuators that need to interface with the machine's control system.
While some efforts towards standardization exist for certain components (like some neck ring designs or thread profiles), full mould interchangeability across different machine brands or even substantially different models from the same brand is rare for production-scale PET blow moulds. Creating "universal" adapter plates might seem like a solution, but they can add to the stack height (potentially exceeding machine limits), introduce instability or flexing, and complicate setup.
For my clients with multiple machines, like the one in Malaysia with his 15 diverse units, we maintain meticulous records of each machine's unique "mould interface specification." When a new blowing mould is ordered for a specific machine, it is designed and built precisely to those specifications. This eliminates guesswork and ensures immediate, trouble-free integration and performance. Attempting to "force fit" or heavily modify a mould for a different machine usually ends up being more costly and time-consuming than investing in a correctly specified mould from the outset.
Why Does a Skilled Mould Supplier Save You Time and Money?
Are you of the opinion that all blow mould suppliers offer essentially the same service, with price being the main differentiator? Choosing a supplier based solely on the lowest bid, especially an inexperienced one, can be a costly mistake. This path often leads to poorly conceived mould designs, numerous frustrating and expensive mould trials, extended production delays, and ultimately, a higher total cost of ownership.
A truly skilled and experienced PET mould supplier offers far more than just metal fabrication. They bring invaluable expertise that proactively reduces trial-and-error cycles, anticipates and meticulously avoids potential bottle design defects through Design for Manufacturability (DFM) principles, optimizes the mould for maximum production efficiency and longevity, and ensures shorter, more reliable delivery cycles. This comprehensive approach translates directly into significant savings in both time and money over the lifespan of the mould and product.
Dive deeper into the Value of Supplier Expertise
Investing in a partnership with a highly skilled PET blow mould supplier is one of the smartest decisions you can make for your container production. The value they provide extends far beyond the physical mould itself. Here’s how their expertise translates into tangible benefits:
-
Design for Manufacturability (DFM) Expertise:
An experienced supplier doesn't just take your bottle design and blindly make a mould. They critically analyze it from a manufacturing perspective. They'll look for:- Optimal Material Flow: Ensuring the PET material can flow evenly into all parts of the cavity during blowing, preventing thin or thick spots.
- Consistent Wall Thickness: Designing the preform-to-bottle expansion ratio and mould cavity shape to achieve the desired wall thickness distribution for strength and material efficiency.
- Efficient Cooling Strategy: Designing intricate cooling channels that follow the bottle contour as closely as possible, ensuring rapid and uniform cooling. This is critical for short cycle times and stable bottle dimensions. They will consider water flow rates, turbulence, and pressure drops.
- Effective Venting: Incorporating strategically placed micro-vents to allow trapped air to escape from the mould cavity during blowing, preventing burn marks or incomplete filling.
- Robust Demoulding: Ensuring sufficient draft angles and polished surfaces for easy and damage-free ejection of the bottle.
- Minimizing Internal Stresses: Designing features to reduce residual stress in the bottle, which can affect its performance (e.g., environmental stress cracking resistance).
My Malaysian client, for his wide-mouth PET jars, relies heavily on our DFM input to achieve the lowest possible gram weight while maintaining excellent top-load strength and a quality feel. This collaborative design process, focusing on optimal preform design and mould cavity shaping, saves him tons of PET resin annually.
-
Reduced Mould Trials & Faster Time-to-Market:
Inexperienced suppliers might require numerous mould trials (samplings) to get the bottle right. Each trial consumes preforms, machine time, energy, and labor. Skilled suppliers leverage their experience, historical data, and often advanced simulation tools (like blow moulding simulation software) to predict how the material will behave. This allows them to get the mould design very close to perfect on the first iteration, often requiring only one or two trials for fine-tuning. This drastically reduces the time and cost associated with commissioning a new mould. -
Process Optimization Advice:
A good supplier understands the entire blow moulding process. They can provide valuable advice on optimal processing parameters for their moulds, such as preform heating profiles, blowing pressures (pre-blow and main blow), and timings. This helps you achieve the best possible bottle quality and cycle times from day one. -
Material Knowledge & Selection Guidance:
They can advise on the best mould materials (specific grades of steel or aluminum) and surface treatments for your application, balancing cost, longevity, and performance requirements. For instance, for a hot-fill application, they will insist on appropriate high-temperature steels like H13 and design cooling to manage the thermal loads effectively. -
Superior Project Management & Communication:
Experienced suppliers usually have robust project management systems. They provide clear timelines, regular updates, and maintain open communication throughout the design and manufacturing process. They also provide comprehensive documentation, including final mould drawings, maintenance manuals, and trial reports. -
Post-Delivery Support & Longevity:
The relationship doesn't end when the mould is delivered. A reputable supplier offers post-delivery support, readily available spare parts (like neck rings, core pins, cutting sleeves), and potentially refurbishment or repair services to extend the mould's productive life.
Choosing a supplier solely on price often means sacrificing this invaluable expertise. The initial savings can be quickly wiped out by production inefficiencies, higher reject rates, or premature mould failure. A skilled supplier is a partner in your success. The trust and understanding built over years of cooperation, like the one I have with my Malaysian client where we have detailed records of all his 15 machines and hundreds of bottle types, allows us to move from concept to production-ready blowing moulds with exceptional speed and precision.
Maintenance Matters: How Can You Extend Your PET Mould’s Life?
Are you perhaps underestimating the critical role of diligent maintenance for your PET blow moulds? Treating moulds as "fit and forget" components is a common oversight that can lead directly to premature wear and tear, a noticeable decline in bottle quality (such as increased haze, scratches, or dimensional inconsistencies), and costly, unscheduled production downtime. Consistent and correct care is absolutely essential for maximizing their operational lifespan and return on investment.
A proactive and systematic maintenance regimen—encompassing regular, thorough cleaning to remove PET residues and outgassing deposits, precise lubrication of all moving components, meticulous rust prevention measures, especially during periods of storage, and consistently careful handling practices—is fundamental to significantly extending your PET blow mould’s operational life, maintaining its peak performance, and safeguarding the quality of your bottles.
Dive deeper into Essential PET Mould Maintenance Practices
A PET blow mould is a high-precision instrument, often representing a significant capital investment. Protecting this investment through a well-structured maintenance program is not just good practice; it's economically vital. Here’s a more detailed look at key maintenance aspects:
- Routine Cleaning:
- Why: During the blowing process, volatile organic compounds (VOCs) from the PET material can outgas and deposit onto the mould surfaces, especially in vented areas and intricate cavity details. This build-up, if not removed, can cause a hazy appearance on bottles, surface imperfections, and eventually hinder proper venting, leading to incomplete forming or burn marks. PET dust or fines can also accumulate.
- How:
- In-Machine Cleaning (Wipe-Downs): For minor build-up during production, specially formulated mould cleaning sprays and soft, lint-free cloths can be used. Ensure the mould is at a safe temperature.
- Bench Cleaning (Periodic): Moulds should be removed from the machine at regular intervals (based on production volume or observed quality) for more thorough cleaning. This may involve disassembly of certain components.
- Cleaning Agents: Use solvents specifically approved for mould cleaning that do not damage the mould material (e.g., citrus-based cleaners, specialized mould cleaners). Avoid abrasive pads or tools on polished surfaces.
- Advanced Methods: For stubborn deposits or deep cleaning, methods like ultrasonic cleaning (for disassembled components) or dry ice blasting (CO2 pellet cleaning) are effective and non-abrasive. Ensure all vents are meticulously cleaned using soft brass picks or compressed air.
- Lubrication of Moving Parts:
- Why: Blow moulds contain various moving components like guide pins and bushings, leader pins, wear plates, ejector mechanisms (if any), and sometimes moving cores or slides for undercuts. Proper lubrication reduces friction, prevents galling and seizure, and ensures smooth, precise movement, which is critical for consistent mould operation and longevity.
- How: Use high-quality, high-temperature resistant lubricants appropriate for the specific application (e.g., food-grade grease if required for certain product contact). Follow the mould manufacturer’s recommendations for lubrication points and frequency. Over-lubrication can also be detrimental, attracting dust and contaminants.
- Rust Prevention and Storage:
- Why: Many PET blow moulds are made from tool steels (like P20 or H13) which, while durable, are susceptible to rust if not protected, especially in humid environments or during storage. Aluminum moulds are less prone to rust but can still corrode or oxidize.
- How:
- Post-Production: After a production run, clean the mould thoroughly, ensure all water is blown out of cooling channels, and dry all surfaces completely.
- Rust Inhibitors: Apply a good quality rust-preventative spray or coating to all susceptible surfaces.
- Storage: Store moulds in a clean, dry, and ideally temperature-controlled environment. If possible, cover them to protect from dust. For long-term storage, specialized VCI (Volatile Corrosion Inhibitor) paper or bags can provide additional protection. Ensure cooling channels are either drained and dried or filled with a rust-inhibiting fluid if recommended by the machine or mould maker.
- Regular Inspection and Minor Repairs:
- Why: Early detection of minor issues can prevent major, costly damage.
- How: Before installing a mould and after removing it, visually inspect all critical surfaces (cavities, neck rings, shear edges for flash control) for any signs of wear, nicks, scratches, or damage. Check guide pins and bushings for play. Ensure all bolts are tightened to the correct torque. Address minor issues like small scratches by re-polishing if feasible, or flag for professional repair. Keep a logbook for each mould to track maintenance, repairs, and cycles run.
- Careful Handling:
- Why: Moulds are heavy and precision-engineered. Dropping them or banging them against hard surfaces can cause significant damage (dents, misalignment) that can be very expensive and time-consuming to repair.
- How: Always use appropriate lifting equipment (hoists, cranes) and handling tools designed for mould manipulation. Train operators and maintenance staff on correct mould installation, removal, and transportation procedures.
By diligently implementing these maintenance practices, you not only extend the life of your valuable PET blowing moulds but also ensure consistent high-quality bottle production, minimize scrap rates, and reduce unforeseen machine downtime. It’s an ongoing commitment that pays substantial dividends.

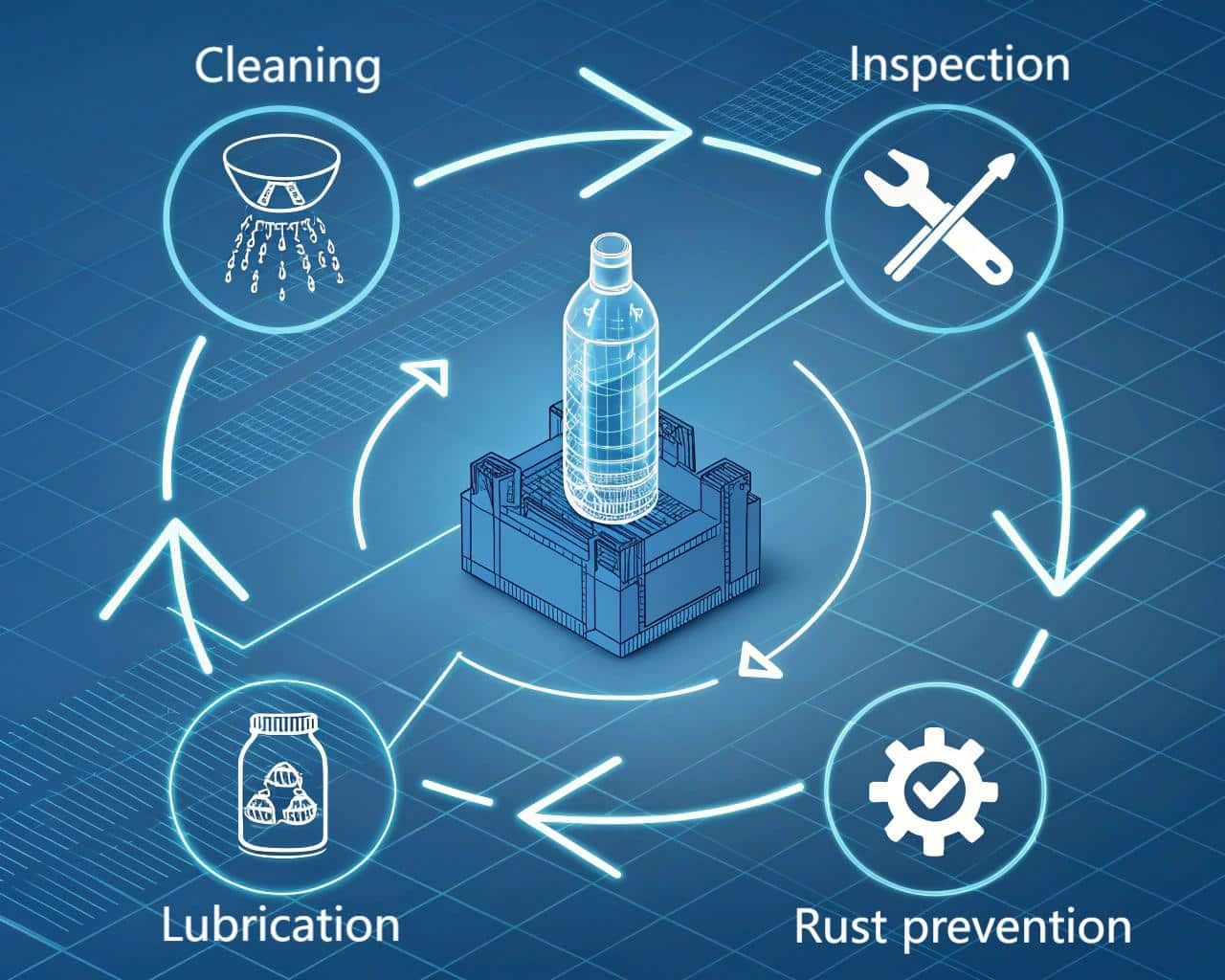

Maintenance Aspect | Key Focus Areas | Recommended Actions & Materials | Impact of Neglect |
---|---|---|---|
Cleaning | Cavity surfaces, vents, parting lines, neck rings | Approved solvents, soft cloths, ultrasonic cleaning, dry ice blasting | Haze, surface defects, incomplete fills, vent clogging |
Lubrication | Guide pins/bushings, slides, leader pins, ejectors | High-temp food-grade grease (if needed), manufacturer-spec lubricants | Increased friction, wear, seizure, inconsistent operation |
Rust Prevention | All steel components, cooling channels (internal) | Rust inhibitors, VCI paper/bags, dry storage, proper draining | Corrosion, pitting, reduced mould life, leaks |
Inspection | Wear on critical edges, polish, damage, component fit | Visual checks, dimensional checks, maintenance logs | Unforeseen failures, major repair costs, poor quality |
Handling | Transportation, installation, removal, storage | Proper lifting gear, trained personnel, designated storage areas | Dents, misalignment, catastrophic damage |
Conclusion
Mastering your PET blow mould procurement means deeply understanding the vital synergy between your mould and machine, prioritizing meticulous bottle design, making informed material choices, and crucially, partnering with a truly skilled and experienced mould supplier for a streamlined and successful outcome.
