Starting a blow molding business but confused by all the equipment choices? The wrong support gear can ruin production and waste a lot of money. Let's make sure that doesn't happen.

Choosing the right support equipment means matching its specifications to your bottle blowing machine. The most important items are a correctly sized air compressor, a water chiller for mold temperature control, and an air dryer with filters. These are not optional; they are essential for quality and efficiency.

I've been in the PET blow molding industry for over 16 years and have helped more than 300 factories get started. I've seen many new businesses make costly mistakes by underestimating how important this support equipment is. It's a critical factor that is too often ignored. Let’s break down exactly what you need so you can avoid the common problems and get your production running perfectly from day one.

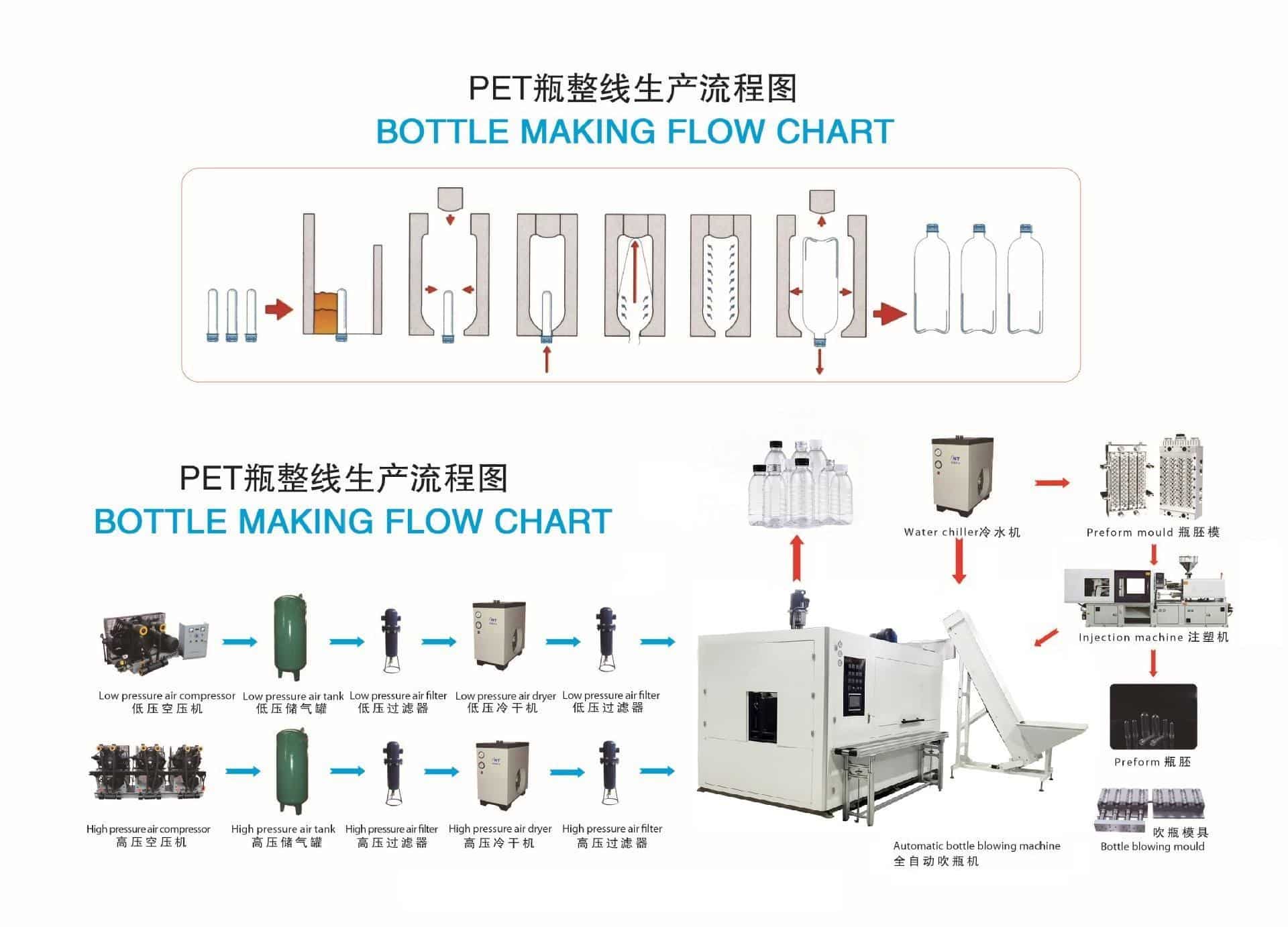

What Essential Support Equipment Does Blow Molding Require?

Worried you might be forgetting a key piece of equipment for your production line? Missing just one component can bring your entire operation to a stop before it even begins.

Every PET blow molding line needs three core types of support equipment. First is an air compressor system to provide blowing air. Second is a water chiller to cool the blow bottle mold. Third is an air treatment system, including a dryer and filters, to ensure the air is clean and dry.

For anyone new to this industry, it's easy to focus only on the main bottle blowing machine. But that machine is useless on its own. It needs these helpers to function. Think of it like a car—you can have the best engine in the world, but without a radiator to cool it and a fuel pump to supply it, you aren't going anywhere. It’s the same principle here. Let's look at each part more closely.

The Core Trio: Air, Cooling, and Purity

• Air Compressor System: This is the heart of your entire operation. It provides the high-pressure air that inflates the PET preforms inside the mold, turning them into bottles. Without a reliable source of compressed air, you simply cannot produce anything.
• Water Chiller: This is the guardian of your product quality. The chiller circulates cool water through the blow bottle mold to keep it at a stable, low temperature. This rapid cooling is vital for achieving good bottle clarity, strength, and a consistent shape.
• Air Treatment System: This includes air dryers and filters. This system cleans the compressed air, removing moisture, oil, and dust particles before they can enter the machine. This prevents defects in your bottles and protects the sensitive components of your machine from damage.

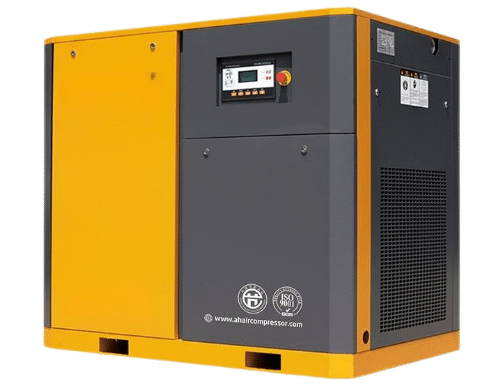

How Do You Choose the Right Air Compressor System?

Are you afraid of buying an air compressor that is too weak or too powerful? A wrong choice will either fail to meet your production demands or just waste money on high energy bills.

To choose the right air compressor, you must match its flow rate (measured in cubic meters per minute, or m³/min) and its pressure (in bar or PSI) to the specific requirements of your bottle blowing machine. Always check the machine’s technical manual first for these numbers.

This is probably the most critical choice you will make after the machine itself. An incorrect compressor is not a small problem. I once had a client in Cambodia who was looking to buy a 4-cavity automatic machine. He told me my price was a bit high and showed me a quote from another factory. I immediately saw the problem. Their quote included an air compressor with only a 2 m³/min capacity. A 4-cavity machine needs at least 4 m³/min to run properly. The competitor's system would have failed.

Key Compressor Specifications

• Pressure (bar/PSI): Blow molding requires two levels of air pressure. Low-pressure air (around 10 bar) is used for the pneumatic movements of the machine itself. High-pressure air (30-40 bar) is needed for the actual bottle blowing. Your compressor system must supply both reliably.
• Flow Rate (Capacity): This is the total volume of air the compressor can deliver per minute. This number must be higher than the total air consumption of your machine. If it's too low, the pressure will drop during operation, and the machine will stop. This is exactly what would have happened to my Cambodian client.

Feature	Importance	What to Look For
Pressure (bar/PSI)	Must meet the machine's high-pressure blowing needs.	Typically 30-40 bar (435-580 PSI).
Flow Rate (m³/min)	Must exceed the machine's total air consumption.	Check the manual for your specific model.

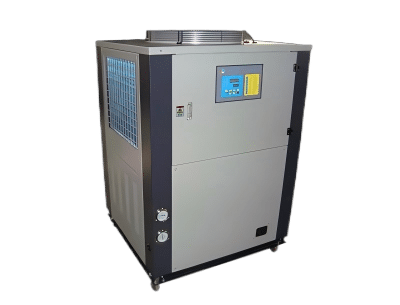

Why Are Chillers So Important for PET Blow Molding?

Are you struggling with producing hazy, weak, or deformed bottles? Your mold temperature is likely the hidden problem that is sabotaging your product quality, and a chiller is the solution.

A chiller is crucial because it maintains a consistent, low temperature in the blow bottle mold. This rapid cooling sets the PET plastic correctly after it's blown, which is essential for ensuring the finished bottle has excellent clarity, physical strength, and a stable shape.

I remember a client from Malaysia who was having terrible results with his bottle production. He bought his machine from another supplier who never told him he needed a chiller. Because he was new to the business, he didn't know any better. He called me for help, and after a short conversation, I knew what the problem was. His blow bottle mold was overheating during production, which caused all his quality issues.

The Science of Cooling

• The blow molding process involves very hot preforms, which are heated to over 100°C. When these preforms enter the mold, they transfer a lot of heat to the metal.
• If this heat is not removed quickly and consistently, the mold's temperature will rise with every cycle.
• An overheated mold cannot cool the plastic fast enough. This leads to common defects like a cloudy or hazy appearance, weak spots, and inconsistent wall thickness. A chiller prevents this by actively pumping cool water through channels inside the mold, carrying the heat away and keeping the temperature stable. This ensures every bottle you make is as good as the first one.

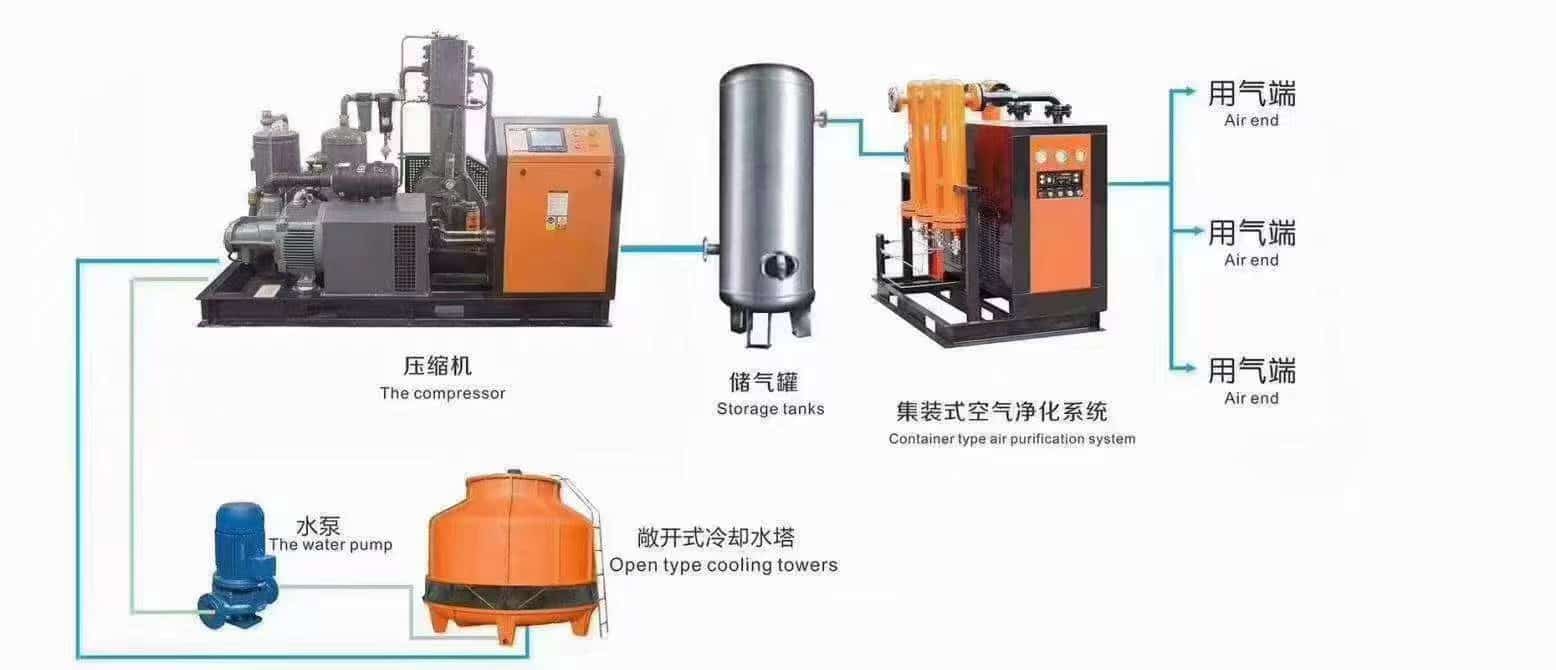

How Do Dryers, Filters, and Tanks Complete Your Air System?

Do you think your compressor is all you need to supply air? The truth is, untreated air from a compressor is dirty and wet, and it can damage your machine and ruin your bottles.

Air dryers remove moisture, filters remove oil and dust, and storage tanks ensure a stable air supply. Together, these components protect your bottle blowing machine from internal damage and prevent product contamination. They make sure the air is clean, dry, and always available at the right pressure.

Think of this part of the system as an insurance policy. You spend a lot of money on a good machine and a good preform mold, so it only makes sense to protect that investment. Contaminated air is a silent killer of production lines. It causes slow, gradual damage to expensive pneumatic parts and can introduce tiny defects into your bottles that you might not notice until your customers complain.

Building a Robust Air System

1. Air Dryer: When you compress air, the moisture in it becomes concentrated. A refrigerated air dryer is the most common type used in our industry. It cools the compressed air down to about 3°C, which causes the water vapor to condense into liquid so it can be drained away.
2. Air Filters: You should always use a series of at least two filters after the dryer. The first is a coarse filter to remove larger dust particles and oil droplets. The second is a fine filter that catches very small contaminants, ensuring the air that reaches your machine is pure.
3. Air Storage Tank: The compressor pumps air into this tank, which acts as a reservoir. This tank does two important things: it provides a buffer to prevent pressure drops when the machine cycles, and it allows the compressor to turn off for periods, saving energy and reducing wear.

What's the Standard Auxiliary Setup for a Semi-Automatic Machine?

Are you starting out with a semi-automatic machine and feeling unsure about the right support gear? Buying mismatched equipment at this stage is a frustrating and expensive mistake that can stop your new business cold.

A standard setup for a semi-automatic blow molding machine typically requires a high-pressure air compressor (around 1.0 m³/min at 30 bar), a small water chiller (around 3HP), and a basic air treatment system with a filter and a small air tank (e.g., 300L).

For many startups, a semi-automatic machine is the perfect entry point. The investment is lower, and it's great for smaller production runs. The support equipment for this kind of setup doesn't need to be huge, but it absolutely needs to be correct. You are building the foundation for your business, so you need to get it right. An incorrect setup here will not only produce bad bottles but also teach bad habits.

A Starter's Configuration

This table shows a typical and reliable configuration for a standard two-cavity semi-automatic machine. It balances performance with a reasonable initial investment.

Equipment	Typical Specification	Why this spec?
Air Compressor	1.0 m³/min @ 30 bar	Provides enough air for lower output without excessive energy use.
Water Chiller	3 HP (Horsepower)	Offers sufficient cooling power for a 2-cavity blow bottle mold.
Air Dryer/Filter	Standard refrigerated type	Effectively removes moisture for this scale of operation.
Air Tank	300 Liters	A small tank is enough to buffer the air supply for intermittent use.

This setup provides everything you need to start producing high-quality bottles on a smaller scale. It's a solid, reliable, and cost-effective way to enter the market.

What's the Recommended Auxiliary Setup for a 2-4 Cavity Automatic Machine?

Are you stepping up to a small automatic machine? The demands on your support equipment will grow significantly, and an undersized system will choke your new machine's potential right from the start.

For a 2 to 4 cavity fully automatic bottle blowing machine, you need a much more robust system. This usually means a 2.5 to 4.0 m³/min high-pressure compressor, a 5HP or larger chiller, and a complete air treatment system with a bigger air tank.

Moving to an automatic machine is a big step. It runs continuously and produces bottles much faster, which means it consumes far more air and generates more heat. This is where getting the specifications exactly right becomes critical. My experience with the Cambodian client is the perfect example. His 4-cavity machine absolutely required a 4.0 m³/min compressor. The 2.0 m³/min unit offered by a competitor would have caused constant production shutdowns.

Scaling Up for Automation

Here is a guide to the auxiliary equipment needed for these popular machine sizes.

Equipment	2-Cavity Automatic Spec	4-Cavity Automatic Spec
Air Compressor	~2.5 m³/min @ 30 bar	~4.0 m³/min @ 30 bar
Water Chiller	5 HP	5-8 HP
Air Dryer	Sized to match compressor output	Sized to match compressor output
Air Tank	600 Liters	1000 Liters

As you can see, the requirements increase substantially with just two more cavities. Under-sizing any of these components will create a bottleneck that limits your entire production line. It's an expensive mistake that is very easy to avoid with the right advice.

How Do You Equip a High-Speed 6-8 Cavity Blow Molding Line?

Are you running a high-speed line and constantly fighting bottlenecks? If you can't reach your machine's rated output, your auxiliary equipment is probably the weak link that is holding you back.

High-speed 6 and 8 cavity lines demand high-capacity, high-reliability support equipment. This means a powerful screw air compressor (e.g., 7.0-10.0 m³/min), a large water chiller (10-15 HP), and a sophisticated air treatment and storage system, often with redundant parts to ensure zero downtime.

When you operate at this scale, everything changes. The focus shifts from just function to overall efficiency and absolute reliability. Every minute of downtime costs a lot of money in lost production. The auxiliary equipment becomes a major part of your operational cost, so it needs to be chosen very carefully. This is not the place to cut corners. A high-speed line is a huge investment, and it requires an equally serious investment in its support systems.

Powering High-Volume Production

• Compressor System: At this level, you will need a large rotary screw compressor. I highly recommend one with a Variable Speed Drive (VSD). A VSD allows the compressor to adjust its speed to match air demand, which can save a huge amount of energy. For an 8-cavity line, you might need a system that can deliver over 10 m³/min of air.
• Chilling System: A powerful chiller of 15 HP or more is necessary to remove the immense amount of heat generated by the fast-cycling preform mold and main machine. Many large factories will use a central chilling system for the whole plant.
• System Redundancy: You simply cannot afford to have your line stop because an air dryer fails. For high-speed lines, it's common to install parallel dryers and filter banks. This way, one can be serviced while the other keeps the line running.

How Can You Optimize Auxiliary Equipment for Energy Efficiency?

Are your high electricity bills eating away at your profits every month? Your support equipment is probably the biggest energy consumer in your entire factory, but it doesn't have to be.

To optimize energy efficiency, you should choose air compressors with Variable Speed Drives (VSD), make sure all equipment is properly sized for the job, and perform regular maintenance. Simple things like fixing air leaks and insulating chilled water pipes can also significantly cut your operating costs.

Over the 16 years I've been doing this, I've seen many factory owners focus on the purchase price of the equipment but ignore the long-term running costs. Energy is a huge operational expense, and your auxiliary equipment is the main driver of that cost. A few smart choices at the beginning can save you tens of thousands of dollars over the life of the equipment. It's one of the easiest ways to make your business more profitable.

Smart Ways to Reduce Costs

• Variable Speed Drive (VSD) Compressors: A standard compressor runs at full power, even when demand is low. A VSD compressor matches its motor speed to the real-time air demand from your bottle blowing machine. This simple change can cut your compressor's energy use by 30-50%.
• Fix Air Leaks: A tiny 3mm hole in a compressed air pipe can cost you over a thousand dollars a year in wasted electricity. You must have a regular program to find and fix air leaks.
• Chiller and Pipe Maintenance: Keep the condenser coils on your chiller clean so it can transfer heat efficiently. Also, make sure all the pipes carrying chilled water to and from the mold are well-insulated to prevent energy loss.
• Right-Sizing: Don't buy oversized equipment thinking it's better. An oversized compressor or chiller running at a low load is extremely inefficient. It's better to buy what you need now and plan for future upgrades.

Conclusion

Choosing the right, correctly-sized support equipment is not an option—it's essential for your success. Match your compressor, chiller, and air system to your machine's needs to ensure quality and profitability.

Frequently Asked Questions

1. Can I use one large air compressor for multiple blow molding machines?
   Yes, this is common in larger factories. However, the central compressor must be correctly sized to handle the combined peak air demand of all machines running at once, and you need a well-designed pipe network to distribute the air without pressure loss.

2. What happens if my compressed air is not dry enough?
   Moisture in the compressed air is a major problem. It can cause cloudy or hazy cosmetic defects in your bottles. More importantly, it will cause rust and corrosion inside the expensive pneumatic valves and cylinders of your blow molding machine, leading to premature failure.

3. Do I really need a water chiller for a semi-automatic machine?
   Absolutely. Even though a semi-automatic machine runs slower, heat will still build up in the blow bottle mold over the course of a production run. This will cause the bottle quality to degrade over time. A small chiller is a very wise and necessary investment.

4. How often should I service my auxiliary equipment?
   You should always follow the service schedule provided by the equipment manufacturer. As a general rule, air compressors need monthly checks and a major service annually. Air filter elements should be checked weekly and replaced every few months, depending on your air quality.

5. Can I buy a cheaper, slightly undersized compressor to save money upfront?
   This is one of the worst mistakes you can make. As my story about the Cambodian client shows, an undersized compressor will not be able to keep up with the machine's demand. This will cause constant production stoppages and low-quality products, costing you far more in lost revenue than you saved on the initial purchase.

---
