PET Wide Mouth Jar Project Starter Guide: Equipment, Molds & Process Explained?

Created by: Vivian

PET Wide Mouth Jar Project Starter Guide: Equipment, Molds & Process Explained?

Struggling with high packaging costs for your products? Traditional jars are expensive and fragile. PET wide-mouth jars offer a modern, cost-effective solution you can produce yourself.

This guide explains everything about starting PET wide-mouth jar production. You will learn about equipment, molds, processes, and costs to make an informed decision for your business.

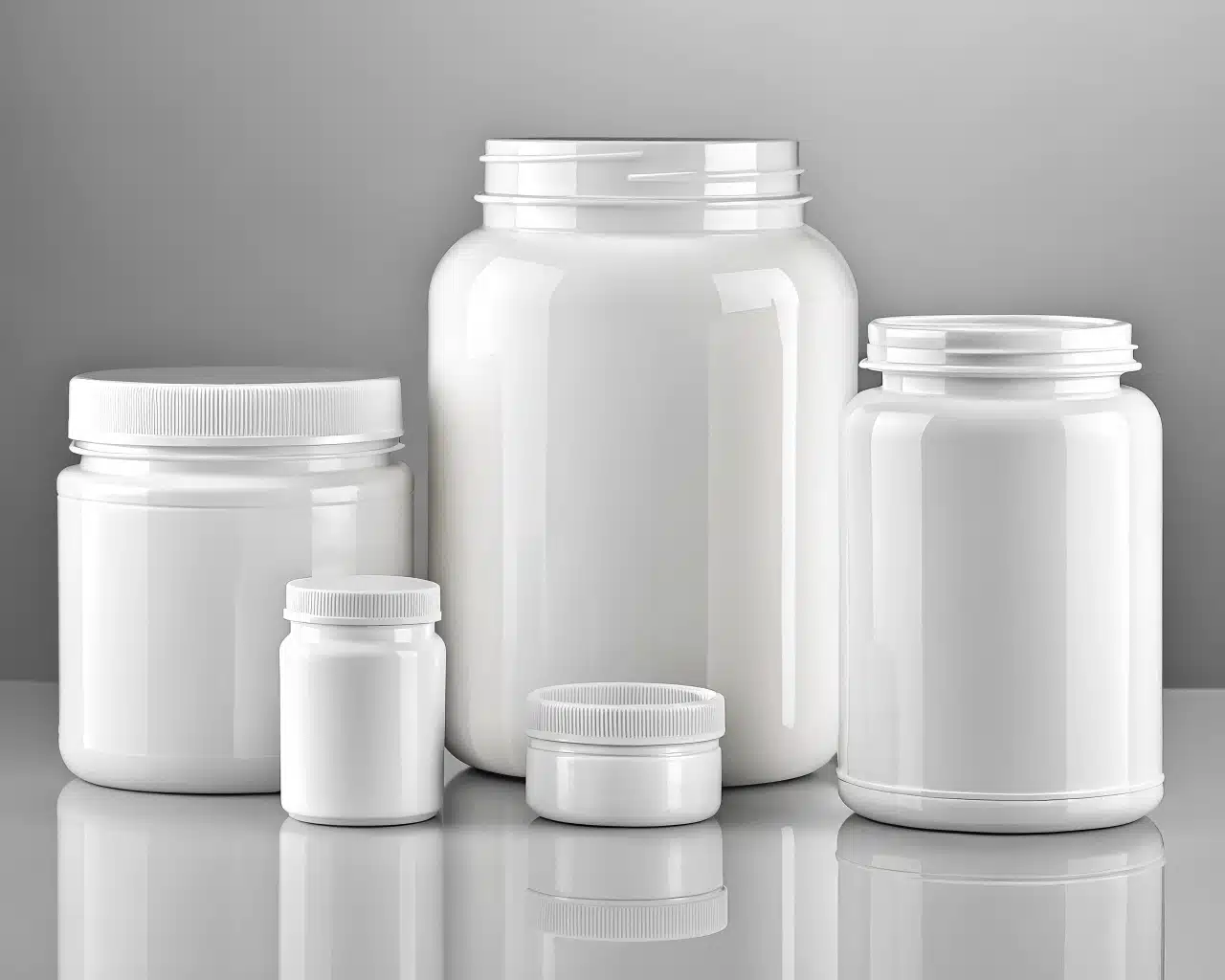

Pet Wide Mouth Jars Assortment

Thinking about making this switch or starting a new venture with PET wide-mouth jars? It might seem like a big step. Let's break down what you need to know to get started smoothly. This journey can be very rewarding.

What Are PET Wide Mouth Jars Used For and What's the Market Potential?

Unsure if PET wide-mouth jars fit your product line? Many businesses face this. These versatile containers are gaining popularity across various industries, signaling strong market growth.

PET wide-mouth jars are used for food (spices, snacks, honey), cosmetics (creams), and pharmaceuticals. The market is growing as businesses seek lighter, shatterproof, and cost-effective packaging alternatives to glass.

Pet Wide Mouth Jars Applications

The versatility of PET wide-mouth jars is a key driver of their growing demand. Let's explore some specific application areas and why they are becoming so popular.

Common Applications

Many industries find these jars useful.

  • Food & Beverage: Think about packaging for items like peanut butter, jams, pickles, candies, coffee, tea, and spices. The clarity of PET showcases the product, and its light weight reduces shipping costs. My client in Peru, for instance, switched from glass to PET for his candy packaging. This dramatically cut his costs for both the jars and transportation. He was so pleased with the results that he expanded his production capacity within a year. This change showed him how much more efficient and affordable PET can be.
  • Cosmetics & Personal Care: Creams, lotions, powders, and bath salts are often packaged in PET wide-mouth jars. They offer a premium look without the risk of breakage that glass poses in bathrooms. This safety aspect is a big plus for consumers.
  • Pharmaceuticals & Nutraceuticals: Vitamins, supplements, and non-liquid medications can be safely stored. PET offers good barrier properties for many products, protecting the contents.
  • Chemicals & Household Products: Certain non-aggressive powders or solids in these sectors also use PET jars. Their durability is an advantage here.

Market Trends

The shift from glass to PET is a significant trend. Look at this comparison:

Feature Glass Jars PET Jars
Weight Heavy Light
Durability Fragile, breaks easily Shatterproof, durable
Transport Cost Higher Lower
Production Cost Generally higher Often lower, especially in volume
Recyclability Recyclable Recyclable (PET code 1)
Barrier Excellent Good (can be enhanced with additives)

This table shows PET's advantages clearly. Businesses are always looking for ways to improve efficiency and reduce costs. PET wide-mouth jars offer a compelling solution. The market potential is strong, particularly in regions where logistics costs are high or where there's a push for lighter, safer packaging. The trend indicates continued growth for PET containers.

Overview of the Standard PET Wide Mouth Jar Production Process?

Curious about making your own PET jars but the process seems complex? Many feel overwhelmed initially. Understanding the basic steps can make it much clearer and manageable.

The standard PET wide-mouth jar production involves two main stages: first, injection molding PET preforms, and second, stretch blow molding these preforms into jars using specialized machines and molds.

Let's look closer at how these jars come to life. The journey from raw material to finished jar involves precise steps. It might seem complex, but each part has a clear purpose.

Stage 1: Preform Injection Molding

This is where it all begins. This stage creates the initial shape.

  1. Material Preparation: Polyethylene terephthalate (PET) resin, in the form of small pellets, is dried thoroughly. This step is crucial. Any moisture can affect the quality of the final preform and jar. This can lead to haziness or reduced strength. Proper drying is essential.
  2. Melting & Injection: The dried PET resin is fed into an injection molding machine. Here, it's heated and melted. The molten plastic is then injected under high pressure into a preform mold. This mold has multiple cavities, each shaped like the preform.
  3. Cooling & Ejection: The preforms cool and solidify within the mold. Once cooled, the mold opens, and the preforms are ejected. These preforms look like test tubes with a threaded neck finish already formed. The neck finish is critical. It will interface with the cap later.

Stage 2: Stretch Blow Molding

This stage transforms the preform into the final jar shape. This is where the jar gets its final form.

  1. Reheating: Preforms are heated again. This happens in a blow molding machine's oven. The heating is carefully controlled. This ensures the preform body reaches the optimal temperature for stretching. The neck area remains cooler to maintain its shape.
  2. Stretching & Blowing: The heated preform is placed into a blow mold. This mold has the final shape of the jar. A stretch rod pushes the preform downwards, stretching it axially. Simultaneously, high-pressure air is blown into the preform. This expands it radially to conform to the mold's shape. This biaxial stretching aligns the PET molecules. This gives the jar its strength and clarity.
  3. Cooling & Ejection: The newly formed jar cools inside the blow mold. The mold then opens, and the finished jar is ejected.

This two-stage process is common for PET containers. It is often called "two-step" or "reheat stretch blow molding" (RSBM). It is especially used when production volumes are high or when preforms are sourced from a specialized supplier. For wide-mouth jars, the specifics of mold design and machine capability are particularly important. Understanding these stages helps in planning your production.

How to Choose the Right Preform Mold? Key Considerations on Neck Size & Weight?

Choosing a preform mold feels daunting with so many variables? You are not alone. Focusing on neck size and preform weight simplifies this critical decision for your jar project.

Select a preform mold based on your jar's required neck diameter, thread type, and overall volume. The preform's weight directly impacts the final jar's thickness, strength, and material cost.

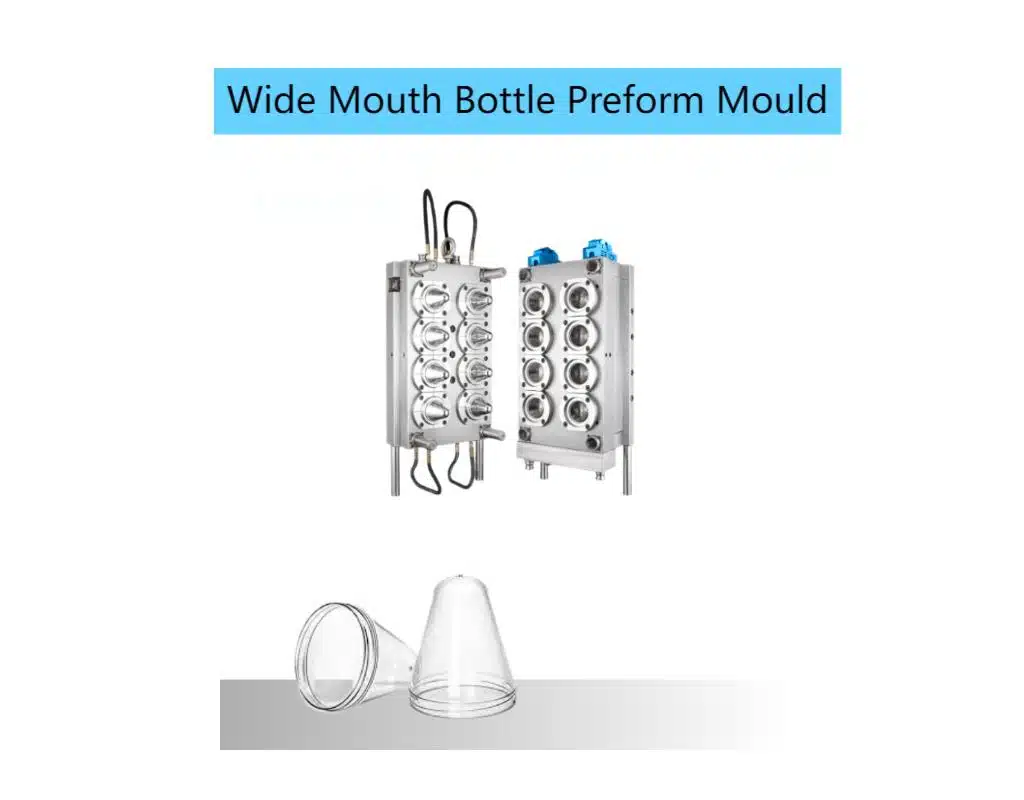

Pet Preform Mold Examples

The preform mold is a cornerstone of your PET jar production. Making the right choice here affects everything downstream. It is a decision that requires careful thought.

Neck Size and Design

The neck is the first thing to define. This part is critical for closure.

  • Diameter: This is usually specified in millimeters (e.g., 70mm, 89mm, 100mm, 120mm for wide-mouth jars). It must match the cap you intend to use.
  • Thread Type: Common thread types include continuous thread (CT) or specific proprietary designs. The thread profile (e.g., 400, 410, 470) determines the cap compatibility. For example, a 89/400 neck finish means an 89mm diameter with a 400 thread profile.
  • Neck Height: This also needs to match the cap to ensure a proper seal.

When I worked with my Peruvian client, we spent considerable time selecting the neck finish. His candies required a good seal to maintain freshness. So, we chose a standard neck that allowed for readily available caps with good sealing liners. This practical choice saved him potential problems later.

Preform Weight and Distribution

This determines the jar's characteristics. It affects the final product's feel and performance.

  • Total Weight: A heavier preform generally produces a thicker, stronger jar. However, it also increases material cost. The target jar volume and its intended use (e.g., hot-fill, stacking strength) will guide the required weight.
  • Material Distribution: It's not just total weight, but how that weight is distributed in the preform. A well-designed preform has more material in areas that will stretch more. This ensures even wall thickness in the final jar. This is especially important for wide-mouth jars. The body-to-neck ratio can be large, leading to significant stretching.
  • Preform Length and Diameter: These dimensions, along with weight, influence the stretch ratios during blow molding. Optimal stretch ratios are key to achieving good clarity, strength, and barrier properties.

Other Considerations for Preform Molds

There are other factors to think about too.

Feature Importance Notes
Number of Cavities Impacts production rate and initial investment. More cavities = higher output but higher mold cost. Match to machine capacity.
Mold Material Affects mold life and preform quality. Hardened steel is common for durability.
Cooling System Critical for cycle time and preform consistency. Efficient cooling leads to faster production.
Hot Runner System Ensures consistent melt flow and reduces material waste. Recommended for PET preform molding.

Choosing the right preform mold requires careful calculation and understanding of your final jar requirements. It is often best to work with experienced mold makers who specialize in PET applications. Their expertise can be invaluable.

How to Choose Your Blow Molding Machine: Semi-Automatic or Fully Automatic?

Machine choice got you puzzled between semi-auto and fully-auto? Many face this dilemma. The decision depends on your budget, production volume, and labor availability.

Choose a semi-automatic blow molding machine for lower initial investment and flexibility with smaller batches. Opt for a fully automatic machine for high production volumes, consistent quality, and reduced labor costs per unit.

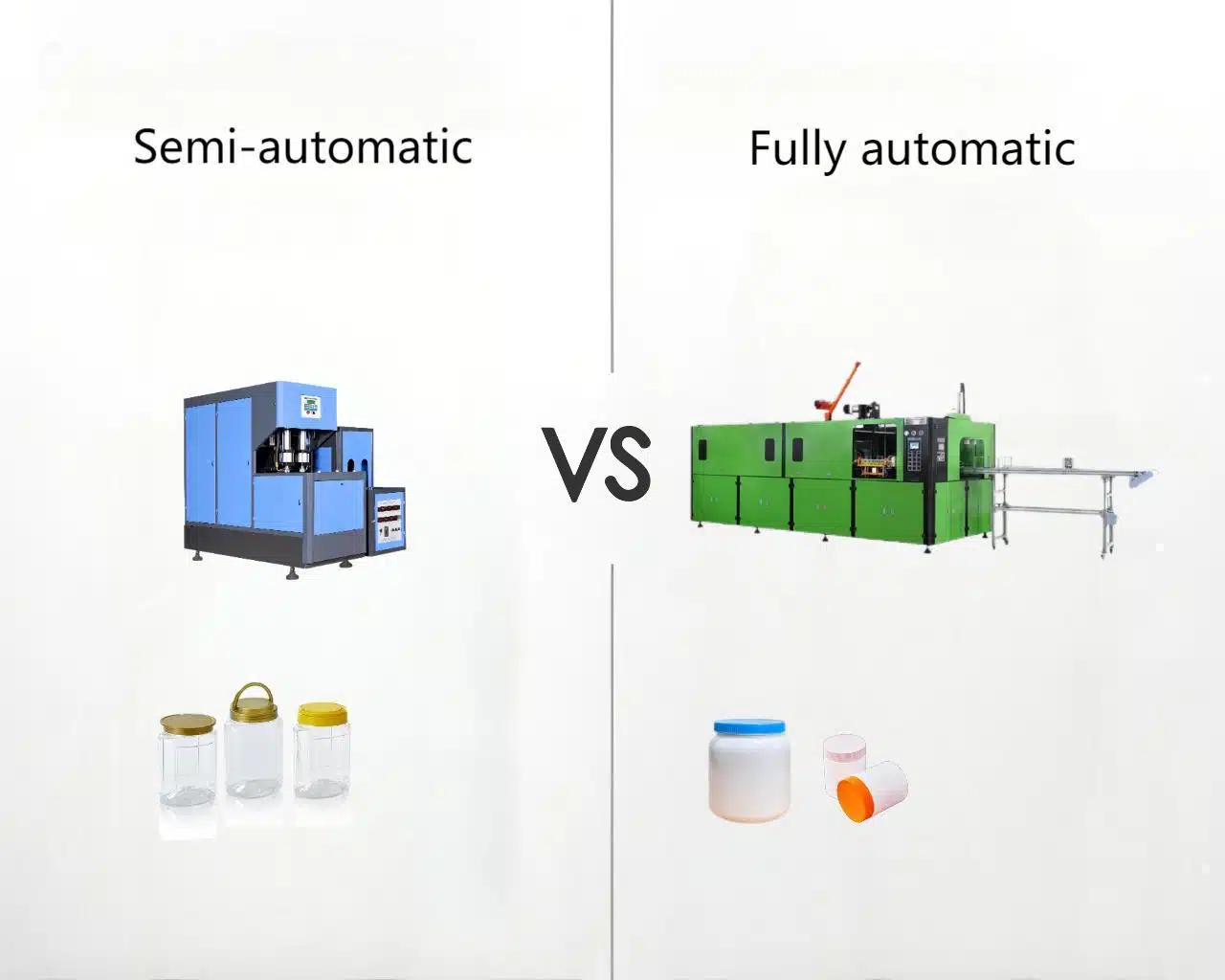

Pet Blow Molding Machines

Selecting the right blow molding machine is a major decision. It impacts your production efficiency, operational costs, and scalability. Let's look at what each type offers.

Semi-Automatic Blow Molding Machines

These machines offer a balance for certain scenarios. They require some manual input.

  • Operation: Preforms are manually loaded into the heating oven. Then, they are manually transferred to the blowing station. The blowing process itself is automated. Finished bottles are also manually removed.
  • Advantages:
    • Lower initial investment cost compared to fully automatic machines. This is a big factor for startups.
    • More flexibility for producing different types of jars in smaller quantities. Changeovers can be quicker and less complex.
    • Simpler to operate and maintain. They require less specialized technical skill.
  • Disadvantages:
    • Lower production output. This limits scalability.
    • Higher labor cost per jar due to manual handling.
    • Potential for inconsistency in product quality if preform heating and transfer are not carefully managed.
    • Less suitable for very high-volume production.

Fully Automatic Blow Molding Machines

These machines are designed for higher output. They operate with minimal manual intervention.

  • Operation: Preforms are automatically fed from a hopper. They go through the heating oven, into the blowing station, and are ejected as finished jars onto a conveyor. The entire process is integrated and continuous.
  • Advantages:
    • High production speeds and output. This is great for large orders.
    • Consistent jar quality due to automated control over all parameters.
    • Lower labor cost per jar. This improves profit margins.
    • Suitable for large-scale, continuous production.
  • Disadvantages:
    • Higher initial investment cost. This can be a barrier for some.
    • Less flexibility for very small runs of diverse products. Changeovers can be more time-consuming.
    • Requires more skilled personnel for operation and maintenance.

Making the Choice

Consider these factors when deciding.

Factor Semi-Automatic Machine Fully Automatic Machine
Initial Investment Lower Higher
Production Volume Low to Medium Medium to High
Labor Cost per Jar Higher Lower
Flexibility Higher (for small, diverse runs) Lower (better for long, consistent runs)
Consistency Operator dependent Higher
Footprint Generally smaller Generally larger
Maintenance Skill Basic to Intermediate Intermediate to Advanced

When my Peruvian client started, he was unsure about the market demand. We initially discussed semi-automatic options. However, given his positive projections for replacing glass jars rapidly, and his aim to minimize long-term labor costs, he opted for a smaller fully automatic machine. This decision paid off, as he quickly needed to increase capacity. For very wide mouth jars, the machine's ability to handle larger preforms and provide sufficient blowing pressure is also a critical selection factor. Your specific needs will guide your best choice.

What Are the Key Structural Features of Blow Molds for Wide Mouth Jars?

Designing a blow mold for wide-mouth jars seems tricky? Specific features are vital. These ensure your jars are strong, well-formed, and meet quality standards consistently.

Key structural features for wide-mouth jar blow molds include optimized cooling channels for faster cycles, robust material for longevity, precise cavity dimensions, and special considerations for the large opening to prevent distortion.

Pet Wide Mouth Jar Blow Mold Design

Blow molds for wide-mouth PET jars have unique design elements due to the jar's geometry. The large diameter of the opening compared to the body height poses specific challenges. Careful design is essential for good results.

Critical Design Aspects

Attention to detail here is crucial for success. Every feature plays a role.

  • Mold Material: High-quality aircraft-grade aluminum or beryllium copper inserts are often used. Aluminum offers good thermal conductivity for cooling and is lighter. Beryllium copper provides excellent heat transfer in critical areas like the base. This improves cycle times and base formation. Steel might be used for very high-volume molds for its durability.
  • Cooling System: Efficient cooling is paramount. Wide-mouth jars have a large surface area.
    • Optimized Cooling Channels: These channels must be strategically placed throughout the mold halves (cavity and bottom). This ensures uniform and rapid cooling. This reduces cycle time and prevents issues like warping or uneven shrinkage. Poor cooling can lead to longer cycle times and inconsistent jar quality.
  • Venting: Proper venting allows trapped air to escape as the PET material expands into the mold cavity. Insufficient venting can cause burn marks, incomplete formation, or a poor surface finish. Vents are typically very small channels. They are often located at parting lines or specific points on the mold.
  • Cavity Design and Finish:
    • Precise Dimensions: The cavity must be machined to exact specifications. This is to produce jars of the desired volume, shape, and wall thickness.
    • Surface Polish: A highly polished mold cavity surface imparts a clear, glossy finish to the PET jar. Any imperfections in the mold will transfer to the jar.
  • Parting Lines: The lines where mold halves meet should be designed to minimize any visible seam on the final product. They must also ensure a good seal during blowing.

Special Considerations for Wide Mouths

The large opening requires focus. It makes these molds different.

  • Base Design: The base of a wide-mouth jar needs to be robust. It must support the contents and withstand stacking. The mold's base insert often has specific features to optimize material distribution and strength in this area. Petaloid bases, common in carbonated drink bottles, are not typical for jars. Flat or slightly recessed bases are more common.
  • Stretch Ratios: Given the wider body relative to preform diameter, achieving optimal biaxial stretch can be more challenging than for narrow-neck bottles. Mold design must work in concert with the preform design and blowing process parameters. This ensures material is adequately stretched for strength and clarity, especially in the shoulder and base areas.
  • Neck Area Support: While the preform neck is already formed, the mold must support it correctly during blowing. This prevents deformation of the threads or sealing surface.

I remember when we were finalizing the blow mold design for my client's candy jars. The main focus was ensuring a flat, stable base and perfectly even wall thickness to prevent any thin spots. This was important as the candies were sometimes packed quite densely. Good mold design is truly an art and science combined.

Essential Auxiliary Equipment and Recommended Workshop Space?

Overlooking auxiliary gear and space can halt your PET jar project? It is a common pitfall. Planning for these essentials from the start ensures smooth, efficient operations.

Essential auxiliary equipment includes an air compressor system, water chiller, resin dryer, and potentially conveyors. Workshop space needs to accommodate machines, storage for raw materials and finished goods, and maintenance access.

Pet Jar Production Line Layout

Beyond the main machines, several auxiliary systems are vital for a PET wide-mouth jar production line. Adequate space is also key for a functional setup. You need to plan for these support systems.

Essential Auxiliary Equipment

These support systems are non-negotiable. They keep the main machines running well.

  1. Air Compressor System:
    • High-Pressure Air: Stretch blow molding requires high-pressure air. This is typically 25-40 bar or 360-580 psi. It's used to stretch and form the PET preforms into jars. A dedicated high-pressure compressor is needed.
    • Low-Pressure Air: Low-pressure air, around 7-10 bar or 100-150 psi, is used for pneumatic controls on the machines.
    • Air Treatment: The compressed air must be clean and dry. Filters, refrigerated dryers, and sometimes adsorption dryers are necessary. They remove oil, water, and particulate matter. These contaminants can damage equipment or affect jar quality.
  2. Water Chiller: Molds (both preform and blow molds) need cooling. Sometimes parts of the machinery, like the hydraulic system of an injection molder, also need cooling. A water chiller circulates chilled water to maintain optimal operating temperatures. This ensures consistent product quality and efficient cycle times.
  3. Resin Dryer: PET is hygroscopic. This means it absorbs moisture from the air. If PET resin is processed without proper drying, the moisture will cause hydrolysis during melting. This reduces the material's intrinsic viscosity (IV) and leads to brittle or hazy jars. A dehumidifying dryer (desiccant dryer) is essential. It reduces moisture content to acceptable levels, typically below 50 ppm.
  4. Mold Temperature Controller (for Injection Molds): While chillers cool, sometimes specific mold sections need precise heating or cooling. This is managed by a separate unit.
  5. Conveyors (Optional but Recommended): Automated conveyor systems can move preforms to the blow molder and finished jars to packing areas. They can significantly improve efficiency and reduce manual labor, especially in fully automatic lines.

Workshop Space Considerations

Plan your layout carefully. Good flow improves efficiency.

  • Machine Area: Allocate sufficient space for the injection molder (if making preforms in-house), blow molder, and all auxiliary equipment. Ensure enough clearance around machines for operation, routine maintenance, and safety.
  • Raw Material Storage: A dedicated, dry area for storing PET resin, colorants, and other additives is needed. Preforms also need a clean storage space if bought externally or produced in batches.
  • Finished Goods Storage: Space to store the produced jars before they are shipped or used.
  • Quality Control Area: A small, well-lit area for inspecting preforms and jars.
  • Maintenance Workshop: A small area with tools for mold changes and minor repairs can be very useful.
  • Utilities: Ensure access to adequate electrical power, water supply, and drainage.

For my client's project in Peru, we calculated a minimum of 200 square meters for his initial setup. This included one automatic blow molder, auxiliary equipment, and modest storage. As he added more machines, this space needed to expand. It's wise to plan for future growth if possible. Proper space planning avoids headaches later.

Cap Types and Neck Matching Guide for Wide Mouth Jars?

Confused about which cap fits your wide-mouth jar? This detail is crucial. Matching caps and necks correctly ensures product integrity, user convenience, and brand appeal.

Common cap types for wide-mouth jars include continuous thread (CT) screw caps, often with liners for sealing. Neck finishes (e.g., 89/400, 110/400) must precisely match the cap specifications for a secure fit.

Various Caps For Wide Mouth Jars

The cap is an integral part of the packaging. It seals the product, allows access, and contributes to the overall look and feel. Getting this right is important for customer satisfaction.

Common Cap Types for Wide-Mouth Jars

Simplicity often wins here. Most wide-mouth jars use straightforward cap designs.

  • Continuous Thread (CT) Caps: These are the most common type. They are simple screw-on caps. They can be made from polypropylene (PP), polyethylene (PE), or sometimes metal (like aluminum).
    • Smooth Sided: Offer a clean, modern look.
    • Ribbed Sided: Provide better grip for opening and closing.
  • Tamper-Evident Caps: These provide security by showing if the package has been opened. This is important for food and pharmaceutical products. Common types include:
    • Drop Band: A ring at the base of the cap breaks away when first opened.
    • Induction Seal Liners: While not part of the cap itself, these liners are sealed to the jar's land area (rim) using an induction sealing machine after filling. This provides excellent tamper evidence and an airtight seal.

Neck Finishes and Matching

Precision is key for a good seal. Industry standards help ensure compatibility.
The jar's neck finish is standardized by organizations like the Glass Packaging Institute (GPI) or Society of the Plastics Industry (SPI). These standards define:

  • T-Dimension: The outside diameter of the thread.
  • E-Dimension: The outside diameter of the neck, excluding the thread.
  • H-Dimension: The height from the top of the neck to the point where the T-dimension is measured.
  • S-Dimension: Measured from the top of the finish to the top of the thread.
  • Thread Profile: The shape and pitch of the threads (e.g., 400, 410, 415, 430). For wide-mouth jars, a 400 profile is very common. It indicates a single, relatively flat thread turn.

Example: A jar with an "89/400" neck finish means:

  • 89: The nominal diameter of the neck opening in millimeters (T-Dimension).
  • 400: The GPI/SPI thread profile standard.

You must ensure that the cap you choose has the exact same designation to guarantee a proper fit and seal. An 89/400 cap will fit an 89/400 jar neck. Mismatched parts will lead to leaks or sealing failures.

Liners in Caps

Liners are crucial for sealing. They sit inside the cap.
Many CT caps for wide-mouth jars contain a liner. The type of liner depends on the product.

Liner Type Material Examples Properties & Uses
Foam Liners (PE/PP) Polyethylene, Polypropylene General-purpose, good for powders, some solids. Provides a decent seal.
Pressure Sensitive Polystyrene Foam + Adhesive Adheres to jar rim with cap pressure. Good tamper evidence for dry products.
Induction Heat Seal Pulp/Foam + Foil + Polymer Hermetic seal, excellent barrier, tamper-evident. Requires induction sealing equipment. For liquids, powders, oily products.
Pulp/Poly Liners Pulpboard + LDPE film Good for mild acids, alkalis, solvents. Common for food products.

Choosing the right cap and liner depends on your product. Consider if it is liquid, solid, oily, or sensitive to oxygen or moisture. Also think about shelf-life requirements and user experience. For my client's candy jars, we used PP CT caps with a simple foam liner initially. Then we explored induction seals for some product lines needing longer shelf life and better tamper evidence.

Startup Budget Guide: How Much Does It Cost to Launch a Wide Mouth Jar Line?

Worried about the startup costs for a PET jar line? It's a significant investment. Understanding the key cost components will help you budget effectively for your project.

Startup costs for a PET wide-mouth jar line vary greatly but include machines (injection molder, blow molder), molds (preform, blow), auxiliaries (compressor, chiller, dryer), and installation, ranging from tens of thousands to millions of dollars.

Financial Planning For Pet Jar Production

Estimating the startup budget is a critical step. Costs can fluctuate widely based on capacity, automation level, and equipment origin (new vs. used, manufacturer reputation). Let's break down where the money goes.

Key Investment Areas

Here's where the money goes. These are the major categories of expenses.

  1. Main Production Machinery:
    • Injection Molding Machine (if making preforms in-house): Cost depends on tonnage, screw diameter, and automation. Can range from $50,000 to $500,000+ USD.
    • Blow Molding Machine:
      • Semi-Automatic: $15,000 - $80,000+ USD.
      • Fully Automatic: $80,000 - $1,000,000+ USD for high-speed rotary machines. For wide-mouth jars, machines might be specialized and cost more.
  2. Molds:
    • Preform Molds: Highly dependent on the number of cavities, complexity, and steel quality. A multi-cavity hot runner preform mold can cost $10,000 - $100,000+ USD.
    • Blow Molds: Depends on the number of cavities per machine, jar complexity, and mold material (e.g., aluminum vs. steel). A single-cavity aluminum mold for a wide-mouth jar might be $3,000 - $10,000 USD. Multi-cavity steel molds are much more.
  3. Auxiliary Equipment:
    • Air Compressor System (high & low pressure, dryer, tank): $5,000 - $50,000+ USD.
    • Water Chiller: $3,000 - $30,000+ USD.
    • Resin Dryer: $3,000 - $25,000+ USD.
    • Conveyors, grinders (for scrap), etc.: Variable, $2,000 - $20,000+ USD.
  4. Installation & Commissioning: Typically 5-10% of equipment cost.
  5. Workshop Preparation: Electrical upgrades, plumbing, potential structural modifications. Highly variable.
  6. Initial Raw Materials: PET resin, masterbatch, caps, liners. Budget for at least a few production runs.
  7. Training: For operators and maintenance staff.
  8. Contingency: Always budget 10-20% for unforeseen expenses. Something unexpected always comes up.

Example Scenarios (Very Rough Estimates)

These are general figures to give you an idea.

Scenario Estimated Range (USD) Notes
Small-Scale, Semi-Automatic $70,000 - $200,000 Sourcing preforms, basic auxiliaries. Lower volume, higher labor.
Medium-Scale, Fully Automatic $250,000 - $700,000 Sourcing preforms or small in-house preform machine, good auxiliaries.
Large-Scale, Fully Integrated $800,000 - $3,000,000+ In-house preform production, high-speed blowing, full automation.

My Peruvian client started with a budget in the medium-scale range for his first fully automatic line and essential auxiliaries. He sourced preforms initially. This allowed him to enter the market relatively quickly. He then reinvested profits to add more capacity and consider backward integration into preform manufacturing.
It's crucial to get detailed quotes from multiple suppliers. Also, consider Total Cost of Ownership (TCO), not just the upfront price. This includes energy consumption, maintenance, spare parts, and expected equipment lifetime. Thorough financial planning is essential for success.

Conclusion

Starting a PET wide-mouth jar project involves careful planning of equipment, molds, and processes. With the right approach, it’s a rewarding venture meeting modern packaging demands.


📖 Learn More About Blow Molding and Preform Production

To better understand the technical processes behind PET bottle manufacturing, you may refer to the following authoritative resources:

Vivian-Overseas Manager

16 years in plastic packaging, delivering trusted and efficient solutions.

about Jindong Machinery

Our factory, established in 2004 by our predecessors, specializes in the research and manufacturing of plastic packaging machinery. As one of the earliest PET packaging machinery manufacturers in China, we provide one-stop solutions from injection molding to blow molding and filling. With an 8,000m² self-built facility and a team of over 60 employees, including 10+ R&D experts and 5 designers, we hold a 30% market share domestically. Over the past 20 years, we have contributed significantly to our clients by optimizing production efficiency, reducing operational costs, and delivering customized designs for product innovation, earning widespread recognition and trust.

Send us your requirements to get free customization

16 years of experience in PET plastic packaging equipment industry, Jindong Overseas Sales Manager,

error: Content is protected !!

Free design

Free design

Free design
