When a strategic decision is made to launch a new product line with a different preform neck size, a critical challenge is passed to the production floor. A common, yet costly, misunderstanding is to view this as a simple "material swap." In the world of high-speed automated manufacturing, however, this seemingly minor dimensional change is a systemic event that ripples through the entire blow molding ecosystem. Any oversight, any shortcut based on assumption, can lead to immediate production halts, catastrophic scrap rates, and irreversible damage to high-value capital equipment.

Successfully executing a neck size changeover is not about improvisation; it is about a rigorous, systematic process of hardware replacement and parameter recalibration, grounded in engineering principles and material science. This definitive guide will not only list the components you need to change but will also provide a deep dive into the "why" behind each step, supported by real-world case studies and technical analysis. Our goal is to empower you to turn every line changeover into a controlled, efficient, and successful strategic implementation.

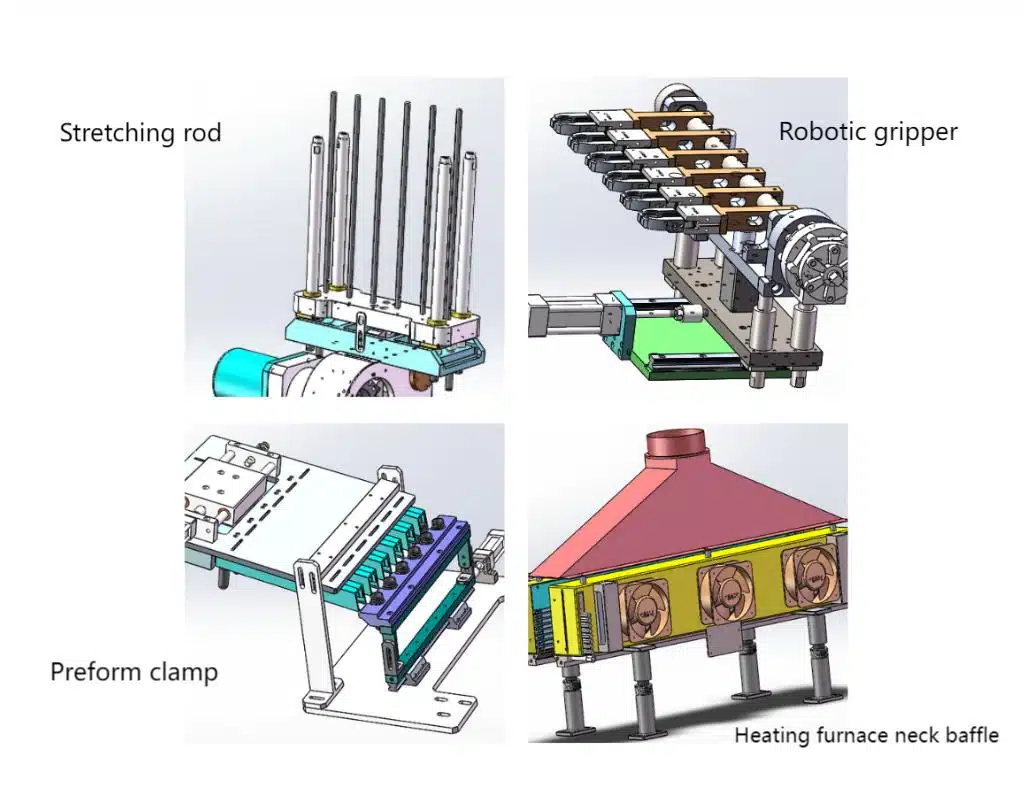

Executive Summary: The Mandatory Changeover Checklist

Don't have time for the full deep dive? When changing preform neck sizes, the following core components must be replaced or recalibrated. There are no exceptions.

• Heating System:
  • Hardware Swap: Neck Guard / Neck Shield
  • Parameter Reset: A completely new heating profile (zone-by-zone power settings)
• Transfer System:
  • Hardware Swap: Preform Grippers / Transfer Grippers
• Stretching System:
  • Hardware/Parameter Reset: Stretch Rod effective length and motion profile
• Blowing System:
  • Hardware Swap: Blow Nozzle / Sealing Head
• Mold System:
  • Hardware Swap: Neck Ring (Neck Insert) & Centering Inserts

1. The Systems Approach: Why a Neck Changeover Isn't "Plug-and-Play"

The first step to mastering the changeover process is to view your bottle blowing machine as a highly integrated, organic ecosystem. It is not a mere assembly of parts, but a holistic system where every component collaborates on a millisecond timescale. A new preform neck size is a fundamental change to the system's core physics, and its effects cascade through every subsequent module.

Thinking in Systems: The Journey of a Preform

Imagine the journey of a single preform as a high-speed relay race. Each stage passes the baton to the next, and the baton's size has just changed.

• Leg 1 (Infeed & Heating): The preform's neck diameter dictates how it sits on the infeed rail and, more critically, the clearance it has with the Neck Guard in the heating oven. The wrong clearance means either a physical jam or a scorched, useless preform.
• Leg 2 (Transfer): The Preform Gripper must grasp the preform's support ring at incredible speed and acceleration. The geometry of this support ring is directly tied to the neck size. The wrong gripper is like asking an adult to run a race in a child's shoes.
• Leg 3 (Mold Entry & Centering): The preform is delivered into the blow bottle mold, where it must be perfectly stabilized in the exact geometric center by the Centering Inserts and Neck Ring. These components are machined to the precise outer contour of the preform neck.
• Leg 4 (Stretching & Blowing): The Stretch Rod must enter through the dead center of the neck opening, and the Blow Nozzle must form a perfect seal on top. Any slight angular deviation from the previous stages, caused by a dimensional mismatch, is amplified exponentially here, leading to rod collision, high-pressure air leaks, and a failed cycle.

This is a chain of dependencies. A break in any single link causes the entire relay race to fail. Therefore, a neck size change demands a systematic hardware and parameter overhaul that addresses every single dimension-critical node in this chain.

2. The Heating System: A Deep Dive into Thermal Dynamics

The heating of the preform is the most nuanced and critical preparatory stage in the entire blow molding process. The ultimate goal is to bring the preform's body to the optimal "stretching window"—a temperature above its glass transition temperature (Tg) but well below its melting point (typically 95°C - 110°C)—while rigorously keeping the neck and thread area cool and crystalline to maintain its dimensional stability and mechanical strength.

Mandatory Hardware Swap: The Neck Guard (Neck Shield)

This is the most visually obvious and non-negotiable hardware replacement in a changeover. The neck guard, usually a plate of stainless steel or coated aluminum with precision-machined orifices, acts as a physical shield. It precisely shadows the neck and thread area, protecting it from the intense thermal energy of the infrared (IR) lamps in the oven.

• If the guard's orifice is too small: The new, larger preform neck will not pass through, resulting in a physical jam and production line stoppage.
• If you use an old, larger guard for a new, smaller preform: The excessive clearance will allow IR energy to "leak" onto the thread area. This will cause the threads to soften, deform, or lose their vital crystallinity, making it impossible for a cap to seal properly later on. The entire bottle becomes scrap.

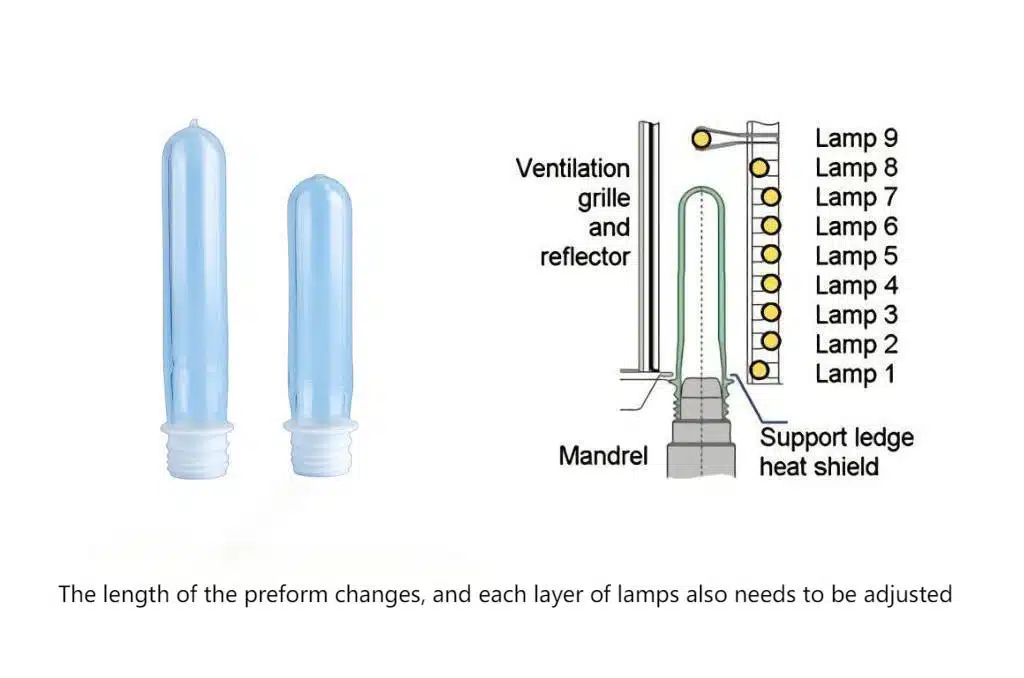

Parameter Reset: Building a New Heating Profile

Replacing the neck guard is only the first step. The core of the work lies in developing a completely new heating program for the new preform, as a different neck size almost always corresponds to a different weight, wall thickness, and even color. This is far more complex than simply turning the overall temperature "up" or "down."

• Infrared Physics & PET Absorption: PET material has a high absorption efficiency for mid-wave IR radiation. The lamps and power outputs are designed to maximize this energy transfer. A thicker preform wall requires a longer heating time or higher energy intensity to allow the thermal energy to penetrate uniformly to the inner wall.
• Multi-Zone Control: Modern ovens are divided into 8-12 independent heating zones from top to bottom. This allows for precise control over the temperature gradient along the preform's length. For instance, the area that will become the bottle's shoulder often requires a different heat profile than the main body or the base. You must act as a "thermal sculptor," adjusting each zone's power percentage to create the ideal heat distribution.
• Impact of Color and Additives: A darker preform (e.g., amber or green) will absorb IR energy much more rapidly than a clear one. Its heating profile will require significantly lower power settings to avoid overheating.

Sample Heating Profile Comparison

Parameter	20g, 28mm Clear Water Preform	35g, 38mm Amber CSD Preform
Neck Guard	28mm Orifice	38mm Orifice (Mandatory Replacement)
Zone 3 Power (Main Body)	65%	58% (Darker color absorbs heat faster)
Zone 6 Power (Base)	55%	65% (Thicker base requires more energy)
Total Heating Time	45 seconds	60 seconds (Heavier, requires more soak time)
Oven Fan Speed	80%	95% (Higher heat input requires more surface cooling)

As this table illustrates, heating adjustments are multi-dimensional and non-linear, requiring a deep understanding of material science and equipment characteristics.

3. Preform Grippers: A Game of Millimeters at High Speed

The Preform Gripper (or transfer gripper) is the high-speed artery connecting the two major organ systems of the machine: heating and blowing. On a machine producing over 10,000 bottles per hour (BPH), it executes a cycle of grasp, transfer, position, and release with a speed that is a blur to the human eye. Its precision and reliability directly dictate production stability.

Why Replacement is Non-Negotiable

A gripper is a highly customized component. It is not a generic claw. It is precision-machined to match the specific diameter, shape, and thickness of a preform's support ring (the small flange just below the threads that supports the preform's weight).

• The Direct Consequence of a Mismatch: Attempting to use a small gripper on a large preform, or vice-versa, results in incorrect contact points. This makes a stable, centered grip impossible.
• The Amplification Effect of High Speed: A preform that seems "loosely held" in a static test will behave disastrously once subjected to the G-forces of a high-speed rotating star wheel or transfer chain. Any minute clearance is amplified by centrifugal force and inertia, causing the preform to wobble, spin, or tilt violently during transit. This incorrect posture at the moment of mold entry is the beginning of the end for that cycle.

A Case Study from the Field: The 30mm to 38mm Leap

I worked with a client in São Paulo, Brazil—let's call him João—who was an expert at producing 30mm water bottles. He wanted to enter the lucrative functional beverage market with a 38mm wide-mouth bottle. Initially, he was highly skeptical of my recommendation to replace the entire set of grippers and blow nozzles.

"My friend," he said on our video call, "it's just 8 millimeters. My German machine is a beast; I'm sure it can handle it."

Instead of arguing, I asked his technician to perform a simple test: manually place one of the new 38mm preforms into the old 30mm gripper. It was barely perched on the gripper fingers.

I then asked, "João, now imagine that gripper rotating at 2 meters per second and coming to an abrupt stop to deliver the preform into the mold. What do you think happens to that 'perched' preform?"

There was a long pause on the other end of the line. The concept of "dynamic precision" clicked for him instantly. I continued, "Best case, the preform is misaligned, and the cycle fails. Worst case, the mold closes on the misaligned preform, crushing it and potentially damaging a multi-thousand-dollar blow bottle mold."

We ultimately supplied him with a full, custom-engineered 38mm changeover kit, including hardened steel grippers with PEEK inserts to prevent scratching while ensuring a rock-solid grip. After installation, his new line ran flawlessly on the first try. That case is the most vivid lesson I can share on this topic.

4. The Stretch Rod: Choreographing Biaxial Orientation

The reason a PET bottle can be feather-light yet strong enough to contain the pressure of a carbonated beverage lies in the magic of "biaxial orientation." This process aligns the amorphous PET polymer chains in two directions simultaneously—vertically and horizontally—creating a strong, interlocking crystalline microstructure. The Stretch Rod is the choreographer of the critical "vertical stretch."

The Three Core Elements of Stretch Rod Calibration

When changing preforms (which almost always involves a change in length and base geometry), recalibrating the stretch rod is a matter of precision, not guesswork. Three core elements must be set perfectly:

1. Effective Length / Stroke: This is the most fundamental adjustment. The final position of the stretch rod's tip should be just shy of the preform's inner bottom surface (typically leaving a 1-2mm clearance).
   • Set Too Long: The rod will physically puncture the softened preform base, causing an immediate failure.
   • Set Too Short: The material at the base of the preform will not be adequately stretched vertically. Its polymer chains will remain un-oriented, resulting in an accumulation of thick, heavy, and structurally poor material at the bottom of the bottle. This wastes raw material and can compromise the bottle's standing stability.
2. Stretching Speed: On modern machines with servo-driven stretch rods, the speed of the downward stroke is a programmable parameter. The speed profile can significantly influence material distribution. For some bottle designs, a "slow-fast-slow" profile might be necessary to achieve the desired wall thickness in different sections.
3. Timing & Delay: The rod's movement is precisely synchronized with the "pre-blow" phase of the blowing cycle. The exact moment the rod begins to move relative to the start of the pre-blow air can have a profound impact on the final bottle. Adjusting this timing is a key technique for solving advanced processing issues like an off-center gate.

The Influence of Rod Tip Geometry

For high-performance applications, even the geometry of the stretch rod tip (e.g., hemispherical, conical, grooved) is considered. Different tip shapes influence how the PET material flows at the bottle's gate area, affecting mechanical strength and stress distribution.

5. The Blow Mold: A World of Precision in a Steel Block

The blow mold is the "womb" that gives the bottle its final shape and life. When changing the neck size, two decisive, high-precision components inside the mold must be replaced.

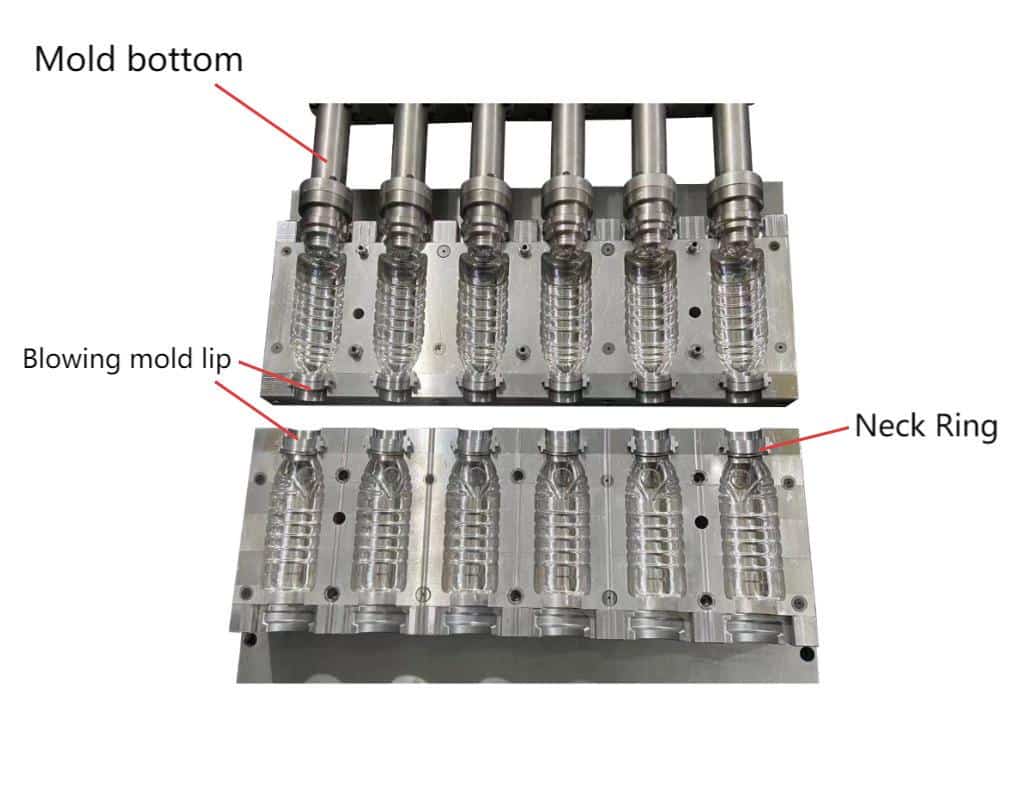

Hardware Swap 1: The Neck Ring (or Neck Insert)

The neck ring is the component within the mold that forms the final geometry of the bottle's threads, support ring, and sealing surface. It is typically machined from high-hardness, wear-resistant specialty steel (like Stavax or a case-hardened tool steel) to withstand millions of cycles of clamping force and abrasion.

• Function: It not only defines the precise dimensions of the neck finish (which must match the cap's technical drawing to within microns) but also securely holds the preform's neck during the high-pressure blowing phase, preventing any movement or deformation.
• The Inevitability of Replacement: Its internal cavity is "tailor-made" for a specific neck size. Different neck sizes have completely different thread standards (e.g., PCO 1881 vs. 38mm Bericap), support ring diameters, and neck heights. Therefore, replacing the neck ring with a new, matching one is a logical necessity.

Hardware Swap 2: The Centering Inserts (or Guide Bushings)

Centering inserts are components mounted on the mold body that guide and stabilize the preform, ensuring it is positioned in the exact geometric center of the mold cavity at the moment of mold closure.

• Function: Their importance is often underestimated. An off-center deviation of even 0.1mm will result in uneven wall thickness—one side of the bottle will be stretched thin and weak, while the other side will have an accumulation of thick, heavy material. This is a major quality defect that can lead to failure on the filling line or in transit.
• The Necessity of Replacement: Since different neck sizes have different outer contours, the inserts used to guide them must also have their internal geometry changed to ensure the new preform is perfectly "cradled" in the center. The quality of the bottle is directly linked to the quality of its source, the preform mold.

The Critical Role of Mold Cooling

When replacing these parts, special attention must be paid to the integrity of their internal cooling channels. The efficiency of the mold's cooling system dictates the production cycle time. The neck area's cooling is particularly vital. Inconsistent cooling can lead to slow, post-mold shrinkage and deformation of the neck finish, compromising the seal integrity.

6. The Blow Nozzle: The Gatekeeper of High Pressure

The Blow Nozzle (or Sealing Head) is the final actor to take the stage in the high-drama moment of blowing. Its job seems simple: to press down onto the flat top surface of the preform neck (known in the industry as the "A-surface" or "top land") and create an instantaneous, absolute, and reliable airtight seal.

The Severe Consequences of a Leaky Seal

At blowing pressures of up to 40 bar (580 PSI), any imperfection in this seal leads to catastrophic failure:

• Pressure Loss: High-pressure air hisses out from the gap, meaning the actual pressure inside the preform never reaches the setpoint.
• Incomplete Formation: Without full pressure, the PET material is not forcefully pushed against every corner and detail of the mold cavity. The resulting bottle will have a soft, undefined appearance, especially at the shoulders and base.
• Deteriorated Material Properties: Sufficient pressure is a prerequisite for inducing the full "biaxial orientation" of the PET polymer chains. Insufficient pressure leads to poor orientation, resulting in a bottle that is brittle, weak, and has poor barrier properties (for CO2 or O2).

Why Replacement is Mandatory

The reason is simple geometry. The diameter of the sealing surface on top of the preform is a strictly defined dimension for each neck finish standard.

• A PCO 1881 (28mm) water bottle neck has a small sealing diameter.
• A 38mm wide-mouth beverage neck has a much larger sealing diameter.

Using a small nozzle on a large neck will obviously leave a massive gap. Conversely, using a large nozzle on a small neck will cause the nozzle to press on the neck's outer radius or even the threads, which also prevents a seal and can damage the preform. Therefore, replacing the blow nozzle with one that has a sealing face perfectly matched to the new neck's "A-surface" is the ultimate prerequisite for a successful blow molding cycle.

7. Costly Lessons: The Financial Impact of an Improper Changeover

In the face of production pressure, any temptation to "take a shortcut" by skipping a necessary component replacement will inevitably be punished by the unforgiving laws of physics and economics. The consequences are not just technical failures; they are direct financial losses.

A Detailed Defect-to-Cause Troubleshooting Chart

Observed Defect	Detailed Description	Root Cause (The Unchanged or Uncalibrated Component)
Deformed/Whitened Neck Threads	The threads have lost their sharp profile, are dimensionally out of spec, or show opaque white crystallization.	Neck Guard was the wrong size, failing to shield the threads from IR heat.
Lopsided / Uneven Wall Thickness	One side of the bottle is paper-thin, while the opposite side has a thick accumulation of material.	Centering Inserts or Preform Grippers were mismatched, causing an off-center preform in the mold.
Incomplete Formation ("Under-blown")	Bottle is soft, and details in the shoulder and base are not sharp or fully formed.	Blow Nozzle failed to create a proper seal, causing a severe loss of high-pressure air.
Frequent Jams / Dropped Preforms	The machine frequently stops with an alarm because preforms are dropped in the transfer system.	Preform Grippers were unable to securely hold the new preform's support ring.
Punctured Hole in Bottle Base	A clean, circular hole at the very center of the bottle's gate area.	Stretch Rod stroke was set too long, physically punching through the preform.
Excessively Heavy Base	The base of the bottle is too thick, wasting material and potentially affecting stability.	Stretch Rod stroke was set too short, failing to vertically stretch the material sufficiently.

A Quantitative Analysis of the Cost of a "Shortcut"

Let's quantify the real cost of one "shortcut"—not changing the blow nozzles. Assume a machine running at 12,000 BPH.

• Scrap Cost: A leaky seal causes a 15% scrap rate. That's 1,800 scrap bottles per hour. If each preform costs $0.04, the direct material loss is $72 per hour.
• Wasted Energy: Compressed air is one of a factory's most expensive utilities. Each failed cycle is a full blast of high-pressure air wasted to the atmosphere. This can easily amount to an additional $20-$30 per hour in energy costs.
• Lost Production (Downtime): Frequent alarms and manual interventions reduce uptime. If the machine is down for just 15 minutes every hour, and the fully burdened operating cost of that machine is $150/hour, you lose $37.50 per hour in lost production capacity.
• Potential for Catastrophic Damage: A single, severe mold crash caused by a misaligned preform can cost $10,000 to $50,000 in mold repair or replacement, dwarfing the cost of any changeover kit.

The conclusion is clear: The most expensive decision in a PET blow molding changeover is the decision to "save money" on necessary parts.

8. Our Support: A Turnkey Solution Beyond Spare Parts

We deeply understand that what our clients truly need when facing a line changeover is not just a box of cold, labeled metal parts. What they need is certainty—the certainty that their investment of time and resources will quickly and smoothly translate into qualified products and market returns.

To that end, we offer not just products, but a holistic solution designed to eliminate uncertainty.

• Complete, Pre-Validated Changeover Kits: When you tell us your machine model and your old and new preform specifications, we provide a "toolbox" containing all the necessary hardware. This kit doesn't just include the core components like Grippers, Blow Nozzles, and Neck Rings. It also includes the small but critical items: the correct grade of high-strength fasteners, the right durometer high-temperature O-rings, and a laminated recommended starting-parameter sheet. All components are guaranteed to be 100% physically and functionally compatible, saving you from a frustrating process of trial and error.
• Expert-Level Remote Technical Guidance: Our most valuable asset is our deep technical knowledge and extensive field experience. We can join your team via a high-definition video call, acting as if we were standing right next to your engineer.
  • Installation Verification: We can visually confirm that each component is installed correctly and torqued to spec.
  • Parameter Setup: We will guide your technician through the machine's HMI, screen by screen, to input a safe and effective set of starting parameters for the new process.
  • Collaborative First-Run Tuning: As you blow the first bottles, we can analyze the results in real-time and provide concrete adjustment advice ("Try increasing the stretch rod delay by 0.05 seconds," or "Let's reduce power in Zone 3 by 3%"). This dramatically shortens your process debugging time.
• An Ongoing Technical Partnership: Our service does not end when the changeover is complete. We are available as your technical consultants to help troubleshoot any future process challenges.

Our mission is to use our expertise to bridge the gap between your strategic decision and your successful production, making every line upgrade an easy and confident step forward.

Frequently Asked Questions (FAQ)

1. How long does a full neck size changeover typically take?
A well-prepared and experienced technical team, equipped with a complete changeover kit, can typically complete the entire process (mechanical swap and initial process tuning) in 2 to 4 hours.

2. If the neck size is the same, but the preform weight changes, do I need to replace hardware?
No, in that case, the core hardware (grippers, neck rings, nozzles) will still fit. However, you absolutely must develop a completely new process recipe, including a different heating profile and adjusted stretching/blowing parameters, as a heavier preform requires more energy and different control logic.

3. What is the most difficult part of the changeover process?
While physically swapping mold components can be tedious, the most challenging part is the process fine-tuning that happens after the mechanical work is done. Dialing in the perfect heating profile, stretch speed, and blowing pressures to produce a flawless bottle with ideal material distribution requires expertise and a methodical approach.

4. Can I use the same preform heating program for different neck sizes?
Absolutely not. A different neck size almost always means a different preform weight, length, and wall thickness. This requires a completely new heating recipe, with different power settings in each oven zone and potentially different ventilation speeds, to achieve the optimal, uniform temperature required for blowing a perfect bottle.

5. Is a changeover kit more cost-effective than buying a new machine?
A neck changeover kit is exponentially more cost-effective. A complete kit costs only a tiny fraction of a new bottle blowing machine. A new machine is only justified if you need a massive increase in production capacity or require technology that your current machine platform does not support. For versatility, changeover kits are the smart financial choice.

---
