Struggling with critical decisions about your PET bottle production? Unsure whether the path of purchasing preforms is more beneficial for your business, or if investing in your own preform molding capabilities will yield greater returns? This is a common, yet crucial, crossroads for many businesses, from startups to established enterprises, and the choice made can have long-lasting financial and operational implications. Let's thoroughly explore this complex question to equip you with the knowledge to make the most strategic decision for your unique situation.

Deciding between buying PET preforms or investing in your own preform mold and associated machinery is a multifaceted decision that hinges critically on your current and projected production volume, available capital for initial investment, specific customization requirements for your products, and your overarching long-term business strategy and vision. As a general guideline, smaller scale operations, businesses new to the market, or those with fluctuating demand often find that buying preforms is the more economically viable and flexible option initially. Conversely, larger operations with consistent, high-volume demand may find that the significant upfront investment in in-house preform manufacturing is justified by substantial long-term per-unit cost savings, greater control over quality, and enhanced design flexibility.

Making the right choice in the buy-versus-build dilemma for PET preforms is paramount; it can significantly impact your cost structure, supply chain resilience, product quality, and overall market competitiveness. I've walked this path with numerous clients, each with their unique circumstances and ambitions. For instance, I worked closely with a client from Bangladesh who was venturing into the PET mineral water bottle market. His company was already established in producing 18.9L large water containers but wanted to expand his product line to include popular sizes like 300ml, 500ml, and 2000ml PET bottles. His initial inclination, like that of many entrepreneurs, was that producing preforms in-house would inherently be cheaper, even if it meant starting with smaller, lower-cavitation molds to minimize the initial mold investment. We'll delve deeper into his journey and the lessons learned as we explore various facets of this decision. For now, let's embark on a comprehensive breakdown of all the critical factors you must consider to make a well-informed and strategic choice for your business's future.

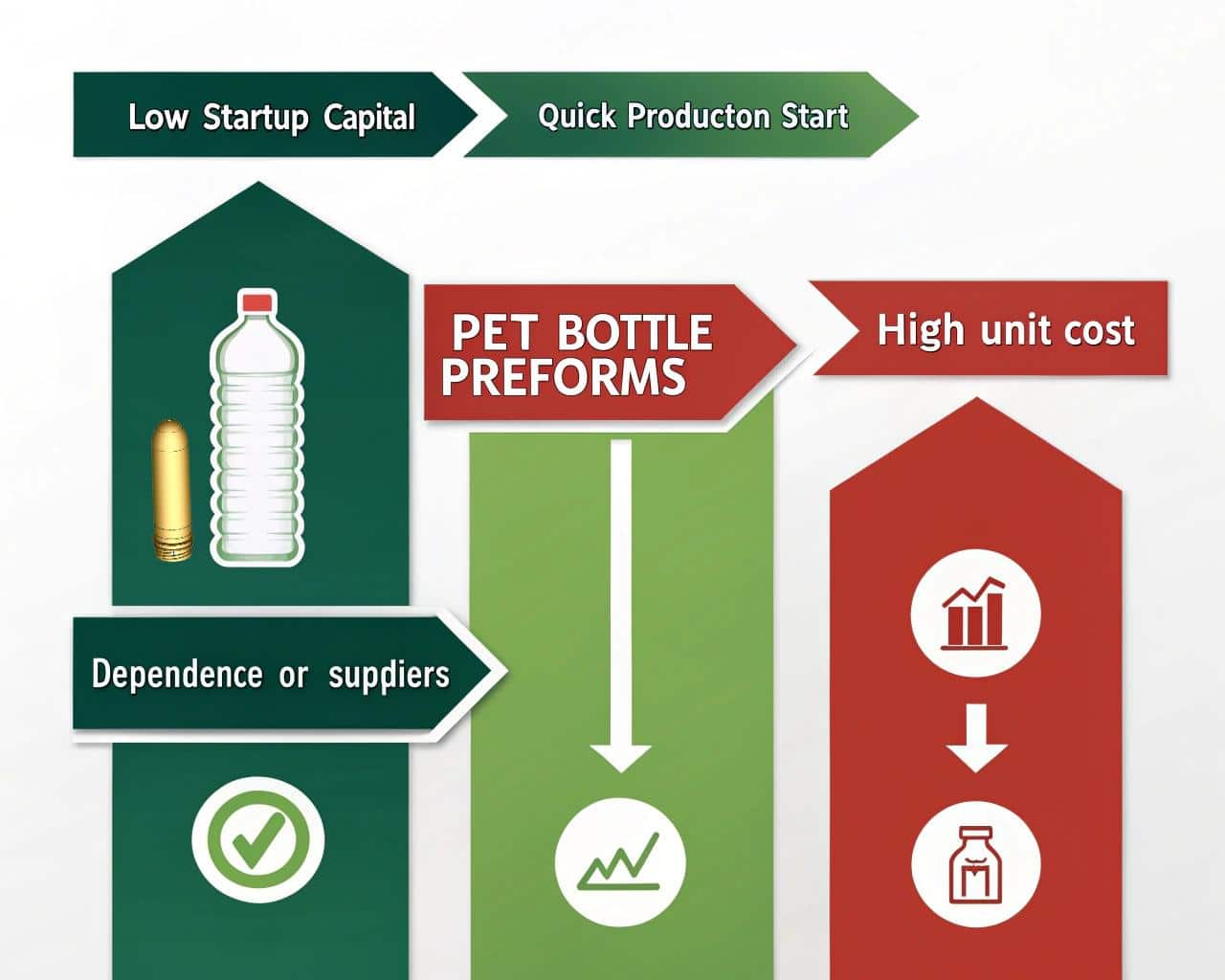

What are the pros and cons of buying PET preforms?

Feeling constrained by your current preform supply chain or perhaps overwhelmed by the potential complexities of in-house production? Opting to buy PET preforms offers immediate solutions and operational simplicity but comes with its own set of limitations and potential drawbacks that could impact your growth and profitability. Is this seemingly straightforward path truly the optimal one for your business in the long run?

Buying PET preforms presents compelling advantages such as minimal initial capital expenditure, rapid startup capabilities, and considerable flexibility to adapt to fluctuating market demands. However, this convenience is often counterbalanced by disadvantages including higher per-unit costs, a significant dependence on external suppliers, potential inconsistencies in preform quality, and notably restricted options for customization and product differentiation.

Dive Deeper: A Comprehensive Analysis of Buying PET Preforms

When your business is in its nascent stages, or when your production volumes are subject to significant variability due to seasonal demand, new product introductions, or uncertain market penetration, the option of purchasing preforms from external suppliers can appear to be the most logical and least risky approach. This route allows you to avoid the substantial upfront financial commitments associated with acquiring injection molding machinery, high-quality preform molds, and the necessary auxiliary equipment. You can essentially order preforms as needed, aligning your procurement with your actual production requirements. This was the initial strategy for many of my clients, particularly those testing new beverage products or those with limited initial capital. However, this operational ease and financial prudence in the short term must be weighed against potential long-term implications.

Let's dissect the advantages and disadvantages in greater detail:

Advantages of Buying PET Preforms Elaborated

1. Drastically Reduced Initial Capital Outlay:

   • No Machinery Investment: This is perhaps the most significant saving. A PET preform injection molding machine, even a smaller one, can cost tens of thousands to hundreds of thousands of dollars. Larger, high-output machines represent an even more substantial investment. By buying preforms, you bypass this entirely.
   • No Mold Costs: Preform molds, especially those with multiple cavities or complex designs, are expensive. A single, high-quality 32-cavity mold can easily exceed $50,000-$100,000. If you produce multiple bottle sizes or types, you'd need several molds, multiplying this cost.
   • Avoidance of Auxiliary Equipment Expenses: In-house preform production requires resin dryers (PET is hygroscopic), chillers, loaders, conveyors, and sometimes dehumidifiers and water treatment systems. These add significantly to the initial setup cost.
   • No Specialized Infrastructure Costs: Setting up an injection molding facility might require upgrades to your electrical supply, reinforced flooring, dedicated plumbing for chillers, and specific ventilation. These infrastructure costs are avoided.
   • Reduced Initial Working Capital: Less capital tied up in fixed assets means more liquidity for other crucial business areas like marketing, sales, and raw material procurement for your actual product.

2. Rapid Production Startup and Market Entry:

   • Immediate Availability: Preform suppliers often have standard preforms in stock or can produce them with relatively short lead times (days or weeks, compared to months for setting up your own production line).
   • Faster Time-to-Market: For businesses launching new products, this speed can be a critical competitive advantage, allowing you to capitalize on market opportunities quickly.
   • Simplified Logistics: You receive a ready-to-use component, simplifying your internal production flow. Your focus shifts to blow molding, filling, and packaging rather than preform manufacturing.

3. Enhanced Flexibility and Scalability (Especially for Lower Volumes):

   • Adaptability to Demand Fluctuations: If your sales are seasonal or unpredictable, buying preforms allows you to scale your orders up or down without being burdened by idle machinery or excess capacity costs during slow periods.
   • Easier Product Line Diversification: If you want to introduce multiple bottle sizes or types in small volumes, buying preforms for each avoids the prohibitive cost of multiple small-cavity molds. You can test market acceptance for various products with minimal risk.
   • Lower Risk for New Ventures: Startups can test their business model and product viability without the heavy financial commitment of in-house production. If the venture doesn't succeed, the losses are minimized.

4. No Requirement for In-House Specialized Expertise:

   • Avoidance of Skilled Labor Needs: Operating and maintaining injection molding machinery requires skilled technicians, process engineers, and maintenance staff. Recruiting, training, and retaining such personnel can be challenging and costly.
   • Reduced Operational Complexity: You don't need to manage the intricacies of resin procurement, drying parameters, injection molding process optimization, mold maintenance schedules, or quality control for preform production. This allows you to focus on your core competencies.

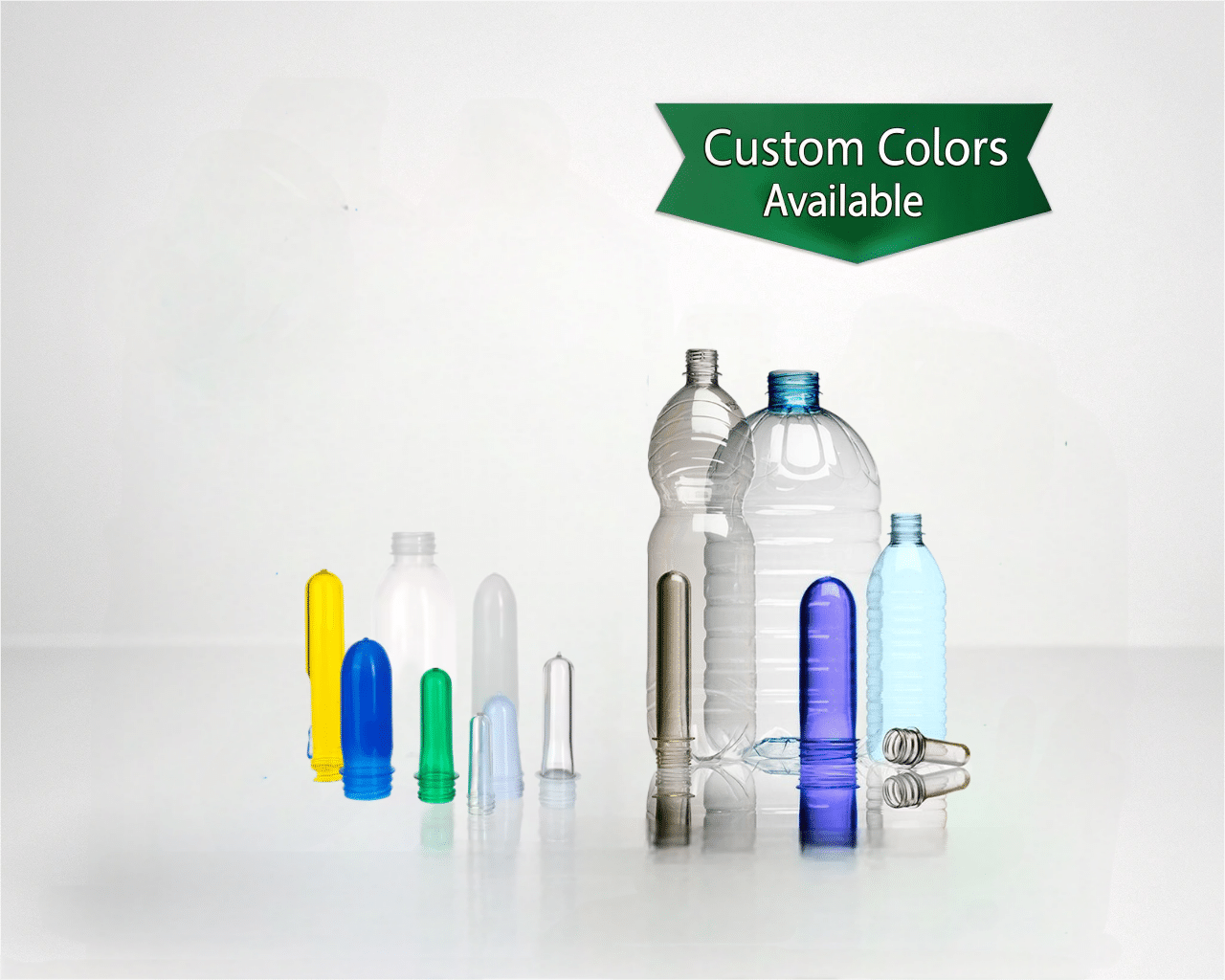

5. Access to a Wide Variety of Standard Preforms:

   • Established Designs: Suppliers typically offer a broad catalog of preforms for common neck finishes (e.g., PCO1810, PCO1881, 30/25, 29/25), weights, and basic colors.
   • Supplier Expertise: Reputable suppliers have extensive experience in preform production and can often provide advice on suitable preforms for your application.

Disadvantages of Buying PET Preforms Elaborated

1. Higher Per-Unit Cost:

   • Supplier Profit Margins: Naturally, suppliers include their manufacturing costs, overheads, and a profit margin in their selling price. This means each preform will cost you more than the direct material and conversion cost if you made it yourself efficiently at scale.
   • Transportation Costs: Shipping preforms from the supplier to your facility adds to the per-unit cost. Preforms are bulkier than resin, so logistics can be a significant factor, especially over long distances.
   • Lack of Economies of Scale for Your Business: While your supplier benefits from economies of scale, you don't directly capture these savings beyond what's reflected in their pricing. Your purchasing power might be limited if your volumes are not very high.

2. Significant Dependence on External Suppliers:

   • Supply Chain Vulnerability: Your production is entirely reliant on your supplier's ability to deliver on time and to specification. Any disruption on their end (e.g., raw material shortages, labor strikes, equipment breakdowns, financial instability) directly impacts you. This became particularly evident during global supply chain crises.
   • Price Volatility: You are subject to price increases from your supplier, which can be driven by resin price fluctuations, energy cost hikes, or simply their pricing strategy. This makes your own cost planning more uncertain.
   • Lead Time Variability: While often shorter than setting up your own line, supplier lead times can still vary, potentially causing delays in your production schedule if not managed carefully with safety stock.
   • Limited Leverage: As one of many customers, especially if you are a smaller buyer, your ability to negotiate prices or demand priority service may be limited.

3. Potential for Quality Inconsistencies and Control Issues:

   • Variable Quality Between Suppliers or Batches: Preform quality can vary, impacting the blow molding process (e.g., uneven heating, inconsistent blowing) and the final bottle quality (e.g., clarity, strength, stress cracking). Issues like inconsistent weight, crystallinity, acetaldehyde (AA) levels, or contamination can arise.
   • Difficulty in Enforcing Your Standards: While you can specify requirements, ensuring consistent adherence by an external party can be challenging. Incoming quality control (QC) for preforms becomes crucial but adds to your operational burden.
   • Impact on Brand Reputation: Defective bottles resulting from poor preform quality can damage your brand image and lead to customer complaints or product recalls.

4. Severely Restricted Customization and Innovation:

   • Limited Design Options: Suppliers primarily offer their standard range. If you require a unique neck finish, a specific preform weight not in their catalog, a proprietary design for brand differentiation, or a specific barrier technology integrated into the preform, buying off-the-shelf is often not an option.
   • Color Limitations and MOQs: While some custom colors might be available, they often come with high Minimum Order Quantities (MOQs) that may be prohibitive for smaller production runs or new product trials.
   • Slow to Adapt to Your Needs: If you want to quickly iterate on a design or introduce a novel feature, relying on a supplier to develop and produce a custom preform can be a slow and expensive process, if they are willing to do it at all. They often require you to fund the custom mold anyway.
   • Intellectual Property Concerns: If you have a novel preform design, relying on an external supplier might raise concerns about protecting your intellectual property.

5. Logistical Challenges and Inventory Management:

   • Storage Space for Preforms: Preforms are bulky and require significant, clean storage space. Managing inventory of various preform types can be complex.
   • Risk of Damage During Transit/Storage: Preforms can be damaged if not handled or stored correctly.
   • Inventory Costs: Holding preform inventory ties up working capital and incurs storage costs.

Navigating the Decision: A Personal Anecdote

I remember my Bangladeshi client who was planning his entry into the PET mineral water bottle market. His initial volumes for the 300ml, 500ml, and 2000ml bottles were projected to be modest as he established his brand. He was very keen on minimizing upfront costs. We had a long discussion about the pros and cons of buying preforms versus making them. For his initial phase, buying preforms was the clear recommendation. It allowed him to:

• Launch quickly: He could source standard preforms for common neck finishes readily available from local and international suppliers.
• Conserve capital: The funds saved from not buying injection molding lines and multiple molds were allocated to marketing and distribution, which were critical for his new product launch.
• Maintain flexibility: He wasn't sure which bottle size would be most popular initially. Buying preforms allowed him to adjust order volumes for each size based on early sales data without being stuck with underutilized molds.

This strategy allowed him to enter the market, build his brand presence, and generate cash flow. The plan was always to re-evaluate the in-house production option once his volumes grew to a consistent and substantial level. This phased approach is often the most prudent for new ventures or market expansions.

Summary Table: Buying Preforms

Aspect	Detailed Advantages	Detailed Disadvantages
Financial	Very low initial investment (no machines, molds, minimal infrastructure). Predictable per-unit cost (initially). Frees up working capital.	Higher cost per preform. Subject to supplier price increases. Transportation costs add up.
Operational Speed	Fast startup, quick time-to-market. Simplifies internal production to focus on blowing/filling.	Potential for supplier lead time variability. Delays if supplier has issues.
Flexibility	Excellent for fluctuating demand, seasonal products. Easy to test new products/sizes with low risk. Scales easily for small to medium volumes.	May face MOQs for custom colors/types. Less agile if rapid changes are needed that supplier can't accommodate.
Expertise & Labor	No need for specialized injection molding technicians, process engineers, or extensive maintenance staff. Reduced operational complexity.	Loss of internal skill development in preform technology.
Quality Control	Can rely on supplier's established QC (if reputable).	Less direct control over preform quality. Risk of batch-to-batch variation. Incoming QC is essential but adds cost/effort. Impact of poor preforms on final bottle quality.
Customization	Access to standard range of preforms. Some color options may be available.	Very limited for unique designs, neck finishes, specific weights, or advanced barrier technologies. Innovation is supplier-dependent or requires separate mold investment anyway.
Supply Chain	Multiple suppliers may be available (though reduces benefits of partnership).	High dependence on chosen suppliers. Vulnerable to supplier disruptions (capacity, financial, geopolitical).
Innovation	Can benefit from supplier's R&D if they introduce new standard preforms.	Difficult to drive proprietary innovation. Slower to implement unique features. IP concerns if sharing novel designs.

Ultimately, buying PET preforms is often a strategic and sensible choice for businesses under specific conditions, primarily lower production volumes, the need for capital conservation, and when standard preform designs meet requirements. However, as a business grows and its needs evolve, the limitations of this approach can become significant bottlenecks, prompting a re-evaluation of in-house production. The key is to understand these trade-offs deeply and align the decision with your current operational realities and future strategic goals.

---

When does it make sense to invest in a preform mold?

Are your preform purchase costs steadily climbing and eroding your profit margins? Does your demand for bottles reach consistently high volumes every month? Investing in your own preform mold and the accompanying production line is a major strategic move. It's not just about acquiring assets; it's about transforming your operational capabilities and cost structure. So, when does this significant leap become a strategically sound decision rather than a premature financial burden?

Investing in a preform mold makes compelling economic and strategic sense when your production volume is consistently high and predictable, when you are seeking substantial long-term reductions in per-unit preform costs, when you require absolute control over preform design and quality for product differentiation or specific performance characteristics, and when you have the capital and organizational capacity to manage in-house manufacturing operations effectively.

Dive Deeper: Evaluating the Strategic Imperative for In-House Preform Production

The decision to transition from buying preforms to making them in-house by investing in a preform mold and injection molding machinery is one of the most critical strategic inflection points for a growing bottling business. It signifies a commitment to vertical integration and a desire for greater control over the supply chain and product specifications. According to Wikipedia, a preform is an intermediate product used in the manufacture of plastic bottles through blow molding. Taking ownership of this intermediate production stage can unlock significant benefits, but only if the conditions are right.

Let's explore the key indicators and scenarios where such an investment is justified:

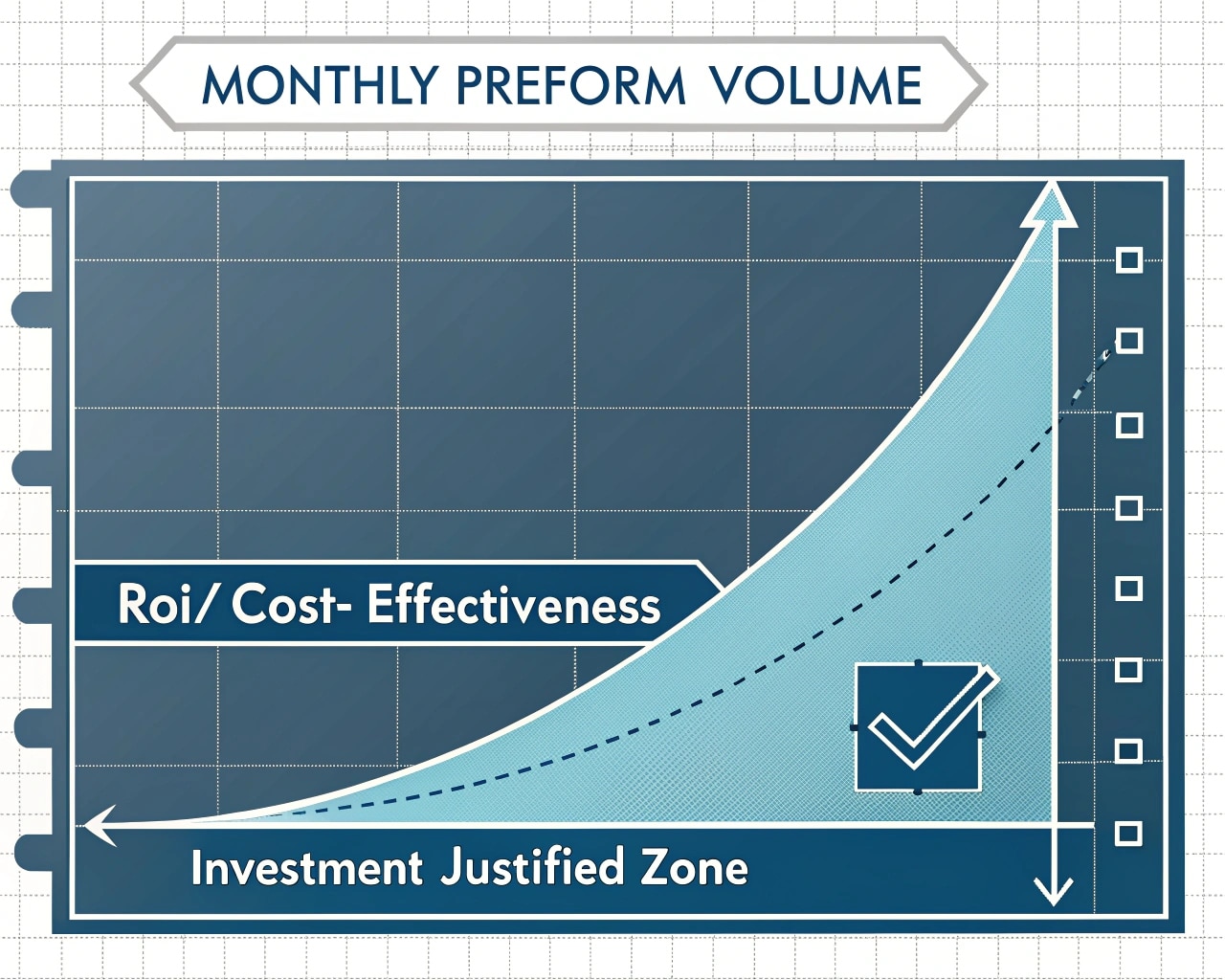

1. Sustained High Production Volumes:

   • Defining "High Volume": This is relative, but generally, we're talking about needing millions of preforms annually, often translating to hundreds of thousands or even millions per month for specific SKUs. The higher the volume, the faster the payback on the investment.
   • Consistency is Key: Sporadic high demand isn't enough. The machinery needs to run consistently to achieve optimal efficiency and cost-effectiveness. Predictable demand allows for better production planning and minimizes downtime.
   • Economies of Scale: In-house production allows you to achieve economies of scale directly. The cost per preform drops significantly as you amortize the fixed costs of molds and machinery over a larger number of units.
   • Break-Even Point: A thorough cost analysis will reveal the break-even volume where the cost of making preforms in-house (including amortization of capital, raw materials, energy, labor, maintenance) becomes lower than buying them. This is a crucial calculation.

2. Desire for Significant Long-Term Cost Reduction:

   • Eliminating Supplier Margins: The most direct saving comes from cutting out the profit margin you currently pay to your preform supplier.
   • Lower Raw Material Costs (Potentially): Buying PET resin in bulk directly from resin manufacturers can sometimes be cheaper than the implicit resin cost built into a supplier's preform price, especially for very large volumes.
   • Reduced Transportation Costs: Manufacturing preforms on-site or nearby eliminates or drastically reduces the cost of shipping bulky preforms from an external supplier.
   • Control Over Operational Efficiency: You can continuously optimize your production processes to reduce waste, energy consumption, and cycle times, further driving down costs.

3. Need for Full Control Over Preform Design and Customization:

   • Proprietary Bottle Designs: If your brand relies on unique bottle shapes for differentiation, you'll likely need custom preforms. Owning the mold gives you complete freedom to design and produce preforms tailored to your exact bottle specifications.
   • Specific Neck Finishes: For compatibility with particular caps, closures, or filling lines, or for achieving a specific aesthetic or functional neck design, a custom mold is often necessary.
   • Precise Weight Control: Optimizing preform weight is crucial for material savings (lightweighting) while maintaining bottle performance. In-house production allows for fine-tuning and tight control over preform weights.
   • Incorporation of Special Features: If you need to incorporate barrier layers (e.g., for oxygen-sensitive products like juice or beer), UV inhibitors, or specific colorants not readily available from suppliers, owning the mold and production process is essential.
   • Rapid Prototyping and Innovation: Having your own mold (or at least the capability to easily commission new molds) allows for faster iteration of new designs and quicker introduction of product innovations.

4. Stringent Quality Control Requirements:

   • Consistent Quality: In-house production allows you to implement and monitor your own quality control standards throughout the preform manufacturing process, from raw material inspection to final preform testing. This can lead to more consistent preform quality and, consequently, better bottle quality.
   • Reduced Defects: Tighter process control can reduce the incidence of common preform defects like crystallinity, acetaldehyde (AA) contamination, black specks, bubbles, or dimensional inaccuracies, leading to smoother blow molding operations and fewer rejected bottles.
   • Traceability: You can establish robust traceability systems for your preforms, linking them back to specific production batches and raw material lots.
   • Meeting Specific Performance Standards: If your bottles need to meet demanding performance criteria (e.g., for carbonated beverages, hot-fill applications, or specific top-load strength), controlling preform production is critical.

5. Strategic Considerations:

   • Supply Chain Security: In-house production reduces reliance on external suppliers, mitigating risks associated with supplier disruptions, price hikes, or geopolitical issues affecting supply chains.
   • Competitive Advantage: Unique bottle designs or superior quality achieved through controlled preform production can provide a significant competitive edge.
   • Vertical Integration: For larger companies, vertical integration can be a strategic move to control more of the value chain, improve margins, and enhance operational synergies.
   • Long-Term Vision: If your business has ambitious growth plans and sees PET bottling as a core, long-term activity, investing in in-house preform production aligns with that vision.

The Case of My Bangladeshi Client (Revisited):
My client initially bought preforms. However, as his mineral water brand gained traction and his monthly volumes for the 300ml, 500ml, and 2000ml bottles collectively approached several million units, the calculus began to change. The cost of purchased preforms became a very significant line item in his P&L. Furthermore, he started facing inconsistencies in quality from one of his suppliers, leading to higher rejection rates at the blow molding stage. He also had ambitions to introduce a uniquely shaped bottle for a premium water line, which would require a custom preform.

During one of my visits, after he had seen several high-output factories, he specifically asked, "When is the right time for me to stop buying and start making my own preforms for these three sizes?" We did a detailed analysis. We looked at:

• The total cost of his current preform purchases annually.
• The quoted costs for three separate preform molds (he was considering 24 or 32-cavity molds by then, understanding the efficiency argument I had made earlier about very small molds for standard necks like 3025 or PCO1881).
• The investment required for injection molding machines suitable for these molds, plus auxiliaries.
• The projected costs of PET resin, electricity, labor, and maintenance.

The numbers showed that with his current and projected stable demand, the payback period for the investment would be around 18-24 months. Beyond that, the savings would be substantial. Moreover, the ability to control quality and develop custom preforms for his new premium line became strong non-financial motivators. He eventually made the investment, starting with one molding line and plans to add more. His initial apprehension about the complexity of in-house production was overcome by the compelling long-term financial and strategic benefits. He realized that what seemed like a daunting cost for a preform mold was actually an investment in future profitability and brand strength.

In summary, investing in a preform mold is a strategic decision that should be driven by a confluence of factors, primarily sustained high volume, the pursuit of cost efficiencies, the need for customization, and stringent quality demands. It's not a step to be taken lightly due to the capital involved, but under the right circumstances, it can be a game-changer for a bottling business.

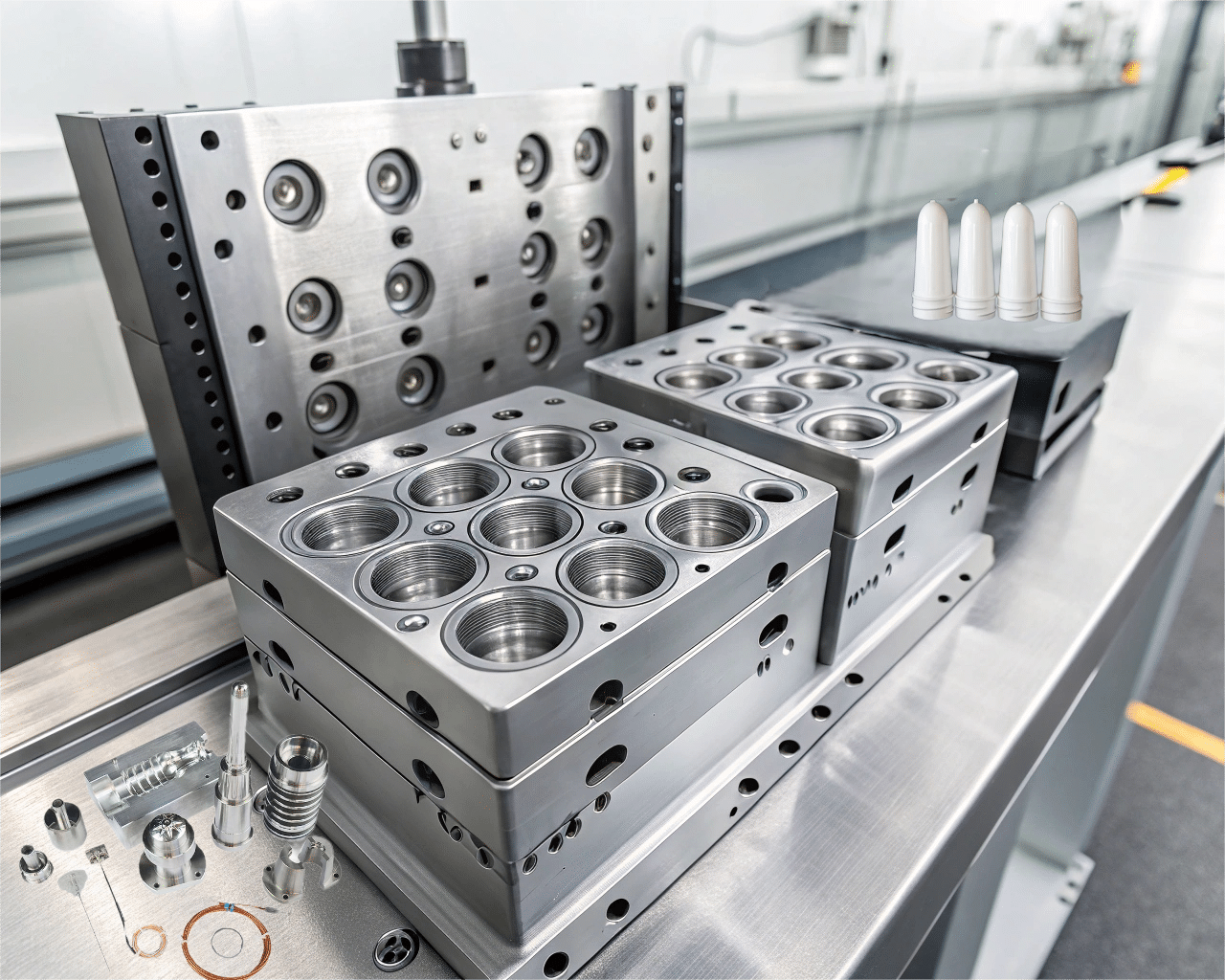

How much does a custom preform mold cost?

Dreaming of launching a product with a uniquely shaped bottle that stands out on the shelves? Or perhaps you need a specific preform weight or neck finish not available from standard suppliers? A custom preform mold is the cornerstone of such ambitions, but what kind of financial investment are we talking about? The answer, as you might expect, isn't a single figure.

The cost of a custom preform mold varies dramatically, typically ranging from a few thousand U.S. dollars for a very simple, single-cavity pilot mold to well over one hundred thousand, or even several hundred thousand U.S. dollars, for sophisticated, high-cavitation, production-grade molds built with premium materials and advanced features like complex hot runner systems.

Dive Deeper: Deconstructing the Cost Components of a Custom Preform Mold

Understanding the price of a custom preform mold requires looking at the various factors that contribute to its design, engineering, and manufacturing complexity. It's an intricate piece of precision engineering, and its cost reflects that.

Key factors influencing the cost include:

1. Number of Cavities:

   • Single-Cavity Molds: Often used for prototyping, R&D, or very low-volume production. Costs might range from $3,000 to $15,000 depending on complexity.
   • Low-Cavitation Molds (2-8 cavities): Suitable for smaller production runs or when capital is limited. Costs could be in the $10,000 to $40,000 range.
   • Medium-Cavitation Molds (12-32 cavities): A common choice for many medium-sized enterprises. Costs can range from $30,000 to $100,000+.
   • High-Cavitation Molds (48, 72, 96, 128+ cavities): Used for very high-volume production where efficiency is paramount. These are the most expensive, often costing $80,000 to $250,000+, sometimes significantly more for cutting-edge designs and very high cavity numbers.
   • Impact: More cavities mean more intricate machining, more material, more complex runner systems, and tighter tolerances to ensure consistency across all preforms.

2. Mold Steel Quality and Type:

   • P20 Steel: A common, relatively lower-cost steel used for molds with moderate life expectancy (e.g., 500,000 to 1 million cycles).
   • 718H, NAK80: Pre-hardened steels offering better wear resistance and polishability than P20, leading to longer mold life (e.g., 1-3 million cycles).
   • S136, Stavax (Stainless Steel): High-grade stainless steel offering excellent corrosion resistance (crucial for PVC or humid environments, though PET is less corrosive), superior polishability for high-clarity preforms, and very long mold life (often 3-5 million cycles or more). These are significantly more expensive.
   • H13 Steel: Often used for mold cores and cavities requiring high toughness and heat resistance.
   • Impact: Higher quality, more durable, or corrosion-resistant steels cost more per kilogram and are often harder to machine, increasing manufacturing time and cost.

3. Runner System (Hot Runner vs. Cold Runner):

   • Cold Runner Molds: Simpler and cheaper to build. Resin solidifies in the runner and is ejected with the preforms, creating waste (sprues and runners) that needs to be reground (if PET quality allows) or disposed of. This adds to material cost and cycle time.
   • Hot Runner Molds: More complex and significantly more expensive upfront. The runner system is heated, keeping the resin molten, so only the preforms are ejected. This eliminates material waste from runners, reduces cycle times, improves preform quality (gate cosmetics), and allows for more precise process control. Valve gate hot runners offer the best gate quality but are the most expensive type.
   • Impact: Hot runner systems involve intricate manifolds, nozzles, heaters, and controllers, adding substantially to the mold's cost and complexity. However, for high-volume production, the material savings and efficiency gains often justify the higher initial investment.

4. Preform Design Complexity:

   • Neck Finish: Standard neck finishes (e.g., PCO1881, 30/25) are easier to machine. Custom or intricate neck finishes with special threads, tamper-evident features, or orientation requirements add complexity and cost.
   • Preform Weight and Wall Thickness: Very light preforms or those with very thin/thick sections require precise cooling and flow analysis, potentially increasing design and manufacturing difficulty.
   • Overall Shape and Intricacy: While preforms are relatively simple shapes, any non-standard features, undercuts (rare in preforms), or requirements for extremely tight tolerances will increase cost.
   • Cooling System Design: Efficient cooling is critical for short cycle times and consistent preform quality. Complex cooling channel designs, especially conformal cooling, add to the cost but improve performance.

5. Mold Manufacturer's Location, Reputation, and Technology:

   • Geographical Location: Mold makers in high-labor-cost countries (e.g., Western Europe, North America, Japan) tend to be more expensive than those in lower-labor-cost regions (e.g., China, India, parts of Eastern Europe). However, this must be balanced against quality, reliability, and communication.
   • Reputation and Experience: Established mold makers with a proven track record and expertise in PET preform molds often charge more but provide greater assurance of quality and support.
   • Technology and Equipment: Manufacturers using advanced CNC machinery, EDM technology, and sophisticated design/simulation software may have higher overheads reflected in their prices but can often produce higher quality, more efficient molds.

6. Ancillary Features and Services:

   • Spare Parts: The initial quote may or may not include a set of critical spare parts (e.g., core inserts, neck rings, heaters for hot runners).
   • Mold Trials and Sampling: Costs associated with initial mold testing, sample production, and adjustments.
   • Warranty and After-Sales Service: The extent of warranty coverage and available support can influence price.

My Client's Experience with Mold Costs:
When my Bangladeshi client transitioned to considering in-house production, the cost of molds was a major discussion point. He needed three different preforms (300ml, 500ml, 2000ml).

• Initially, he floated the idea of very small 4-cavity molds for each, thinking this would be the cheapest entry. While the individual mold cost might have been, say, $15,000 - $20,000 each, the resulting low production efficiency for standard neck preforms would have led to very high operational costs (energy and labor per preform).
• I explained that for common neck finishes like his 3025 and PCO1881, the industry standard leans towards higher cavitation for efficiency. We explored 24-cavity and 32-cavity options. A good quality 32-cavity hot runner mold from a reputable Chinese supplier, using S136 steel for core/cavity/neck rings, was quoted in the range of $45,000 - $65,000 at that time. For three such molds, the investment was substantial ($135,000 - $195,000), but the per-preform production cost was much lower than with small molds, and the payback against buying preforms was much faster.
• He learned that trying to save too much on the mold itself (e.g., opting for very cheap steel or a rudimentary cold runner for high volume) could be a false economy, leading to shorter mold life, lower preform quality, and higher operational costs.

Investing in a custom preform mold is a significant capital expenditure. It's crucial to get detailed quotes from multiple reputable suppliers, clearly specify all your requirements (preform drawings, annual volume, desired cycle time, steel preferences, hot runner type), and understand exactly what is included in the price. Don't just focus on the upfront cost; consider the total cost of ownership, including mold life, efficiency, maintenance, and the quality of preforms it produces.

(Further expansion would detail different hot runner technologies, delve into specific steel properties, provide example cost breakdowns for different mold configurations, discuss how to evaluate mold manufacturers, and outline the mold design and approval process.)

What machine do I need to produce my own preforms?

So, you've decided that making your own preforms is the way forward, and you're looking into acquiring a preform mold. But the mold is just one piece of the puzzle. To bring those preforms to life, you need the right machinery. What exactly constitutes a PET preform production line?

To produce your own PET preforms, the central piece of equipment is a specialized PET preform injection molding machine. Beyond this, a set of crucial auxiliary equipment is required, including a PET resin dryer, a water chiller, a hopper loader, and often an air compressor and a mold dehumidifier for optimal and consistent production.

Dive Deeper: Assembling Your PET Preform Production Arsenal

Setting up an in-house PET preform production line involves integrating several key pieces of equipment that work in concert. Let's break down each component:

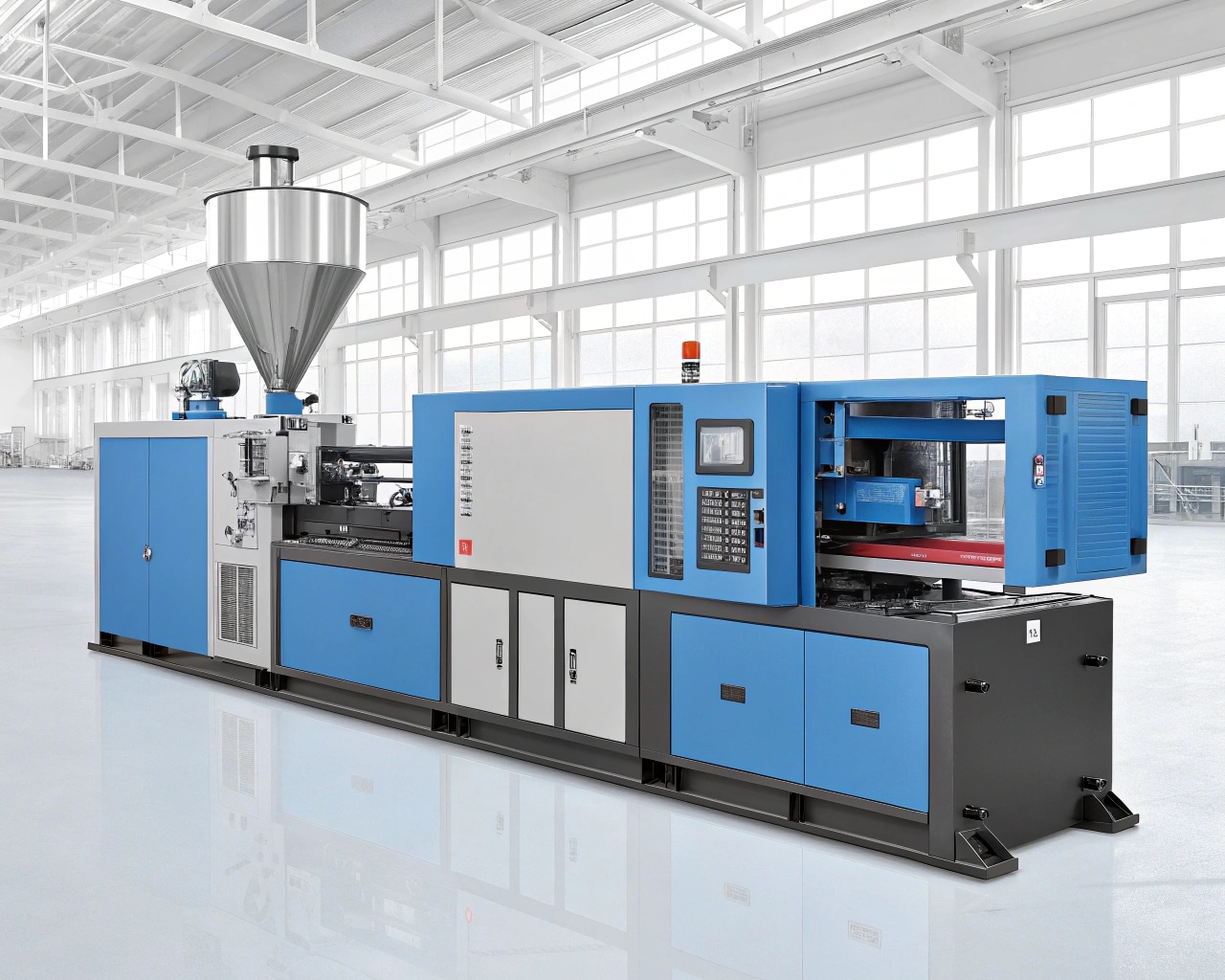

1. PET Preform Injection Molding Machine:

   • Specialized for PET: While general-purpose injection molding machines exist, PET processing has specific requirements. Machines designed for PET typically feature:
     • Optimized Screw Design: A screw with a specific L/D ratio (length to diameter, usually 22:1 to 25:1 for PET) and compression ratio, designed for efficient plasticizing, melting, and mixing of PET resin without excessive shear heat or degradation.
     • Increased Injection Speed and Pressure: PET often requires high injection speeds to fill multi-cavity molds quickly and high injection pressures.
     • Larger Ejector Stroke: To accommodate the longer length of preforms.
     • Robust Clamping Unit: To handle the large projected area of multi-cavity preform molds and the high injection pressures.
   • Key Specifications:
     • Clamping Force (Tonnage): Must be sufficient for the mold you intend to use. Calculated based on the projected area of all cavities and runners, and the injection pressure. Ranges from 100 tons for small molds to over 500 tons for very high-cavitation molds.
     • Shot Size (Grams or cm³): The maximum amount of molten plastic the machine can inject in one cycle. Must be greater than the total weight of all preforms and the runner system (if cold runner) in your mold.
     • Distance Between Tie Bars: Determines the maximum physical size of the mold that can be mounted.
     • Type (Hydraulic, Electric, Hybrid):
       • Hydraulic machines are traditional, robust, and often lower cost upfront but consume more energy.
       • All-electric machines offer higher precision, faster cycle times, lower energy consumption, and cleaner operation but have a higher initial cost.
       • Hybrid machines combine hydraulic and electric components, aiming for a balance of performance and cost.

2. PET Resin Dryer (Dehumidifying Dryer):

   • Essential for PET: PET is a hygroscopic material, meaning it readily absorbs moisture from the atmosphere. If undried or improperly dried PET is processed, the moisture will cause hydrolysis during melting, reducing the material's Intrinsic Viscosity (IV) and leading to brittle, poor-quality preforms.
   • Function: These dryers use hot, dry air (desiccant dryers are common) to reduce the moisture content of PET resin to very low levels (typically below 50 parts per million, or 0.005%) before it enters the injection molding machine.
   • Sizing: The dryer's capacity (kg/hr) must match or exceed the resin consumption rate of the injection molding machine. Hopper size and drying time (typically 4-6 hours for PET) are also critical parameters.

3. Water Chiller:

   • Mold Temperature Control: Precise temperature control of the preform mold is critical for consistent preform quality (crystallinity, dimensions, clarity) and efficient cycle times. The chiller circulates cooled water through channels in the mold to remove heat.
   • Machine Hydraulic Oil Cooling: Some chillers also cool the hydraulic oil of the injection molding machine.
   • Sizing: The chiller's cooling capacity (kW or tons of refrigeration) must be adequate for the heat load from the mold and potentially the machine. Factors include mold size, cycle time, and resin throughput.

4. Hopper Loader (Vacuum Loader):

   • Automated Material Feeding: Automatically transfers PET resin from a storage container (e.g., bags, octabins, or a day bin) to the hopper of the resin dryer, and then from the dryer hopper to the throat of the injection molding machine.
   • Benefits: Ensures a continuous supply of material, reduces labor, and minimizes the risk of contamination.

5. Air Compressor:

   • Pneumatic Functions: Many injection molding machines and auxiliary components use compressed air for functions like valve gate operation in hot runner molds, core pull, part ejection, or operation of robotic take-out systems.
   • Sizing and Quality: Must provide sufficient air volume (CFM or m³/min) at the required pressure (psi or bar). The compressed air should also be clean and dry to prevent issues with pneumatic components.

6. Mold Dehumidifier (Optional but Recommended):

   • Preventing Condensation: If the chilled mold surface temperature is below the dew point of the ambient air in the factory, condensation ("mold sweating") can occur on the mold cavities. This can cause cosmetic defects on the preforms (water marks, cloudiness) and can lead to corrosion on the mold.
   • Function: A mold dehumidifier supplies dry air around the mold clamping area to prevent condensation, especially important in humid climates or when running very low mold temperatures for fast cycles.

7. Take-Out Robot and Conveyor System (Optional but Common for Automation):

   • Automated Preform Removal: For higher cavitation molds and faster cycle times, a robotic arm is often used to automatically remove the ejected preforms from the mold.
   • Post-Mold Handling: Conveyors then transport the preforms to a cooling station, quality inspection area, or directly to packing/storage.
   • Benefits: Ensures consistent cycle times, reduces labor, minimizes preform damage, and improves safety.

This entire setup forms a production cell. The process flow involves drying the resin, feeding it to the injection molding machine, injecting the molten PET into the preform mold, cooling the preforms, ejecting them, and then conveying them for further processing or storage. This is the stage before the preforms go to the blow molding machines where Blow molding is a manufacturing process for forming hollow plastic parts. Wikipedia provides a detailed explanation of its types and applications.

My client in Bangladesh, when planning his in-house production, had to budget not just for the three preform molds but also for at least one appropriately sized injection molding machine (he started with one, planning to add more lines later), a large enough PET dryer, a powerful chiller, loaders, and a suitable air compressor. The total investment for the machinery, separate from the molds, was a very significant part of his project budget. We spent considerable time matching the machine specifications (tonnage, shot size) to his chosen 32-cavity molds and his target cycle times to ensure the line would perform efficiently.

(Further expansion would include details on calculating machine tonnage, shot size, dryer and chiller sizing, different types of robotic systems, considerations for plant layout and utilities, and maintenance requirements for each piece of equipment.)

Is it cheaper to buy preforms or make them in-house?

This is the million-dollar question for many businesses in the bottling industry! Cost is a primary driver in any manufacturing decision, and the choice between buying ready-made PET preforms and producing them yourself is no exception. The answer isn't always straightforward, as it depends heavily on your scale of operations and a comprehensive view of all associated costs.

For businesses with lower production volumes or unpredictable demand, buying preforms is generally cheaper in the short to medium term due to the avoidance of substantial upfront capital investment in molds and machinery. However, for companies with high, consistent, and predictable production volumes, making preforms in-house can significantly reduce the per-unit cost over the long term, despite the initial capital outlay.

Dive Deeper: A Granular Cost Comparison – Buying vs. In-House Manufacturing

To truly determine which option is more economical, we need to dissect the cost structures of both scenarios.

Cost Components When Buying Preforms:

1. Price Per Preform: This is the direct quote from your supplier. It includes their raw material cost, conversion costs (energy, labor, machine amortization for them), overhead, profit margin, and sometimes initial mold amortization if it's a somewhat custom preform they made for a limited group of clients.
2. Transportation Costs: The cost of shipping preforms from the supplier's facility to yours. This can be significant, especially for long distances or less-than-truckload (LTL) shipments.
3. Incoming Quality Control Costs: Labor and time spent inspecting delivered preforms to ensure they meet your specifications.
4. Inventory Holding Costs: Costs associated with storing preforms (space, climate control if needed, capital tied up in inventory).
5. Supplier Management Costs: Time and resources spent on sourcing, negotiating with, and managing relationships with preform suppliers.
6. Costs of Poor Quality from Supplier: This includes rejected preforms, line stoppages at your blow molding stage due to faulty preforms, and potentially customer complaints if defective bottles reach the market.

Cost Components When Making Preforms In-House:

1. Capital Investment (Amortized):
   • Preform Molds: The cost of the molds, amortized over their expected lifespan (number of cycles or years).
   • Injection Molding Machine(s): Cost of the machine(s), also amortized.
   • Auxiliary Equipment: Dryers, chillers, loaders, compressors, etc., also amortized.
   • Installation and Commissioning Costs.
2. Raw Material Costs:
   • PET Resin: The price per kilogram of PET resin, which fluctuates with market conditions. This is a major component.
   • Colorants/Additives: If you use masterbatch for color or other additives.
3. Operational Costs:
   • Energy: Electricity consumption by the injection molding machine (motors, heaters), dryer, chiller, and other auxiliaries. This is a significant operational cost.
   • Labor: Wages for machine operators, technicians, quality control personnel, and maintenance staff involved in preform production.
   • Maintenance and Spare Parts: Costs for routine maintenance of molds and machinery, as well as for replacing worn or damaged parts.
   • Water: For the chiller (if it's an open-loop system, though closed-loop is more common and efficient).
   • Consumables: Mold release agents (if used, though less common for PET), cleaning supplies.
4. Overhead Costs:
   • Factory Space: Allocation of rent/mortgage, utilities, and insurance for the area occupied by the preform production line.
   • Quality Control: Costs of internal QC procedures, testing equipment, and personnel.
   • Waste Management: Cost of disposing of or recycling any scrap material (though hot runner molds minimize this for runners). Defective preforms still generate waste.

The Tipping Point – My Client's Realization:
My client from Bangladesh initially focused heavily on the upfront cost of the molds and machines. He saw buying preforms as a way to avoid this large capital hit. However, as his volume grew, his monthly preform purchase bill became enormous. Let's use hypothetical numbers similar to what we discussed:

• Suppose he was buying 3 million preforms a month at an average landed cost of $0.035 per preform. That's $105,000 per month spent on preforms.
• When we analyzed in-house production, after accounting for resin, energy (a big factor he initially underestimated), labor, and amortization of his planned 32-cavity molds and a suitable injection line, the projected in-house cost per preform was closer to $0.022.
• The saving per preform would be $0.035 - $0.022 = $0.013.
• On 3 million preforms a month, this translates to a saving of $39,000 per month, or $468,000 per year.

Even if his total investment for one production line (machine, one mold, auxiliaries) was, say, $300,000 - $400,000, the payback period became very attractive (less than a year in this simplified scenario before considering multiple molds for different sizes). He was particularly struck by the impact of energy and labor when I explained why a very small 4-cavity mold, despite its lower mold price, would lead to a much higher energy consumption per preform and much higher labor cost per preform compared to a 32-cavity mold running efficiently. The factory visits we did, where he saw large machines churning out vast quantities of preforms with minimal labor per machine, drove this point home. He understood that "cheaper" isn't just about the initial price tag of one component like the preform mold; it's about the total cost of ownership and the cost per unit at actual production volumes.

Factors Favoring Buying:

• Low or unpredictable volumes.
• Limited capital.
• Need for rapid market entry with standard products.
• Lack of in-house technical expertise.
• Testing multiple product variations with low initial commitment.

Factors Favoring In-House Production:

• High, stable, and predictable volumes.
• Desire for lowest possible long-term per-unit cost.
• Need for custom designs, specific quality standards, or proprietary features.
• Strong financial position to support capital investment.
• Long-term strategic commitment to the bottling business.
• Concerns about supply chain reliability or supplier pricing.

A thorough financial model, including sensitivity analysis for factors like resin price and energy cost, is essential to make an accurate comparison for your specific situation.

How many preforms do I need monthly to justify a mold investment?

This is a critical threshold every growing bottling business contemplates. You're buying preforms, your volumes are increasing, and you start wondering: at what point does it become more economical to bring preform production in-house? Is there a magic number for monthly preform consumption that signals it's time to invest in your own mold and machinery?

There's no universal magic number for monthly preform demand that automatically justifies a mold investment, as it heavily depends on the specific costs involved (mold price, machine cost, difference in price between buying and making preforms). However, businesses often start seriously considering this investment when their monthly demand consistently reaches several hundred thousand to a few million preforms per specific type, and a detailed financial analysis shows a reasonable payback period (e.g., 1-3 years).

Dive Deeper: Calculating Your Break-Even Volume for Mold Investment

The decision to invest in a preform mold and associated production line hinges on a break-even analysis. You need to determine the volume of preforms at which the cumulative savings from making them in-house (compared to buying them) equals your initial investment.

Key Variables in the Calculation:

1. Total Initial Investment (I):

   • Cost of the Preform Mold (M_cost)
   • Cost of the Injection Molding Machine (IM_cost) (or its allocated portion if used for multiple molds)
   • Cost of Auxiliary Equipment (Aux_cost) (dryer, chiller, etc.)
   • Installation, commissioning, and training costs.
   • So, I = M_cost + IM_cost + Aux_cost + Installation_costs.

2. Cost Per Preform When Buying (C_buy):

   • This is your current landed cost per preform from a supplier (including preform price, shipping, duties, etc.).

3. Cost Per Preform When Making In-House (C_make):

   • This includes:
     • PET Resin cost per preform.
     • Energy cost per preform.
     • Direct Labor cost per preform.
     • Maintenance cost per preform.
     • Overhead allocation per preform.
   • Note: This C_make initially excludes the amortization of the capital investment, as we are using the investment (I) separately in the break-even calculation.

4. Saving Per Preform (S):

   • S = C_buy - C_make

5. Break-Even Volume (V_be):

   • This is the total number of preforms you need to produce to recoup your initial investment.
   • V_be = I / S

6. Break-Even Time (T_be):

   • If V_monthly is your consistent monthly preform consumption:
   • T_be (in months) = V_be / V_monthly

Illustrative Example (Simplified):

Let's build on the hypothetical figures from my Bangladeshi client:

• Total Initial Investment (I):

  • 32-cavity Preform Mold: $55,000
  • Injection Molding Machine (allocated cost for this mold): $150,000
  • Auxiliaries (allocated): $45,000
  • Installation: $10,000
  • I = $55,000 + $150,000 + $45,000 + $10,000 = $260,000

• Cost Per Preform When Buying (C_buy): $0.035

• Cost Per Preform When Making In-House (C_make - excluding amortization):

  • Resin: $0.015
  • Energy: $0.004
  • Labor: $0.002
  • Maintenance/Overhead: $0.001
  • C_make = $0.015 + $0.004 + $0.002 + $0.001 = $0.022

• Saving Per Preform (S):

  • S = $0.035 - $0.022 = $0.013

• Break-Even Volume (V_be):

  • V_be = $260,000 / $0.013 \approx 20,000,000 preforms

Now, let's consider different monthly volumes (V_monthly):

• If V_monthly = 500,000 preforms:

  • T_be = 20,000,000 / 500,000 = 40 months (approx. 3.3 years)
  • Analysis: A payback of over 3 years might be acceptable for some, but it's on the longer side. The decision would depend on market stability and the company's investment horizon.

• If V_monthly = 1,000,000 preforms:

  • T_be = 20,000,000 / 1,000,000 = 20 months (approx. 1.7 years)
  • Analysis: A payback period of under 2 years is often considered very attractive and would likely justify the investment.

• If V_monthly = 2,000,000 preforms (closer to my client's situation for one size):

  • T_be = 20,000,000 / 2,000,000 = 10 months
  • Analysis: A 10-month payback is exceptionally good and makes the investment highly compelling. This is why my client, after seeing similar numbers based on his actual quotes and volumes, became confident in making the switch. The efficiency of a high-cavitation preform mold was crucial to achieving this favorable C_make.

Factors Influencing the "Justifiable" Monthly Volume:

• Magnitude of Savings (S): If the difference between buying and making is larger (e.g., due to very expensive suppliers or very efficient in-house production), the break-even volume will be lower, and thus a smaller monthly volume might suffice.
• Total Investment (I): Higher investment costs (e.g., for top-tier European machinery or very high-cavitation molds) will require a higher monthly volume to justify.
• Company's Financial Health and Risk Appetite: A company with strong cash flow and a higher tolerance for risk might invest at a lower monthly volume than a more conservative or financially constrained company.
• Strategic Importance: If in-house production offers significant non-financial benefits (e.g., unique design capability, vastly improved quality control for a premium product), the company might accept a longer payback period or a higher required monthly volume.
• Number of Different Preform Types: If you need many different preforms in smaller individual volumes, the justification for each mold is harder. If one or two types constitute the bulk of your high volume, it's an easier decision for those.

My client ultimately decided to proceed when his combined consistent monthly demand for his main bottle sizes strongly indicated a payback period of well under two years for each new production line (mold + share of machine). He didn't invest until his actual sales, not just projections, supported these volumes. This cautious, data-driven approach is wise.

It's not just about hitting a certain number; it's about that number being stable and predictable enough to ensure the machinery will be well-utilized, and the savings will reliably accrue over the payback period and beyond.

Can I customize preforms if I buy them from suppliers?

You're looking to differentiate your product with a unique bottle color, or perhaps you need a preform with specific barrier properties, but you're not quite ready for the commitment of in-house production and owning your own molds. This leads to a common question: to what extent can you customize PET preforms when sourcing them from external suppliers?

Yes, some level of customization is often possible when buying preforms from suppliers, particularly for aspects like preform color or the inclusion of certain standard additives. However, more extensive customizations, such as unique neck finishes, proprietary preform shapes, or highly specific material blends, are typically very limited or may require you to fund a dedicated mold, even when buying from a supplier, due to their standard production setups and high Minimum Order Quantities (MOQs) for non-standard items.

Dive Deeper: Exploring the Spectrum of Customization from Preform Suppliers

When you approach preform suppliers, you'll find that their willingness and ability to customize preforms exist on a spectrum. Much depends on the supplier's scale, technical capabilities, flexibility, and, crucially, the volume of your order.

Common Types of Customization Potentially Available from Suppliers:

1. Color Customization:

   • Standard Colors: Many suppliers offer a range of standard preform colors (e.g., clear, blue, green, amber) that are readily available or can be produced with relatively low MOQs.
   • Custom Color Matching: If you need a specific Pantone color for your brand, some larger suppliers can do custom color matching. This usually involves them creating a new masterbatch blend.
   • Limitations: Custom color matching typically comes with significant MOQs (often tens or hundreds of thousands of units per color) and may involve a color development fee. The lead time for custom colors will also be longer.

2. Standard Additives:

   • UV Inhibitors: If your product is sensitive to UV light (e.g., some beverages, pharmaceuticals), preforms can be made with UV-blocking additives. This is a relatively common request.
   • Reheat Additives: These are sometimes used to improve the efficiency of the reheat process in blow molding, especially for dark or opaque preforms.
   • Limitations: Suppliers will typically only offer additives they are already familiar with and have approved for use with their PET resin and equipment. Introducing a novel additive might be difficult. MOQs will likely apply.

3. Preform Weight Adjustments (Within Existing Mold Limitations):

   • Some suppliers might offer slight variations in preform weight for a given neck finish if their existing mold design has some flexibility (e.g., adjustable core pins or different interchangeable mold inserts for weight).
   • Limitations: This is not widespread. Most molds are designed for a specific preform weight. Any adjustment is usually minor and within the tolerance of the existing tooling. Significant weight changes require a different mold.

Customizations Generally Difficult or Impossible Without Your Own Mold (Or Funding One):

1. Unique Neck Finishes:

   • If you require a proprietary neck finish for a special cap, a non-standard thread profile, or a specific tamper-evident band, this almost always necessitates a custom mold. Suppliers build their molds for industry-standard neck finishes (PCO1881, 30/25, 29/21, etc.) to serve a broad market. Retooling their high-cavitation molds for a single customer's unique neck is prohibitively expensive and disruptive for them.

2. Proprietary Preform Shapes or Dimensions:

   • If your desired bottle design requires a preform with a unique body length, diameter, or specific contour to achieve optimal material distribution and bottle performance, this is a custom preform. Suppliers will not have molds for such unique designs readily available.

3. Specialized Barrier Materials or Multi-Layer Preforms:

   • For products requiring enhanced oxygen, CO2, or light barriers (e.g., juices, beer, dairy, some sauces), multi-layer preforms (e.g., PET/Nylon/PET or PET/EVOH/PET) or preforms with specialized barrier additives blended into the PET are used.
   • Limitations: While some very large, specialized suppliers might offer certain standard barrier preforms, true customization of barrier layers or materials often requires dedicated molds and specialized co-injection or overmolding technology that not all suppliers possess. If they do offer this, it's usually for very high volumes or if you fund the specific tooling.

4. Use of Non-Standard Resins or Blends:

   • If you need preforms made from a specific grade of PET not typically used by the supplier (e.g., high-IV PET for specific applications, copolyesters, or PET blended with other polymers for unique properties), they may be unwilling or unable to accommodate this unless volumes are exceptionally large, as it would require them to change their standard raw material stream and potentially revalidate their processes.

Why Suppliers Have These Limitations:

• Economics of Scale: Preform suppliers, especially large ones, thrive on producing massive quantities of standard preforms using high-cavitation molds that run continuously. Customization for smaller runs disrupts their production efficiency.
• Mold Costs: As discussed, preform molds are expensive. Suppliers invest in molds for standard items they can sell to many customers. They are unlikely to invest in a custom mold for a single client unless that client guarantees very large, long-term orders or pays for the mold itself.
• Technical Complexity: Some customizations require specialized knowledge, equipment (e.g., for co-injection), or process adjustments that the supplier may not have or be willing to undertake for limited runs.

My Experience:
I've had clients who wanted, for example, a unique shade of blue for their water bottles. We approached several preform suppliers. The smaller suppliers couldn't offer it at all. Larger ones could, but the MOQ was often 500,000 to 1 million preforms for that specific custom color, plus a color development fee of a few thousand dollars. For a startup, this MOQ was too high.
Another client wanted a slightly shorter neck height than standard for a particular cap they had sourced. No supplier could offer this from their existing range; it would have required a new set of neck rings (inserts) for one of their molds, which they quoted as a custom tooling charge, or for the client to buy a complete new mold.

If you're buying preforms and need customization:

• Be prepared for MOQs: The more unique your request, the higher the MOQ will likely be.
• Expect longer lead times: Custom runs take more planning and time.
• You might have to pay for tooling: For significant customizations like neck finishes or shapes, suppliers will often quote it on the basis that you pay for the new mold or mold modifications, even if they run the production. At that point, you're effectively investing in your own tooling, just housed and run at a third-party facility.

So, while some basic customization (mainly color) is feasible when buying, significant product differentiation through preform design typically pushes you towards investing in your own dedicated preform molds.

What’s the lead time for producing a custom preform mold?

You've made the strategic decision to invest in a custom preform mold to achieve your desired bottle design, optimize material usage, or gain control over your preform supply. Now, a practical question arises: how long will it take from placing the order to having a production-ready mold in your facility or your supplier's? Planning your project timeline accurately depends on understanding these lead times.

The typical lead time for designing, manufacturing, testing, and delivering a custom PET preform mold generally ranges from 45 to 90 days (approximately 6 to 12 weeks). This duration can vary significantly based on the mold's complexity (e.g., number of cavities, hot runner system intricacy), the mold manufacturer's current workload and efficiency, the completeness of your initial specifications, and the time taken for design approvals and sample evaluations.

Dive Deeper: Phases and Influencers of Preform Mold Production Lead Time

The creation of a custom preform mold is a multi-stage process, and delays in any phase can extend the overall lead time.

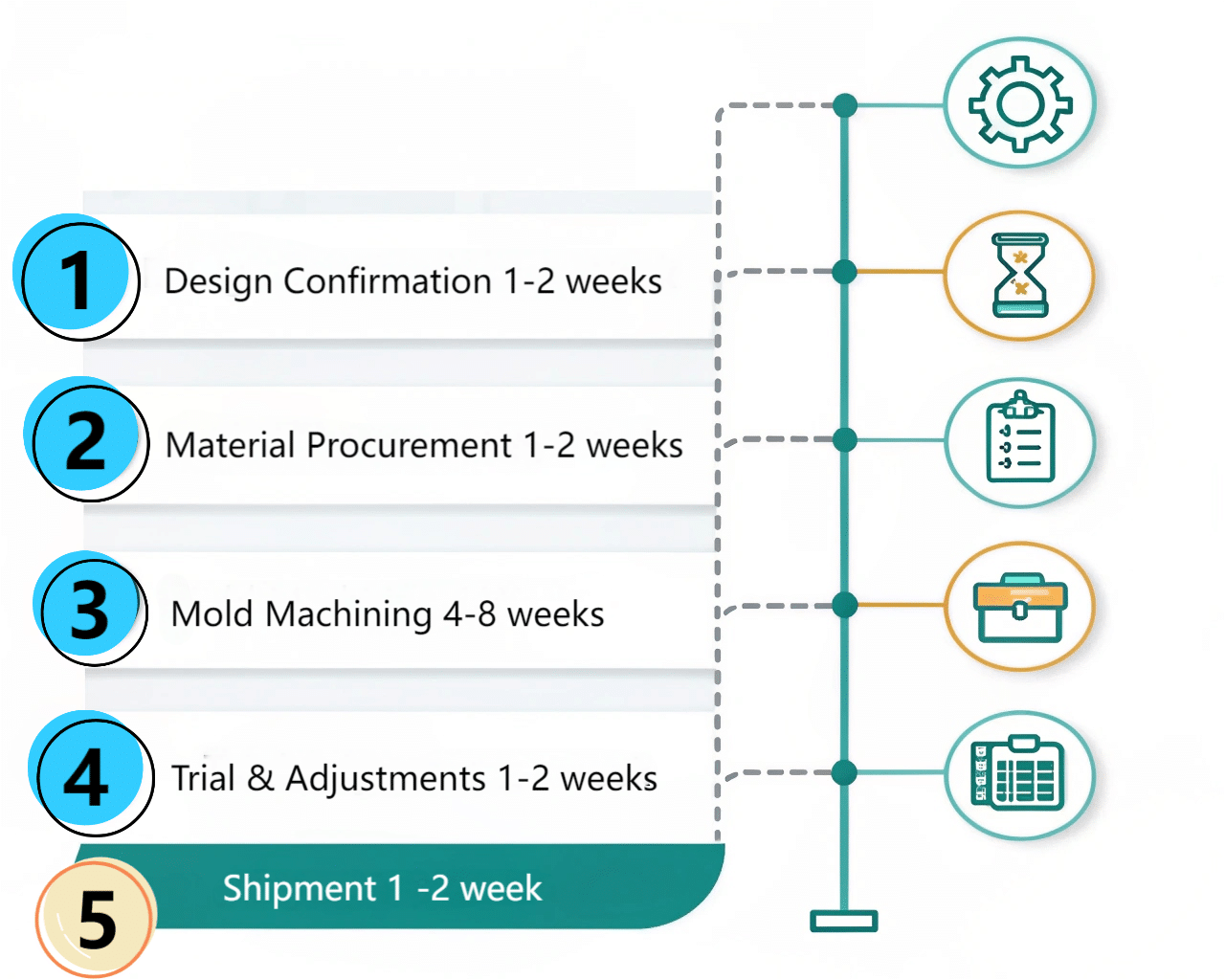

Typical Phases in Preform Mold Production:

1. Order Confirmation and Initial Design (1-2 weeks):

   • Finalizing Specifications: Confirming all details: preform drawings, material specifications, desired cycle time, mold steel, hot runner system details, number of cavities, required mold life, etc.
   • Preform Design Optimization (if needed): The mold maker might suggest slight modifications to your preform design for better moldability or performance.
   • Initial Mold Design (2D/3D): The manufacturer creates a detailed design of the mold.
   • Customer Approval: You review and approve the mold design. Clear and prompt communication here is crucial. Multiple revisions will add time.

2. Material Procurement (1-2 weeks):

   • Ordering and receiving the specified mold steel (e.g., P20, S136, Stavax) for the mold base, cavities, cores, and neck rings.
   • Ordering components for the hot runner system (if applicable) from specialized suppliers (e.g., Husky, Yudo, Mold-Masters). Sometimes this can be a long-lead item itself.
   • Procuring standard mold components (e.g., ejector pins, guide pillars).

3. Mold Machining and Manufacturing (4-8 weeks, can be longer for very complex/high-cavitation molds):

   • CNC Machining: Milling of mold plates, cavities, and cores.
   • EDM (Electrical Discharge Machining): Used for intricate details, sharp corners, or areas difficult to machine conventionally.
   • Grinding: For achieving precise dimensions and surface finishes.
   • Heat Treatment: If required for the chosen steels to achieve desired hardness.
   • Polishing: Cavities and cores are polished to achieve the desired surface finish on the preform (critical for clarity).
   • Hot Runner System Manufacturing/Assembly: If it's a custom hot runner manifold.
   • Fitting and Assembly of Mold Components.

4. Mold Trials (T1, T2, etc.) and Adjustments (1-2 weeks):

   • T1 Trial: The first trial of the assembled mold in an injection molding machine. Samples (T1 samples) are produced.
   • Sample Inspection: Preform samples are measured, tested for quality (dimensions, weight, visual defects, IV drop, AA levels if critical), and sent to you for approval.
   • Mold Adjustments/Debugging: Based on the T1 trial and sample inspection, the mold maker may need to make adjustments or fine-tune the mold (e.g., optimizing venting, cooling, gate dimensions). This might involve minor re-machining.
   • T2 Trial (if needed): If significant adjustments were made, another trial (T2) is conducted. This cycle continues until the mold produces preforms consistently meeting all specifications.

5. Final Acceptance and Shipment (1 week):

   • Customer Approval of Final Samples.
   • Mold Texturing (if required, e.g., for matte finish on parts of the preform - rare).
   • Final Mold Inspection and Preparation for Shipment: Applying anti-rust coating, crating.
   • Shipping: Transit time depends on the distance between the mold maker and your facility (can range from a few days domestically to several weeks for international sea freight).

Factors Influencing Lead Time:

• Mold Complexity: Higher cavitation, intricate preform designs, complex hot runner systems (especially valve gate), and requirements for very tight tolerances naturally take longer to design and manufacture.
• Mold Manufacturer's Capacity and Workload: A busy manufacturer will have longer queues. Their efficiency, level of automation, and number of skilled staff also play a role.
• Clarity and Completeness of Specifications: Providing incomplete or ambiguous preform drawings or mold specifications at the outset can lead to delays due to back-and-forth clarifications and redesigns.
• Customer Responsiveness: Your speed in approving designs, providing feedback on samples, and making decisions is critical. Delays on your end will directly impact the timeline.
• Hot Runner System Lead Time: If a specialized hot runner system is ordered from a third-party supplier, its delivery time can become a critical path item.
• Availability of Materials and Components: Shortages of specific grades of mold steel or specialized components can cause delays.
• Number of Iterations/Adjustments: If the T1 samples are not satisfactory and the mold requires significant rework, this can add weeks to the schedule.
• Shipping and Logistics: Particularly for international mold makers, customs clearance and shipping logistics can add variable time.

My Advice on Managing Mold Lead Times:

• Plan Well in Advance: Don't wait until the last minute. Start the mold procurement process early in your project timeline.
• Choose a Reputable and Communicative Mold Maker: Look for manufacturers with proven experience in PET preform molds and good project management practices.
• Provide Crystal-Clear Specifications: The more detailed and accurate your initial information, the smoother the process.
• Maintain Open Communication: Schedule regular progress updates with the mold maker. Respond promptly to their queries and requests for approval.
• Build in Some Buffer: It's wise to add a couple of weeks of buffer into your project plan to account for potential unforeseen delays.
• For my Bangladeshi client, the lead time for his 32-cavity hot runner molds from a Chinese supplier was quoted at around 70-80 days from final design approval to ex-works. We made sure to have very detailed preform drawings and mold specification sheets agreed upon before confirming the order to minimize ambiguity. We also scheduled weekly photo/video updates from the manufacturer.

Understanding and proactively managing these phases and influencing factors can help ensure your custom preform mold is delivered as close to the planned schedule as possible, enabling you to move forward with your production plans.

Conclusion

Ultimately, the decision of whether to buy PET preforms or invest in your own preform mold and manufacturing capabilities is a pivotal one. It’s not merely an operational choice but a strategic one that must align with your company’s current scale, financial capacity, quality requirements, customization needs, and long-term growth ambitions. A thorough analysis of costs, benefits, risks, and strategic implications is essential for making the most informed and profitable decision for your business's sustained success in the competitive beverage and packaging landscape.

---

📖 Learn More About Blow Molding and Preform Production

To better understand the technical processes behind PET bottle manufacturing, you may refer to the following authoritative resources:

• Preform – Wikipedia
  Learn what a preform is and how it's used in plastic packaging industries.

• Blow Molding – Wikipedia
  A detailed explanation of blow molding technology, including extrusion, injection, and stretch blow molding types.

• Preform Mold Manufacturing Process – iBottler
  Step-by-step breakdown of preform mold design, CNC machining, hot runner system, polishing, and testing from our 20-year factory experience.
