Struggling with PET bottle production? Choosing your mold before the machine can lead to costly errors. It's a common misstep I've seen many times in my 16 years in the PET packaging industry.

Yes, you absolutely should choose your blow molding machine before customizing your PET blow mold. This sequence ensures the mold is perfectly compatible with your machine's specifications, preventing production issues and wasted investment.

It might seem like a small detail, but believe me, it's the foundation of efficient PET bottle manufacturing. I've worked with over 300 clients, and the ones who get this right from the start save themselves a lot of headaches. Let's explore why this is so critical and how you can get it right.

Why is it important to choose the blow molding machine before making a PET blow mold?

Ever felt rushed to start production, thinking any mold will do? This haste can lead to significant problems and financial loss if the mold and machine don't match.

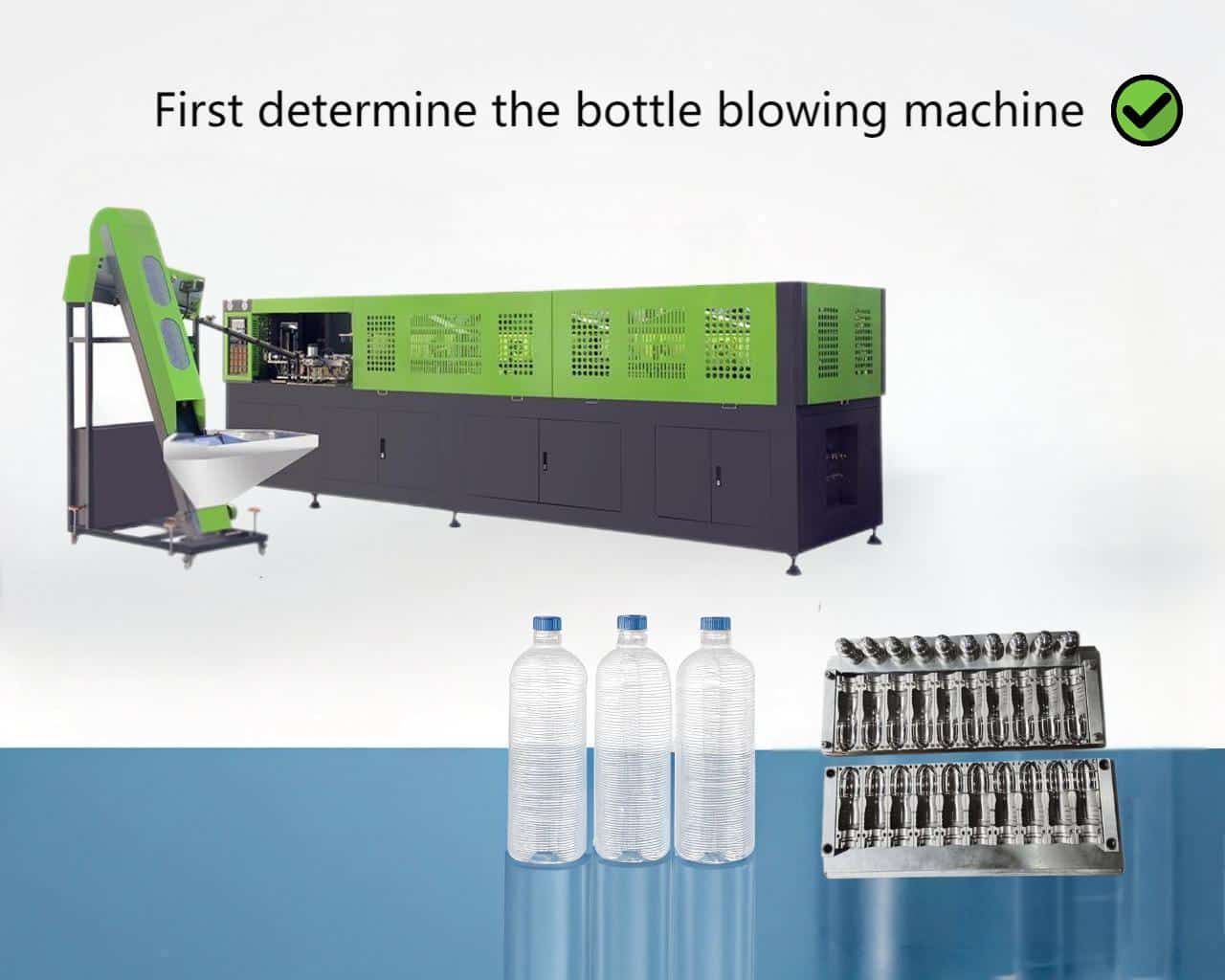

Choosing the machine first is crucial because the mold is custom-built to fit specific machine parameters. An incompatible mold simply won't work or will perform poorly, wasting time and money.

In my experience, this is a foundational step that many newcomers, and sometimes even established businesses, overlook. For instance, just last week, a new client from Nigeria approached me. He was eager to get two PET blow molds made, one for 500ml bottles and another for 750ml. He wanted to start mold production immediately. When I asked about his blow molding machine – whether it was semi-automatic or fully automatic, and the number of cavities – he said he didn't know yet. He planned to choose the machine later, or perhaps not buy one at all initially, and instead find a local factory for contract manufacturing.

I explained that PET blow molds are not one-size-fits-all. They are tailored to the specific structure and mechanics of the blow molding machine. Different machines have different clamping systems, neck ring specifications, and mold height allowances. Without knowing these details, we can't design a mold that will function correctly. He insisted, "Just make the molds first, it's urgent. I need to get my product to market." He thought he could just get the molds and find a factory to run them. What he didn't realize is the sheer variety of blow molding machines out there – dozens of structures. A 2-cavity mold for one machine might not fit a 4-cavity machine, or even another 2-cavity machine from a different manufacturer if the number of cavities isn't confirmed. The mold design depends heavily on the machine it's intended for. This early decision impacts everything downstream, from production speed to bottle quality. He couldn't just order a mold without knowing if it was for a 2-cavity, 4-cavity, or 8-cavity machine.

The Domino Effect of a Premature Mold Order

Ordering a mold without a confirmed machine is like buying shoes without knowing the shoe size. It's a gamble, and often a losing one. I've seen this play out with some of the 300+ clients I've worked with over my 16 years.

• Wasted Investment: You might end up with a very expensive paperweight if the mold doesn't fit any machine you later acquire or can access. This is a significant financial blow, especially for startups.
• Production Delays: Realizing the incompatibility late in the process means going back to the drawing board, causing significant delays in getting your product to market. This was exactly what my Nigerian client was trying to avoid, yet his approach was ironically setting him up for that very risk. He was focused on speed but overlooking the precision required.
• Compromised Quality: Even if a mold can be made to fit with extensive modifications (which isn't always possible or economical), it might not operate optimally. This can lead to inconsistent bottle wall thickness, defects, and overall lower product quality, damaging brand reputation.
• Operational Headaches: Using a poorly matched or heavily modified mold can lead to frequent breakdowns, higher maintenance costs, and increased operator frustration.

Making the machine decision first lays a solid groundwork for a smooth, cost-effective, and efficient production process right from the start.

What machine parameters affect the compatibility of a PET blow mold?

Feeling unsure about what machine details are needed for your mold? Many technical aspects of the machine directly dictate the mold design, leading to confusion if not understood.

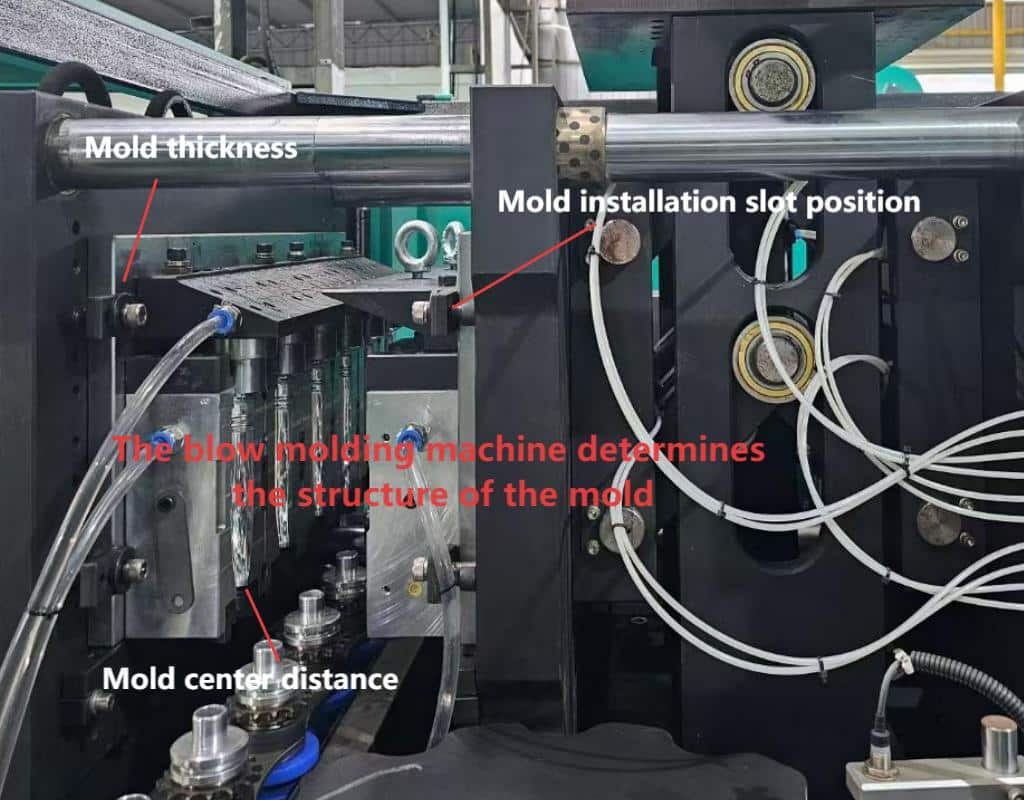

Key machine parameters include mold platen dimensions, clamping force, tie bar spacing, maximum and minimum mold height, ejector stroke, neck finish details, and the number of cavities the machine supports.

When I work with clients to design PET blow molds, getting the precise machine specifications is my top priority. It's like a tailor needing exact measurements for a custom suit; a general idea isn't enough for a perfect fit. Over my 16 years in this field, I've seen how even slight deviations in these parameters can render a mold useless for a particular machine, turning a planned investment into a sudden loss. These parameters are not just numbers; they are the critical interface points between your mold and the machine.

Let's break down some of these critical parameters in more detail:

Key Machine Specifications for Mold Design

Parameter	Description	Why it's critical for the mold
Mold Cavities	The number of bottles the machine can produce in one cycle (e.g., 2-cavity, 4-cavity, 8-cavity).	Dictates the overall size, complexity, and cooling/air channel layout of the mold. It's fundamental.
Platen Dimensions	The size of the plates in the machine where the mold halves are mounted (width and height).	The mold base must physically fit within these dimensions without overhanging.
Tie Bar Spacing	The horizontal and vertical distance between the machine's tie bars (the support rods).	The mold must fit between these bars for installation. This is a non-negotiable physical constraint.
Max/Min Mold Height	The range of mold thicknesses (stack height) the machine's clamping unit can accommodate.	The designed mold height must fall within this specific range for proper clamping and operation.
Clamping Stroke	The distance the movable platen travels to open and close the mold.	Must be sufficient for the bottle to be formed and safely ejected from the mold after blowing.
Clamping Force	The force (in tons) the machine applies to keep the mold securely closed during the high-pressure blowing.	The mold must be robustly designed to withstand this force without distortion or flashing.
Neck Finish Spec	Standard for the bottle's neck (e.g., PCO 1881, 30/25). Machine might have specific grippers for preforms.	The mold's neck cavity must perfectly match the preform neck and integrate with the machine's preform handling and blowing nozzle system.
Machine Type	Semi-automatic, fully automatic (linear or rotary).	Different types have vastly different mold mounting systems, automation interfaces, cooling connections, and overall structural requirements. A rotary machine mold is very different from a semi-auto one.
Ejector Details	Stroke length, pattern of ejector pins if machine-assisted ejection is used.	The mold design needs to accommodate the machine's ejection mechanism for bottle removal.

Understanding these parameters isn't just for engineers; it's crucial for anyone investing in PET bottle production. As I always tell my clients, providing this complete and accurate data upfront is the best way to ensure the mold we build is a productive asset, not a problem.

Can I design a PET blow mold without having a machine yet?

Tempted to get a head start on mold design while you're still machine shopping? This common urge to speed things up can unfortunately backfire spectacularly.

Technically, you can sketch a bottle design, but designing the actual PET blow mold without confirmed machine specifications is highly inadvisable and risky. The mold's core structure is machine-dependent.

I often encounter clients, much like the gentleman from Nigeria I mentioned earlier, who are eager to get their molds made quickly. He wanted his 500ml and 750ml molds immediately, even before settling on a machine or the contract manufacturer's specific equipment. His reasoning was clear: a pressing need to launch his new product. However, as I always explain, a PET blow mold isn't a standalone item like a pre-made shoe; it's a custom-fitted component, precision-engineered for a specific piece of machinery.

Imagine asking a mechanic to build a custom performance engine part, but you can't tell them the make, model, or year of the car it's for. They might be able to make something that looks like an engine part, but the chances of it fitting and performing correctly are slim to none. It's precisely the same with PET blow molds. While you can certainly finalize your bottle's aesthetic design, its volume, and its desired material characteristics, the actual tool – the mold – that will produce this bottle needs to integrate seamlessly with a particular blow molding machine. This integration is all about physical dimensions and operational mechanics.

What Parts of Mold Design Are Absolutely Machine-Specific?

If you decide to push forward with mold design without confirmed machine specs, you are essentially designing blindfolded for several critical aspects:

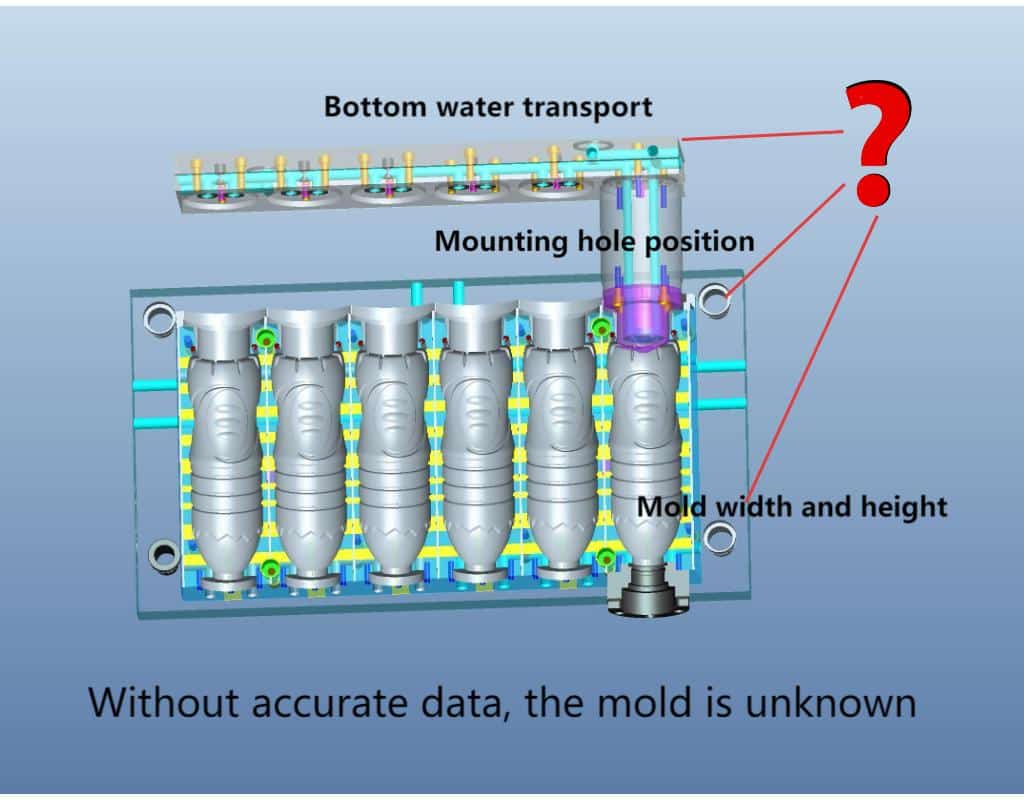

• Mold Base Dimensions & Mounting: The overall length, width, and height of the mold, and how it bolts or clamps onto the machine's platens. These are fundamental.
• Cooling Channel Layout & Connections: The placement, size, and type of cooling channels are often optimized based on the machine's cooling capacity and the required cycle time. Connection points for water also vary.
• Number of Cavities & Cavity Pitch: As discussed with my Nigerian client, a machine is built for a specific number of cavities (e.g., 2, 4, 6, 8). The mold must match this. The distance between cavities (pitch) is also a machine-defined parameter. A 2-cavity mold cannot be magically used in a 4-cavity machine setup.
• Blow Nozzle & Stretch Rod Interface: The height and positioning of these critical components vary from machine to machine and directly impact mold design around the neck and base areas.

My Nigerian client was very focused on his product designs, which is understandable. But he didn't initially grasp that the "mold" is not just about the bottle shape; it's about how that shape is formed within a specific machine. That's why I had to firmly guide him: identify the machine first – whether his own or a contractor's – and then we could build a mold guaranteed to work. It wasn't about slowing him down; it was about preventing a complete stop.

What happens if the PET blow mold does not match the machine?

Worried about the consequences of a mold-machine mismatch? The problems can range from minor inefficiencies to complete production stoppage, a frustrating and costly situation.

If the PET blow mold doesn't match the machine, you'll likely face installation impossibility, damage to the mold or machine, poor bottle quality, slow production, or a complete inability to produce bottles.

In my 16 years working with over 300 clients in the PET packaging sector, I've unfortunately seen the costly aftermath when a mold and machine are not compatible. It’s a scenario every bottle manufacturer, big or small, wants to avoid at all costs. When a client approaches me with a mold made elsewhere that simply won’t fit or run correctly on their machine, it’s often a very difficult and expensive problem to resolve – if it can be resolved at all without starting over.

Let's look at the common issues that arise from this mismatch in more detail:

Detailed Breakdown of Mismatch Problems:

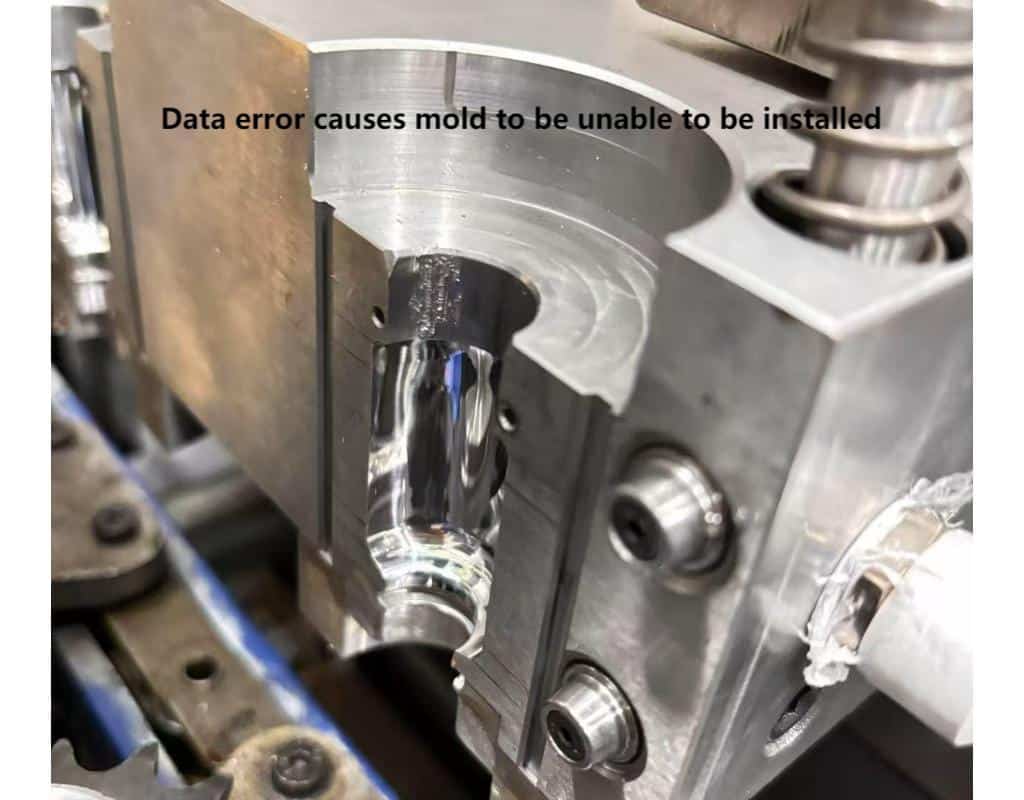

• Complete Inability to Install the Mold: This is often the first and most obvious barrier.

  • Physical Size Mismatch: The mold might be too large for the machine's platen area (the plates where the mold mounts) or too wide to pass between the tie bars (the structural rods of the clamping unit).

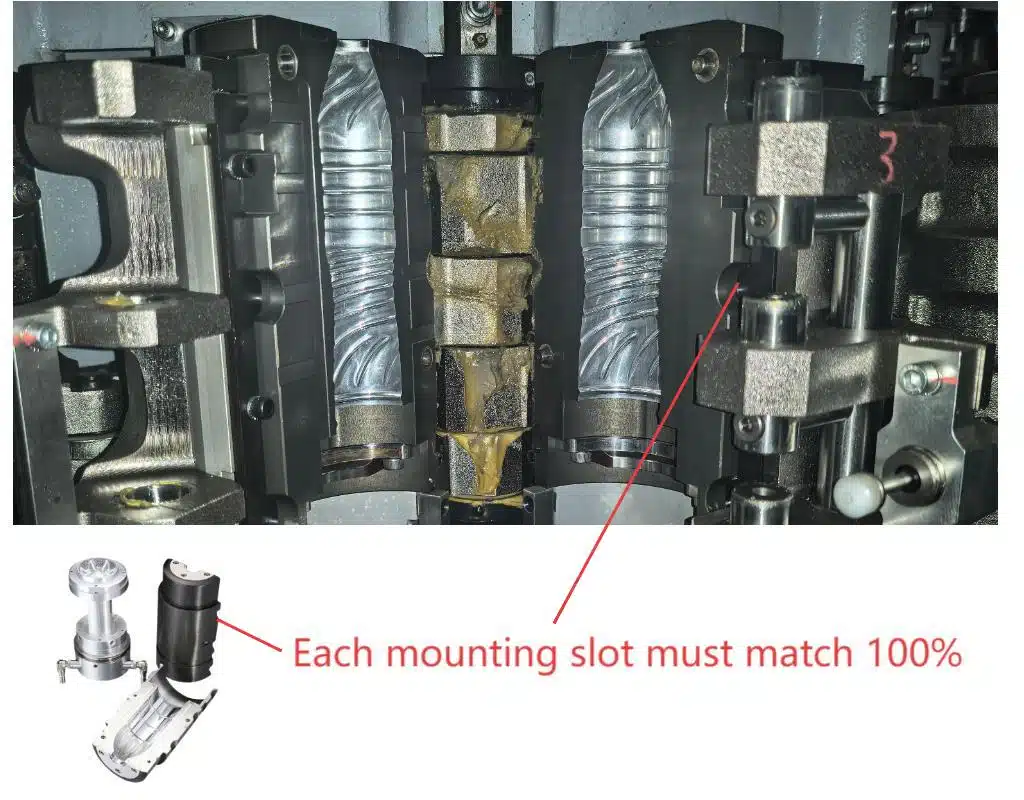

  • Incorrect Mounting System: The pattern of bolt holes or clamping slots on the mold base might not align with those on the machine's platens. Different manufacturers have different standards.
  • Mold Height (Stack Height) Out of Range: The mold could be too tall (preventing the clamp from closing) or too short (preventing proper clamping pressure) for the machine's specified minimum/maximum mold height.

• Risk of Damage to Mold or Machine:

  • Attempting to force a slightly misaligned or improperly sized mold into a machine can cause significant damage to precision components like the mold's guide pins and bushings, or even warp the machine's platens.
  • Incorrect clamping force distribution due to a poor fit can also lead to premature wear on mold components or damage the clamping mechanism of the machine over time.

• Severe Bottle Quality Issues:

  • Inconsistent Wall Thickness: If the mold halves don't align perfectly or the clamping isn't uniform due to mismatch, it can drastically affect how the PET preform stretches and blows, leading to unacceptable thin spots or overly thick sections in the bottle.
  • Flash, Short Shots, or Other Defects: Improper sealing between mold halves can cause molten plastic to escape (flash), or the cavity may not fill completely (short shot). Defects like misshapen necks or bases are also common if the blow pins or stretch rods don't align correctly with the mold cavities.

• Major Operational Inefficiencies and Financial Loss:

  • Drastically Slowed Cycle Times: If the mold's cooling system isn't designed for the machine's cooling capacity or connection points, cycle times can increase significantly, crippling production output.
  • Extended Downtime for Mold Changes: A poorly fitting mold can be extremely difficult and time-consuming to install and remove, leading to excessive machine downtime.
  • High Scrap Rates: Producing a large number of defective bottles due to mismatch not only wastes expensive PET material but also machine time and labor.

The Nigerian client I mentioned was keen to avoid delays, but by initially wanting the molds made before choosing a machine, he was unknowingly steering his project towards these exact pitfalls. Had he proceeded down that path, any "time saved" in rushing the mold would have been lost tenfold when faced with an incompatible tool. This underscores why the "measure twice, cut once" philosophy is so critical in mold making – confirm the machine, then make the mold.

How can I get the correct machine specs for custom PET blow molds?

Unsure how to gather the necessary machine details? Providing accurate specifications is key to a successful mold build, preventing costly errors and delays.

Obtain the machine's manual, contact the machine manufacturer directly, or have a technician measure the critical dimensions and parameters of your existing machine. Clear communication with your mold maker is essential.

Over my 16 years in the industry, ensuring I have the exact machine specifications from my clients has been a cornerstone of every successful mold project. It's a collaborative effort. While I, as the mold manufacturer, can guide my clients on exactly what information is needed, the accurate data must originate from their end if they already possess or have definitively chosen a blow molding machine. This step is non-negotiable for a smooth process.

Here’s a more detailed breakdown of how you can secure the right information to provide to your mold maker:

Practical Steps to Secure Accurate Machine Specifications:

1. Consult the Machine's Technical Manual:

   • This is always the first and generally the most reliable source. Most blow molding machine manufacturers provide comprehensive manuals that list all critical dimensions, capacities, and operational parameters relevant to mold interfacing.
   • Look for sections titled "Technical Specifications," "Mold Installation Guidelines," or "Platen Drawings." These often contain the goldmine of information needed.

2. Direct Contact with the Machine Manufacturer or Supplier:

   • If the manual is missing, incomplete, or unclear on certain points, your next best step is to reach out to the company that manufactured or supplied the machine. Their technical support or sales engineering department should be able to provide detailed specification sheets or CAD drawings for the mold interface area.
   • Always have your machine's model number and serial number handy when you contact them, as this helps them pinpoint the exact configuration.

3. Precise Physical Measurement (If the machine is accessible):

   • If you have the machine on-site (especially for older machines where documentation might be scarce, or to verify existing documents), a skilled technician should take precise measurements.
   • Key measurements to capture include:
     • Tie bar spacing (horizontal and vertical center-to-center distances).
     • Platen dimensions (usable width and height for mold mounting).
     • Locating ring diameter and its position on the platen.
     • Maximum and minimum permissible mold height (stack height).
     • Details of the machine's ejector system (stroke, pin pattern, force – if applicable).
     • Cooling water inlet/outlet port positions, thread types, and sizes.
     • Details of the clamping mechanism (e.g., hydraulic, toggle) and available mounting holes/T-slots.
   • I often provide my clients with a standardized checklist or a diagram highlighting these specific measurements to ensure nothing is overlooked. Taking photos of the platen and mold area can also be very helpful.

4. For Contract Manufacturing Scenarios:

   • If you plan to use a third-party contract manufacturer for your bottle production, as my Nigerian client initially considered, it is absolutely essential to get the detailed specifications for their specific machine(s) that will be running your mold.
   • Do not assume all machines in their facility are identical. You need the specs for the exact machine earmarked for your production run. The contract manufacturer should be willing to provide this.

5. Maintain Crystal-Clear Communication with Your Mold Maker:

   • Share all the information you've gathered – manuals, drawings, measurement sheets, photos – comprehensively with your mold maker.
   • Be responsive to questions. A diligent mold maker will meticulously review the provided specs and will likely ask for clarifications if any details seem ambiguous or contradictory. This back-and-forth dialogue is a crucial part of the process to prevent misunderstandings. For example, I often schedule a call to walk through the specs with a new client to ensure we're on the same page.

Providing these correct and complete specifications isn't just a bureaucratic formality; it is the absolute foundation upon which your custom mold will be built. It's what allows me and my team to design and manufacture a mold that will integrate seamlessly with your chosen machine, operate efficiently, and produce high-quality PET bottles consistently from the very first trial.

Is it possible to modify the mold later if the machine is different?

Wondering if a mold can be salvaged if you switch machines? While modifications are sometimes possible, they are often complex, costly, and not always feasible.

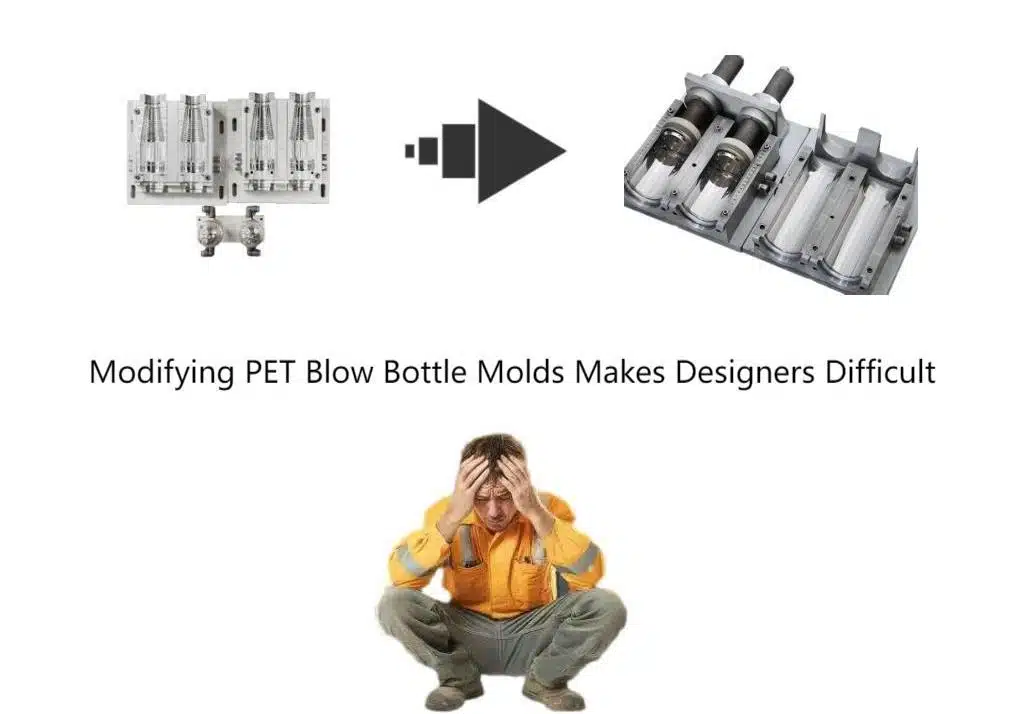

Minor modifications to a PET blow mold for a different machine might be possible, such as adjusting mounting holes. However, significant differences in size, cavity layout, or core mechanics usually make modification impractical or too expensive.

In my many years of experience, the question of mold modification often arises when a client acquires an existing mold along with a business purchase, decides to upgrade to a new and different blow molding machine, or, regrettably, if they initially had a mold made without precise machine specifications. While the idea of adapting an existing asset is financially appealing, the practical reality of PET blow mold modification can be quite challenging and often disappointing.

A PET blow mold is a highly precise piece of engineering. Its numerous components – cavities, cores, neck rings, bottom plates, cooling channels – are designed and manufactured to work together within extremely tight tolerances, and the entire assembly is built around the specific mechanical and dimensional constraints of a particular machine.

Assessing the Feasibility of Mold Modification:

Let's consider what might be adaptable versus what usually makes modification a non-starter:

• Potentially Modifiable Aspects (Case-by-Case Basis):

  • Mounting Provisions: If the new machine has a different bolt pattern or requires different clamps for mold mounting, it might be possible to drill new holes in the mold base or create adapter plates. This is only feasible if there's enough solid material in the existing mold base and if the modification doesn't compromise the mold's structural integrity or interfere with other components like cooling lines.
  • Locating Ring: The locating ring, which helps to centrally align the mold on the machine platen, can sometimes be changed if the new machine requires a different diameter or style, assuming it's a replaceable component.
  • Cooling Line Connections: It may be possible to re-route external cooling lines or change the type of fittings for water connections to match the new machine. However, modifying the internal cooling channels is usually very difficult or impossible.

• Typically Not Feasible or Economically Viable Modifications:

  • Overall Mold Size (Platen Fit / Tie Bar Clearance): If the existing mold is physically too large for the new machine's platen area or is too wide/tall to fit between the tie bars, there's virtually nothing that can be done short of a complete redesign and remanufacture of the entire mold base and potentially cavity blocks. Attempting to machine down a large mold can compromise its strength and cooling.
  • Mold Height (Stack Height): If the mold's current height is outside the new machine's operational range (too tall or too short for the clamp), significant and costly structural changes to the mold base plates would be required, which is rarely practical.
  • Number of Cavities / Cavity Pitch: Changing a 2-cavity mold into a 4-cavity mold (or vice-versa), or altering the center-to-center distance (pitch) between cavities to match a different machine configuration, involves remaking the core, cavity, and potentially the entire mold base. This is effectively designing and building large portions of a new mold.
  • Core and Cavity Alignment Systems: The precision mechanisms that ensure perfect alignment between mold halves (guide pins, bushings, interlocks) are integral to the original design and are extremely difficult to change without a complete overhaul.
  • Blow Pin / Stretch Rod Stroke, Diameter, and Alignment: If the new machine has different stroke lengths, diameters, or alignment parameters for these critical components, it would necessitate substantial rework of the mold's internal features, neck rings, and bottom mold components.

The cost of attempting significant modifications can often approach, or even exceed, the cost of manufacturing a brand new, correctly designed mold for the new machine. Furthermore, heavily modified molds may not perform as reliably, efficiently, or have the same lifespan as a mold that was designed from scratch for its intended machine. It truly is always better, faster, and cheaper in the long run to get it right the first time. This is precisely why I stress to all my clients, including the new one from Nigeria, that confirming the machine before embarking on mold manufacture is the most economical and technically sound path to successful bottle production.

How can your factory help me avoid mold and machine mismatch?

Looking for a partner to guide you through the complexities of mold and machine selection? Ensuring compatibility is key, and that's where experience and careful process come in.

My factory helps by insisting on complete machine specifications before mold design, offering consultation on machine selection, and leveraging our extensive experience to identify potential compatibility issues early.

Having been immersed in the PET packaging machinery and mold industry for over 16 years, and having collaborated closely with more than 300 clients worldwide, I've learned that proactive problem prevention is far more valuable and cost-effective than reactive problem-solving. The issue of a PET blow mold not matching the intended blow molding machine is a classic, and entirely avoidable, pitfall. My team and I are deeply committed to ensuring that our clients do not fall into this common trap, which can lead to significant delays and financial losses.

Here’s a breakdown of how my factory and I work diligently to safeguard your project from such mismatches:

Our Proactive Approach to Ensuring Seamless Mold-Machine Compatibility:

1. Mandatory and Detailed Machine Specification Review:

   • This is the absolute first step. Before we even begin the detailed 3D design of your PET blow mold, we require comprehensive and verified information about your specific blow molding machine. We provide clients with a detailed checklist or questionnaire covering all critical parameters – from platen dimensions and tie-bar spacing to mold height range and neck finish requirements.
   • We simply will not proceed with just a bottle drawing or a vague machine description. This was the core of my crucial conversation with my new Nigerian client. Understanding the machine – type, number of cavities (2, 4, 8, etc.) – is non-negotiable.

2. Expert Consultation and Guidance:

   • If you are new to the industry or are unsure about which machine to select for your production needs, I can offer unbiased advice based on your desired bottle design, production volume, budget, and automation level. While my factory specializes in molds and certain types of machines, my broad experience across the industry allows me to help you understand the implications of choosing, for example, a semi-automatic vs. a fully automatic linear or rotary machine.
   • This consultation helps you make an informed machine choice, which in turn allows us to design the perfect mold.

3. Thorough Design Verification Against Machine Specs:

   • Once we have the confirmed machine specifications, our experienced mold design engineers meticulously create the mold design, constantly cross-referencing it against the machine data. This ensures perfect compatibility regarding physical fit, mounting, clamping force capacity, cooling line integration, and proper interface with ejection systems.
   • We utilize advanced 3D CAD modeling software to visualize the mold within the machine's operating envelope (if machine CAD data is available or can be accurately modeled from the provided specifications). This allows us to catch potential interferences before any metal is cut.

4. Leveraging Practical Experience and Network (Illustrated by the Nigerian Client Case):

   • My recent interaction with the Nigerian client, who was initially adamant about making molds before having a defined machine (either his own or a contract manufacturer's), serves as a practical example of our problem-solving approach. I patiently explained the critical need for machine details.
   • Recognizing his urgency and his initial thought of using a local contract manufacturer, I was able to offer a constructive solution. I have a long-standing, trusted client in Nigeria with whom I've partnered for over 8 years; he has purchased 10 blow molding machines from my factory. I proposed connecting my new client with this established one to explore the possibility of them handling his contract manufacturing. If feasible, we could then design the new molds specifically for one of my existing client's known machines, thereby guaranteeing compatibility and quality. This kind of practical, network-leveraged problem-solving is part of the value we bring.

5. Continuous and Clear Communication:

   • We believe in maintaining open, transparent, and frequent communication throughout the entire process. We encourage questions and ensure that you, the client, understand why certain information is critical and how it impacts the final mold.

My ultimate goal extends beyond just selling you a high-quality PET blow mold. It's about providing you with a complete, reliable, and efficient production solution. Helping you avoid a mold-machine mismatch is a fundamental pillar of that commitment and a key part of ensuring your long-term success.

Conclusion

Choosing your blow molding machine before the mold is not just advice; it's essential for success. This simple step saves time, money, and ensures smooth PET bottle production from day one.

FAQs

Q1: What is the very first step if I want to order a custom PET blow mold?

A1: The very first step is to finalize the selection of your blow molding machine. If you plan to use a contract manufacturer, you must obtain the detailed technical specifications of their specific machine that will be used for your bottles. This machine information is absolutely critical before any substantive mold design work can begin.

Q2: Can I use a general-purpose mold for different PET blow molding machines?

A2: Generally, no. PET blow molds are precision tools custom-designed to fit specific machine parameters such as platen size, tie bar spacing, mold height, clamping systems, and neck/preform handling mechanisms. A "general-purpose" mold that fits many different machines perfectly and operates efficiently is highly unlikely and not a recommended strategy for reliable PET bottle production.

Q3: How long does it take to make a custom PET blow mold once machine specs are confirmed?

A3: The typical manufacturing lead time for a custom PET blow mold ranges from 2 to 4 weeks. This timeframe depends on several factors, including the complexity of the mold (e.g., number of cavities, intricacy of the bottle design, type of hot runner system if applicable) and the mold maker's current production schedule. Confirming all machine specifications upfront ensures this timeline isn't unnecessarily delayed by design changes or compatibility issues discovered late in the process.

Q4: What if I buy a used blow molding machine? How do I get its specs for the mold?

A4: If you purchase a used blow molding machine, the first thing to do is try to obtain the original operator's manual and technical documentation from the seller. If these are unavailable, contact the original machine manufacturer with the machine's model number and serial number; they may still have records. As a last resort, or for verification, you will need a qualified technician to carefully and accurately measure all critical dimensions (platen details, tie bar spacing, minimum/maximum mold height, locating ring details, ejector pattern, etc.) required for the mold design. Provide these measurements and any available photos to your mold maker.

Q5: You mentioned helping a Nigerian client find a contract manufacturer. Is that a service you offer?

A5: While my core business is the design and manufacture of PET blow molds and related packaging machinery, my ultimate aim is to ensure my clients achieve their production goals successfully. In specific situations, like the one with my Nigerian client, if I have trusted contacts or established clients in their region who might be a suitable fit for their immediate needs (such as offering contract manufacturing services on machines for which we can confidently design compatible molds), I am certainly willing to make an introduction or facilitate a connection. My primary focus remains on ensuring that the molds we produce function effectively and efficiently for our clients, wherever they operate.

---
