Struggling to differentiate between the dozens of blow molding machines on the market? You need to understand their core structures to make a smart investment for your factory.
A 6-cavity automatic blow molding machine's performance is defined by its key structures. These include the touchscreen control system (PLC), the servo-driven stretching and clamping units, the preform transmission and heating systems, the automatic loading mechanism, the robotic bottle removal arm, and the high-pressure air recovery system.
I've been in the PET blow molding industry for 16 years, helping over 300 factories navigate their machine purchases. A common challenge, especially for startups, is the overwhelming variety of machines available. A client from Singapore, looking for a 6-cavity linear machine, recently highlighted this. They wanted a deep dive into the structural components to compare our model against others effectively. They asked about PLC brands, servo motor count, clamping structure, and more—all the critical details that determine a machine's reliability, efficiency, and output quality. This guide is for them and for anyone else who wants to look beyond the surface and truly understand what makes a great blow molding machine. Let's break down the essential systems one by one.
How Does the Touchscreen Control System Simplify Operations?
Feeling intimidated by complex machine settings? A centralized touchscreen system is designed to make advanced control intuitive and accessible for any operator, reducing errors and training time.

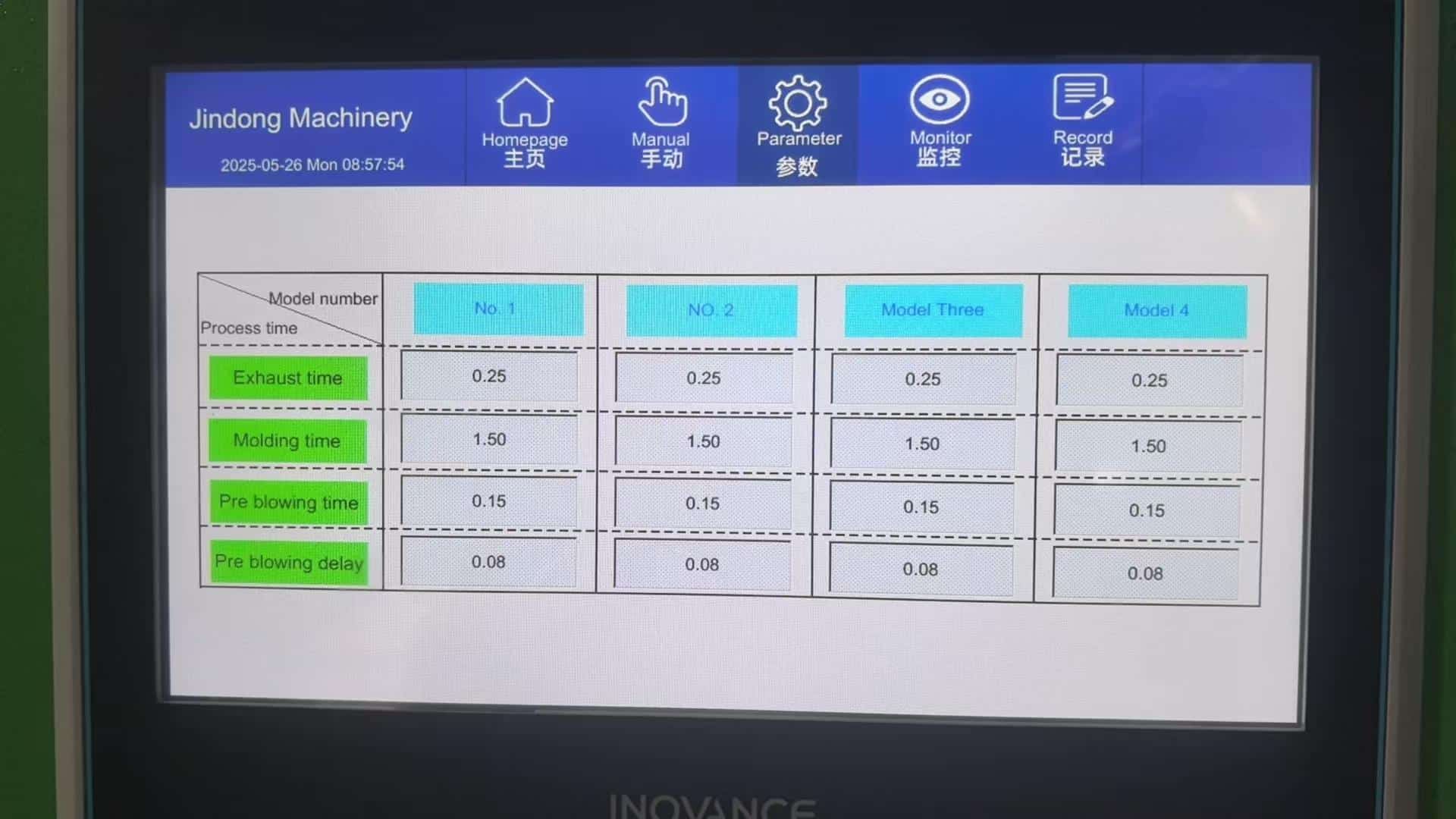

The touchscreen control system is the brain of the machine. It integrates all operational parameters into a user-friendly interface, typically a high-definition LCD screen. From here, operators can set, monitor, and adjust heating temperatures, blowing times, servo positions, and production speeds, simplifying complex processes significantly.
Diving Deeper into the Control System
When I talk to clients, especially those new to running a factory, the control system is a major point of discussion. They want reliability and ease of use. The heart of this system is the Programmable Logic Controller (PLC). This is a ruggedized industrial computer that manages the machine's entire sequence of operations. For our 6-cavity machines, we typically use world-renowned brands to ensure stability and global support.
| PLC Brand | Key Features | Target Application |
|---|---|---|
| Siemens | High reliability, extensive diagnostic features, global support network. | Demanding industrial environments requiring precision. |
| Mitsubishi | Excellent performance for high-speed control, strong motion control capabilities. | Applications where servo motor integration is critical. |
| Delta | Cost-effective, user-friendly programming software, good performance. | Small to medium-sized factories looking for value and reliability. |
The choice of PLC brand matters. My Singaporean client, for instance, operated other machinery with Siemens controls, so choosing a blow molding machine with the same PLC brand would streamline their maintenance and spare parts inventory. The touchscreen interface itself is also crucial. We ensure it has a logical layout, multi-language support, and real-time process monitoring. This screen displays alarms, production data (like total output and defect rate), and allows for the storage of different bottle recipes. This means you can switch between producing a 500ml water bottle and a 1-liter juice bottle with just a few taps, and the machine will automatically load the saved parameters for heating and blowing. This level of control is essential for maintaining consistent quality and efficiency.
What Defines the Stretching Unit and Servo Motion Control?
Worried about achieving perfect bottle wall thickness? Inconsistent stretching can lead to weak spots and material waste, hurting your bottom line and product quality.
The stretching unit, powered by precise servo motors, ensures every preform is stretched vertically with extreme accuracy just before blowing. This controlled action is critical for uniform material distribution, guaranteeing strong, high-quality bottles and minimizing variations between cavities.
Diving Deeper into Stretching and Servo Control
Perfect bottle formation is a dance of timing, temperature, and mechanics, and the stretching system is a lead dancer. The goal is to orient the PET molecules correctly, which gives the final bottle its strength and clarity. In our 6-cavity machine, this is not left to chance; it's managed by a high-precision servo motor. This is a significant upgrade from older pneumatic or hydraulic systems.
A common question I get is, "How many servo motors are in your machine?" For a 6-cavity model, there are several, but the one controlling the stretching rods is arguably one of the most important for quality. Here's why the servo motor is a game-changer:
- Speed and Acceleration Control: A servo motor can control the speed of the stretch rod's descent with incredible precision. You can program a specific speed profile—for example, starting slow, accelerating, and then decelerating just before the blowing starts. This level of control is impossible with simple air cylinders.
- Positional Accuracy: The servo system knows the exact position of the stretching rod down to a fraction of a millimeter. This ensures that every preform is stretched to the exact same length, every single time. This consistency is key to achieving uniform wall thickness across all six bottles produced in a cycle.
- Repeatability: The motion is repeatable cycle after cycle, hour after hour. This eliminates the fluctuations in air pressure or hydraulic fluid temperature that can plague older systems, leading to more consistent production and fewer rejects.
For my client in Singapore, who planned to produce premium water bottles, this precision was non-negotiable. They needed to guarantee that every bottle met a stringent top-load strength specification. The servo-driven stretching system provides that guarantee, directly impacting the final product's structural integrity.
Why is the Clamping Mechanism and Mold Locking Design so Critical?
Concerned about visible seam lines or bottle defects? A weak or poorly designed clamping system can allow the mold to separate under high pressure, ruining your products.
The clamping mechanism is responsible for holding the two halves of the bottle mold tightly together during the high-pressure blowing process. A robust mold locking design ensures a perfect seal, preventing air leaks and forming a flawless bottle with minimal parting lines.
Diving Deeper into Clamping and Locking
During the blowing phase, the air pressure inside the mold can reach up to 40 bar (580 PSI). The clamping unit must counteract this immense force to keep the mold shut. If it fails, you get flash (plastic leaking out of the seam), inconsistent bottle volume, and potentially dangerous operating conditions. Our 6-cavity machine uses a high-pressure toggle clamping system, driven by a servo motor.
Here’s a breakdown of the components and why they matter:
| Component | Function | Advantage |
|---|---|---|
| Servo Drive | Powers the clamping motion. | Provides fast, smooth, and energy-efficient opening and closing compared to hydraulic systems. Reduces noise and eliminates oil leak risks. |
| Toggle Structure | A series of mechanical linkages that amplify the force from the servo drive. | It creates an extremely high locking force at the final closed position, ensuring the mold stays sealed against the blowing pressure. This design is compact and reliable. |
| High-Strength Mold Platens | The large steel plates that hold the mold halves. | They must be thick and rigid to prevent any flexing or distortion under pressure, ensuring the mold surfaces remain perfectly parallel. |
| Mold Thickness Compensation | An automatic adjustment feature. | This allows the machine to easily accommodate molds of different heights without lengthy manual adjustments, speeding up mold changeovers. |
I often explain to clients that the clamping system is like the foundation of a house. You can have the best features on top, but if the foundation is weak, the whole structure is compromised. The servo-driven toggle system provides that strong foundation. It's not just about raw force; it's about intelligent force. The servo motor allows us to control the mold's closing speed, slowing it down just before contact to protect the mold from damage, and then applying the maximum locking force. This combination of speed, power, and control is what sets modern machines apart.
How Does the Transmission System Ensure Flawless Preform Handling?
Are you experiencing scratches or jams during preform transfer? A poorly designed transmission system can damage preforms, leading to production halts and imperfect final bottles.
The transmission system is the conveyor that moves preforms from the heating oven to the blowing mold. It uses a series of grippers on a high-speed chain, precisely synchronized to ensure smooth, damage-free, and perfectly timed delivery of heated preforms.
Diving Deeper into Preform Transmission
Think of the transmission system as the machine's circulatory system. It has to move preforms that have been heated to a very specific, malleable temperature (around 110°C) from one station to the next without delay or incident. Any hiccup here can ruin a batch of preforms. In our 6-cavity machine, this is handled by a servo-driven indexing chain.
The key to this system is the pitch, or the distance between the preform holders (mandrels).
- Variable Pitch System: This is a crucial feature. In the heating oven, the preforms need to be very close together to maximize heating efficiency and save space. However, at the blowing station, they need to be spaced further apart to match the wider spacing of the mold cavities. A variable pitch mechanism, controlled by a servo motor, automatically adjusts the distance between preforms as they move from the oven to the mold. This ensures both efficient heating and correct positioning for blowing.
- Preform Holders: The design of the holders themselves is important. They must grip the neck of the preform securely without causing scratches or deformities, especially since the neck finish is already finalized and must remain perfect.
- Servo-Driven Indexing: Using a servo motor to drive the chain provides a significant advantage over a standard motor. It allows for incredibly fast yet smooth indexing. The chain can accelerate and decelerate rapidly without causing the preforms to swing or vibrate, which is essential for stability and precise placement into the mold.
I remember a client who was using an older machine with a constant-speed, fixed-pitch system. They constantly struggled with uneven heating because the preforms were too far apart in the oven, and they had frequent jams at the mold station. When they upgraded to a machine with a servo-driven variable pitch system, their efficiency increased by over 15%, and their reject rate dropped significantly. It’s a feature that directly translates to better performance and more profit.
What Makes the Infrared Heating System So Efficient?
Struggling with inconsistent bottle quality? Unevenly heated preforms are a primary cause, leading to thin spots, cloudiness, or even complete blow-out failures during production.
An efficient infrared heating system uses multiple zones of adjustable lamps to apply heat with surgical precision. This ensures every preform is heated uniformly from the inside out and from top to bottom, which is the essential first step to forming a perfect bottle.
Diving Deeper into Infrared Heating
The heating oven is where the magic really begins. A cold, rigid PET preform is transformed into a soft, pliable one, ready for blowing. The quality of the heating process directly dictates the quality of the final bottle. Our 6-cavity machine features a high-efficiency infrared heating oven with several key design elements.
First, let's talk about the lamps. We use high-power infrared lamps that emit radiation at a wavelength specifically chosen for optimal absorption by PET. This means more energy goes into heating the preform and less is wasted heating the surrounding air. The lamps are arranged in multiple vertical and horizontal zones.
The Importance of Zonal Control
A typical oven in our machine will have 8 to 10 independent heating zones. Why so many? Because a preform doesn't need to be heated uniformly along its entire length.
- Body vs. Base: The main body needs to be pliable to stretch and blow, but the base requires different heat to form properly.
- Neck Area: The neck, which holds the cap, must remain cool and rigid. A dedicated cooling system with air or water protects the neck finish as the preform passes through the oven.
An operator can independently adjust the power output of each zone via the touchscreen. For example, they might increase the power to the lamps heating the middle of the preform while reducing power to those near the base. This fine-tuning capability is what allows the machine to produce bottles with complex shapes or specific wall thickness requirements. For my Singaporean client, this was a key selling point as they planned to introduce different bottle designs in the future. The ability to precisely control the heat profile for each design without mechanical changes is a huge advantage.
Furthermore, the oven is designed for efficiency. Reflective panels are placed opposite the lamps to bounce any stray infrared rays back onto the preforms, maximizing energy use. A forced-air ventilation system removes excess heat and maintains a stable temperature, ensuring consistent heating from the first cycle to the last.
How Does the Preform Loading and Feeding System Work?
Tired of manual labor and production bottlenecks? Manually loading preforms is slow, inefficient, and can introduce contaminants, hindering your factory's output and hygiene standards.
An automatic preform loading and feeding system solves this by taking bulk preforms from a hopper, orienting them correctly, and delivering them single-file to the transmission system. It’s a fully automated, hands-free process that ensures a continuous, high-speed supply.
Diving Deeper into Preform Loading
The journey of a preform begins in a large container called a hopper. The goal of the loading system is to get these randomly piled preforms into a perfectly orderly queue, all facing the same direction, ready for heating. This system, often called a preform unscrambler, is a marvel of simple, effective mechanics.
The process typically involves these stages:
- Hopper and Elevator: An operator dumps a large box of preforms into the floor-level hopper. A cleated conveyor belt, the elevator, then scoops up a continuous stream of these preforms and lifts them to the top of the unscrambler. This saves labor and prevents the back strain associated with manually lifting heavy boxes.
- Unscrambler Bowl/Waterfall: The preforms are dropped into a rotating bowl or onto a waterfall-style sorter. Through cleverly designed rails, guides, and air jets, the preforms are gradually funneled and manipulated until they are all hanging by their neck rings in a single track. Preforms that are upside-down or misaligned are automatically rejected and sent back to the hopper.
- Infeed Rail: From the unscrambler, the preforms slide down an infeed rail directly to the machine's transmission system. Sensors along this rail monitor the flow of preforms. If the rail is full, it signals the unscrambler to pause. If the rail is getting empty, it signals the unscrambler to speed up.
This automated "front-end" of the production line is crucial for achieving the high output of a 6-cavity machine, which can be up to 9,000 bottles per hour. There is simply no way to keep up with that speed manually. I always emphasize to clients that automation here isn't a luxury; it's a necessity for continuous, high-speed operation. It also improves hygiene by minimizing human contact with the preforms before they are turned into bottles.
How Does the Robotic Arm Bottle Clamping System Work?
Are you facing issues with bottle ejection, causing jams and downtime? Manual removal is not an option at high speeds, and simple drop-out systems can damage bottles.
A robotic arm bottle clamping system uses specially designed grippers to securely and gently pick up the newly formed bottles from the mold. It then transfers them in a controlled motion to an exit conveyor, ensuring no damage and a smooth transition to downstream equipment.
Diving Deeper into the Robotic Arm
Once the blowing cycle is complete and the mold opens, the six brand-new bottles need to be removed quickly to make way for the next set of heated preforms. This has to happen in a fraction of a second. A servo-driven robotic arm makes this possible.
Here's a breakdown of its operation:
- Servo-Driven Motion: The arm's movement is controlled by a servo motor, just like the stretching and clamping units. This allows for extremely fast, precise, and repeatable motion profiles. The path is optimized to get in, grab the bottles, and get out in the shortest possible time without any jarring movements.
- Gripper Design: The "hand" of the robot features six custom-designed grippers. These grippers are shaped to clamp onto the neck or body of the bottle firmly but gently. They are typically made from a durable polymer to avoid scratching the bottles. The clamping action itself is pneumatic.
- Synchronization: The arm's movement is perfectly synchronized with the opening of the mold and the indexing of the exit conveyor. This precise timing is managed by the central PLC, ensuring a seamless and jam-free handover.
- Bottle Placement: The robotic arm doesn't just drop the bottles; it places them upright onto the exit conveyor (often an air conveyor). This is critical because the next step in the production line is often a filling machine, which requires the bottles to be standing up and stable.
I've seen factories with older machines that rely on gravity to drop bottles onto a conveyor below. This often leads to bottles falling over, getting scratched, and causing jams that shut down the entire line. The investment in a robotic outfeed system pays for itself quickly through increased uptime and reduced scrap. It’s a standard feature on any modern, high-speed machine because of the reliability it provides.
Why is a High-Pressure Air Recovery System a Smart Investment?
Is the high cost of compressed air eating into your profits? The blowing process consumes a massive amount of high-pressure air, making it one of the biggest energy expenses in a bottling plant.
A high-pressure air recovery system captures the used blowing air from the molds instead of venting it as waste. It then recycles this air to power the machine's pneumatic movements, drastically reducing the load on your primary air compressor and cutting energy costs.
Diving Deeper into Air Recovery
The process of blow molding requires air at two different pressures:
- High-Pressure Air (approx. 30-40 bar): This is used for the final blowing stage to force the soft PET against the mold walls. This requires a large, expensive high-pressure compressor.
- Low-Pressure Air (approx. 7-10 bar): This is used to power various pneumatic movements on the machine, such as the robotic arm grippers and preform rejection gates.
A standard machine simply vents the high-pressure air into the atmosphere after each cycle. This is like throwing money away. A machine equipped with an air recovery system works differently.
| Step | Action | Benefit |
|---|---|---|
| 1. Blowing | High-pressure air is injected into the mold to form the bottle. | Standard operation. |
| 2. Recovery | After blowing, instead of opening a valve to the atmosphere, the machine opens a valve to a recovery tank. | The residual high-pressure air from the mold (which can still be at 15-20 bar) is captured. |
| 3. Recycling | This captured air is stored in the recovery tank. | This tank then supplies the low-pressure air needed for the machine's actuators. |
| 4. Result | The main low-pressure air compressor runs significantly less. | This can lead to energy savings of 30-50% on compressed air generation, which is a massive operational cost reduction. |
When I discuss this with factory owners, the return on investment is a key point. For my Singaporean client, who is very conscious of energy costs and sustainability, this feature was a must-have. The reduction in energy consumption not only lowers their electricity bill but also reduces their factory's carbon footprint. It also reduces the wear and tear on their main air compressor, extending its life and lowering maintenance costs. It's a technology that is both economically and environmentally smart.
Conclusion
Understanding these eight key structures—from the PLC to the air recovery system—is the first step to choosing the right 6-cavity automatic blow molding machine for your needs.
Frequently Asked Questions
1. What is the typical output of a 6-cavity automatic blow molding machine?
The output can vary depending on the bottle size and weight, but a typical range for a 6-cavity machine is between 6,000 and 9,000 bottles per hour (BPH) for a standard 500ml water bottle. Lighter bottles can often be produced at higher speeds.
2. How many servo motors are typically used in a modern 6-cavity machine?
A modern, fully electric or hybrid 6-cavity machine can have anywhere from 4 to 8 servo motors. Key systems driven by servos include the clamping unit, the stretching unit, the preform transmission (indexing), and the robotic bottle removal arm. More servo motors generally mean more precise control, higher speed, and better energy efficiency.
3. What are the main advantages of a servo-driven machine over a pneumatic or hydraulic one?
The main advantages are precision, speed, energy efficiency, and cleanliness. Servo motors offer unparalleled control over speed and position, leading to higher quality bottles. They are faster than hydraulic systems and more precise than pneumatic ones. They also consume significantly less energy as they only draw power when moving. Finally, they eliminate the risk of oil leaks associated with hydraulic systems, which is crucial for food and beverage packaging.
4. How long does it take to change molds on a 6-cavity machine?
With a well-designed machine featuring quick-change systems, an experienced operator can complete a mold changeover in about 30 to 45 minutes. Features like automatic mold thickness compensation and easily accessible connections help to speed up this process significantly, minimizing downtime.
5. What is the importance of the PLC brand (like Siemens or Mitsubishi)?
The PLC is the machine's central nervous system. Using a well-known, reputable brand like Siemens, Mitsubishi, or Delta ensures high reliability and operational stability. It also means that technical support, spare parts, and qualified technicians are more readily available globally, which is a critical consideration for long-term maintenance and troubleshooting.
