Your juice bottles look weak and deformed on the shelf. This problem can cause leaks during shipping and make customers think your product is low quality, hurting your brand's reputation.

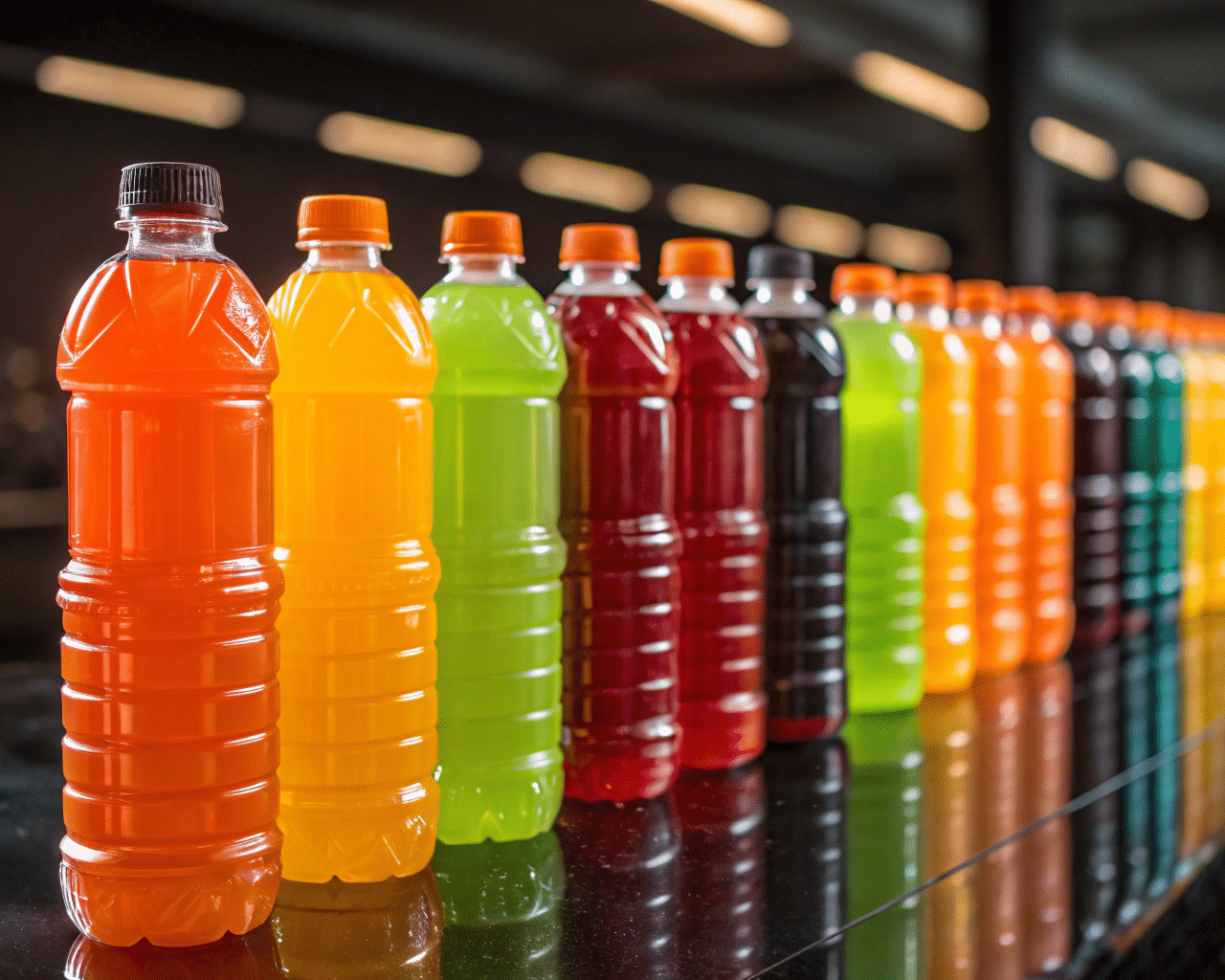

The simple answer is that beverages like juice and sports drinks need stronger, thicker PET bottles. This is because they often undergo hot-filling, contain acidic or sugary liquids that create internal pressure, and require a longer shelf life, all of which demand greater structural integrity than standard water bottles.
I've been in the PET packaging industry for 16 years, and the most common discussions I have with clients revolve around bottle design and performance. It's about finding the perfect balance between cost, appearance, and function. This article will walk you through everything I've learned about why a heavier, thicker bottle is often the necessary choice for your beverage. We will explore why simply choosing the lightest option can lead to bigger problems down the line.
What Does PET Bottle Thickness Actually Mean, and How Is It Measured?
You see a gram weight for a bottle and assume it's strong enough. But then you face issues with bottles collapsing or feeling flimsy, and you don't understand why the weight alone wasn't enough.
Bottle thickness, or wall thickness, refers to the actual measurement of the plastic at various points on the bottle's body. It is more important than just the total gram weight because it determines the bottle's rigidity, resistance to pressure, and overall performance during filling, shipping, and handling.
When I start a project with a client, we don't just talk about gram weight. We dive deeper into the specifics of wall thickness. In my experience, focusing only on the total weight of a preform is a common mistake. A bottle's strength comes from how that plastic is distributed. A well-designed bottle directs plastic to critical areas that need more support.
Understanding the Key Metrics
There are two main numbers we look at:
- Gram Weight: This is the total weight of the PET preform used to make the bottle. It gives a general idea of the amount of material available.
- Wall Thickness: This is the physical thickness of the bottle wall, measured in millimeters. We measure it at multiple points, from the base to the shoulder, to ensure it's distributed correctly.
A heavy preform can still result in a weak bottle if the blowing process doesn't distribute the material properly. This is why the design of the blow bottle mold is just as critical as the preform's weight. The mold's shape guides the plastic to where it's needed most. For example, the base and corners often require more thickness to withstand impacts and prevent stress cracking.
How We Measure Wall Thickness
We don't just guess. We use precise tools to ensure quality and consistency.
| Tool | Purpose | What It Tells Us |
|---|---|---|
| Hall Effect Thickness Gauge | Non-destructive measurement | Provides precise thickness readings at any point on the bottle's surface without cutting it. |
| Section Weight Analysis | Destructive measurement | We cut the bottle into specific sections (base, body, shoulder) and weigh each one. This shows the material distribution. |
I always advise clients that relying on gram weight alone is risky. We need to perform these tests to confirm that the bottle will hold its shape and protect the product inside. It’s a crucial step in preventing costly failures later.

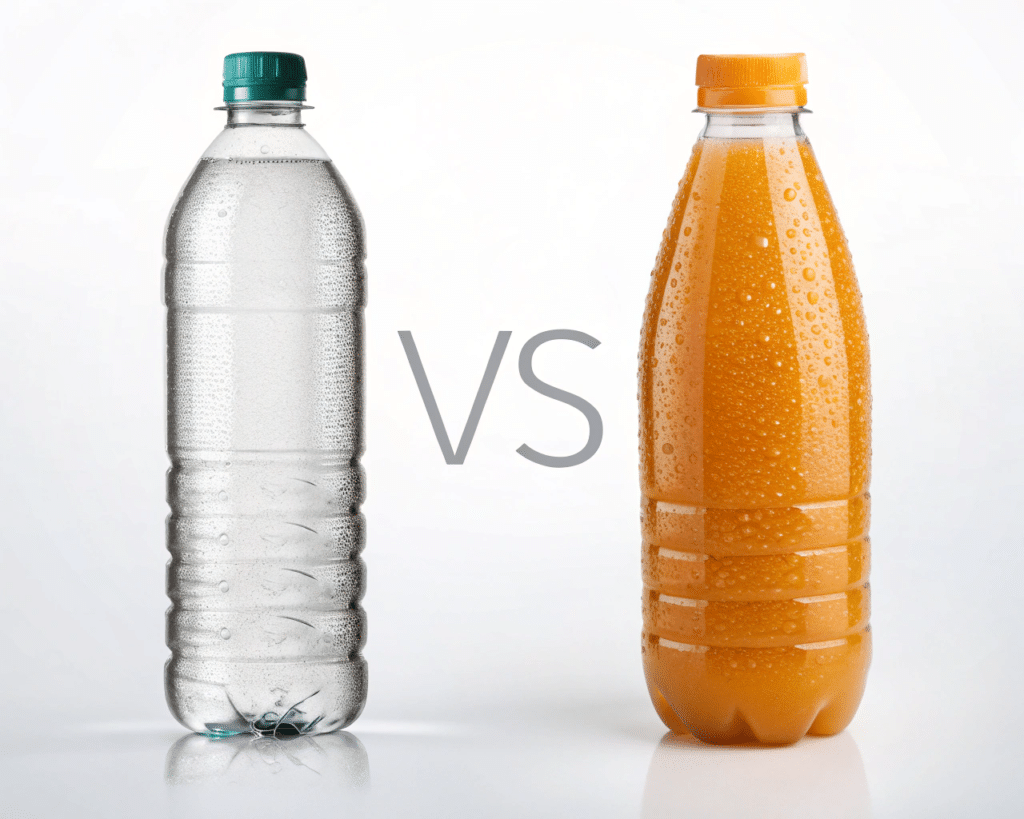

Why Do Juice and Sports Drinks Require Thicker PET Bottles Than Water?
You want to package your new juice line, but using standard water bottles causes them to suck in or deform after filling. You're facing product loss and an unprofessional appearance on the shelf.
These beverages often use processes like hot-filling or contain ingredients that interact with the bottle. Thicker walls provide the necessary strength to resist vacuum forces, internal pressure from sugars, and the physical stress of transport, ensuring the bottle maintains its intended shape and protects the drink.
Over the years, I've seen many brands try to cut costs by using lighter bottles for juice, only to run into serious problems. A beverage is not just a liquid; it's a chemical composition that interacts with its container. Water is neutral and usually bottled at room temperature. Juices and sports drinks are a completely different challenge. They are often acidic, contain sugar, and may require special filling techniques to ensure they are safe to drink for months. These factors demand a stronger, more robust bottle.
Key Differences in Requirements
The demands on a juice bottle are much higher than on a water bottle. We can break it down into a few key areas.
| Feature | Still Water Bottle | Juice / Sports Drink Bottle |
|---|---|---|
| Filling Temperature | Ambient (approx. 20°C) | Hot-Fill (85°C - 95°C) or Aseptic |
| Internal Pressure | Minimal | Can be high due to sugar content, nitrogen dosing. |
| Vacuum Resistance | Low requirement | High requirement (to prevent paneling/collapse after cooling). |
| Impact Resistance | Standard | Higher requirement due to heavier liquid weight and handling. |
| Shelf Life Barrier | Standard oxygen barrier | Often requires enhanced oxygen and UV barriers to protect vitamins and color. |
The Role of Hot-Filling
Hot-filling is a common method for sterilizing juices and teas. The liquid is heated to a high temperature, filled into the bottle, and then sealed. As the liquid cools, it creates a strong vacuum inside the bottle. A standard, thin-walled bottle would simply collapse under this pressure. Thicker bottles, often with special base designs and vacuum panels, are engineered to withstand this force. The entire process, from the preform mold design to the final settings on the bottle blowing machine, must be optimized for this stress.
Hot Fill, Nitrogen Pressurization, and Shelf Life: Why Do These Factors Demand More Strength?
You're launching a new vitamin-enhanced drink, but the bottles are losing their shape over time. This compromises the product's integrity and makes your brand look unreliable on the store shelf.
Processes like hot-filling, nitrogen dosing for preservation, and the need for a long shelf life all exert significant force on a PET bottle. A thicker wall is essential to counteract these forces, preventing collapse, expansion, and degradation of the product over its entire lifecycle.
When a client tells me they are making a sensitive beverage, like a natural juice or a drink with vitamins, my first thoughts go to preservation and stability. These are not 'fill-and-go' products. We need to think about what happens to that bottle weeks or months after it leaves the factory. Hot-filling creates a vacuum. Nitrogen dosing adds internal pressure. Oxygen and UV light can degrade the product. All of these challenges point to one solution: a stronger, thicker, and better-designed bottle.

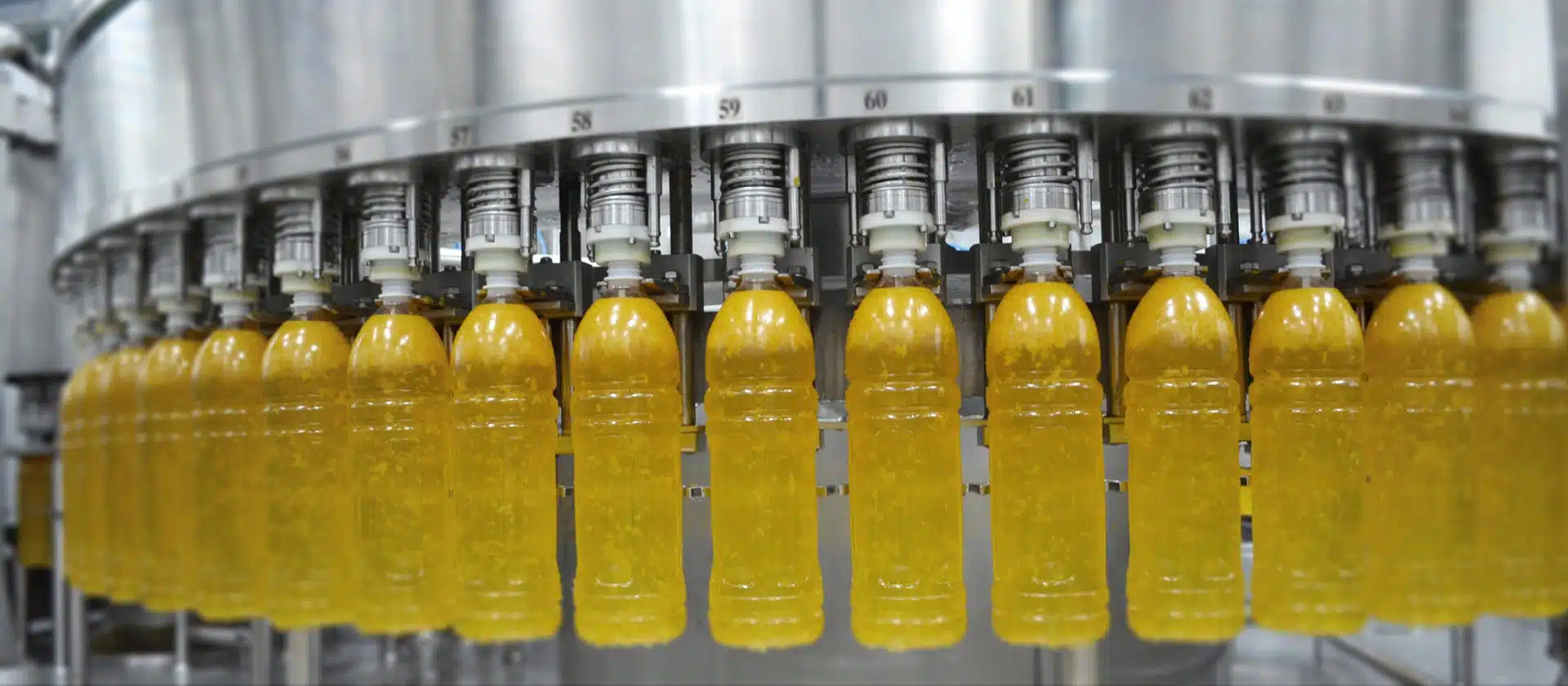

The Force of Hot-Filling
As I mentioned, hot-filling is a major reason for thicker bottles. When the hot liquid cools from around 90°C to room temperature, the volume shrinks, creating a vacuum.
- Problem: The atmospheric pressure outside is now much higher than the pressure inside.
- Solution: Thicker walls provide the raw structural strength. Additionally, we design specific features like vacuum panels (flat areas on the bottle body designed to flex inward) and specialized base designs to absorb this pressure without the entire bottle collapsing. This design work is critical and is perfected in the blow bottle mold itself.
Nitrogen Pressurization for Freshness and Strength
For drinks that are not hot-filled but are sensitive to oxygen (like some juices or teas), we use nitrogen (N2) dosing.
- How it works: A drop of liquid nitrogen is added to the bottle just before capping. The nitrogen instantly turns into a gas, pushing out the oxygen and pressurizing the bottle.
- Why it requires strength: This internal pressure adds rigidity to the bottle. It helps a lightweight bottle feel sturdier and resist stacking forces. However, the bottle must be strong enough to contain this pressure without bulging or becoming unstable. A thicker wall ensures the bottle can handle this internal force consistently.
Barrier Properties for Longer Shelf Life
Thickness also plays a role in shelf life. While special barrier materials (additives in the PET) are the primary defense against oxygen and CO2 migration, a thicker wall inherently provides a longer path for gas molecules to travel. This slows down gas transmission, helping to keep the drink fresh and carbonated for longer. For products with a desired shelf life of 12 months or more, a thicker wall can be a crucial part of the overall barrier solution.
How Does Bottle Wall Thickness Affect Shape Retention and Handling Feel?
Your bottles look great coming off the line, but they get scuffed and dented during transport. Or worse, customers complain the bottle feels cheap and flimsy, hurting your premium image.
The thickness of a bottle's wall is directly responsible for its top-load strength and rigidity. A thicker wall prevents the bottle from deforming under stacking pressure, resists damage during handling, and provides a firm, high-quality feel to the end consumer.
I always tell my clients that the customer's first physical interaction with their product is holding the bottle. If it flexes or crushes easily in their hand, they might subconsciously think the product inside is also low-quality. This first impression is critical. Beyond the consumer, a bottle that can't hold its shape creates huge problems for your production line, from labeling to packing. It all comes back to having the right amount of plastic in the right places.
Impact on the Production Line
A bottle's journey through a production facility is rough. Each step requires a certain level of structural integrity.
| Production Stage | Impact of a Thin/Weak Bottle | Benefit of a Thick/Strong Bottle |
|---|---|---|
| Conveying | Bottles can fall over or jam the line easily. | Stable transport between machines. |
| Labeling | Bottle flexes during label application, causing wrinkles or misplacement. | Provides a firm, consistent surface for perfect label application. |
| Packing | Bottles can deform when gripped by robotic packers or dropped into cases. | Resists damage and ensures neat packing. |
| Warehousing | Pallets can collapse as bottles at the bottom crush under the weight. | High top-load strength allows for safe, high stacking of pallets. |
Top-Load Strength: The Key to Stacking
Top-load is the amount of vertical force a bottle can withstand before it deforms or collapses. This is arguably the most important structural metric for warehousing and shipping. It is influenced by:
- Wall Thickness: More material means more strength.
- Bottle Design: Features like ribs or ridges are not just for looks; they are structural reinforcements that dramatically increase top-load strength. This is where a well-designed blow bottle mold adds incredible value.
- Material Distribution: As we've discussed, thickness in the shoulder and base areas is critical for supporting weight from above.
I often work with clients to simulate these forces. We can calculate the expected top-load and design a bottle that meets the requirements of their supply chain, preventing costly damage.

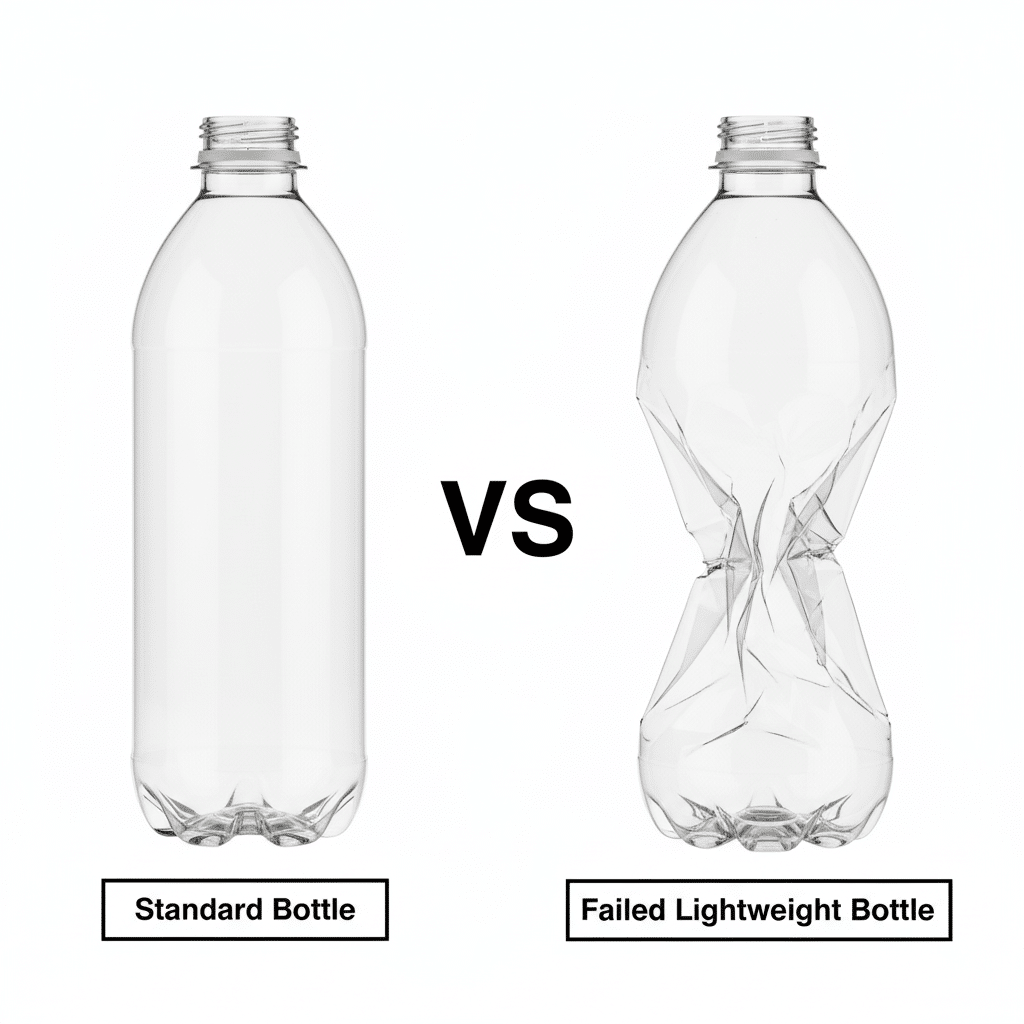

Can Lightweight Bottles Be Used for Non-Water Beverages?
You're under pressure to lower costs, and lightweighting your bottles seems like an easy win. But you're worried about the risks of bottle failures, product spoilage, and potential damage to your brand's reputation.
While using lightweight bottles for non-water beverages is sometimes possible, it carries significant risks. Success depends heavily on the liquid's properties, the filling process, and the supply chain. Without careful engineering and testing, it can lead to paneling, stress cracking, and reduced shelf life.
This is a conversation I have almost every week. The push to be more sustainable and reduce costs is strong, and lightweighting is a powerful tool. But it's not a simple switch. I had a client in Saudi Arabia who was an expert in bottling mineral water. They wanted to launch a new line of soda water. Their team was convinced they could use a slightly modified version of their lightweight water bottle design.
I had to step in and explain the physics. I told them, "The moment you introduce carbonation, you are creating constant internal pressure. Your current water bottle design is not made to resist that force 24/7. It will fail." We ran simulations showing how the bottle would likely bulge and become unstable. It was a tough conversation, but in the end, they understood the risk. We worked together to develop a new, slightly heavier preform and a bottle designed specifically for carbonation. They invested in a new preform mold and a new blow bottle mold, and their product launch was a huge success with no bottle failures. This is a perfect example of why you cannot take shortcuts.
Assessing the Risks
Before you decide to lightweight a non-water bottle, you must consider these factors:
- Liquid Type: Is it carbonated? Does it have high sugar content? Is it acidic? These all increase stress on the bottle.
- Filling Process: Is it a hot-fill product? If so, lightweighting is extremely difficult and risky due to the vacuum forces. Do you use nitrogen dosing? The bottle must be able to handle the internal pressure.
- Preform Design: A standard preform might not be suitable. You may need a specialized preform with a different weight distribution to protect critical areas even after lightweighting.
- Bottle Design: Aggressive lightweighting often requires adding structural elements like ribs or special base designs to compensate for the thinner walls.
- Supply Chain: How far does the product travel? How high is it stacked? A lightweight bottle will have a lower top-load strength.
Lightweighting is a science. It requires a holistic approach, analyzing everything from the initial preform mold to the final pallet configuration. It's not just about shaving off a few grams.
What Extra Requirements Do Heavier Bottles Place on Blow Molding Machines and Molds?
You've decided on a heavier, more robust bottle design. Now you're wondering if your existing equipment can handle it, or if you need to invest in new machinery and molds.
Heavier bottles require more from your equipment. The bottle blowing machine needs a more powerful heating system to evenly soften the thicker preform, a higher blowing pressure, and a stronger clamping unit. The molds must also be robust and have excellent cooling to manage the increased thermal load.
Switching from a 15-gram water bottle to a 35-gram hot-fill juice bottle isn't just a simple adjustment. It's a different process entirely. The thicker preform is like a thicker steak; you can't cook it at the same temperature or for the same amount of time as a thin one. You need more energy and more control. I always walk my clients through the technical requirements to ensure they don't invest in a great bottle design that their factory can't actually produce.
Machine Requirements
Producing a heavy, thick-walled bottle puts specific demands on your blow molding machine.
- Heating Ovens: Thicker preforms need more energy and time in the heating ovens to reach the correct temperature profile. The ovens need to be powerful and have precise controls to avoid overheating the outside while the inside remains too cold.
- Stretching and Blowing: The stretching rod needs more force to properly extend the thicker material. The high-pressure blowing air might also need to be at a higher pressure or held for a longer duration to force the plastic into all the details of the blow bottle mold.
- Clamping Force: A heavier bottle, especially for carbonated or hot-fill applications, often involves higher blowing pressures. The machine's clamping unit must be strong enough to keep the two halves of the mold tightly shut against this force. An inadequate clamping force can lead to a thick parting line on the bottle, which is a sign of a poor-quality product.
Mold Requirements
The mold is just as important as the machine.
- Material and Construction: Molds for heavy bottles, especially for high-volume production, should be made from high-quality aircraft-grade aluminum or steel to withstand the higher clamping and blowing forces without flexing.
- Cooling Channels: A heavier bottle brings more heat into the mold. Effective cooling is critical to solidifying the bottle quickly and achieving a fast cycle time. Poorly cooled molds result in soft, deformed bottles and slow production. The placement and design of these cooling channels are a key part of our mold design process.
Investing in the right bottle blowing machine and molds is not an expense; it's an investment in quality and efficiency.
Cost Considerations: How Much Do Heavier Bottles Affect Your Production Budget?
You know a heavier bottle is safer for your product, but you're concerned about the cost. You need to understand the full financial impact before you can make a final decision.
While a heavier bottle means a higher raw material cost per unit, it can prevent much larger costs associated with product loss, line downtime, and brand damage. The key is to see it not as a cost, but as an insurance policy for your product's quality and your operational efficiency.
In my 16 years, I've learned that the "cheapest" option is rarely the most cost-effective one. When clients focus only on the price of the preform, they are missing the bigger picture. I encourage them to think about the "total cost of ownership." A bottle that costs a fraction of a cent more but eliminates an entire pallet of damaged goods is a huge financial win. Let's break down the actual costs so you can see what I mean.
Direct vs. Indirect Costs
The price of the bottle is more than just the cost of the plastic.
- Direct Costs: This is the most obvious part. It's the price of the PET resin, which is sold by weight. A heavier preform will cost more.
- Indirect Costs: This is where the true financial picture emerges. These are costs that result from the bottle's performance.
Sample Cost Impact Analysis
Let's look at a hypothetical comparison between an inadequately light bottle and a properly weighted bottle for a hot-fill juice product.
| Cost Factor | Scenario A: Inadequate 28g Bottle | Scenario B: Proper 35g Bottle | Analysis |
|---|---|---|---|
| Preform Cost/Unit | $0.056 (@ $2/kg) | $0.070 (@ $2/kg) | Scenario B is $0.014 more expensive. |
| Production Line Stoppages | Frequent jams due to bottle instability. | Smooth, consistent operation. | A single hour of downtime can cost thousands, easily wiping out any savings on preforms. |
| Product Loss Rate | 2% due to paneling and damage in transit. | <0.1% due to robust design. | For a run of 1 million bottles, a 2% loss is 20,000 units. A huge financial and material waste. |
| Energy Consumption | Standard cycle time. | Slightly higher due to more heating/cooling needed. | This is a real, but often minor, increase compared to the cost of product loss. A modern bottle blowing machine is highly efficient. |
| Brand Reputation | Negative, due to deformed bottles on the shelf. | Positive, due to high-quality, reliable packaging. | The cost of lost sales and a damaged brand is immeasurable but enormous. |
When you look at the total picture, the extra $0.014 per bottle for the heavier preform is not a cost; it's a high-return investment. It buys you operational stability, product safety, and a premium brand image. The initial investment in a well-designed preform mold pays for itself very quickly.
How Can We Help Design the Right Wall Thickness for Your Beverage Bottle?
You understand the importance of wall thickness but feel overwhelmed. You don't know where to start and are worried about making a costly mistake in your bottle design.
We can help by taking the guesswork out of the process. We use our experience, simulation software, and physical testing to design a bottle with the optimal wall thickness for your specific product, filling process, and supply chain, minimizing your risk of failure.
This is the core of what I do every day. My job is to translate your vision for a product into a physical bottle that works perfectly. It starts with a conversation. I ask key questions: What is the beverage? What is the filling temperature? What is the bottle capacity? What is the neck finish and desired gram weight? My goal is to understand your needs completely. From there, we build a solution together, optimizing the design for performance and aesthetics. We might add ribs to increase strength while reducing weight, for example. It's a partnership.
Our Collaborative Design Process
We follow a structured, multi-step process to ensure your bottle is a success from day one.
-
Initial Consultation: We begin by listening to you. We gather all the details about your product and your operational setup. This is where my 16 years of experience come into play, as I can often anticipate challenges you might not have considered.
-

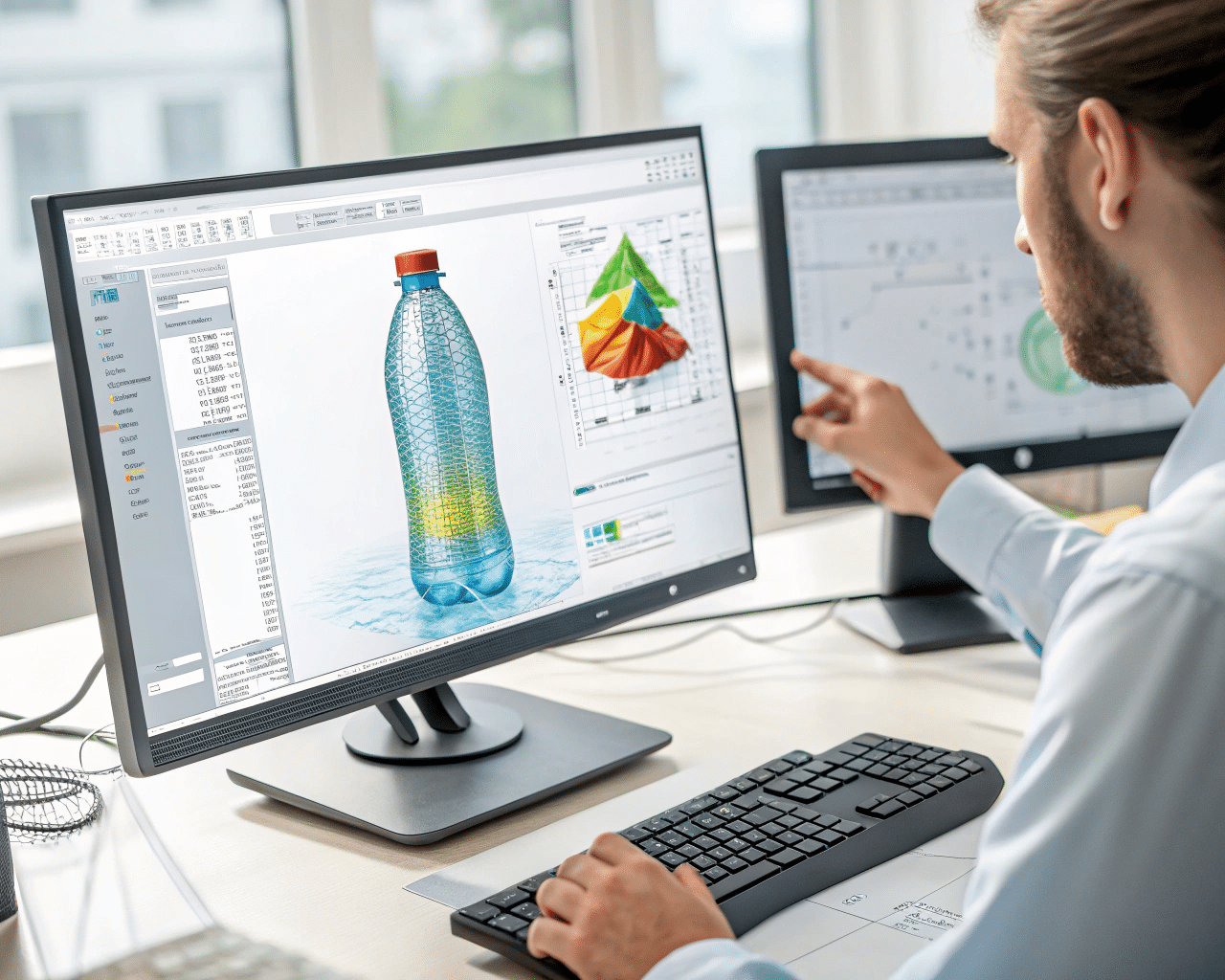

Design and Simulation: Using advanced software, we create a 3D model of your bottle. We can simulate the blowing process to predict material distribution and wall thickness. We can also simulate physical stresses, like top-load and vacuum pressure, to identify potential weak points before a single gram of plastic is ever used. This step is crucial for optimizing the design of the preform mold.
-
Prototyping and Testing: We then create a prototype blow bottle mold to produce physical samples. These are not just for looking at. We put them through rigorous testing:
- Wall Thickness Measurement: We verify that the physical bottle matches our simulation.
- Top-Load Testing: We crush the bottle to see how much force it can take.
- Vacuum Testing: For hot-fill bottles, we simulate the cooling process to ensure it doesn't collapse.
- Drop Testing: We make sure it can survive accidental drops.
This testing phase ensures that the bottle we designed on paper performs in the real world. By partnering with us, you leverage our expertise and technology to launch your product with confidence, knowing your packaging is up to the task.
Conclusion
Choosing the right bottle is not about weight; it is about performance. Thicker walls for juices and sports drinks are a necessary engineering choice to ensure product safety, quality, and brand integrity.
-
Frequently Asked Questions (FAQs)
1. Is a thicker PET bottle always better?
Not necessarily. The "best" bottle is one that is optimized for the specific product. An overly thick bottle for still water is wasteful and unnecessarily expensive. The goal is to use the right amount of material, distributed in the right places, to meet the performance requirements of the beverage, whether it's hot-fill juice, carbonated soda, or simple water.
2. How much does it typically cost to create a new mold for a thicker bottle?
The cost varies greatly depending on complexity, the number of cavities, and the material (aluminum vs. steel). A prototype mold can be relatively inexpensive, while a high-cavitation steel production blow bottle mold is a significant investment. However, this investment is critical for ensuring millions of high-quality, consistent bottles and should be weighed against the potential cost of product failure.
3. Can I use my existing water bottle molds for a new juice product?
It is highly unlikely to be successful, especially if the juice is hot-filled. Molds for standard water bottles are not designed to create the structural features (like vacuum panels or reinforced bases) needed to withstand hot-fill vacuum or the pressure from nitrogen dosing. Using the wrong mold will lead to bottle failures.
4. What is the very first step I should take when designing a new beverage bottle?
The first step is to have a detailed consultation with a packaging expert. Before any design work begins, you need to clearly define your product's specifications: liquid type, fill temperature, carbonation level, desired shelf life, and supply chain conditions. This information forms the foundation for a successful bottle design.
5. How can adding ribs to a bottle make it stronger and lighter?
Ribs and ridges act like the I-beams in a building. They provide significant structural reinforcement and stiffness, particularly against top-load and side-wall pressure. By strategically placing these design features, we can often increase the bottle's overall strength while removing material (weight) from non-critical flat panels. This is a key technique in bottle optimization.
