Struggling with your tall bottle design? It looks sleek on paper, but in reality, it's causing tipping, filling jams, and production nightmares that bleed efficiency and profit. You need to understand the core challenges before they hurt your bottom line.
A tall PET bottle's main problems are instability, complex blow molding, and filling line difficulties. Its high center of gravity causes it to tip easily. The larger stretch ratio required during molding can lead to uneven wall thickness, and its shape makes it prone to jamming automated lines, ultimately increasing costs and compromising quality.
Over my 16 years in the PET mold industry, I've seen a recurring trend: companies want to differentiate on the shelf with taller, more elegant bottle shapes. They are chasing a premium look. But I've also seen the costly headaches that follow when a design ignores basic physics and production realities. A beautiful bottle that can't be manufactured efficiently, or that falls over in a customer's fridge, is a failure. This article will serve as a deep dive into the most common—and expensive—problems I've seen with tall bottle designs. My goal is to equip you with the knowledge to anticipate these challenges and design a bottle that is both beautiful and manufacturable.

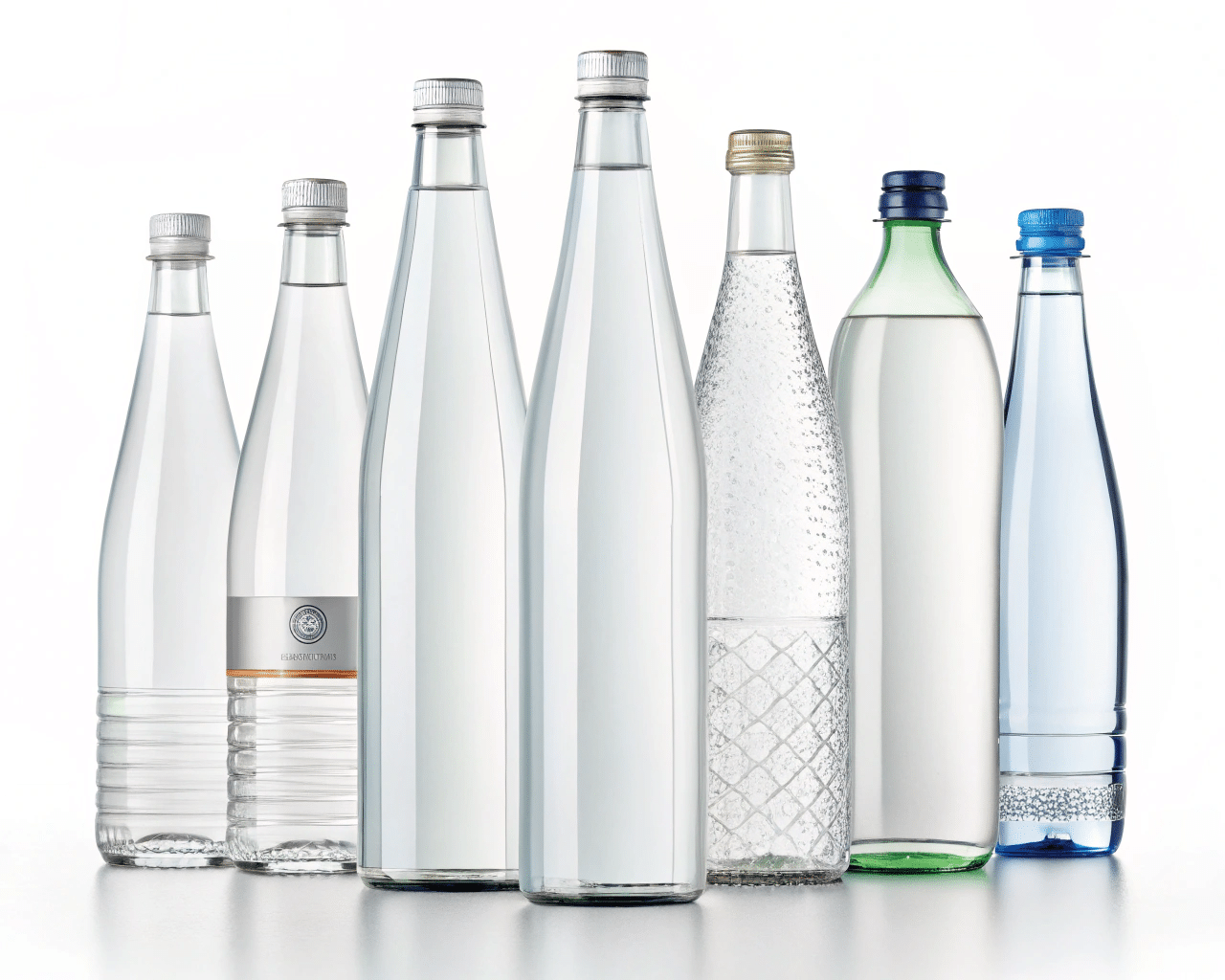

Does a Taller Bottle Body Really Make It More Unstable?
You've designed a beautiful, tall bottle, but now you're worried about it tipping over on the production line. A taller body shifts the center of gravity upward, making it top-heavy. This isn't a minor inconvenience; it's a fundamental flaw that can bring a high-speed production line to a halt.
A tall bottle's center of gravity is significantly higher, which drastically reduces its stability. This makes it highly susceptible to tipping from the slightest bump or vibration on conveyor belts, during palletizing, or in transit. A single fallen bottle can easily cause a chain reaction of production stoppages, damaging product and wasting valuable time.
Let me give you a concrete example. Just this February, I was on a call with a client from the United States who was incredibly excited about a new long-neck soda bottle. The design looked striking on the screen. He said, "Vivian, this is the future. It's elegant, it stands out." I had to be the voice of caution. I pulled up the specs and told him, "The height-to-base ratio here is over 5:1. A standard bottle is closer to 3:1. I am very concerned about tall PET bottle instability on your filling line and during transport." He was focused on the aesthetic, but I was focused on the physics. The simple rule is this: an object's stability depends on its center of gravity staying above its base of support. A tall bottle has a smaller base and a higher center of gravity, making it incredibly easy to tip. Think of trying to knock over a short, wide coffee mug versus a tall champagne flute. The flute topples with the slightest touch. That flute is your tall bottle on a vibrating conveyor.
Deeper Dive: The Physics and Financials of Instability
The stability of a bottle isn't just a feeling; it's measurable. While you don't need a degree in physics, understanding the core concepts is crucial for anyone in packaging.
- Center of Gravity (CG): This is the imaginary point where the entire weight of the bottle and its contents is concentrated. The lower the CG, the more stable the object.
- Base of Support: This is the area of the base that is in contact with the surface. A wider base means more stability.
- The Tipping Point: A bottle tips over the moment its center of gravity moves vertically past the edge of its base of support. For a
PET bottle top-heavydesign, a very small angle of tilt is enough to cause this.
To prevent these issues, a thorough review during the design phase is critical. Using a comprehensive PET bottle mold design guide can help you spot these potential failures early. We often recommend creating physical models with a 3D printer to rapidly validate the design. In the case of my American client, I insisted on sending him a sample. When he held it, he realized the problem instantly. It felt precarious in his hand. That physical sample saved him from a six-figure investment in a flawed mold.
| Stability Parameter | Standard 500ml Bottle | Tall 500ml Bottle | Consequence of Poor Design |
|---|---|---|---|
| Typical Height | 200 mm | 250 mm | Increased material leverage. |
| Base Diameter | 65 mm | 55 mm | Reduced base of support. |
| Height/Base Ratio | ~3.1 : 1 | ~4.5 : 1 | Drastic reduction in stability. |
| Conveyor Behavior | Smooth, stable transfer. | Prone to bottle tilt during transport, causing jams. |
Lost production, potential equipment damage. |
| Stacking Performance | Secure, stable pallets. | High risk of PET bottle stacking issue, leading to warehouse collapse. |
Significant product loss, safety hazards. |

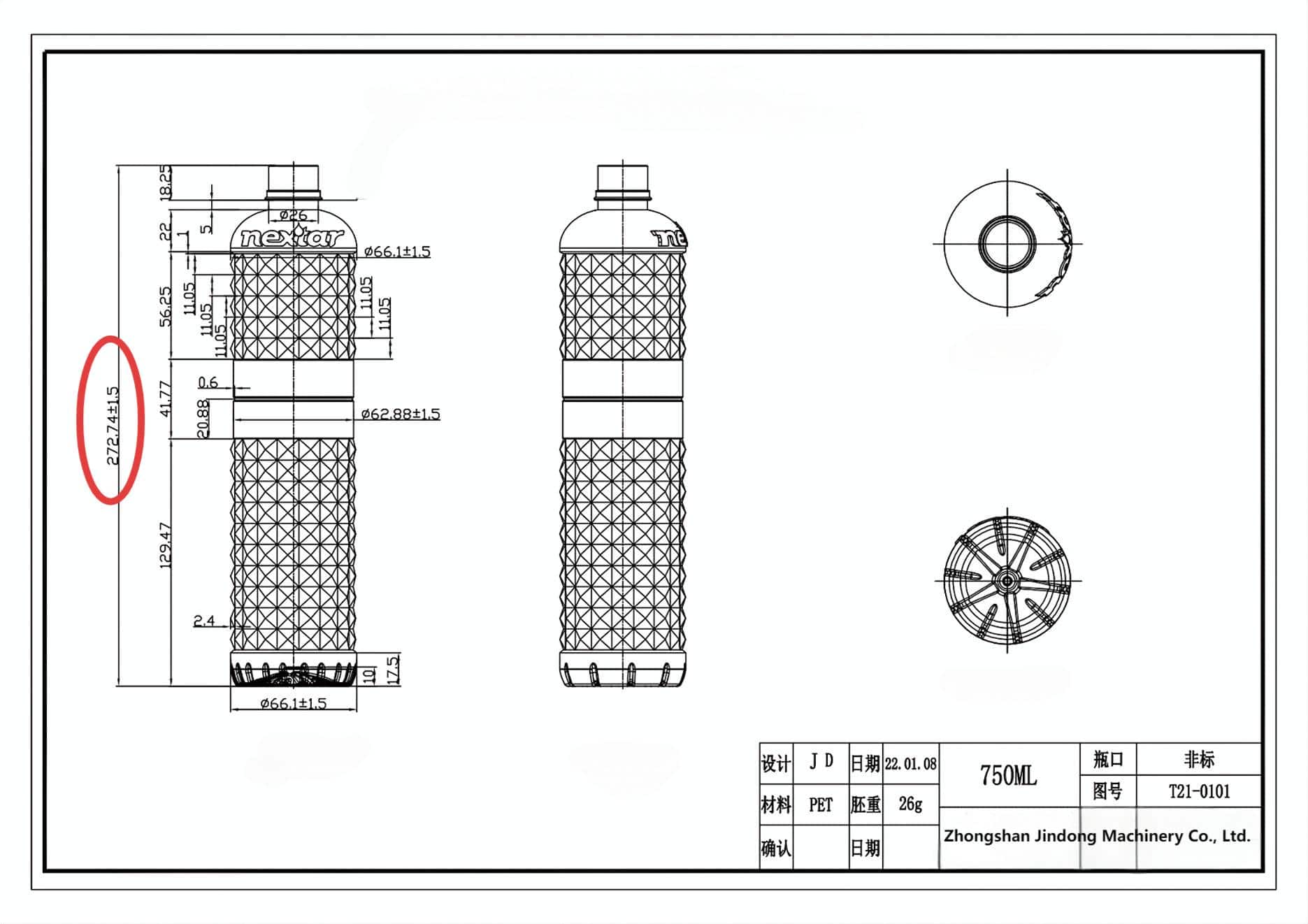

Why is Blow Molding More Complex for Tall Bottles?
Are you seeing defects like thin walls or weak shoulders in your tall bottles? The extended length of a tall bottle requires a greater stretch ratio during blow molding, which often results in uneven material distribution, leading to a cascade of quality-control failures.
When blow molding tall bottles, the PET material must stretch much farther from the preform state. This makes it incredibly difficult to maintain a consistent wall thickness. You often end up with thick, unstretched material at the base and dangerously thin spots near the shoulder, compromising the bottle's structural integrity and its ability to withstand top-load pressure.
The stretch blow molding process is a two-stage action. First, a preform is heated to a precise temperature, around 100-110°C. Then, a stretch rod rapidly pushes the preform downward (axial stretching) while high-pressure air inflates it outward to fill the mold cavity (radial stretching). For a tall bottle, the axial stretch is extreme. If the preform's heat profile is not perfect down to the degree, the PET material will not flow uniformly. The part of the preform that is slightly too hot will stretch too easily and become thin, while the part that is slightly too cool will resist stretching and remain thick. This uneven stretch is the root cause of many bottle deformation in blowing problems.
Deeper Dive: Optimizing the Process for Tall Preforms
Successfully molding a tall bottle requires mastery over the preform and the blowing process. It's not something you can leave to chance.
1. Preform Design is Paramount:
The problem often starts before the bottle is even blown. A tall preform blowing process requires a specially designed preform. You can't just use a standard preform and expect it to stretch twice as far. The preform itself needs to have a tailored thickness profile to "give" material to the areas that need it most during the long stretch. We often work with clients to design a custom preform mold that is optimized for their specific tall bottle, ensuring there's enough material in the right places to begin with.
2. Process Control is Everything:
The "process window" — the range of acceptable settings for heat, time, and pressure — is much narrower for tall bottles.
- Heating: Infrared lamps inside the oven must be zoned and controlled with extreme precision. The area of the preform that will become the bottle's shoulder might need slightly more heat than the area that will become the mid-body.
- Stretching Speed: The speed of the stretch rod must be perfectly synchronized with the application of the pre-blow and high-blow air pressure. Too slow, and the bottle might cool before fully forming. Too fast, and you can tear the material.
If you're seeing defects, it's crucial to diagnose them correctly. A comprehensive guide to common PET blow molding defects and their fixes can be a lifesaver. Often, the solution is a careful adjustment to the heating profile or blow pressures, but it all starts with a well-designed blow bottle mold and preform.
How Does a Tall Bottle Design Affect Mold Cooling and Production Speed?
Is your production line running slower than expected for your new tall bottle? It's a common complaint. A taller bottle requires a more sophisticated and powerful mold cooling system, and any inefficiency directly translates into longer cycle times and lower output.
The taller the bottle, the more surface area the mold has, and the harder it is to cool evenly and quickly. After the bottle is blown, it must cool enough to become rigid before the mold opens. If parts of the bottle mold cooling system are inefficient, especially at the extremes of the mold (top and bottom), the plastic will not solidify properly. This leads to deformation after the bottle is ejected, forcing you to increase the in-mold cooling time and killing your productivity.
I cannot overstate the importance of PET blow mold temperature control. It is as crucial as the blowing pressure itself. For a tall bottle mold, we have to engineer longer and more complex cooling water circuits. The goal is to achieve turbulent flow—not smooth, laminar flow—inside every channel. Turbulent water transfers heat away from the mold steel far more effectively. If the cooling design for high bottles is poor and results in hot spots, you're guaranteed to have inconsistent bottle quality and a slow cycle. The bottle might look perfect the moment it's ejected, but hours later on the pallet, you'll find it has shrunk or warped.
Deeper Dive: The Science of Fast and Even Cooling
A few seconds saved per bottle might not sound like much, but over a 24-hour production run, it adds up to thousands of extra units. Shaving off even half a second from the tall bottle cooling time is a significant financial win.
Key Cooling Principles:
- Maximize Surface Area: We design cooling channels to follow the contour of the bottle shape as closely as possible, ensuring no part of the steel is far from chilled water.
- Ensure Turbulent Flow: This is achieved through channel diameter, water pressure, and flow rate. A higher flow rate from a properly sized industrial chiller is absolutely necessary for PET blow molding. Trying to run a production mold off tap water is a recipe for failure.
- Separate Cooling Zones: For complex or very tall molds, we often design multiple independent cooling circuits for the base, body, and neck areas. This allows for fine-tuning the temperature in different parts of the mold to optimize material properties.
| Cooling System Flaw | Direct Consequence on Bottle | Impact on Production | Engineering Solution |
|---|---|---|---|
| Poor Water Flow | Hazy or cloudy appearance (crystallinity). | Cycle time must be increased to compensate. | Larger diameter cooling channels, properly sized chiller. |
| Hot Spots in Mold | Post-mold deformation (shrinkage/warping). | High reject rate, wasted material and energy. | Optimized channel layout, use of Beryllium-Copper inserts. |
| Inefficient Heat Transfer | Inconsistent volume and dimensions. | Unreliable performance in filling/capping. | Ensure turbulent flow, regular mold maintenance to prevent scale buildup. |
Investing in a high-quality mold with a scientifically designed cooling system is an upfront cost that pays for itself many times over in increased productivity and reduced scrap rates.

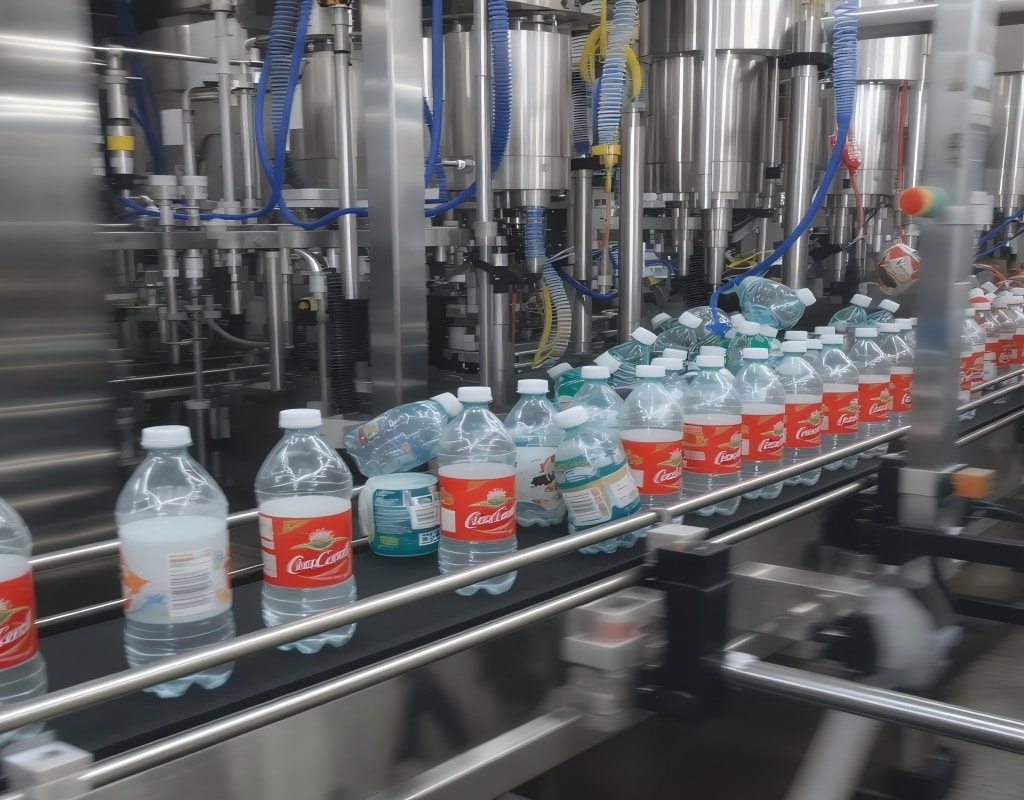

Are Tall Bottles More Likely to Jam an Automated Filling Line?
Are you experiencing frequent line stoppages, with bottles getting stuck, falling over, or causing alarms? The inherent instability of tall bottles makes them a major liability for high-speed automated filling lines, which are built for precision and uniformity.
Yes, they are far more likely to cause problems. Automated filling lines are a symphony of synchronized movements. Bottles are transferred by guide rails, star wheels, and gripper rings that expect a stable, predictable container. A tall bottle's high center of gravity makes it wobble. This slight PET bottle misalignment is all it takes to cause a bottling machine jam. The bottle can fail to enter a star wheel pocket correctly, get wedged in a guide rail, or tip over and cause a pile-up, forcing an emergency stop and operator intervention.
In my 16 years of troubleshooting, I've found that the neck finish is one of the most critical, and often overlooked, points of failure in PET bottle handling on line. The small ring under the threads is what airveyors push and what filling grippers hold. If its dimensions are not perfectly to spec, the grip will be insecure. For a standard, stable bottle, there might be a small margin for error. For a tall, wobbly bottle, a poorly designed or manufactured neck ring is a guarantee for dropped bottles, spilled product, and a messy, inefficient production day. This is why the very first step of a project should be to choose the right preform neck size and standard, as everything on the line is built around it.
Deeper Dive: Pinpointing Failure Points on the Line
To solve these problems, you need to watch your line like a hawk and identify exactly where the failure occurs.
| Line Section | Problem with Tall Bottles | Potential Solutions |
|---|---|---|
| Infeed / Airveyor | Bottles swing wildly, bang into each other, and can flip over at transfers due to the high CG. | Calibrate air pressure carefully, install neck guides, slow down the transfer speed. |
| Star Wheels | The bottle's wobble causes it to misalign with the pocket, leading to a hard jam that can break the star wheel. | Redesign the star wheel with deeper, more forgiving pockets. Install a top guide to stabilize the bottle body as it enters. |
| Filler / Capper | If the bottle isn't perfectly vertical, the filling nozzle can miss, or the capper can apply the cap crooked (cross-threading). | Use specialized neck grippers that offer more support. Implement vision systems to detect misaligned bottles before they enter the carousel. |
| Discharge | Bottles can tip over when accelerating out of the capper onto the final conveyor. | Widen the guide rails at the exit, ensure a smooth, tangential transfer. |
Addressing these issues requires a holistic view. The bottle designer, mold maker, and filling line manager must communicate. A small change in the bottle's base design, for instance, could solve a major handling problem downstream.
Why Do Labels Wrinkle or Skew on Tall Bottles?
Are your product labels looking crooked, bubbly, or wrinkled? The inherent wobble of a tall bottle as it moves through a labeler is often the culprit, undermining your premium branding with a sloppy, unprofessional finish.
Labeling machines, whether they apply pressure-sensitive, roll-fed, or shrink-sleeve labels, demand one thing above all: a stable and vertically oriented bottle. Because tall bottles tend to shake and sway, maintaining this stability is a huge challenge. This movement, even if it's just a millimeter, is enough to cause the label to be applied at a slight angle. This results in an immediate PET label misalignment. For shrink sleeves, the problem of a PET shrink label wrinkle is even more pronounced, as the heat tunnel will magnify any initial application error.
The physics are simple. The label applicator is a high-precision device, but it's applying a flat label to a moving, three-dimensional object. It assumes that the object's surface will be at a precise location at a precise moment in time. If the top of the bottle sways during this critical moment, one side of the label will make contact before the other, creating a skew. If there's any moisture on the bottle or static in the air, the problem gets even worse. You invest heavily in a beautiful bottle design and a compelling label, but if the application is flawed, the entire premium perception is destroyed at the final step.
Deeper Dive: Technologies and Techniques for Perfect Labeling
Achieving perfect PET labeling stability on a tall bottle is possible, but it requires the right equipment and a meticulous setup.
1. Choosing the Right Labeling Technology:
- Pressure-Sensitive (Self-Adhesive): The most common type. Very sensitive to bottle wobble. Requires smooth, continuous motion.
- Roll-Fed (Hot Melt Glue): These systems use a wraparound motion. They can be slightly more forgiving of minor instability but are still prone to skewing if the bottle is not controlled.
- Shrink Sleeve: Offers 360-degree graphics but is the most sensitive to application accuracy. The sleeve must be dropped perfectly straight over the bottle before it enters the heat tunnel.
2. Machine Enhancements for Tall Bottles:
- Timing Screw & Infeed Wheel: A timing screw is essential. This auger-like device separates and spaces the bottles perfectly before they enter the main labeling carousel, ensuring a smooth handoff.
- Top-Down Stabilizer Belt: This is a common and highly effective modification. A secondary conveyor belt runs above the bottles, applying gentle pressure to the caps to prevent any swaying or rocking motion.
- Orienting Systems: For non-round bottles, vision systems or mechanical devices are used to rotate the bottle to the correct orientation before the label is applied. These systems must be robust enough to handle the tall bottle's inertia.
It's also crucial to look at the bottle itself. Are there subtle variations in the base from the blow molding machine? Even a tiny bit of rocker-bottom will cause the bottle to be unstable on the conveyor, making a perfect label application nearly impossible.
How Does Transport and Packaging Affect Tall Bottles?
Have you ever had a distributor call to complain about a shipment arriving with crushed or dented bottles? Tall PET bottles are significantly more vulnerable to compression and impact damage during shipping, which can lead to rejected shipments and a tarnished brand image.
The problem of PET bottle deformation is a direct consequence of a bottle's geometry. To keep costs and environmental impact low, bottles are aggressively lightweighted, meaning their walls are very thin. A tall, thin-walled bottle has poor "top-load" or "column" strength. This means it cannot support as much weight from above. When cases of your product are stacked five or six high on a pallet, the bottles at the bottom must bear the entire load. This often leads to bottle crushing during transport, where the blow molded bottle damage is not from impact, but from slow, steady pressure.
I often ask clients to perform a simple, sobering test. Take your new tall bottle and an old standard bottle, and try to crush them with your hand. The difference in force required is often shocking. Now, imagine that force multiplied by a thousand pounds on a pallet that's vibrating for hours in the back of a truck. This is the reality of logistics. The tall bottle packaging problem is not just about the bottle; it's about the entire system of bottle, case, and pallet working together to survive the journey to the retail shelf.
Deeper Dive: A Systems Approach to Packaging Design
You can't just design a bottle in isolation. You have to design a complete packaging system.
1. Enhancing Bottle Strength without Adding Weight:
- Strategic Ribbing: Adding small, almost invisible horizontal or vertical ribs in the bottle design can dramatically increase its rigidity and top-load strength without significantly increasing weight.
- Base Design: The design of the base is critical for top-load strength. Petaloid bases (common on carbonated beverage bottles) are inherently strong. Optimizing the "push-up" area of a flat-bottomed bottle is also key.
2. Smarter Secondary Packaging:
- Cardboard Matters: Don't just choose the cheapest cardboard box. Specify a higher grade of corrugated board with better crush strength (measured by an Edge Crush Test or ECT).
- Internal Dividers: Corrugated dividers that create a cell for each bottle are the single best way to protect tall bottles. The dividers carry a significant portion of the vertical load, taking the pressure off the bottles themselves.
- Shrink Wrap Trays: A tray with a tight shrink-wrap over the top can create a surprisingly rigid block that adds immense stability and load-bearing capability.
3. Proper Palletizing:
- Interlocking Patterns: Never stack cases directly on top of each other like simple columns. Use an interlocking brick pattern, so each case rests on two or more cases below it. This distributes the load far more effectively.
- Avoid Overhang: Ensure the cases do not hang over the edge of the pallet, as this creates stress points and can lead to collapse.
Can a Bottle Be "Too Tall" for Good Design and Shelf Display?
Is there a point where a tall bottle design stops being elegant and starts looking awkward or, worse, becomes a commercial liability? Absolutely. A design that lacks proper proportion can look unbalanced on the shelf and may not even fit, directly impacting its ability to be sold.
A bottle's design must serve two masters: aesthetics and commerce. An unbalanced PET bottle design, one that looks "leggy" or top-heavy, can be subconsciously unsettling to a consumer, making it seem unstable or cheap. But the more pressing issue is the hard reality of retail logistics. PET bottle shelf display is a non-negotiable constraint. Major retailers in North America, Europe, and Asia have standardized shelf heights in their planograms. If your packaging shelf fit is off by even a quarter of an inch, your product will be rejected or relegated to a less desirable location.
This brings me back to my American client and his ambitious soda bottle design. His entire motivation was tall bottle design aesthetics. He used words like "graceful" and "commanding presence." After our initial conversation where I raised my concerns, we agreed the best next step was a 3D printed sample. It's a service I offer that has saved clients millions over the years. When he received the physical prototype, the tone of his voice on our next call was completely different. He said, "Vivian, you were right. It looks much taller in person than on the computer screen. I just tried to put it on the door shelf of my refrigerator, and the top hits the next shelf. It doesn't fit."
This was the perfect, inexpensive lesson. A bottle has to live in the real world. It has to fit in shipping cases, on retail shelves, and in a consumer's home. A great PET bottle mold design is a masterful compromise between a creative vision and practical reality.

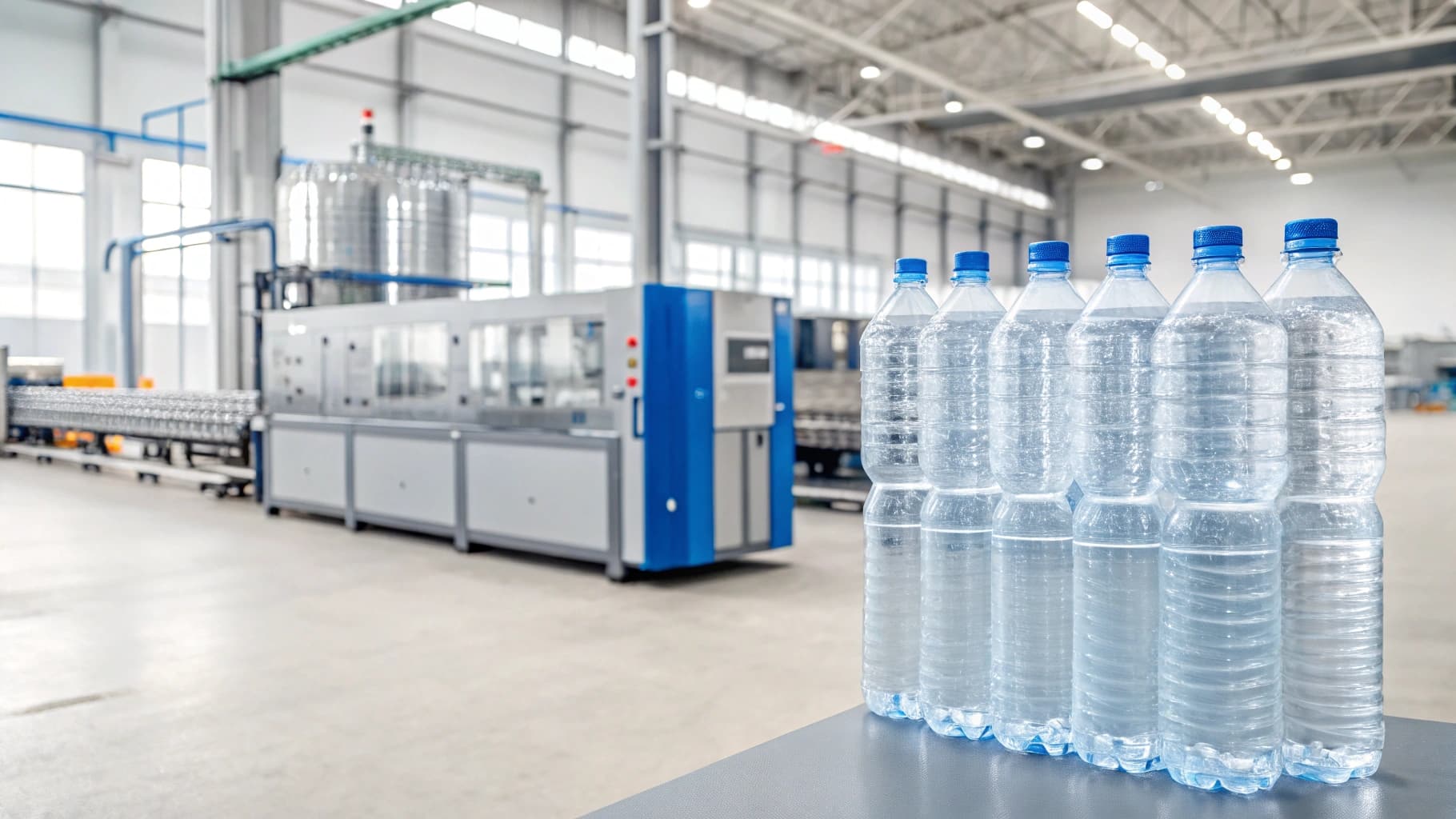

Does Producing a Tall Bottle Require a Different Blow Molding Machine?
You've finalized your tall bottle design. Now for the big question: do you need to buy new equipment to produce it? The answer is often yes. Tall bottle designs frequently require a specialized stretch blow molding machine for tall bottles with a longer stroke and a larger mold clamping area, which can represent a significant and often unexpected capital investment.
Standard blow molding machines are workhorses designed for the most common bottle sizes on the market. They are engineered with specific physical limitations. A high stroke blow molder is needed when a design exceeds these standard limits. If your bottle is too tall, you run into two main problems: the mold physically won't fit, or the stretch rod can't reach the bottom to properly stretch the preform. This often means you have to use a machine intended for much larger volume containers (like 3L or 5L) to produce your much smaller volume (e.g., 500ml) tall bottle.
Before you spend a single dollar on mold tooling, you must conduct a PET blowing machine upgrade audit. This involves checking three critical machine specifications against your proposed design:
Deeper Dive: Machine and Mold Compatibility Check
| Machine Specification | What it Means | Why it Matters for Tall Bottles |
|---|---|---|
| Max Mold Height | The maximum vertical dimension of the mold that can fit between the machine's platens. | This is the most obvious constraint. Your PET bottle mold height simply cannot exceed this number. |
| Max Stretch Stroke | The maximum distance the stretch rod can travel from its starting position. | This is the most common limiting factor. The rod must be able to push the preform's gate to the very bottom of the mold cavity for a proper stretch. |
| Tie Bar Spacing | The horizontal and vertical distance between the tie bars that guide the moving platen. | Your mold's width and height must fit within this space. While tall bottles are often narrow, the overall mold block can still be large. |
This upfront check is non-negotiable. I've seen projects get derailed late in the game because of an incompatibility that should have been caught on day one. It's also vital to ensure the mounting pattern of your new mold matches your machine's platens. It's a good practice to work with a mold maker who can guarantee the fit; for example, at my company, we have the mounting dimensions for 80% of blow molding machines worldwide. Lastly, don't forget the supporting equipment. While a single high-pressure air compressor can often run an entire line, you must ensure it has the capacity for the new cycle's demands.
Conclusion
Tall PET bottles present a complex web of challenges spanning stability, molding, and logistics. Overlooking these issues inevitably leads to production losses, quality failures, and commercial risk. True success requires meticulous planning and a holistic approach.
Frequently Asked Questions (FAQ)
1. What is the ideal height-to-base diameter ratio for a stable PET bottle?
While there's no single magic number, a ratio of 3.5:1 or less is generally considered very stable for most high-speed applications. When you move into the 3.5:1 to 4.5:1 range, you must conduct rigorous stability testing and may need to make line modifications. Any bottle with a ratio over 4.5:1 is in a high-risk category and requires expert design, specialized handling equipment, and robust secondary packaging to be viable.
2. Can I use my existing blow molding machine for a new tall bottle design?
It's possible, but you must verify. Do not assume. Get the technical specification sheet for your exact bottle blowing machine and compare the "Maximum Mold Height" and "Maximum Stretch Stroke" against the final dimensions of your bottle mold and the required stretch length. If your design exceeds either of these critical specs, you will need to either modify the design or invest in a new, more capable machine.
3. How can 3D printing help avoid problems with tall bottle designs?
3D printing a sample bottle is a fast, low-cost insurance policy. It turns a digital concept into a physical object you can hold, test, and analyze. It allows you to check for real-world issues like stability (does it feel tippy?), ergonomics (how does it feel in hand?), and fit (does it fit in a car cup holder or a refrigerator door?) long before you commit tens of thousands of dollars to a production mold.
4. Why is cooling so much more critical for tall bottle molds?
Cooling is vital for all PET molds, but the challenge is magnified for tall bottles due to the increased surface area. Any "hot spot" in the mold—an area not effectively reached by cooling water—will cause that part of the bottle to cool slower than the rest. This differential cooling leads to internal stresses that cause shrinkage and warping after the bottle is ejected. This forces you to increase the in-mold cooling time, which is almost always the longest part of the cycle, thus slowing down your entire production line. A powerful chiller and a well-engineered mold are key.
5. What's the first thing I should check if my tall bottles are wrinkling during labeling?
The very first thing to check is bottle stability on the conveyor. Stand at the labeler and watch the bottles approach. Is the top of the bottle swaying back and forth, even slightly? If so, that is almost certainly your problem. This instability must be fixed before you adjust anything on the labeler itself. Check your conveyor guide rails to ensure they are providing adequate support, install a timing screw to properly space the bottles, and strongly consider adding an overhead stabilizer belt to hold the tops of the bottles steady as they pass the label head.
