Your blow molding machine sits idle, but hidden problems are growing. This neglect leads to sudden breakdowns, ruining your production schedule and your bottom line.

Ignoring routine maintenance on your bottle blowing machine leads to predictable failures that cost you dearly. Neglected stretch rods cause deformation, dirty heating zones waste energy, and clogged filters create defects. Proactive care is the only way to ensure consistent production and protect your significant investment.

I’ve been in the PET blow molding industry for 16 years. Over and over, I see the same costly mistake. Clients stop their machines during the slow season and simply walk away. They perform no maintenance. They don't lubricate critical parts. They fail to protect expensive molds from rust. When the time comes to restart production, it's pure chaos. Sudden breakdowns, frustrating delays, and wasted money become the new normal. This isn't just bad luck; it's a direct result of neglect. I want to guide you through the eight most critical maintenance points that are consistently overlooked. Focusing on these areas will save you an incredible amount of time, money, and stress. Let's make your machine reliable and profitable.

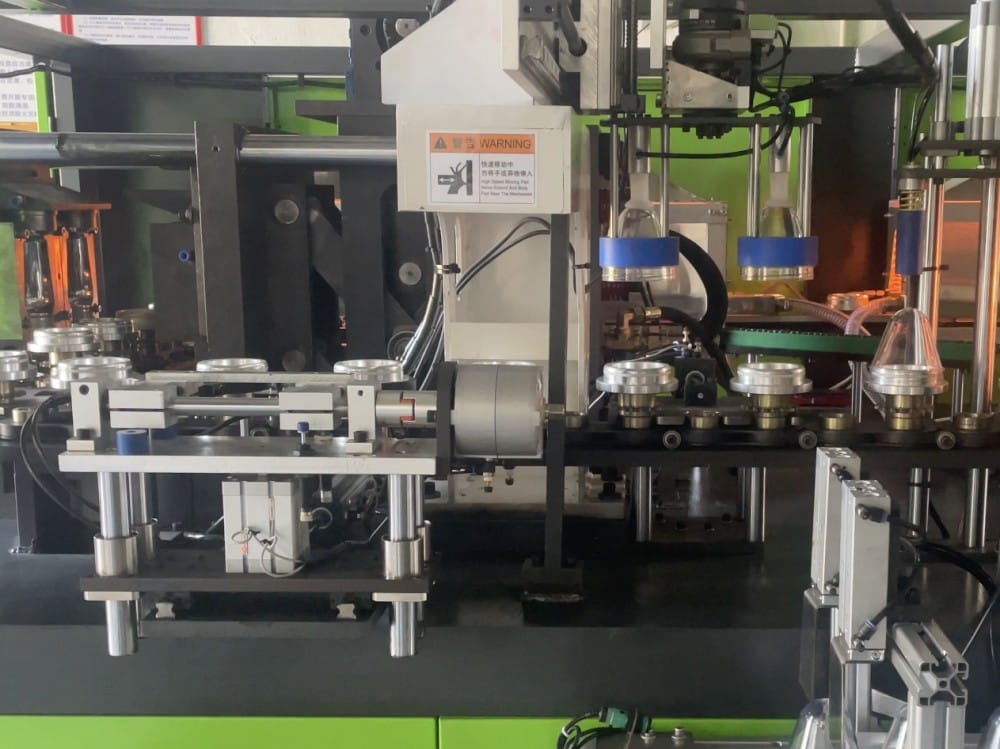

Is a neglected stretch rod the #1 cause of your bottle deformation?

You see inconsistent bottle quality and you can't figure out why. The problem might be simpler than you think. A dirty, unlubricated stretch rod is causing constant, frustrating defects.

Yes, a neglected stretch rod is a primary cause of bottle defects like uneven wall thickness and deformed necks. Without regular cleaning, lubrication, and synchronization checks, it cannot guide the preform correctly, leading to poor quality and even damaging your blow bottle mold.

The stretch rod has a simple but critical job. It pushes the heated preform down into the mold cavity just before the high-pressure air blows. Its movement must be perfectly smooth and timed. When you ignore it, you invite trouble. Dust, plastic residue, and old grease build up on the rod's surface. This creates friction. The rod starts to hesitate or move unevenly. This slight imperfection translates directly into a flawed bottle. I've seen clients chase a "material problem" for weeks when the real issue was a dirty stretch rod. They focus only on cleaning the visible parts of the machine, like the molds, but the hidden components are just as important. A poorly maintained rod doesn't just create waste; it puts stress on the entire stretching mechanism, leading to premature wear on more expensive parts.

Key Maintenance Actions for Stretch Rods

The health of your stretch rod system depends on three distinct actions: cleaning, lubrication, and synchronization. Each one is vital for stable production.

• Cleaning: The rods must be wiped down daily with a clean, lint-free cloth. At the end of a production week, they should be cleaned more thoroughly with an appropriate solvent to remove any stubborn residue. This prevents buildup that causes friction and inconsistent movement.
• Lubrication: You must use a high-temperature, food-grade grease. A common mistake is using a standard grease that breaks down under the heat of the preform oven. Apply a thin, even layer. Too much lubricant is just as bad as too little, as it will attract dust and drip onto the preforms.
• Synchronization: The stretch rods must move in perfect unison. Over time, mechanical linkages can develop play. You need to check that all rods start and stop at the exact same time and travel the same distance. This is often a mechanical adjustment that should be part of your quarterly maintenance plan. An unsynchronized system is a primary cause of uneven wall thickness from one bottle to the next.

Stretch Rod Maintenance Schedule

Frequency	Task	Purpose	Tools Needed
Daily	Wipe down with a clean cloth	Remove dust and minor residue	Lint-free cloth
Weekly	Clean with approved solvent	Remove hardened residue and old grease	Solvent, cloth, safety glasses
Monthly	Re-apply thin layer of grease	Ensure smooth, low-friction movement	High-temp, food-grade grease
Quarterly	Check and adjust synchronization	Guarantee even stretching across all cavities	Measurement tools, adjustment keys

Neglecting these simple steps is like trying to drive a car without ever changing the oil. It will work for a while, but a catastrophic failure is inevitable. Taking 15 minutes a day to care for this part of your bottle blowing machine will pay you back with thousands of perfect bottles.

Could ignoring preform heating lamp zones be ruining your energy efficiency?

Your energy bills are climbing, but your production output is not. Dirty or aging heating lamps are likely forcing you to use more power for inconsistent and poor results.

Absolutely. Dirty or aging lamps in your heating zones create temperature imbalances. This forces the machine to work harder, consuming more energy while producing inconsistently heated preforms. Regular cleaning of lamps and reflectors is key to efficiency and quality.

The oven is the heart of your machine's efficiency. Its job is to heat each preform to the precise temperature profile required for perfect blowing. This is done with zones of infrared lamps. Each zone targets a specific part of the preform. If even one lamp is dirty or weak, that part of the preform will be underheated. An underheated section of PET plastic doesn't stretch properly. This leads to defects like thin spots, thick rings, or an off-center gate. The common operator reaction is to increase the overall power to the oven. This is a huge mistake. You are now overpowering the clean lamps to compensate for the dirty ones. Your energy consumption skyrockets, and the preforms are still heated unevenly. The temperature difference between a clean and dirty zone can easily be more than 5°C, which is enough to ruin a bottle. I often see dust and aerosolized mold release agents coating the lamps and the reflector panels behind them. This coating blocks the infrared energy, making your oven inefficient.

The Impact of Inconsistent Heating

An improperly heated preform cannot be fixed later in the process. The damage is already done. Here is how it directly affects your final product:

• Uneven Wall Thickness: The most common defect. The colder plastic doesn't stretch as much, resulting in thick sections, while the hotter plastic over-stretches, creating weak, thin sections. This is a major issue for carbonated beverages that require good material distribution for pressure resistance.
• Pearlescence or Haziness: When PET is over-stretched or stretched at too low a temperature, the material crystallizes improperly, causing a milky or hazy appearance.
• Deformed Bottles: If the neck or shoulder area is improperly heated, the bottle can warp during or after blowing, failing quality control checks.
• Reduced Top Load Strength: The overall structural integrity of the bottle depends on proper material orientation during stretching. Inconsistent heating compromises this, making bottles weaker and unable to withstand stacking and transport.

Oven Maintenance Checklist

To maintain peak performance and energy efficiency, your team must follow a strict cleaning and inspection schedule.

Task	Frequency	Why It's Critical
Inspect Lamps for Dust/Residue	Daily	A quick visual check can spot problems before they affect production.
Wipe Down Reflectors	Weekly	Reflectors bounce energy onto the preform. Dirty reflectors waste that energy.
Clean Lamp Tubes (when cool)	Weekly	Use a soft cloth and isopropyl alcohol to remove any film.
Check Ventilation Fans/Filters	Monthly	Proper airflow removes heat and contaminants, keeping lamps cleaner.
Inspect Lamp Power Connections	Quarterly	Loose connections can cause flickering or failure.
Measure Lamp Output/Replace	Annually	Lamps lose intensity over time. Replace them before they degrade quality.

This isn't just about cleaning. It's about preserving the precision of your bottle blowing machine. A clean, well-maintained oven uses less energy and produces better bottles. It's a simple equation that directly impacts your profitability.

Are clogged air filters the invisible killer behind your blowing defects?

You are experiencing burst bottles and a hazy finish, and you're blaming the preforms or the mold. The real, hidden culprit could be a clogged filter in your high-pressure air system.

Yes, blocked air filters are a major hidden cause of blowing defects. They lead to unstable air pressure and introduce moisture and oil into the airflow. This results in burst bottles, haziness, and inconsistent blowing, undermining your final product quality.

Many clients I talk to are very proud of their powerful air compressors. They focus on the compressor, but they completely forget about the system that cleans the air. The compressed air used to blow the bottle is the lifeblood of the process. It must be clean, dry, and delivered at a stable pressure. The journey from the compressor to the mold is guarded by a series of filters: a refrigerated air dryer to remove moisture, a coalescing filter to remove oil aerosols, and a particulate filter to remove tiny dust particles. If any one of these components becomes clogged or fails, your air quality plummets. A blocked filter restricts airflow, causing the pressure at the mold to be lower and less stable than what the gauge at the compressor reads. Even worse, a saturated filter will release a flood of trapped water or oil directly into your bottles. This contamination is catastrophic for food-grade products and causes purely cosmetic defects like fogging or haziness.

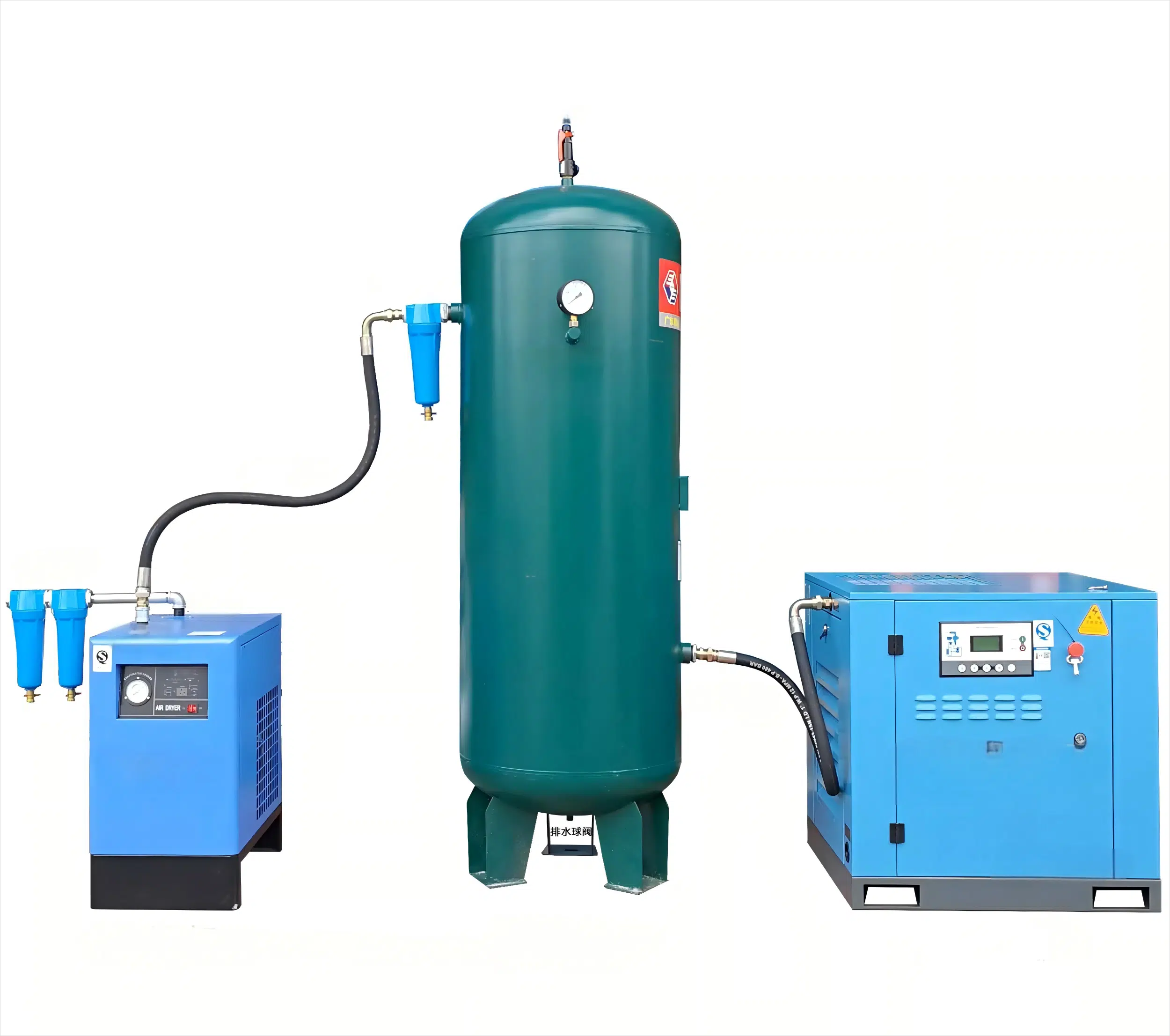

The Chain of Air Treatment

Think of your air system as a chain. It is only as strong as its weakest link. A failure at any stage compromises the entire process.

1. Air Compressor: This is the source. It pressurizes ambient air, which naturally contains water vapor, dust, and often trace amounts of lubricating oil.
2. Refrigerated Air Dryer: Its job is to chill the compressed air, forcing the water vapor to condense so it can be drained away. If this fails, you get water in your air lines and your bottles.
3. Coalescing Filter (Pre-filter): This filter is designed to capture very fine oil mists and aerosols that carry over from the compressor. When it gets saturated, it stops working effectively.
4. Particulate Filter (After-filter): This is the final line of defense, catching any solid particles like dust or rust from the pipes before the air enters the machine.

Most customers only check the air compressor. They don't have a replacement schedule for the filter elements inside the dryer and the precision filters. This is a critical oversight. These elements are consumable. They have a finite lifespan. Ignoring their replacement schedule is guaranteeing that you will eventually contaminate your production.

Filter Maintenance and Consequences

Filter Type	Recommended Replacement Interval	Consequence of Neglect
Dryer Filters	6-12 Months	Water contamination in air lines, leading to hazy bottles and valve corrosion.
Coalescing Filter	3-6 Months (or by indicator)	Oil contamination, causing hazy bottles, taste/odor issues, and failed QC tests.
Particulate Filter	6-12 Months (or by indicator)	Dust and rust particles entering the blow mold, causing scratches and imperfections.

The cost of a filter element is tiny compared to the cost of a full day of wasted production. Setting a simple calendar reminder and keeping spare elements in stock is one of the cheapest and most effective forms of insurance you can have for your bottle blowing machine.

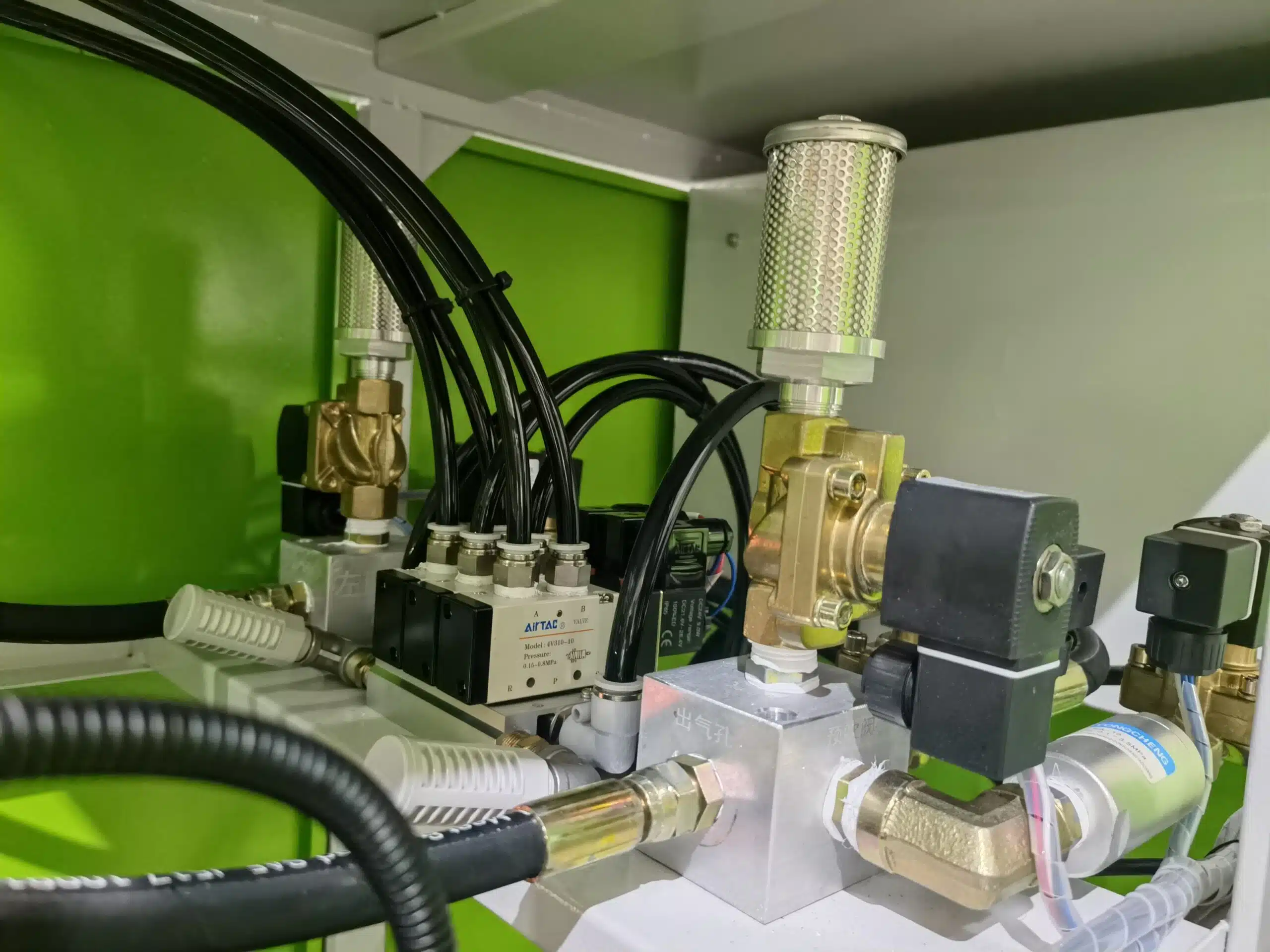

Are high-pressure valve failures secretly being caused by improper lubrication?

Your machine's movements are erratic, and the blowing actions are out of control. A simple lack of lubrication in a critical valve could be causing these major, production-stopping failures.

Yes, most high-pressure valve failures stem from a lack of lubrication or contamination from dust. This causes the valve to stick or move slowly, leading to uncontrolled blowing actions, sudden pressure drops, and production halts.

The high-pressure blowing valve is a powerhouse. It has to open and close with split-second precision, releasing a massive volume of air to form the bottle. Inside this valve, a piston or spool moves back and forth. This movement must be smooth and fast. When the valve is starved of lubrication, or when dust from the factory environment gets inside, that smooth movement is compromised. The valve starts to stick. It might be slow to open, resulting in an under-blown bottle. It might be slow to close, wasting a huge amount of expensive high-pressure air. In the worst cases, it can get stuck completely open or closed, bringing your entire production to a halt. I often hear from clients who say, "The machine was working fine yesterday, but today it's out of control." When I ask about their valve maintenance schedule, there is usually silence. They "felt it was okay" and didn't perform any periodic maintenance. This reactive approach is incredibly costly.

Understanding Valve Failure Modes

A failing valve doesn't always break down completely. It often degrades over time, causing subtle problems that can be difficult to diagnose if you don't know what to look for.

• Slow Actuation: The most common failure. The valve doesn't open or close at the commanded speed. This can lead to inconsistent bottle volume and wall thickness. You might hear a "sluggish" sound instead of the usual sharp "snap" of the valve opening.
• Internal Leaks: Worn internal seals can cause the valve to leak high-pressure air even when it is closed. This is a constant drain on your air compressor, wasting energy and money. You can often hear a faint but constant hissing sound near the valve block.
• Sticking: The valve fails to shift at all. This is a hard failure that stops production immediately. It is often caused by a combination of no lubrication and contamination, creating a sticky varnish on the moving parts.
• Pressure Drops: If the valve cannot open fully, it creates a restriction that causes a significant pressure drop between the valve and the mold. The bottle doesn't receive the full pressure it needs to form correctly.

The Simple Fix: Proactive Maintenance

Preventing valve failure is surprisingly simple. It does not require a complete teardown every week. It requires a consistent, proactive approach.

1. Check the Air Quality: The best way to protect your valves is to feed them clean, dry air. Refer back to the previous point about filter maintenance. Dirty air is the #1 enemy of pneumatic components.
2. Use an In-Line Lubricator (if applicable): Some older machine designs use a lubricator in the pilot air line. This device adds a tiny mist of oil to the air that actuates the valve. It must be filled with the correct type of pneumatic oil and adjusted properly. Too little oil starves the valve; too much oil creates a sticky mess.
3. Manual Lubrication: For valves that require it, establish a clean and simple routine. Once a quarter, the valve may need to be cycled manually while a specific lubricant is applied to the piston or seals, as specified by the manufacturer.
4. Keep the Environment Clean: The area around the bottle blowing machine should be kept as clean as possible. Wipe down the valve blocks regularly to prevent dust from building up. When it comes time for maintenance, clean the outside of the valve before you open any ports to prevent dirt from getting inside.

Ignoring a $50 seal or a periodic lubrication task can easily lead to a $2,000 valve failure and a full day of lost production. The math is simple. Maintenance pays for itself.

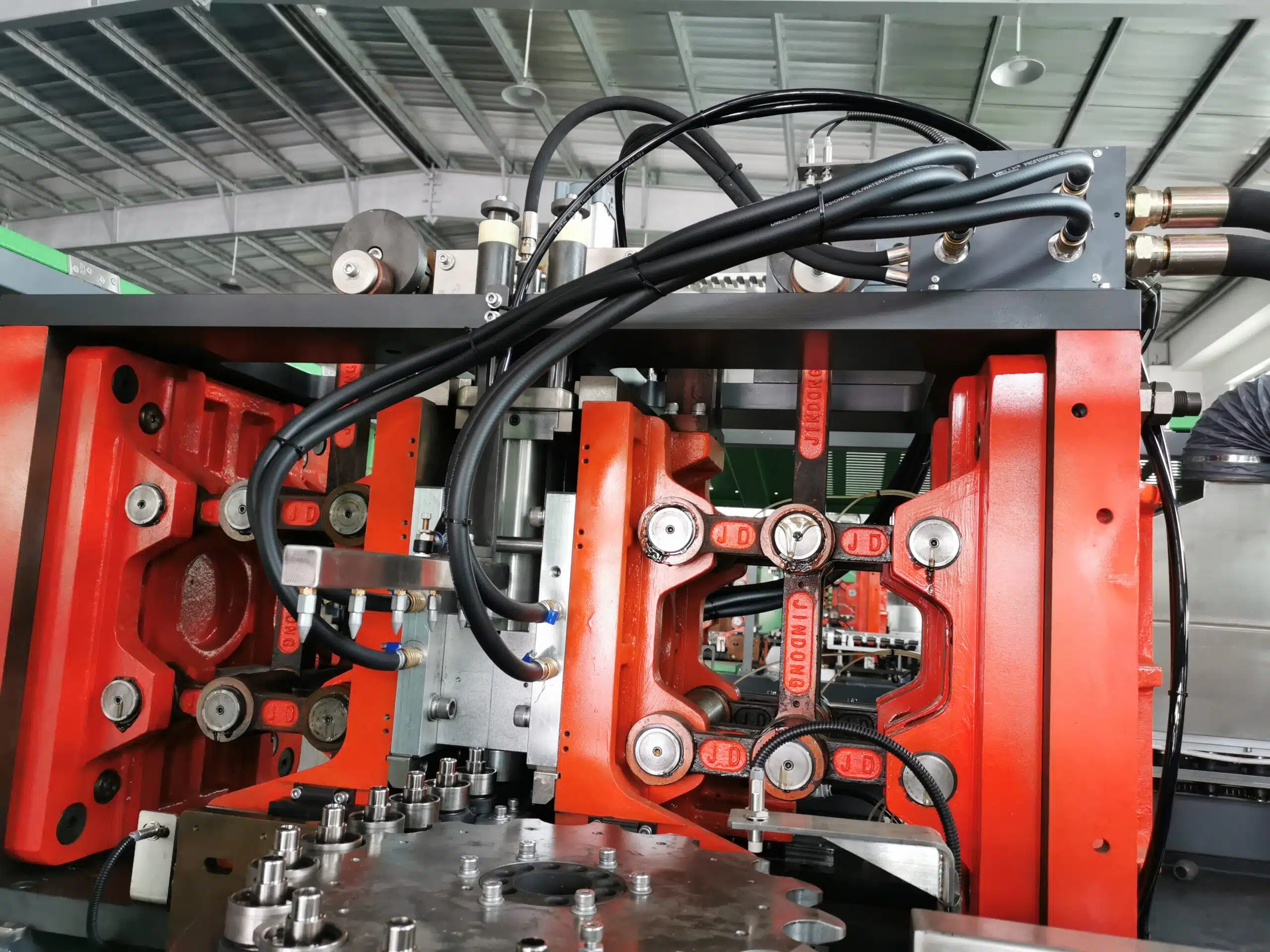

Is a loose mold clamping system causing your alignment to shift?

Your bottles have thick, ugly parting lines and sometimes get stuck in the machine. The clamping system on your bottle blowing machine has likely loosened over time, causing serious mold misalignment.

Definitely. A clamping system that hasn't been periodically checked will loosen, causing the mold halves to misalign. This creates uneven clamping pressure, resulting in poor bottle seams, thicker parting lines, and potential damage to your expensive blow bottle mold.

The mold clamping system is the muscle of your machine. It has to hold the two halves of the blow bottle mold together against the immense force of the high-pressure blowing air, which can be up to 40 bar (580 PSI). This system relies on heavy-duty platens, strong tie bars, and a powerful clamping mechanism. Over thousands and thousands of cycles, the constant vibration and pressure can cause critical components to shift or loosen. The platens, which hold the mold halves, can go out of parallel. The tie bars can stretch unevenly. The result is that the mold doesn't close perfectly. One side might have more pressure than the other. Even a shift of a fraction of a millimeter is enough to cause problems. You'll see the evidence on your bottles: a thick, prominent line where the two mold halves meet. In more severe cases, the bottle's neck won't be held securely, causing it to deform during blowing. This is a slow, creeping problem that many operators don't notice until it becomes severe.

Diagnosing a Misaligned Clamping System

You don't need complex laser alignment tools for a basic check. You can diagnose many issues with simple observation and basic tools.

• The Parting Line Test: This is the easiest check. Take a finished bottle and feel the parting line. It should be a fine, barely perceptible line. If you can easily feel a thick ridge, or if the ridge is thicker on one side of the bottle than the other, your mold is misaligned.
• The Carbon Paper Test: A more advanced check. Place a piece of carbon paper between the mold halves and gently close the mold. Open it and examine the imprint. It should show even pressure across the entire face of the mold. If some areas are dark and others are light, your clamping pressure is uneven. This points to platen alignment issues.
• Check for Movement: With the machine off and safety-locked, try to physically move the mold halves. There should be no play or looseness. Check the bolts that hold the mold to the platens. They should be torqued to the manufacturer's specification.
• Listen to the Machine: As the clamp closes, listen for any unusual groaning or creaking sounds. A well-lubricated, properly aligned system should operate smoothly and quietly.

Corrective Actions and Lubrication

Maintaining the clamping system is about inspection and lubrication. The immense forces involved require that all moving surfaces are properly greased to prevent wear.

Component	Maintenance Action	Frequency	Why It's Important
Mold Platens/Slides	Clean and apply fresh grease to all sliding surfaces.	Weekly	Ensures smooth opening and closing, prevents wear on guide rails.
Tie Bars	Check for signs of stress or damage. Clean threads.	Monthly	Tie bars ensure the platens stay parallel. A failing tie bar is a major safety risk.
Clamping Toggle/Linkage	Grease all pivot points and bearings.	Weekly	This is the mechanical heart of the clamp. Lack of grease causes rapid wear and failure.
Platen Parallelism	Check with a dial indicator or feeler gauges.	Annually	The most critical alignment check. Ensures even clamping force across the mold.

A loose or misaligned clamping system doesn't just produce bad bottles. It puts incredible stress on the platens, the tie bars, and the blow bottle mold itself. Ignoring this can lead to a cracked mold or a broken tie bar, which are repairs that cost tens of thousands of dollars and weeks of downtime.

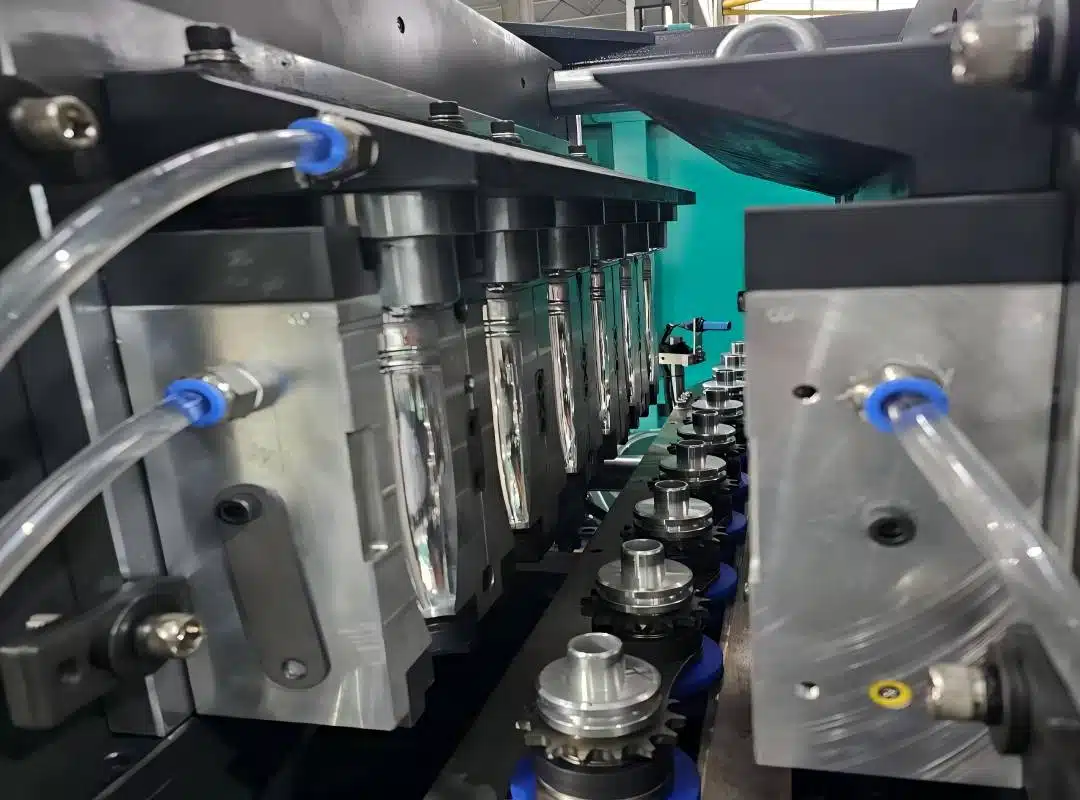

Are blocked cooling channels causing your finished bottles to shrink and deform?

Your bottles look perfect the moment they come out of the mold, but then they start to shrink, warp, and deform as they cool. The cause is likely hidden: blocked cooling channels inside the mold.

Yes, clogged cooling channels are a common reason for post-mold shrinkage and deformation. When water flow is restricted by limescale or rust buildup, the blow bottle mold cannot cool the bottle effectively, leading to stability issues after ejection.

Cooling is just as important as heating in the blow molding process. After the bottle is blown, it must be cooled rapidly while still in the mold. This "freezes" the PET plastic in its final shape and gives it structural stability. This cooling is achieved by circulating chilled water through a network of channels drilled into the mold base and body. The problem is what's in your water. If your facility uses hard water, minerals like calcium and magnesium will slowly build up inside these channels, forming a hard layer of limescale. If you don't use a proper corrosion inhibitor, rust can form. This buildup acts like an insulator. It drastically reduces the efficiency of heat transfer from the bottle to the cooling water. The mold can no longer pull heat out of the bottle fast enough. So, when the bottle is ejected, it is still too hot and soft. The residual stress in the plastic causes it to shrink, warp, or deform. Many customers discover this too late, after they have a pallet of unstable bottles.

The Importance of Water Quality and Flow

The efficiency of your entire production cycle is often limited by cooling. You can only run the machine as fast as you can cool the bottle.

• Water Hardness: Hard water is the primary enemy of cooling channels. The scale it deposits reduces the internal diameter of the channels, restricting water flow and insulating the mold. You should test your water hardness. If it is high, you must use a water treatment system or a closed-loop chiller with treated water.
• Flow Rate: It's not enough to just have water flowing. You need a specific flow rate (often measured in liters per minute) to create turbulent flow. Turbulent flow is much more effective at removing heat than smooth, laminar flow. Clogged channels prevent you from achieving the necessary flow rate.
• Temperature: The cooling water should be at a stable, cool temperature, typically between 8-12°C. If the water temperature is too high, it cannot remove heat effectively, extending your cycle time.

I often advise clients to install simple flow meters on the main cooling lines for their bottle blowing machine. This gives them a clear visual indicator of performance. If they see the flow rate start to drop over a period of weeks, they know it's time to descale their molds before it starts affecting bottle quality.

How to Clean and Maintain Cooling Channels

You cannot ignore mold cooling maintenance. It must be part of your routine.

1. Use a Filter: The first line of defense is a good filter on the main water supply to the machine. This will catch any rust or large particles before they can enter the mold.
2. Periodic Descaling: You must periodically circulate a chemical descaling solution through the cooling channels. This dissolves the mineral buildup and restores proper flow. The frequency depends on your water hardness, from every three months to once a year. Always use a solution that is safe for the aluminum or steel of your blow bottle mold.
3. Blow Out with Air: After production, before storing a mold, disconnect the water lines and blow compressed air through the channels. This removes all the water, preventing rust from forming while the mold is in storage.
4. Use Corrosion Inhibitors: In a closed-loop system, ensure the water/glycol mixture has the correct concentration of corrosion inhibitors to protect the internal surfaces of your molds and machine.

A properly cooled bottle is a stable and strong bottle. Taking care of your cooling system will not only improve your bottle quality but can also allow you to reduce cycle times, increasing your overall output.

Is your servo motor overloading because of dirty or dry guide rails?

You keep getting frustrating servo motor overload alarms, and you've noticed the machine's power consumption is high. The problem might not be the expensive motor itself, but the simple guide rails it runs on.

It's highly likely. On modern fully automatic machines, dirty or dry guide rails create immense friction. This forces the servo motor to work harder to move the platens or transfer arms, leading to overload alarms, increased power usage, and premature wear.

Fully automatic bottle blowing machines rely on high-precision servo motors for fast and accurate movements. These motors move the mold clamp platens and the preform/bottle transfer systems along linear guide rails. These rails and the bearing blocks that ride on them are manufactured to incredibly tight tolerances. They are designed for smooth, low-friction movement. However, the factory environment is full of airborne dust, paper dust from cartons, and sometimes fine plastic particles. This debris settles on the greased guide rails. Over time, the grease and dust combine to form a thick, abrasive paste. This paste dramatically increases the friction on the rail. The servo motor now has to overcome this friction on every single cycle. It has to draw more and more current to do the same amount of work. Eventually, the current draw exceeds the motor's safety limit, and it trips an "overload" or "excessive torque" alarm, shutting down the machine. Many clients don't even know they are supposed to clean and lubricate these rails. They see the alarm and immediately fear a costly servo motor or drive replacement, when the solution is often just 30 minutes of cleaning.

The Critical Role of Linear Guides

Linear guides are the invisible skeleton of your machine's motion system. Their health is paramount for performance and longevity.

• Precision: They ensure that motion is perfectly straight and repeatable. Any binding or sticking in the rail can translate to positioning errors.
• Speed: A clean, well-lubricated rail system allows for the high-speed movements that make automatic machines so productive. Friction is the enemy of speed.
• Efficiency: Friction is just wasted energy, converted into heat. A system with high friction requires more power to run, increasing your operating costs.
• Longevity: The abrasive paste created by dust and old grease will physically wear out the hardened steel surfaces of the rail and the bearings inside the block. This is an expensive repair. A clean rail system will last for many years.

Guide Rail Cleaning and Lubrication Procedure

This is a critical maintenance task that must be done regularly. It is not optional for a high-speed automatic machine.

Step	Action	Why
1. Safety	Turn off and lock out the machine completely.	You will be working in a motion area. Safety is the first priority.
2. Clean	Using a clean, lint-free cloth and a solvent like isopropyl alcohol, wipe down the entire rail surface.	Remove all of the old, contaminated grease. You may need a small brush to get into the grooves.
3. Inspect	Visually inspect the rail for any signs of damage, scoring, or corrosion.	Catching physical damage early can prevent a catastrophic failure of the bearing block.
4. Lubricate	Apply a small amount of the manufacturer-specified grease directly to the rail or via the grease nipple.	Use the right kind of grease. A high-quality lithium grease is common. Do not over-grease.
5. Distribute	Manually move the axis back and forth several times to distribute the new grease throughout the bearing block.	This ensures all the internal ball bearings are coated with fresh lubricant.

This simple procedure, performed monthly, will prevent the vast majority of servo overload alarms. It will make your machine run smoother, quieter, and more efficiently, and it will protect your investment in the high-precision motion system.

How can our maintenance training and support prevent these issues from happening to you?

You are worried about remembering all these complex maintenance tasks. What if you had a clear plan and expert support to guide you and your team every step of the way?

We provide comprehensive maintenance support with every machine we sell. This includes detailed training videos, maintenance checklists, and direct remote diagnostics to help you perform preventative tasks correctly. Our goal is to empower your team to maintain the machine effectively.

Over my 16 years in this industry, I have learned that selling a great bottle blowing machine is only half the job. The other half is ensuring the customer can run it successfully for years. This is why we have invested heavily in our after-sales support and training. We know that most problems are preventable. They are caused by small, overlooked maintenance tasks. Our goal is to make this maintenance as simple and straightforward as possible for you. We don't want you to have to guess what to do. We provide a complete system for success.

A perfect example is a client I worked with in Nigeria. They purchased a 2-cavity fully automatic machine from us, a great workhorse model that is very easy to operate. In March of this year, just two months after installation, their engineer called me for an urgent video conference. The machine wouldn't run. When he turned the camera to the machine, I was shocked. It was covered in a layer of dust and grime. The production environment was messy. I could see spilled preforms on the machine's internal platform. I had to ask him, "This machine is only two months old. Why does it look older than some of my clients' machines that have been running for two years?" The engineer was embarrassed. He admitted that they had not performed any of the daily or weekly maintenance tasks. They were just running it. This is a recipe for disaster. I walked him through the process of troubleshooting, and we found the issue was a sensor that was simply covered in dust. We got the machine running, but more importantly, we had a serious talk about maintenance. I re-sent him the training videos and the maintenance schedule. I explained that ignoring these tasks would shorten the machine's life and cause constant interruptions. A machine is not a disposable appliance; it's a long-term asset that needs care.

Our Maintenance Support Package

When you invest in one of our machines, you are not just getting the hardware. You are getting a partnership focused on your productivity.

• Detailed Video Library: We provide a full library of training videos that show your team exactly how to perform each critical maintenance task. From greasing the clamp to cleaning the oven lamps, you can see it done correctly.
• Customized Maintenance Schedules: We give you daily, weekly, monthly, and annual checklists. These clear documents tell you what to do and when to do it. There is no guesswork involved. You can use these to create your own maintenance logs.
• Remote Diagnostics: If you have a problem you can't solve, our technical team can connect with you via video call. We can see and hear the machine, guide your team through troubleshooting steps, and identify the root cause quickly. This saves you the time and expense of waiting for a technician to travel.
• Parts and Consumables Advice: We help you identify the critical spare parts and consumables, like filters and seals, that you should keep in stock. This ensures that when it's time for a replacement, you have the part on hand and can avoid lengthy shutdowns. We can even advise on compatible components for your preform mold or blow bottle mold.

Our philosophy is simple: your success is our success. A well-maintained machine is a productive machine, and a productive machine makes our customers happy and profitable. We give you the tools and the support you need to prevent problems before they start.

Conclusion

Regular maintenance is not just a chore; it is the most important factor for profitability. Following these steps ensures your machine runs smoothly, saving you from costly downtime and repairs.

Frequently Asked Questions (FAQ)

1. How often should I perform a full maintenance check on my blow molding machine?
A full, comprehensive check that includes things like platen alignment and motor inspections should be performed annually. However, this is built upon a foundation of daily, weekly, and monthly tasks. Daily tasks include cleaning and basic checks. Weekly tasks involve lubrication and deeper cleaning. Monthly tasks involve filter checks and system inspections. Sticking to this layered schedule is more effective than a single annual teardown.

2. What is the single most important daily maintenance task?
Cleaning. While it sounds too simple, a clean machine makes it easier to spot leaks, loose fittings, and other developing problems. Specifically, wiping down the stretch rods and the area around the mold is critical. A clean machine is a safer and more reliable machine.

3. Can I use a generic, all-purpose grease for my machine?
Absolutely not. This is a very common and costly mistake. A bottle blowing machine has different lubrication needs in different areas. The stretch rod area needs a high-temperature, food-grade grease. The clamping system needs a high-pressure grease. Using the wrong type can cause it to break down, burn off, or fail to protect the components, leading to accelerated wear and failure. Always use the lubricants specified by the manufacturer.

4. My bottles are coming out hazy or cloudy. What are the first three things I should check?

Hazy or cloudy bottles are a very common issue, and it's usually caused by a problem in your process, not the raw material. Before you do anything else, check these three things in order:

First, inspect your air system filters. This is the most frequent cause. The coalescing filter, which removes oil and water mist from the compressed air, might be saturated. When this happens, it releases contamination directly into the blowing air, which then clouds the inside of your bottles. Check the filter indicators, replace the filter elements if they are spent, and make sure to drain any condensation from your air compressor's storage tank.

Second, check your mold cooling. If the air is clean, the next suspect is heat. The mold must be cool enough to "freeze" the plastic quickly after it's blown. If your cooling water is too warm or the flow rate is too low, the PET material crystallizes improperly, causing a hazy appearance. Verify that your chiller is set to the correct temperature, typically between 8-12°C (46-54°F), and check that there are no kinks in the water lines restricting flow.

Finally, if your air and cooling systems are fine, look at your preform heating. Overheating the preform body can cause the material to crystallize before it even gets stretched. Try lowering the power percentages for the oven lamp zones that heat the main body of the preform. Increasing the oven's ventilation fan speed can also help by removing excess surface heat from the preforms before they enter the mold.

5. How do I know if my preform mold or my blowing machine is causing the defect?
This can be tricky, but there's a simple process of elimination. First, carefully inspect the preforms from your preform mold before they enter the blowing machine. Look for any defects like bubbles, black spots, or inconsistencies. If the preforms are perfect, the issue is almost certainly in the blowing process. Second, if the defect (e.g., uneven wall thickness) is consistent in the same cavity every time, the problem might be specific to that blowing station (e.g., a single stretch rod, nozzle, or mold cavity). If the defect appears randomly across all cavities, the problem is more likely to be a system-wide issue, like air pressure, heating, or main machine timing.
