Struggling with plastic bottle production choices? Unsure if one machine can handle different materials like PET and PP? This can be a confusing and costly decision if you get it wrong.

The answer isn't a simple yes or no. While some blowing machines, particularly two-step systems, can theoretically process both PET and PP, it heavily depends on the machine's specific type, configuration, and your willingness to make significant adjustments. Dedicated machines for each material are common for optimal results.

Choosing the right blowing machine is a critical decision that impacts your production efficiency, bottle quality, and overall costs. As someone who has navigated these choices, I've learned that understanding the nuances between materials and machine capabilities is key. Let's dive deeper into whether a single machine can truly be a versatile workhorse for both PET and PP, and what you need to consider.

Key Takeaways:

Aspect	Insight
PET & PP on One Machine?	Depends on machine type (two-step offers some flexibility), but adjustments and compromises are often needed.
Two-Step Machines	Can potentially handle both, but PP requires different heating/stretching parameters than PET.
PET-Optimized Machines	Generally not ideal for PP due to differences in heating requirements and material properties.
Dedicated PP Machines	PP Injection Stretch Blow Molding (ISBM) machines are specialized for PP, not PET.
Machine Types	Main types include Extrusion Blow Molding (EBM), Injection Blow Molding (IBM), and Stretch Blow Molding (SBM).
PET Bottle Blowing Pressure	A critical multi-stage process (pre-blow, high-blow) varying by bottle design and preform.
Types of Blowing	Key processes are extrusion, injection, and stretch blowing, each suited to different applications.
PET Preform Machine Cost	Varies based on capacity, automation, brand, features, and whether it's new or used.
Machine Selection	Crucial to match machine capabilities with your specific material, bottle design, and volume needs.

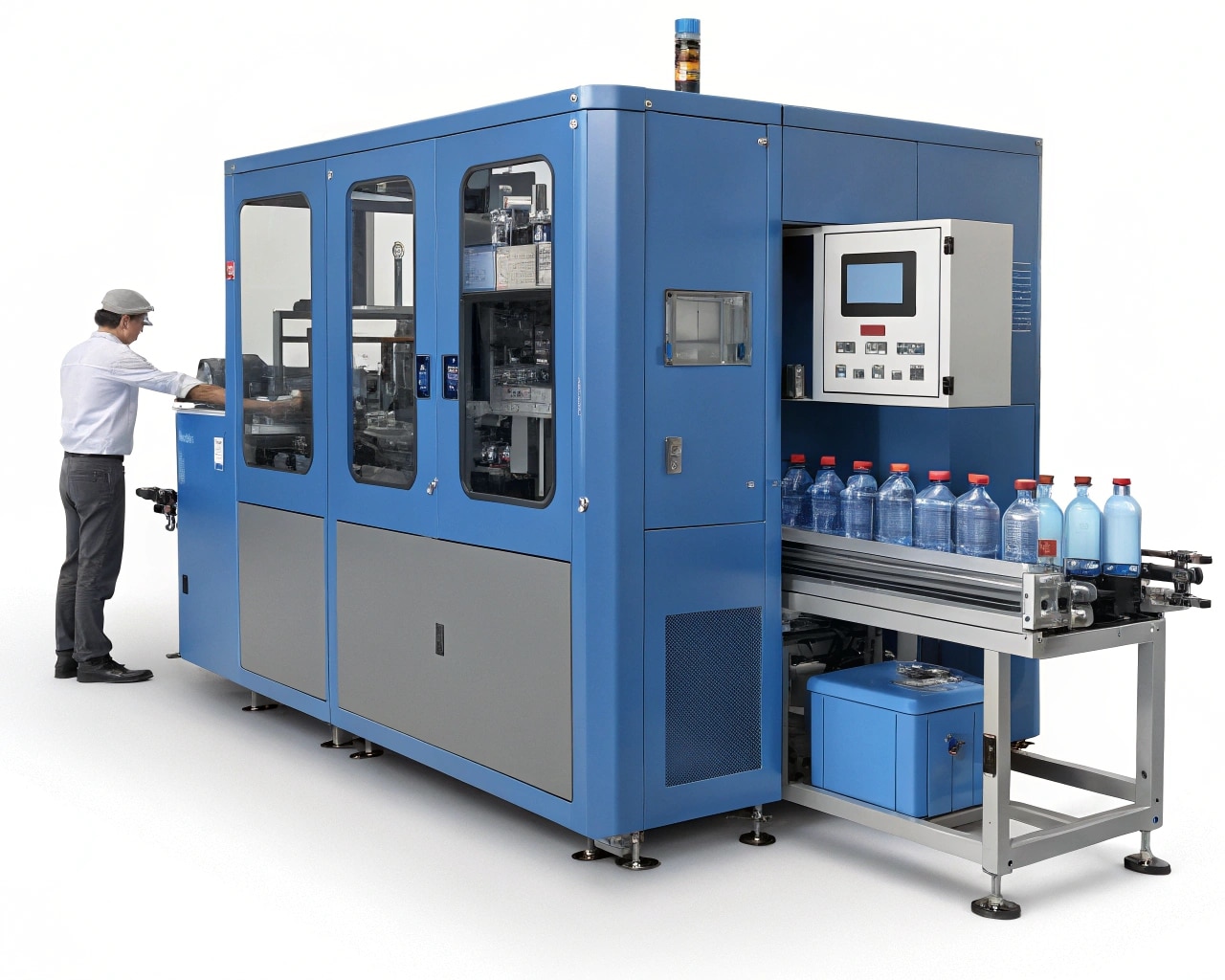

Can Two-Step Blowing Machines Handle Both PET And PP Materials?

Wondering if your two-step blower is a jack-of-all-trades for PET and PP? It's a common question, especially when trying to maximize equipment use. But the answer isn't straightforward.

Theoretically, two-step blowing machines (where preforms are made separately and then reheated and blown) can sometimes be adapted for both PET and PP. However, success heavily relies on the machine's specific design and your team's ability to manage very different processing parameters.

Dive Deeper: The Reality of Dual-Material Processing on Two-Step Blowers

When I first explored using our existing two-step PET machine for a small PP bottle project, I learned a lot. PET (Polyethylene Terephthalate) and PP (Polypropylene) are quite different beasts in the world of plastics, especially when it comes to how they behave during heating and stretching.

Understanding Preform Differences:
First, PET preforms and PP preforms are not interchangeable. PP typically requires thicker preform walls than PET for similar bottle specifications due to its lower stretch ratio and different melt strength. This means you'd need separate sets of preforms optimized for each material.

The Critical Role of Heating:
The heating process is where things get particularly tricky.

• Temperature Sensitivity: PP has a higher and narrower processing window compared to PET. PET preforms are heated to around $90-120^{\circ}C$, while PP preforms need higher temperatures, typically in the range of $130-160^{\circ}C$, and sometimes even higher depending on the grade. Overheating PP can lead to degradation, while underheating results in poor stretching and material distribution.
• Heating Profile: The way heat needs to be distributed through the preform (the heating profile) also differs. PP tends to absorb infrared radiation differently than PET. Many PET machines have heating ovens optimized with specific lamp types and reflector designs for PET's characteristics. For PP, you often need longer heating zones or more powerful lamps to ensure the thicker preform is heated evenly and thoroughly without overheating the surface. In my experience, our PET machine's oven struggled to get the core of the PP preforms to the right temperature without making the outside too hot.
• Soak Time: PP generally requires a longer "soaking" time at the target temperature to ensure uniform heat penetration. This can slow down the production cycle compared to PET.

Stretching and Blowing Variances:
Once heated, the stretching and blowing phases also demand different approaches:

• Stretch Ratios: PET is known for its excellent stretchability, allowing for high stretch ratios both axially and radially. This is key to its strength and clarity. PP is less stretchable. Forcing PP to stretch like PET can lead to issues like stress whitening, uneven wall thickness, or even material tearing. The stretch rod speed and blowing pressures need careful adjustment.
• Blowing Pressure: While the final blowing pressure might be in a similar range for some applications, the timing and stages of pressure application (e.g., pre-blow pressure and timing) will likely need to be different for PP to control its expansion and material distribution effectively.

Machine Adjustments and Limitations:
So, can you just tweak a few settings?

• Software & Control: Modern machines offer a lot of control over heating zones, lamp power, and timing. You'd need to develop and store completely separate processing recipes for PET and PP.
• Hardware: This is often the bigger hurdle. If the oven isn't long enough, or the lamps aren't powerful enough for PP, software tweaks won't solve the problem. The design of the stretch rod mechanism and the blowing nozzles might also be more optimized for one material over the other.
• Changeover Time: Switching between PET and PP isn't a quick flick of a switch. It would involve changing preforms, potentially adjusting oven components, recalibrating sensors, and extensively testing the new setup. This downtime can significantly impact productivity.

From my trials, while we could produce some PP bottles, the quality wasn't consistent, and the process window was very narrow, leading to higher scrap rates. For sustained, efficient production, if your volumes justify it, having a machine tailored to each material is often the better long-term strategy. If you only occasionally need to run PP, and your two-step machine has a very flexible and robust heating system, it might be feasible, but thorough testing is essential.

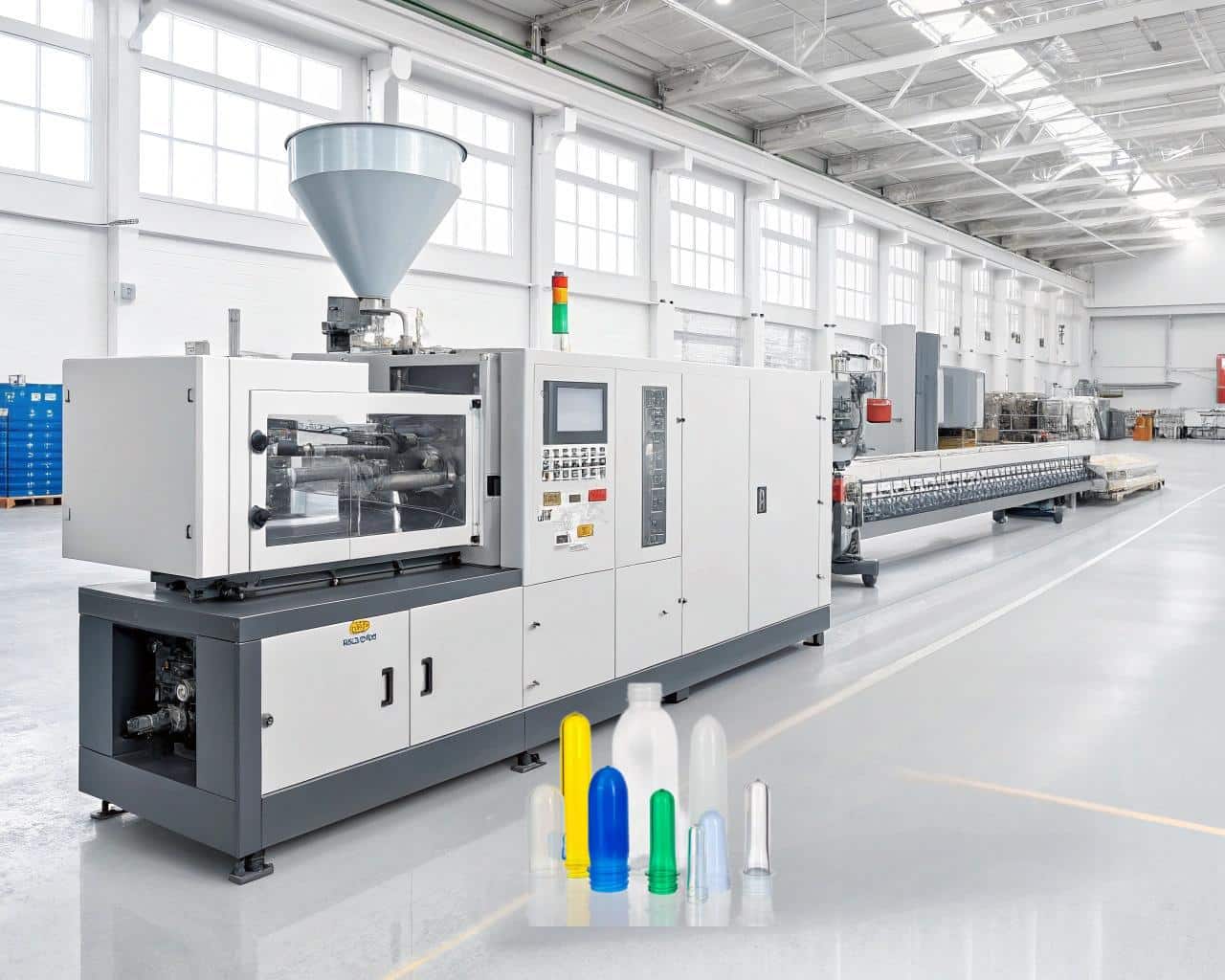

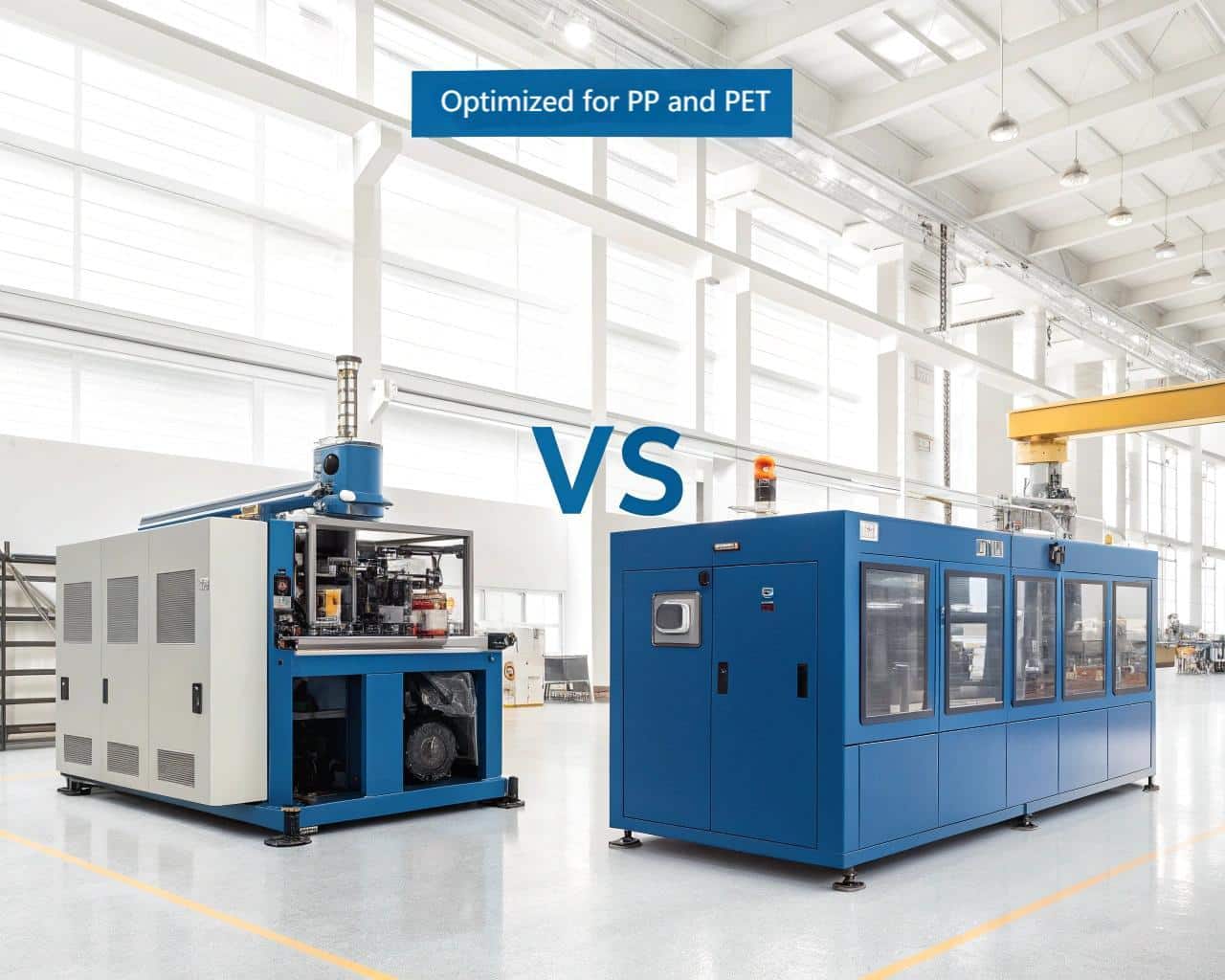

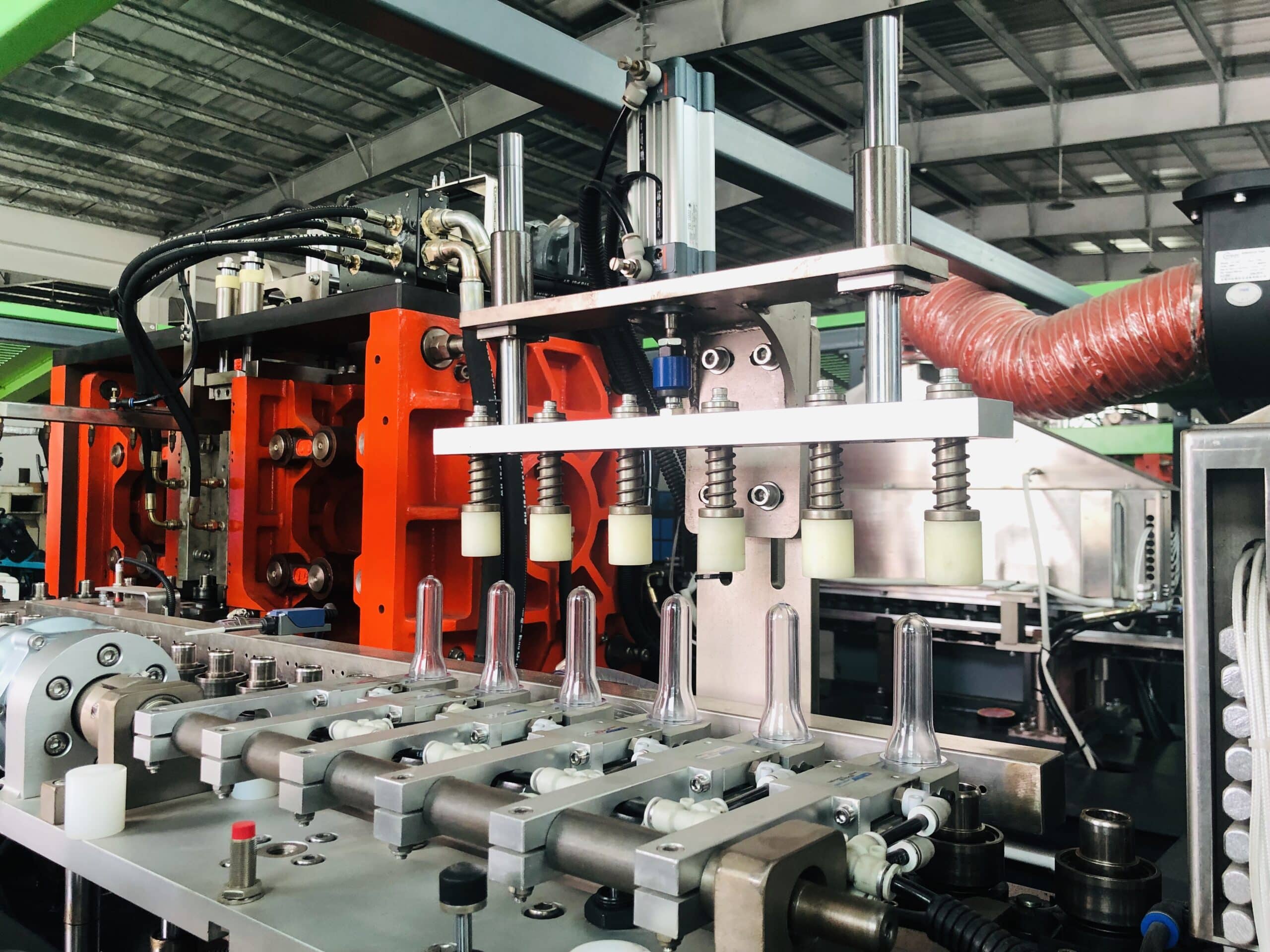

What Are The Limitations Of Using PET-Optimized Blowers For PP Bottles?

Thinking of running PP bottles on your trusty PET blowing machine? It might seem like a cost-saving idea, but you could face significant hurdles. These machines are often fine-tuned for PET's unique properties.

PET-optimized blowing machines typically have heating systems (oven length, lamp types, reflector design) specifically engineered for PET preforms. PP requires different, often higher, heating and has distinct stretching behavior. Using a PET machine for PP often results in poor heating, inconsistent material distribution, and lower-quality bottles.

Dive Deeper: Why Your PET Machine Might Say "No" to PP

I remember a client who insisted on trying to run PP preforms on a high-speed rotary PET machine that was a marvel of engineering—for PET. The results were, to put it mildly, disappointing. It highlighted exactly why "optimized for PET" often means "not great for PP."

The Heating Hurdle is Real:
As I touched on before, heating is paramount. PET machines are designed for PET's specific infrared absorption spectrum and processing temperatures.

• Infrared Lamp Spectrum: The IR lamps in a PET oven are chosen to emit wavelengths that PET absorbs efficiently. PP absorbs IR differently, meaning those same lamps might not heat PP preforms as effectively or as evenly. You might get hot spots on the surface while the core remains too cool.
• Oven Length and Zoning: PET ovens are designed with a certain length and number of heating zones to bring PET preforms to their ideal temperature profile gradually and precisely. PP often needs more intense or longer heating. A shorter PET oven might simply not have the capacity to get a thicker-walled PP preform to the correct temperature uniformly throughout its thickness before it reaches the blowing station. My client's machine, designed for speed with PET, just rushed the PP preforms through the oven too quickly.
• Cooling and Ventilation: PET ovens also have specific cooling and ventilation to prevent overheating, especially of the preform neck. These systems might not be optimal for the higher temperatures PP requires, potentially leading to issues like neck crystallization or deformation if the overall oven temperature is cranked up.

Material Behavior Mismatches:
Beyond heating, PET and PP behave differently under stress:

• Stretchability and Orientation: PET's molecular structure allows for significant biaxial orientation when stretched, which gives PET bottles their strength, clarity, and gas barrier properties. PP orients differently and to a lesser extent. A PET machine's stretching mechanism (rod speed, stroke length) is designed to maximize PET's potential. Applying this same aggressive stretching to PP can result in:
  • Poor Material Distribution: Thin spots, thick rings, and generally inconsistent wall thickness.
  • Stress Whitening: A hazy or milky appearance, especially in areas of high stress.
  • Low Impact Strength: Bottles that are brittle or crack easily.
• Mold Design: While the basic cavity shape defines the bottle, subtle aspects of mold design, like venting and cooling channels, are often optimized for the specific material's shrinkage and thermal properties. A mold designed for PET might not produce the best surface finish or dimensional stability with PP.

Cycle Time and Efficiency:
Even if you manage to produce acceptable PP bottles, it's often at a cost:

• Slower Cycles: To properly heat PP, you might need to slow down the machine considerably, reducing output.
• Higher Scrap Rates: The processing window for PP on a PET-optimized machine is often very narrow. Slight variations in preform temperature or ambient conditions can tip the process out of spec, leading to more rejects. I saw this firsthand; their scrap bin filled up alarmingly fast.
• Increased Wear and Tear: Trying to push a machine beyond its intended design parameters can sometimes lead to increased stress on components, though this is harder to quantify short-term.

In essence, while you might get a PP bottle out of a PET machine, it's unlikely to be an efficient, reliable, or high-quality process. The machine is a specialist, and asking it to perform a task it wasn't primarily designed for usually leads to compromises. If PP production is a significant part of your business plan, investing in equipment suitable for PP is almost always the more economical and sensible path.

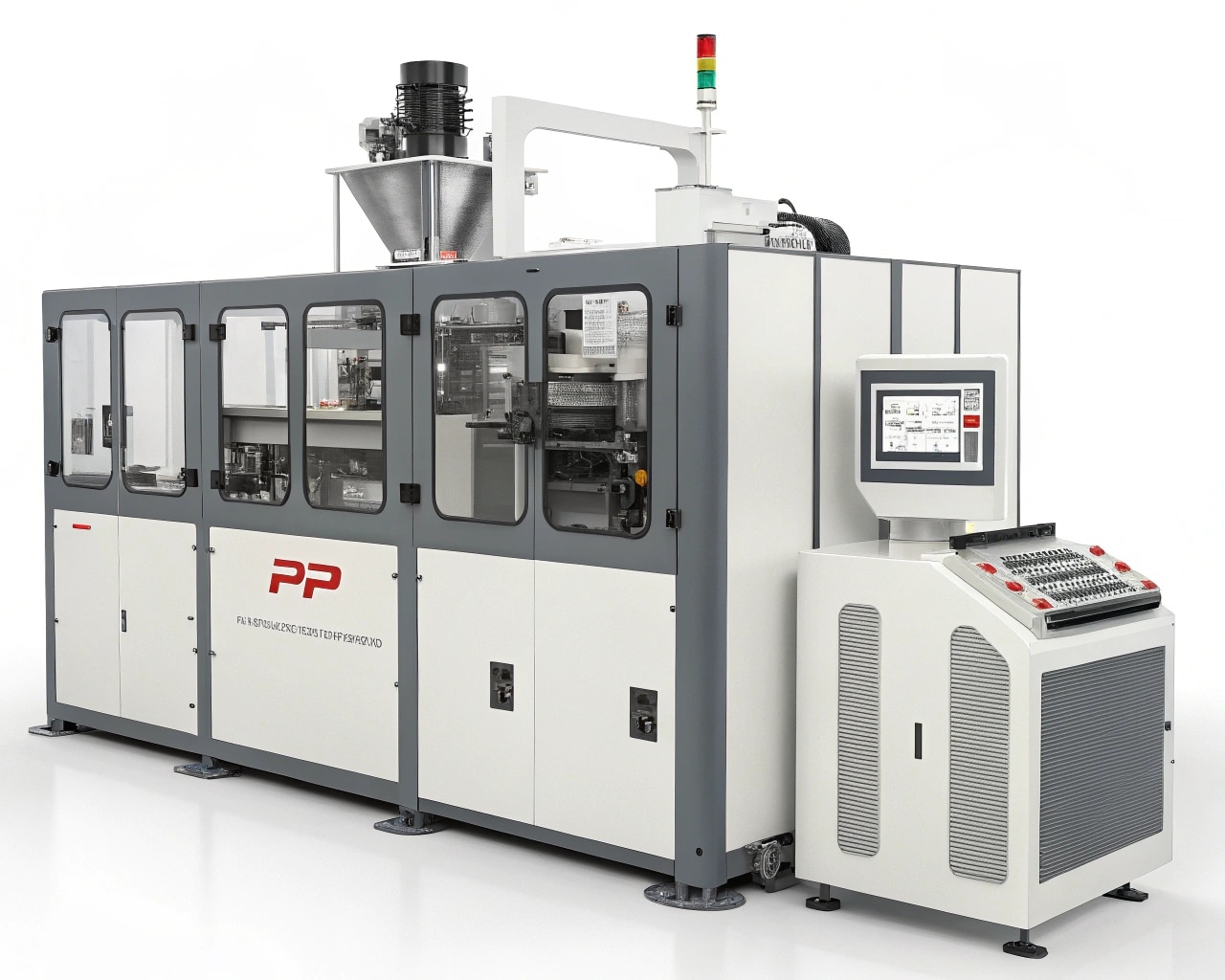

Are Dedicated PP Injection Stretch Blow Molding Machines A Different Category?

Heard about PP ISBM machines and wondering if they're just another type of blower? Yes, they are distinct, especially when compared to general-purpose or PET-focused machines. They're specialists.

PP Injection Stretch Blow Molding (ISBM) machines are specifically designed and optimized for processing polypropylene. These integrated systems handle everything from injecting the molten PP to form a preform, then conditioning, stretching, and blowing it into the final bottle shape, all in one continuous process or in closely coupled steps.

Dive Deeper: The Specialized World of PP ISBM Technology

When we talk about dedicated PP ISBM machines, we're moving into a realm of equipment finely tuned for the unique characteristics of polypropylene. Unlike the potential (though often problematic) flexibility of some two-step systems, these machines are typically single-material focused, and for good reason. I've seen these machines in action producing beautiful, clear PP containers, and their design reflects a deep understanding of the material.

Why a Dedicated Approach for PP?
Polypropylene presents specific challenges and opportunities in blow molding:

• Clarity and Haze: Achieving high clarity with PP, similar to what's standard with PET, requires precise control over material processing, cooling rates, and often specific clarifying additives in the PP resin. PP ISBM machines are designed to optimize these factors.
• Thermal Properties: As discussed, PP's melting and processing temperatures, heat capacity, and thermal conductivity are different from PET's. ISBM machines for PP have heating and conditioning stations (if it's a two-step ISBM process integrated into one machine platform, or a one-step process) that are tailored to PP's needs. This includes specific heater types, temperature control systems, and cycle times.
• Stretching Behavior: PP's lower stretchability compared to PET means the preform design and the stretching process (both rate and ratio) must be carefully managed. Dedicated PP ISBM machines have preform mold and stretch-blow mold designs, as well as stretch rod mechanics, optimized for how PP stretches to achieve good material distribution and mechanical properties.
• Shrinkage: PP generally has higher shrinkage than PET. Molds and post-blow handling in PP ISBM systems account for this to ensure final dimensional accuracy.

Types of PP ISBM Machines:
Generally, you'll encounter:

• One-Step ISBM: This process integrates preform injection, conditioning, stretching, and blowing into a single machine. Molten PP is injected into a preform mold; the preform is then temperature-conditioned, transferred to a blow mold, stretched with a rod, and blown. This process is excellent for high clarity and dimensional accuracy, often used for cosmetics, pharmaceuticals, and hot-fill PP bottles. The continuous process from melt to bottle provides excellent control.
• Two-Step ISBM (often highly integrated): While "two-step" usually implies separate preform production and blowing, some PP ISBM systems might have the injection and blowing stages as distinct but closely coupled modules within a larger machine platform. The preforms are made and then immediately (or after a very controlled conditioning period) transferred to the blowing station. This can offer some advantages in terms of optimizing each stage independently while still maintaining tight process control crucial for PP.

Why Not PET on a PP ISBM Machine?
It's generally not feasible or efficient to run PET on a machine designed and optimized for PP ISBM.

• Temperature Systems: The heating and injection systems are set up for PP's temperature ranges and melt flow characteristics. PET would process very differently and likely poorly.
• Mold Design: Preform and blow molds are engineered for PP's specific shrinkage rates, thermal conductivity, and stretching behavior. PET preforms wouldn't fit or process correctly.
• Process Parameters: The entire sequence of injection pressures, speeds, conditioning times, stretch profiles, and blowing pressures is calibrated for PP.

I once visited a facility that specialized in high-clarity PP containers for food products. Their one-step PP ISBM machines were impressive, but they were solely for PP. They had separate PET lines for other products. This specialization allows for optimization that a "one-size-fits-all" approach can rarely achieve, especially when dealing with materials as distinct as PET and PP. If your primary focus is high-quality PP bottles, a dedicated PP ISBM machine is usually the way to go.

What Are The Different Types Of Blowing Machines Available Today?

Feeling overwhelmed by the variety of blowing machines out there? Knowing the main types can help you narrow down what's best for your needs. It's not just one kind of machine!

The primary types of blowing machines are: Extrusion Blow Molding (EBM), Injection Blow Molding (IBM), and Stretch Blow Molding (SBM). SBM is further divided into one-step and two-step processes. Each type is suited for different materials, bottle shapes, and production volumes.

Dive Deeper: A Closer Look at Blow Molding Machine Technologies

When I first got into the packaging industry, the array of machinery was a bit daunting. But understanding the core types of blowing machines really clarifies things. Each has its niche, its strengths, and its ideal applications. Let's break them down.

1. Extrusion Blow Molding (EBM):

• How it Works: In EBM, plastic is melted and extruded into a hollow tube called a parison. This parison is then captured by closing a cooled metal mold around it. Air is then blown into the parison, inflating it into the shape of the mold. Once cooled, the mold opens, and the part is ejected.
• Materials: Commonly used with HDPE (High-Density Polyethylene), PP, PVC, and sometimes PETG. Not typically used for standard PET beverage bottles.
• Applications: Great for making bottles with handles (like milk jugs, detergent bottles), industrial containers, automotive parts (like ducts), and hollow industrial items. It allows for complex shapes and integrated handles.
• Key Features:
  • Can produce a wide range of sizes, from small bottles to very large drums.
  • Often involves a trimming process to remove excess flash (material squeezed out at the pinch-off).
  • Can be continuous extrusion (parison is constantly formed) or intermittent extrusion (parison formed in shots).
• My Experience: I've seen EBM lines producing large chemical drums; the process is robust and suited for high-volume production of less precise, functional containers.

2. Injection Blow Molding (IBM):

• How it Works: This is a three-stage process.
  1. Injection: Molten plastic is injected onto a core pin within a preform mold, creating a precise preform with a finished neck.
  2. Blowing: The core pin with the preform is transferred to a blow mold station. Air is blown through the core pin to inflate the preform to the shape of the blow mold.
  3. Ejection: The finished container is transferred to an ejection station.
• Materials: Often used with PP, HDPE, LDPE, PS (Polystyrene), and sometimes PET for smaller, wide-mouth containers.
• Applications: Ideal for smaller, high-precision bottles and jars, often used in pharmaceutical, cosmetic, and personal care industries. Produces very accurate neck finishes and minimal scrap (no flash).
• Key Features:
  • Excellent dimensional accuracy, especially for the neck/thread area.
  • No flash or trim waste.
  • Generally limited to smaller container sizes and simpler shapes compared to EBM.
  • Higher tooling costs than EBM.
• My Observation: IBM is the go-to for those small, perfectly finished cosmetic jars where thread precision is key.

3. Stretch Blow Molding (SBM):
This is where PET bottle production really shines. SBM involves stretching the preform both axially (lengthwise by a stretch rod) and radially (outwards by blowing) to orient the molecules. This biaxial orientation significantly improves the container's strength, clarity, and gas barrier properties.

• How it Works (General): A preform (produced by injection molding) is heated to an optimal temperature, then stretched and blown into the final bottle shape.
• Materials: Predominantly PET. Also used for PP (as in PP ISBM) and other orientable polymers.
• Applications: Beverage bottles (carbonated soft drinks, water, juice), food containers, some household chemical bottles.
• Sub-Types:
  • One-Step SBM (or Injection Stretch Blow Molding - ISBM): The preform manufacturing, stretching, and blowing all occur in one integrated machine. Molten plastic is injected, conditioned, stretched, and blown. This offers excellent control over the preform temperature just before blowing. Best for lower to medium volumes or specialized shapes where precise preform temperature is critical.
  • Two-Step SBM (or Reheat Stretch Blow Molding - RSBM): Preforms are manufactured separately (often in a different facility or on a dedicated injection molding line) and are cooled and stored. Later, these preforms are fed into a reheat blow machine where they are reheated in an oven, then stretched and blown. This is the most common method for high-volume PET bottle production due to its speed and efficiency. Machines can be linear (preforms move in a line) or rotary (preforms move on a carousel), with rotary offering the highest outputs.
• My Focus: Most of my work has involved two-step SBM for PET beverage bottles. The speed and efficiency of modern rotary machines are incredible.

Understanding these fundamental differences is the first step when you're looking to invest in a blowing machine solution or troubleshoot production issues. Each type serves different market needs and material requirements.

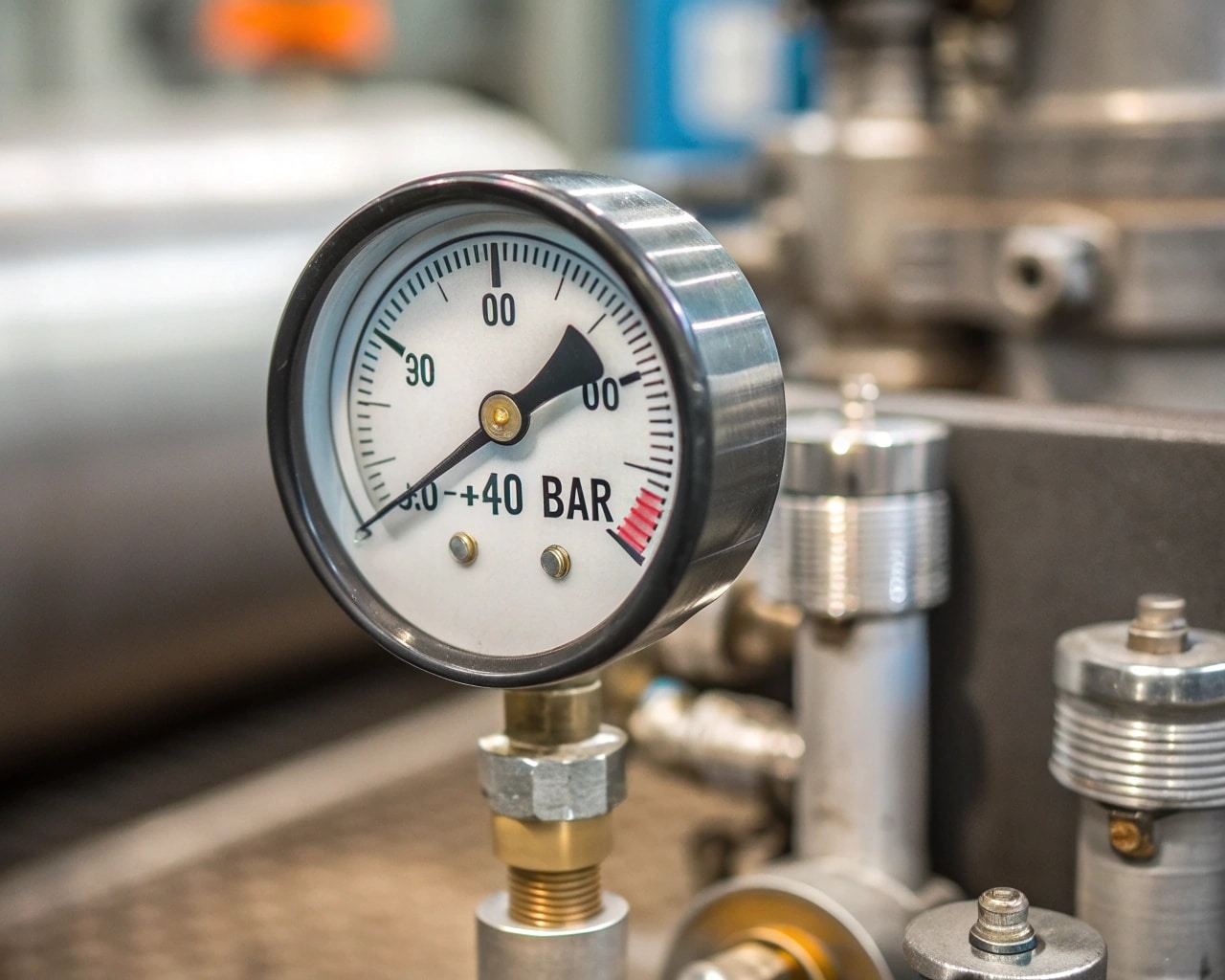

What Is The Typical Blowing Pressure For A PET Bottle During Manufacturing?

Curious about the force needed to shape a PET bottle? The blowing pressure is a critical setting, but it's not just one number. It’s a carefully controlled sequence.

For PET bottles, blowing usually involves a two-stage pressure application: a low-pressure "pre-blow" (typically $5-15$ bar or $70-220$ psi) to initially expand the preform, followed by a high-pressure "final blow" (usually $25-40$ bar or $360-580$ psi) to fully form the bottle against the mold walls.

Dive Deeper: Unpacking the Pressures in PET Bottle Blowing

Getting the blowing pressures right in PET bottle production is something I've spent countless hours optimizing. It's a delicate balance; too little pressure and the bottle won't form correctly, too much and you risk material issues or even damaging the equipment. The pressures aren't static; they are applied in stages and vary based on several factors.

The Two-Stage Approach: Pre-Blow and High-Blow

The most common method for blowing PET bottles involves two distinct pressure stages:

1. Pre-Blow (or Primary Blow):

   • Purpose: This initial, lower-pressure stage (typically $5-15$ bar / $70-220$ psi, though it can vary) begins just as, or slightly after, the stretch rod starts to extend the heated preform axially. The pre-blow air helps to:
     • Lift the preform material off the stretch rod to prevent chilling marks and allow even stretching.
     • Start expanding the preform radially before it makes full contact with the cold mold walls. This helps achieve better material distribution, especially in the bottle's body and base.
     • Prevent the preform from collapsing or wrinkling as it's stretched.
   • Timing and Volume: The timing of the pre-blow start, its duration, and the volume of air are crucial. Too early or too strong, and you can blow out the base or create thin shoulders. Too late or too weak, and you might get an "orange peel" effect or poor base formation.
   • My Experience: I remember troubleshooting a pearlescent appearance in some bottles. It turned out the pre-blow pressure was slightly too high, causing excessive stretching in certain areas before the material had properly flowed.

2. High-Blow (or Final Blow / Secondary Blow):

   • Purpose: Once the preform has been stretched and partially inflated by the pre-blow, the high-pressure air (typically $25-40$ bar / $360-580$ psi) is applied. This powerful blast forces the PET material to conform tightly to the intricate details of the blow mold, defining the final shape, sharp corners, and surface texture of the bottle. It also helps to rapidly cool the material against the mold.
   • Duration: The high-blow is maintained for a specific duration to ensure the bottle is fully formed and stable enough to be ejected.
   • Key to Detail: This stage is critical for achieving crisp embossing, defined paneling, and proper base formation (e.g., the feet on a petaloid base for carbonated beverages).

Factors Influencing Required Blowing Pressures:

The "typical" pressures are just a starting point. The optimal settings depend on:

• Bottle Design: Complex shapes, sharp angles, or very thin walls might require adjustments to both pre-blow and high-blow pressures. Larger bottles generally need slightly higher pressures or volumes.
• Preform Design: The weight, wall thickness distribution, and intrinsic viscosity (IV) of the PET resin used in the preform significantly impact how it will behave during blowing. Heavier preforms or those with thicker sections might need more pressure or longer blowing times.
• Material Temperature: The temperature of the heated preform is critical. A hotter preform is softer and requires less pressure to blow, but too hot can lead to loss of definition or blow-outs. A cooler preform needs more pressure and might not distribute material evenly.
• Machine Type and Speed: Different machines (linear vs. rotary, older vs. newer models) might have different capabilities and optimal settings. Higher speed machines often require very precise control over pressure application.
• Desired Bottle Properties: For instance, bottles for carbonated beverages need to withstand internal pressure, which requires excellent material distribution and strong base formation, often achieved with careful pressure profiling.

Consequences of Incorrect Pressure:

• Too Low: Under-blown bottles, poor definition, hazy appearance, thin spots, weak base.
• Too High: Material thinning (especially in corners), blow-outs, potential for stress cracking, "rocker" bases (unstable bottles).

Setting and maintaining the correct blowing pressures, along with preform temperature and stretch parameters, is a core skill in PET bottle manufacturing. It often involves iterative adjustments and careful observation – a blend of science and art, I've found. Using a reliable air compressor system that delivers consistent, clean, high-pressure air is also non-negotiable.

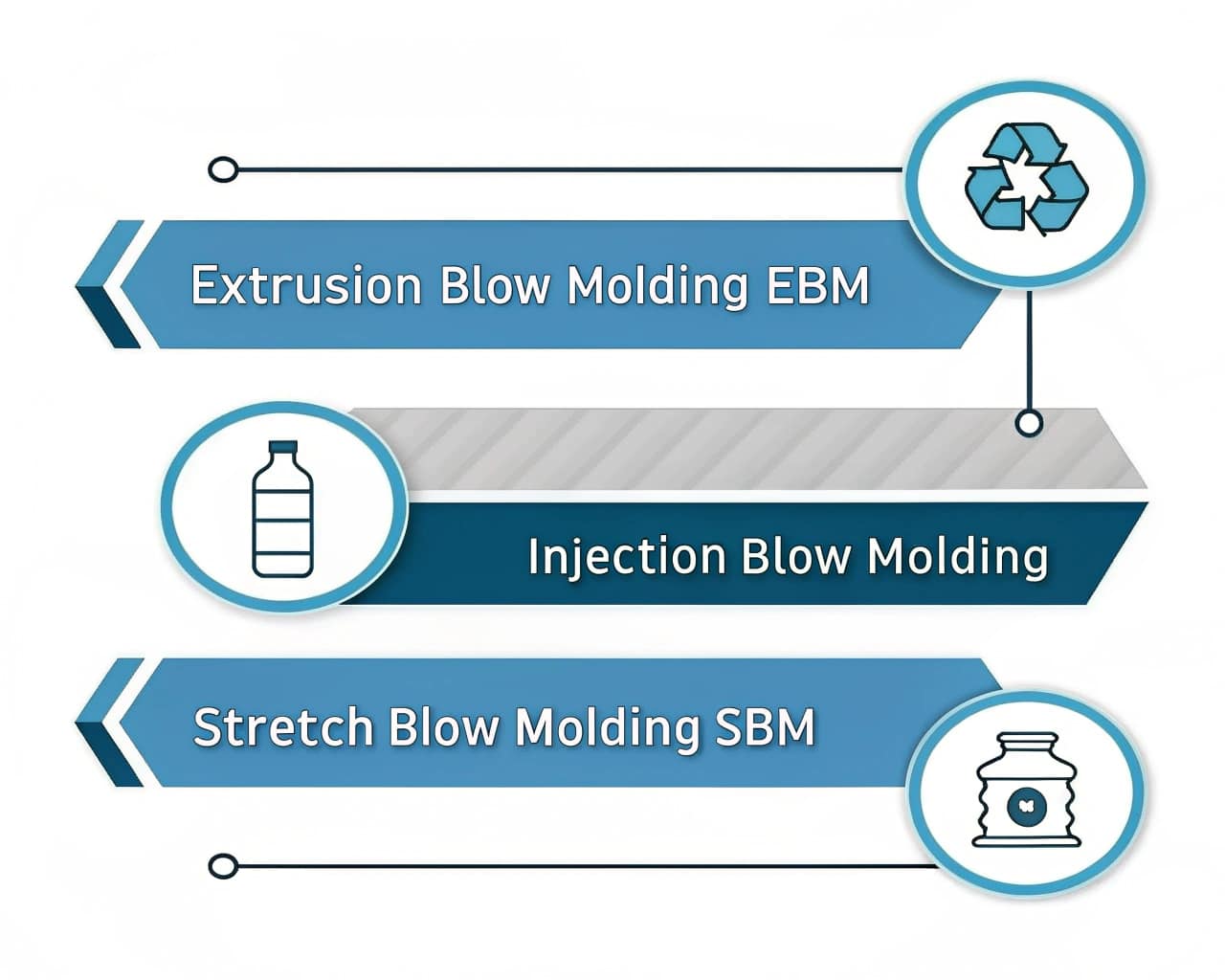

Could You Explain The Main Types Of Blowing Processes Used In Industry?

Trying to get a handle on how plastic bottles are actually made? Understanding the main "blowing processes" is key. It's about how we get from raw plastic to a finished container.

The main types of blowing processes are Extrusion Blow Molding (parison inflated), Injection Blow Molding (injected preform blown, high precision), and Stretch Blow Molding (preform stretched and blown, for PET strength/clarity). Each method uses air to shape plastic within a mold.

Dive Deeper: The Mechanics Behind Shaping Plastic with Air

When we talk about "types of blowing," we're really looking at the distinct methodologies manufacturers use to inflate and shape plastic into hollow objects. I've worked with facilities using all these core techniques, and each has its own rhythm and set of applications. These processes are the heart of hollow plastic container manufacturing.

1. Extrusion Blow Molding (EBM) Process:
This is one of the oldest and most versatile blowing processes.

• The Core Idea: Imagine squeezing toothpaste out of a tube – that's sort of like extrusion. In EBM, plastic resin is melted and continuously pushed through a die to form a hollow tube of molten plastic called a "parison."
• Parison Capture: When the parison reaches the desired length, a two-part mold closes around it, pinching off one end (which often forms the bottom of the container) and sealing the other end around a blow pin.
• Inflation: Compressed air is then injected through the blow pin (or sometimes a needle), inflating the soft parison against the cold walls of the mold cavity.
• Cooling and Ejection: The plastic cools and solidifies, taking the shape of the mold. The mold opens, and the part is ejected. Often, there's "flash" (excess material where the mold halves met and at the pinch-off) that needs to be trimmed.
• Variations:
  • Continuous Extrusion Blow Molding: The parison is extruded continuously, and molds move to capture and blow it. Suited for high-volume production of smaller items.
  • Intermittent Extrusion Blow Molding: The parison is extruded in "shots," often for larger parts where a long parison needs to hang before the mold closes.
  • Accumulator Head EBM: For very large parts (like drums or tanks), molten plastic is collected in an accumulator, then forced out quickly to form a large parison.
• My Experience: I've seen EBM lines churning out everything from simple detergent bottles to complex automotive air ducts. The ability to integrate handles directly into the mold is a big plus.

2. Injection Blow Molding (IBM) Process:
This process is all about precision, especially for the neck and threads of a container.

• Stage 1: Injection. Molten plastic is injected at high pressure onto a core rod (also called a core pin) within an injection mold cavity. This forms a "preform" that looks like a test tube with the final, detailed neck finish already formed.
• Stage 2: Blowing. The core rod, still holding the hot preform, is indexed (rotated) to a blow molding station. Here, a set of blow molds closes around the preform. Compressed air is blown through the core rod, inflating the preform to the shape of the blow mold.
• Stage 3: Ejection. The core rod then indexes to an ejection station, where the finished container is stripped off the rod.
• Key Advantage: Because the neck is injection molded, it has very precise dimensions, ideal for screw caps and pump dispensers. There's no flash, so no trimming is needed, which means zero material waste from that step.
• Use Cases: Pharmaceuticals (pill bottles), cosmetics (lotion bottles, roll-on deodorant), and other small, high-tolerance containers.

3. Stretch Blow Molding (SBM) Process:
This process is predominantly used for PET (Polyethylene Terephthalate) bottles and some PP applications, prized for creating strong, lightweight, and clear containers.

• The Foundation: Preforms. SBM starts with an injection-molded preform.
• Biaxial Orientation: The "stretch" is key. The preform is first heated to a precise temperature (above its glass transition temperature but below its melting temperature). Then, it's simultaneously or sequentially stretched in two directions:
  • Axial Stretching: A stretch rod pushes down into the preform, elongating it.
  • Radial Stretching: Compressed air inflates the preform outwards.
    This biaxial stretching aligns and orients the polymer molecules, dramatically increasing the bottle's strength, clarity, top load, and gas barrier properties.
• One-Step vs. Two-Step SBM:
  • One-Step (ISBM - Injection Stretch Blow Molding): Preform injection, conditioning, stretching, and blowing all happen on a single integrated machine. The preform doesn't cool down completely before blowing.
  • Two-Step (RSBM - Reheat Stretch Blow Molding): Preforms are made separately (often by a specialist supplier or in a different part of the plant), allowed to cool, and then fed into a reheat blow machine. In this machine, they are reheated in an oven, then transferred to the blowing station for stretching and inflation. This is the most common method for high-volume PET beverage bottles.
• Personal Insight: The science behind biaxial orientation in SBM is fascinating. Watching a small, opaque PET preform transform into a crystal-clear, strong bottle in seconds on a high-speed rotary machine is still impressive to me.

Each of these blowing processes has evolved with specific material capabilities and end-use requirements in mind. Understanding them helps in selecting the right manufacturing technology for any given hollow plastic product.

What Factors Influence The Cost Of A PET Preform Manufacturing Machine?

Planning to make your own PET preforms? The cost of the machine is a big question, and it's not a simple one-number answer. Many elements play a role.

The cost of a PET preform manufacturing machine (an injection molding machine specialized for preforms) varies widely based on its capacity (number of cavities in the mold), automation level, brand reputation, technology (e.g., hydraulic, hybrid, all-electric), and whether it's new or used. Ancillary equipment also adds to the total investment.

Dive Deeper: Decoding the Investment in Preform Production

When I've consulted with companies looking to integrate backwards into PET preform manufacturing, the initial capital outlay is always a central discussion point. It’s a significant investment, and the price tag can swing dramatically. Let's break down the key cost drivers for a PET preform injection molding system.

1. Machine Tonnage and Shot Size (Capacity):

• Tonnage: This refers to the clamping force the machine can exert to keep the mold closed during injection. Larger molds with more cavities require higher tonnage machines. A 48-cavity preform mold will need a significantly larger (and more expensive) machine than a 16-cavity mold.
• Shot Size: This is the maximum volume/weight of PET resin the machine can inject in a single cycle. It must be sufficient for the total weight of all preforms produced in one shot plus the runner system.
• Impact: Higher tonnage and larger shot size directly translate to a more robust, larger, and costlier machine.

2. Mold Cavitation:

• Number of Cavities: This is the single biggest factor influencing both the mold cost and the required machine size. Molds can range from a few cavities for very low-volume or specialized preforms up to 96, 128, or even more cavities for high-volume commodity preforms.
• Mold Cost Itself: High-cavitation preform molds are complex precision tools made from hardened steel, involving intricate cooling channels and hot runner systems. They represent a very substantial portion of the investment. A 96-cavity mold can cost hundreds of thousands of dollars, sometimes even more than the machine itself.
• My Observation: I've seen companies start with lower cavitation molds to manage initial investment and then add higher cavitation molds as their volume grows.

3. Machine Technology and Brand:

• Drive System:
  • Hydraulic Machines: Traditionally common, often lower initial cost but higher energy consumption.
  • All-Electric Machines: Higher initial cost, but offer significant energy savings, better precision, cleaner operation, and lower noise.
  • Hybrid Machines: Combine hydraulic and electric elements, aiming for a balance of cost and performance.
• Brand and Origin: Machines from well-established European, Japanese, or North American brands often command a premium due to their reputation for reliability, advanced technology, and after-sales service. Machines from emerging market manufacturers might have lower upfront costs.
• Specialized PET Features: Machines designed specifically for PET preform production often include features like optimized screw designs for PET processing, larger platens, and reinforced clamping units.

4. Level of Automation and Ancillary Equipment:
A preform manufacturing line is more than just the injection molding machine.

• Resin Handling: Dryers (PET is hygroscopic and must be thoroughly dried), blenders (for colorants/additives), and conveying systems.
• Mold Temperature Control Units (TCUs): Essential for maintaining precise mold temperatures.
• Robotics/Take-Out Systems: For removing preforms from the mold and placing them on conveyors or into cooling systems.
• Post-Mold Cooling Systems: To ensure preforms cool properly and maintain dimensional stability.
• Quality Control Equipment: Vision systems for inspecting preforms for defects.
• Impact: Higher levels of automation increase efficiency and consistency but also add to the upfront cost. I always advise clients to think about the total cost of ownership, where automation can reduce labor costs and scrap rates over time.

5. New vs. Used Equipment:

• New: Higher initial cost, latest technology, full warranty, manufacturer support.
• Used: Lower initial cost, but potential risks regarding condition, lack of warranty, and availability of spare parts. Requires careful inspection and due diligence. Buying used equipment can be a viable option but needs thorough evaluation.

6. Installation, Training, and Commissioning:
These costs are often overlooked but are essential for getting the line up and running efficiently.

When budgeting for a PET preform manufacturing machine, it's crucial to consider all these factors and think about the long-term production goals, required output, and desired level of quality and automation. It's not just buying a machine; it's investing in a production system.

Making The Right Choice: Key Considerations For Your Blowing Machine Investment?

Ready to invest in a blowing machine but unsure how to pick the perfect one? Choosing wisely now prevents major headaches and costs later. It's a big decision that needs careful thought.

Focus on your primary material (PET, PP, etc.), required bottle design and size, production volume, and future scalability. Also, consider machine flexibility, energy efficiency, supplier support, and overall cost of ownership, not just the upfront price.

Dive Deeper: Navigating Your Blowing Machine Purchase

From my years in this industry, I've seen companies thrive or struggle based on their equipment choices. Investing in a blowing machine isn't just about acquiring a piece of hardware; it's about selecting a solution that aligns with your business strategy. Here are the critical factors I always discuss with clients:

1. Primary Material and Application:

• What are you blowing? As we've discussed, PET, PP, HDPE, etc., all have different processing needs. A machine optimized for PET SBM won't be ideal for EBM of HDPE jerrycans. Be clear on your primary material.
• Flexibility vs. Specialization: Do you need a machine that can (with compromises) handle multiple materials, or do you need a specialist for one material to achieve the highest quality and efficiency? My insight shared earlier about PET vs. PP on the same two-step machine highlights this. Generally, specialization wins for high performance.
• Bottle/Container Specifications:
  • Size and Shape: Neck diameter, overall volume, narrow neck vs. wide mouth, handleware, complex geometries. These dictate the type of machine (EBM for handles, IBM for precise small necks, SBM for PET beverage bottles).
  • Quality Requirements: Clarity, strength, barrier properties, dimensional tolerances. High-spec requirements often point towards more sophisticated (and expensive) machines.

2. Production Volume and Scalability:

• Current Needs: How many bottles per hour/day/year do you need now? This determines the required machine output and cavitation (for SBM/IBM).
• Future Growth: Do you anticipate significant volume increases? Choosing a machine with some scalability (e.g., a two-step SBM where you can later add a higher cavitation mold or a faster reheat blow unit) can be wise. Or, plan for adding more lines.
• Operating Hours: Will it run 24/7 or intermittently? This impacts the robustness and type of machine that’s suitable.

3. Machine Type and Technology:

• EBM, IBM, SBM (One-step/Two-step): Based on your material and application, which core technology is the right fit?
• Drive System: Hydraulic, all-electric, or hybrid? All-electric machines, while often having a higher initial cost, can offer substantial long-term savings in energy and maintenance, plus better precision. I've seen clients achieve surprisingly fast ROI on all-electric machines due to energy cost reductions.
• Automation Level: Manual, semi-automatic, or fully automatic? Consider labor costs, consistency requirements, and desired output.

4. Supplier Reputation and Support:

• Track Record: Choose suppliers with a proven history in the type of machine you need. Ask for references.
• Technical Support: What level of after-sales service, spare parts availability, and technical expertise do they offer? Downtime is incredibly costly. A reliable service partner is invaluable.
• Training: Does the supplier offer comprehensive training for your operators and maintenance staff?
• Geographic Proximity: While not always decisive, having local or regional support can be an advantage for quicker response times.

5. Total Cost of Ownership (TCO):
Don't just look at the initial purchase price. Consider:

• Energy Consumption: This can be a major operating expense.
• Maintenance Costs: Frequency, cost of spare parts.
• Labor Costs: Degree of automation impacts this.
• Material Efficiency: Scrap rates, material waste (e.g., flash in EBM).
• Changeover Time: If you plan to run multiple products on one machine, how quick and easy is the changeover?
• Floor Space Requirements: Ensure you have adequate space for the machine and any ancillary equipment.

My Final Tip: Before you sign any purchase order, define your needs as precisely as possible. I always recommend creating a detailed specification sheet. If possible, see the machine running your specific application or a very similar one, perhaps at the supplier's facility or at another customer's plant. This due diligence is crucial for making an informed investment that will serve your business well for years to come.

Conclusion

So, can one blowing machine handle both PET and PP? Sometimes, with major caveats for two-step systems. Generally, specialized machines offer the best performance for each material. Make your choice wisely.

Frequently Asked Questions (FAQs)

Q1: Can I use PET preforms in a PP blowing machine?
A1: No, generally not. PP blowing machines, especially PP ISBM systems, are designed for the specific thermal and mechanical properties of polypropylene. PET preforms require different heating profiles and processing parameters that a PP-optimized machine typically cannot provide effectively.

Q2: What are the main advantages of a two-step stretch blow molding machine for PET?
A2: Two-step SBM machines offer high output rates, flexibility (preforms can be made elsewhere or by third parties), and efficiency for large-scale PET bottle production. The separation of injection and blowing stages allows optimization of both.

Q3: Is Extrusion Blow Molding suitable for clear beverage bottles?
A3: While EBM can use clear plastics, it's not typically used for pressure-sensitive clear beverage bottles like those for carbonated drinks. Stretch Blow Molding (SBM) for PET provides better clarity, strength, and gas barrier properties required for these applications. EBM is more common for items like detergent bottles or milk jugs.

Q4: How important is drying PET resin before processing?
A4: Extremely important. PET is hygroscopic, meaning it absorbs moisture from the air. If PET resin is not properly dried to a very low moisture content before injection molding (for preforms) or processing, the moisture will cause hydrolytic degradation at melt temperatures. This results in a loss of Intrinsic Viscosity (IV), leading to brittle preforms/bottles and poor physical properties.

Q5: What's the difference between a "one-step" and "two-step" blowing machine?
A5: In a "one-step" (Injection Stretch Blow Molding - ISBM) machine, the entire process from raw plastic resin to finished bottle (injection of preform, conditioning, stretching, and blowing) occurs in a single integrated machine. In a "two-step" (Reheat Stretch Blow Molding - RSBM) process, preforms are made first (often on a separate injection molding line) and then cooled. Later, these preforms are fed into a reheat blow machine where they are reheated, stretched, and blown.

Q6: Can PP bottles be hot-filled?
A6: Yes, certain grades of PP and specific bottle designs made through processes like PP ISBM can be suitable for hot-filling applications, often up to $85-95^{\circ}C$. The processing conditions and material selection are critical to ensure the bottle maintains its shape and integrity at elevated temperatures.

Q7: What is "flash" in blow molding?
A7: Flash is excess plastic that forms when the mold closes on the parison (in Extrusion Blow Molding) or sometimes around the parting line of a mold if it doesn't seal perfectly. It typically needs to be trimmed off the finished part. Injection Blow Molding and Stretch Blow Molding (from a preform) generally do not produce flash.
