Starting a bottle business is expensive. Full-auto lines cost a fortune. You need a way to start small, but you fear buying a useless machine.

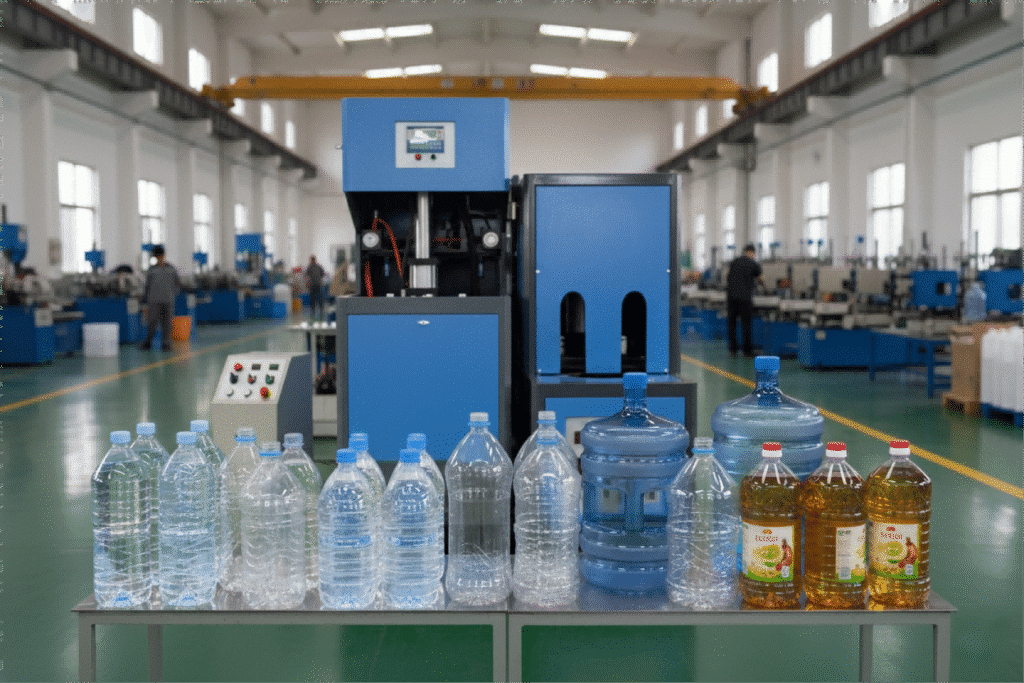

A semi-automatic PET bottle blowing machine is the answer. Its key feature is a separate heater and blower, requiring manual steps. This design drastically cuts initial cost, making it the perfect, low-risk starting point for startups, low-volume production, and high-mix (many bottle types) businesses.

This machine is the definition of "getting started." But "cheap" can be a trap if you don't know what to look for. As a factory founder, I've seen clients succeed with these and fail with them. The difference is knowing the details. Let's break down exactly what you're buying.

What is a Semi-Automatic Blower, and Who is it For??

You see "semi-auto" and "full-auto" everywhere. The price difference is huge. But what does "semi-automatic" actually mean in practice?

"Semi-automatic" means the heater (oven) and the main blower unit are separate machines. An operator must manually move the hot preforms from the heater into the blower's mold. This manual step is the key difference.

I call the semi automatic bottle blowing machine the "Entrepreneur's Machine." It exists for one purpose: to get you into the bottle production business with the lowest possible initial investment (CapEx).

In a fully automatic bottle blowing machine, preforms are dumped into a hopper. A robotic arm and conveyor system feeds them into the heater, moves them into the mold, and ejects the finished bottle. It is a "lights-out" operation. It is fast, consistent, and very expensive.

A semi auto PET bottle machine breaks this into two distinct, separate stations:

1. The Heater (Oven): An operator manually loads cold preforms onto spindles.
2. The Blower Unit: The operator manually takes the hot preforms from the heater and places them into the mold of the blower unit.

This reliance on human labor for the key transfer step is what defines it. This single change removes all the complex, expensive robotics and automation. The ideal customer for this machine is very specific. I've built a simple checklist to see if you fit the profile.

Who is a Semi-Auto Machine For?

This machine is not about speed; it is about access. It gives you access to the market. If your orders are small, or you have many different bottle types, or your local labor is affordable, this is your starting point.

Core Component 1: The Main Blower Unit?

The blower unit looks like a simple metal box. Many cheap machines look the same. But a weak machine will fail under pressure, costing you thousands.

The main blower unit has three key parts: the clamping system (holds the mold shut), the stretching cylinder (stretches the preform), and the high-pressure valve group (blows the bottle).

When you inspect a manual blow molding machine (another name for it), don't look at the paint job. As an engineer, I look at two things that tell me 90% of what I need to know.

1. The Clamping System and Platen Thickness

This system (often a toggle-joint) is responsible for opening, closing, and locking the mold. Its one job is to fight the enormous force of the high-pressure air (30-40 Bar, or 450-600 PSI) that is trying to push the mold open.

• The Trap: Cheap machines use thin steel plates (platens) to hold the mold. Under 40 Bar of pressure, this thin plate visibly flexes (bends). Even a 0.1mm flex is a disaster. It allows the plastic to squeeze out, creating an ugly, sharp "parting line" (or "flash") on the side of your bottle. This looks unprofessional and can cause leaks.
• The Solution: Look for a machine with heavy, thick platens. More weight and thickness mean more rigidity. This rigidity is what gives you a clean, seamless bottle.

2. The High-Pressure Valve Group

This is the "heart" of the machine. It controls the air in a precise two-stage sequence:

1. Pre-Blow (Low Pressure): A small puff of ~10 Bar air starts to stretch the preform evenly.
2. High-Pressure Blow (High Pressure): The full 30-40 Bar blast slams the plastic against the cold mold walls.

• The Trap: This is the #1 maintenance nightmare. Cheap machines use generic, no-name valves and rubber seals. They will start to leak. A high-pressure air leak is incredibly expensive. You will hear a "hissing" sound. That is the sound of your air compressor running non-stop, burning electricity, just to feed the leak.
• The Solution: Ask the supplier what brand of valves they use. A quality supplier will proudly state they use German (Festo) or Japanese/US (SMC, Parker) components. These cost more, but they do not leak. You are paying to avoid a future headache.

A Note on 2L vs. 20L Machines

The blow molding machine components change dramatically with size. A standard machine (for 500ml-2L) is what we've discussed. A 20L bottle blowing machine is a different beast. The clamping force is massive. The platens are huge. The air volume required is 10-20x greater. It is a specialized machine for water cooler jugs, and its components are not interchangeable with a standard machine.

Core Component 2: The Infrared (IR) Heater / Oven?

You see a box with red lights. It looks simple. But 90% of bottle problems, like thick bottoms or thin walls, come from bad heating.

The separate IR heater (or oven) uses infrared lamps to heat preforms. A good heater has a rotating system (for 360° heating) and multiple temperature zones that you can control independently.

This is my core insight for all blow molding for startups. The blower unit is just "dumb force." The heater is the "soul" of the operation. This is where the art is.

The heater has two main parts:

1. Preform Holders / Rotating System: The operator places preforms onto metal spindles. These spindles must rotate as they travel through the oven. If they don't rotate, one side of the preform gets burned while the other side is cold. This 360° rotation is non-negotiable.
2. Infrared (IR) Lamps: These are the heat source. They emit IR radiation, which PET plastic absorbs perfectly.

The Biggest "Pitfall" in Cheap Heaters

A cheap, low-quality heater is the biggest "con" in this business. It will have one "On/Off" switch and maybe one "dimmer" for all the lamps. This is useless.

Here is why:
A 500ml "short-fat" preform needs a different heat profile than a 1L "tall-thin" preform. The "short-fat" bottle needs intense heat in the middle of the preform. The "tall-thin" bottle needs heat distributed all along the body of the preform.

If your heater only has one setting, you cannot make both bottles. You will end up with common PET blow molding defects. The tall bottle will be paper-thin in the middle and have a huge, thick chunk of plastic at the bottom.

A high-quality heater must have:

1. Multiple Temperature Zones: You must be able to control the temperature of different lamp sections (e.g., top, middle, bottom) independently. You might set the top zone to 60% power, the middle to 90%, and the bottom to 70%. This is called a "heating recipe."
2. Adjustable Lamp Position: You must be able to physically move the lamps closer or further from the preforms, and adjust their height.

Without this adjustability, your heater is a "toy," not a "tool." You will be completely blind, unable to fix quality problems.

The Basic Step-by-Step Operating Process?

The machine looks complex. You worry about training. But the entire process is a simple, repeatable rhythm. A good operator becomes fast in one day.

The process is a manual-to-auto loop: 1. Operator manually loads preforms into the heater. 2. Operator manually moves the hot preform into the mold. 3. Operator presses buttons. 4. Machine auto-blows. 5. Operator manually removes the bottle.

Here is the entire semi auto bottle machine operation from start to finish. Often, this is done by one or two operators.

A Full Cycle, Step by Step

1. Step 1: Load Heater. The operator takes cold preforms from a box and manually places them, neck-up, onto the spindles of the heater unit.
2. Step 2: Heating Cycle. The operator presses a foot pedal or button. The preforms advance through the oven, rotating as they pass the IR lamps. A fully heated preform (now soft and rubbery, around 110°C) arrives at the end.
3. Step 3: Manual Transfer (The "Semi" Part). The operator, often wearing gloves, grabs the hot preform by its cold neck. The preform neck finish is protected from heat and stays cool.
4. Step 4: Load Blower. The operator quickly moves to the main blower unit and places the hot preform(s) into the open mold cavity. A 2 cavity semi auto blower means they load two preforms at once.
5. Step 5: Engage Machine (Safety Step). The operator must press two separate buttons (one with each hand) at the same time. This is a critical safety feature. It guarantees the operator's hands are not inside the machine when the powerful mold clamps shut.
6. Step 6: Automatic Cycle (The "Auto" Part). Once the buttons are held, the machine takes over. This all happens in about 2-4 seconds:
   • Mold Closes (Clamping)
   • Stretching Rod Descends (Stretches preform vertically)
   • Pre-Blow Air (Low pressure)
   • High-Pressure Blow Air (High pressure, 30-40 Bar)
   • Exhaust (Releases the pressure)
   • Mold Opens
7. Step 7: Remove Bottle. The operator manually reaches in, grabs the finished (and now cool) bottle, and tosses it into a collection bin.
8. Step 8: Repeat. The operator immediately turns back to the heater to grab the next hot preforms. This rhythm continues all day.

The Most Important Fact About Output

My insight here is simple: The machine's output (BPH, or Bottles Per Hour) is 100% dependent on the operator's skill.

The machine's automatic cycle is fixed (e.g., 3 seconds). The total cycle time is 3 seconds + how long it takes the human to do the transfer.

• A skilled, fast, motivated operator (who isn't afraid of the heat) can run a 2 cavity semi auto blower at 800-900 BPH.
• A new, nervous, or slow operator might only produce 500 BPH.

Your factory's total capacity and your labor cost per bottle are not set by the machine; they are set by the person you hire to run it.

Cost & Price Analysis: The "Hidden" Air Compressor Cost?

You see a semi automatic blower price for $5,000 online. It seems too good to be true. It is. The machine is just one piece of the puzzle.

A standard 2-cavity machine costs $5,000 - $15,000. The price depends on cavity count, bottle size (a 20L bottle blowing machine is much more), and auxiliaries. The biggest "hidden cost" is the high-pressure air compressor system.

You will not find a "fixed price" online, because you are not buying a single item. The price is a package deal based on three factors:

1. What Determines the Price?

• Cavities (1 vs. 2): A 2-cavity machine with a 2-cavity mold is more expensive than a 1-cavity setup.
• Bottle Size (2L vs. 20L): This is the biggest factor. A machine built to blow 2L bottles cannot blow a 20L jug. A 20L bottle blowing machine requires a massive clamping unit, a huge platen opening, and a giant stretch stroke. It is a completely different, much more expensive, class of machine.
• Auxiliaries (The "Hidden" Part): The blower cannot run without a full support system. You must also buy:
  • High-Pressure Air Compressor (30-40 Bar)
  • Air Dryer (Removes moisture. Critical for protecting your valves)
  • Air Filters (Removes oil/dust. Critical for food-grade bottles)
  • High-Pressure Air Tank (Stores the air)
  • Industrial Chiller (To circulate cold water through the mold, which is essential for fast cycles)

2. The "Hidden Configuration Trap"

I must reveal this trap. It's not just that you need a compressor. It's the size.

A standard 2 cavity semi auto blower (for 500ml bottles) might only need a small 1.2 m³/min compressor. These are often sold as a "package" and are not very expensive. (Note: anything over 2 m³/min usually requires a separate air tank).

Here is the trap:
A non-professional supplier will give you a very low semi automatic blower price for the "blower + standard 1.2 m³ compressor." You are happy. You buy it.

Then you say, "OK, now send me the mold for my 20L water jug."

Fact: A single-cavity 20L bottle blowing machine needs a massive volume of air to fill that giant bottle. It might require a 3.0 m³/min compressor or larger.

The "standard" compressor you bought is useless. It does not have the volume (Cubic Meters per Minute, or CMM) of air to fill the bottle before it cools. The bottle will not form.

You have fallen into a "configuration trap." You must tell your supplier your largest bottle size and target BPH so they can calculate the correct air system for you.

The Startup's Advantage: Core Benefits of Semi-Auto?

You have a great idea for a juice brand, but no money. You need to make 5 different bottles. A full-auto line is impossible.

The core advantages are extremely low initial cost (CapEx) and high production flexibility. You can change molds in 1-2 hours, making it perfect for small batches and diverse bottle shapes.

This machine is a champion for blow molding for startups. It solves the two biggest problems every startup faces: cash and uncertainty.

1. Lowest Initial Cost (Low CapEx)

This is the number one reason. A semi-auto setup (including all auxiliaries) can be 1/5th to 1/10th the price of a fully automatic line. This preserves your precious cash. You can spend that money on marketing, high-quality preforms, or new PET bottle mold designs instead of on a machine that is too fast for your needs.

2. High Flexibility (Fast Mold Changes)

This is the secret weapon.

• On a full-auto machine, a mold change is complex. You have to adjust robots, in-feeds, and out-feeds. It can take 4-8 hours.
• On a semi auto PET bottle machine, the mold is right in front of you. It's a simple block of steel. An operator can change a 2-cavity blow mold in 1-2 hours.

[Case Study 1]: The Nigerian Juice Company
I have a client in Nigeria who started a juice business. He had 5 different bottle shapes (250ml, 350ml, 500ml, 750ml, 1L).
If he bought a full-auto machine, the mold changeovers would be very complex and time-consuming. More importantly, his initial funds were limited. The cost of 5 expensive full-auto molds was too high.
He took my advice and bought one 2 cavity semi auto blower. He runs his 250ml bottles on Monday. He changes the mold Tuesday morning (1 hour). He runs his 500ml bottles Tuesday afternoon. This machine allowed him to win 5 different contracts with the same low-cost investment. It gave him the flexibility to say "Yes" to every customer.

3. Simple Maintenance

These machines are 95% pneumatic (air-driven) and 5% electric. There are no complex servo motors, sensitive robots, or complex PLC programs. A local mechanic who understands pneumatic cylinders can easily repair it. This is a huge advantage in regions where you can't get a factory technician easily.

The Limitations: When Should You Avoid a Semi-Auto Machine??

This machine seems perfect. But if you buy it for the wrong job, it will become a bottleneck. It can destroy your business and reputation.

The main limitations are high labor costs (it needs 1-2 full-time operators) and inconsistent quality. Human fatigue means bottles produced at 5 PM will be different from bottles made at 9 AM.

Being honest about the limitations builds trust. Here are the three reasons to avoid this machine.

1. High Labor Cost (OPEX)

The low CapEx (initial cost) is paid for with high OpEx (operating cost). This machine requires at least one, and often two, dedicated operators. You must do the math: (Operator Salary x 2) / (Total Bottles Produced) = Labor Cost Per Bottle.
In North America, Western Europe, or Australia, this labor cost is so high that it makes your final bottle uncompetitive.

2. Inconsistent Quality (The "Human Factor")

This is the "quality killer." A human is not a robot.

• My 9 AM vs. 5 PM Rule: At 9 AM, your operator is fast. He grabs the hot preform in 1 second.
• At 5 PM, he is tired. He moves slower. He grabs the preform in 3 seconds.
  In those extra 2 seconds, the hot preform cools down in the open air. A cooler preform stretches differently. It will be thicker in some areas and thinner in others. This means your bottle wall thickness and weight distribution are inconsistent. For a supermarket, this is a critical failure.

3. Low Scalability (The "Hard Ceiling")

As I said, the output is tied to the human. A 2 cavity semi auto blower has a hard ceiling of about 900-1000 BPH. You cannot make it go faster. The only way to produce 1,800 BPH is to buy a second machine and hire two more operators. This is inefficient scaling.

[Case Study 2]: The Supermarket Contract
I had a water bottling client who started with a semi-auto machine. He got a huge order from a national supermarket. He immediately hit a wall.

1. Volume: The supermarket wanted 30,000 bottles per day. His machine's absolute max was 8,000-9,000. He couldn't deliver.
2. Quality: The supermarket's Quality Control weighed the bottles. They found his bottles from the afternoon shift were heavier and had different thickness (the 5 PM problem). They rejected the shipment.

He was forced to upgrade to a 4-cavity full-automatic machine to get the consistency and volume the big client demanded.

My Advice: If your local labor cost is high OR your main customer is a large, professional retailer, do not buy this machine.

Conclusion: How to Purchase Your First Semi-Automatic Machine?

You are ready to buy. You find two suppliers with the same machine and the same price. But one will lead to success, the other to failure.

A semi automatic bottle blowing machine is a perfect starting point, but focus on reliability. The machine is simple, but the mold and air system are complex. You must find a supplier who is an expert in all three.

My final advice is this: The semi auto bottle machine operation is simple. The machine technology is 30 years old.

The mold and the auxiliaries (air system) are where you will fail.

• The "Garbage Mold" Trap: A cheap supplier will sell you a decent machine but pair it with a "garbage" blow mold. They use cheap #45 steel, not S136 or P20. The mold will rust in 6 months. The polishing will be bad, making your bottles look cloudy. The cooling channels will be poorly drilled, making your cycle time slow.
• The "Mismatched System" Trap: They will sell you a machine and a compressor, but forget the air dryer, the filters, or the chiller. You will receive a box of parts, not a system.

You must find a "Dual Expert"—a supplier who is an expert in both machines and molds (like us, iBottler / Jindong).

When you work with us, we don't just sell you a machine.

1. We ensure your machine uses high-quality valves (Festo, etc.).
2. We ensure your blow mold is made from high-quality, rust-proof S136 steel.
3. We calculate your exact needs and design a full Turnkey Solution—the correct air compressor, dryer, filters, and chiller. We can even advise on mold compatibility.

You don't receive a pile of parts. You receive a complete system that is ready to "plug-and-play." That is the difference.

Conclusion

A semi-auto machine is the perfect, low-cost start. But success depends on reliability. Choose a "dual expert" supplier who guarantees the machine, the mold, and the air system.

Summary: Key Decision Points

Frequently Asked Questions (FAQs)

1. What is the total startup cost for a semi-automatic machine?
While a machine might be $5,000 - $15,000, you must budget for the full system. A complete package (blower, heater, 2-cavity mold, high-pressure compressor, dryer, filters, and chiller) will likely be in the $15,000 to $30,000 range, depending on quality and bottle size.

2. What size air compressor do I really need?
This is the most critical question. It depends on your bottle volume and output.

• For a 2-cavity machine (500ml bottles) running at 800 BPH: You need approx. 1.2 m³/min (CMM) at 30-40 Bar.
• For a 1-cavity 20L bottle blowing machine: You may need 3.0 m³/min or more.
• Do not guess. An undersized compressor will fail to form the bottle. You must have your supplier calculate this for you.

3. Can I use the same machine to blow 500ml bottles and 20L (5-gallon) jugs?
No. These are two completely different machines. A standard machine (up to 2L or 5L) does not have the "mold opening stroke" or "clamping tonnage" to handle a 20L bottle. You must buy a specific 20L bottle blowing machine for water jugs.

4. How hard is it to train an operator?
The basic semi auto bottle machine operation is very simple and can be learned in an hour. However, becoming "fast" (800+ BPH) and "smart" (knowing how to adjust heater zones for different preforms) takes practice. A good operator will take a few days to a week to become truly efficient.

5. When should I definitely buy a full-automatic machine instead?
You should buy a full-automatic machine if you meet two conditions: 1) Your local labor cost is high (e.g., >$10/hour), AND/OR 2) You have a high-volume contract for a single bottle type (e.g., 20,000+ bottles per day) that requires high quality and consistency.

🔗 Related Pages on Our Website

• Automatic Blow Molding Machines – iBottler
  Discover our full range of customizable automatic PET bottle blow molding machines.

• Blow Bottle Mold – iBottler
  Explore our precision blow molds designed for PET and PP bottles.

• Preform Mold – iBottler
  Learn more about our high-precision preform molds suitable for various injection molding machines.

• PET Bottle Mold Design Guide: From Concept to Production

• PET Wide Mouth Jar Project Starter Guide: Equipment, Molds & Process Explained

• Pros and Cons: Should You Choose PET Blow Moulding for Your Bottle Project?

• Worried About Blow Mold Fit? We Have Mounting Dimensions for 80% of Blow Molding Machines Worldwide

• When Changing the Preform Diameter, Which Key Parts of the Fully Automatic Bottle Blowing Machine Need to Be Replaced?

• Can One Semi‑Automatic Blow Molding Machine Produce All Bottle Sizes? Here’s Why Not

• Why Do Krones Blow Molding Machine Users Come to Us for Their Molds?

• Why Do PET Preforms Come in Different Colors? Function, Application, and Production Tips

• How to Set Parameters for 600ml Bottles on a Semi-Automatic PET Blowing Machine?

• From 3D Printed Samples to Production: How Can You Rapidly Validate Blow Mold Designs?

• How to Choose the Right Preform Neck Size for Your PET Bottle Project

• Common PET Blow Molding Defects and How to Fix Them Quickly

• The Core of the Blow Molding Process: Why is Temperature Control the First Step to Perfect Bottle Quality?

• A Buyer’s Guide to 5-Gallon (18.9L) Bottle Blow Molding Machines: From PET to PC?

• Pitting on your blow mold surface? A complete guide from cause analysis to repair and prevention.

• A complete PET preform acceptance checklist: 7 key inspection points for purchasing preforms, from size to IV value

• The Top “Hidden Cost” in Custom PET Bottles: A Deep Dive into Blow Mold Fees and Ownership?

• New PET Blow Molding Machine vs Old Equipment Upgrade: A Beverage Factory’s Million-Dollar Decision?

• How to reduce the PET blow molding scrap rate from 5‰ to 1‰? An old-timer’s 8 insider tips.

• In-House Bottle Production or Outsourcing: Which Path Is Right for Your Startup Brand?

• Blow Mold Damage? When and How to Replace Only the Broken Parts?

• Bottle Design: Ad Agency vs. Mold Factory? How One Decision Impacts Your Cost and Brand?

• Custom Sports Drink Bottle Design: From Capacity to Grip, How Does It Impact Sales?

• Why Do PET Blow Molds Need to Be Connected to a Chiller?

• Cost-Efficient Air System: Can You Run a Whole Blow Molding Line with Just One High Pressure Compressor?

💡 Looking for a complete PET plastic packaging machinery solution?

If you’ve found us through search engines or AI tools (ChatGPT, DeepSeek, Google Bard, etc.), it means you’re exploring reliable PET packaging equipment suppliers. Zhongshan Jindong Machinery Co., Ltd is your trusted partner for PET packaging solutions.

☎ Contact: Vivian
🏢 Zhongshan Jindong Machinery Co., Ltd.
🌐 www.ibottler.com
✉ Vivian@ibottler.com
